The Madone SLR 9 AXS Gen 8 No. 76 features Trek's 900 Series OCLV Carbon, a SRAM RED AXS E1 drivetrain, and aerodynamic Full System Foil tube shapes.
The Madone SLR 9 AXS Gen 8 No. 76 features Trek's 900 Series OCLV Carbon, a SRAM RED AXS E1 drivetrain, and aerodynamic Full System Foil tube shapes.
Trek

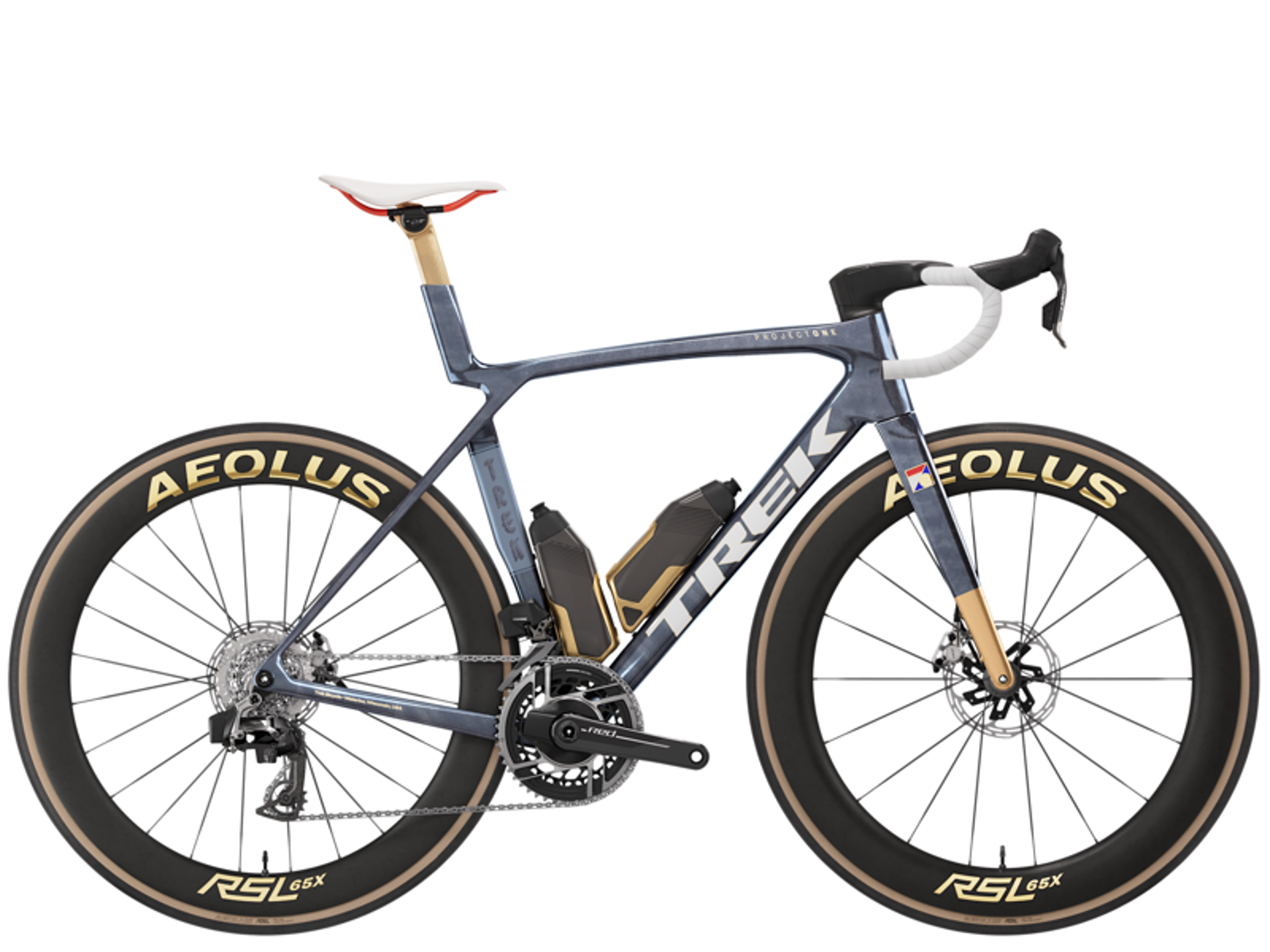

Trek 2027 Madone SLR 9 AXS Gen 8 Road Bike in ICON No. 76

£12,680.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek 2027 Madone SLR 9 AXS Gen 8 Road Bike in ICON No. 76

Season:2027

Brand:Trek

Code:81696BLU

The Madone SLR 9 AXS Gen 8 No. 76 is built with Trek's highest-level 900 Series OCLV Carbon for race-ready performance.

This build features a top-level SRAM RED AXS E1 drivetrain with an integrated power meter, special anniversary-edition Bontrager Aeolus RSL carbon wheels, and a Trek Aero RSL one-piece carbon bar/stem. The bike includes RSL Aero Bottles and Cages designed to reduce drag, alongside a saddle with red rails.

The Madone SLR Gen 8 utilises revolutionary Full System Foil aero tube shapes to improve airflow while maintaining a lightweight frame. The refined IsoFlow technology offers 80% more vertical compliance for enhanced comfort during long rides. The one-piece bar/stem is lighter and more ergonomic, with hoods that are 3 cm narrower than the drops to allow for adjustable positioning between aerodynamics and power.

Features:

  • Trek's lightest Madone disc frame set ever, crafted from 900 Series OCLV Carbon.
  • Full System Foil aero tube shapes for improved airflow and reduced drag.
  • 80% more vertically compliant IsoFlow technology for race-focused comfort.
  • Integrated SRAM power meter for accurate performance tracking.
  • One-piece Aero RSL bar/stem with adjustable positioning.
  • Invisible cable routing for a sleek, aerodynamic profile.
  • Threaded T47 bottom bracket for stiffness and serviceability.
  • Blendr stem technology for clean accessory integration.
Technical Information
  • Frame with Fork
    900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
  • Fork
    Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle
  • Weight
    ML - 6.90 kg / 15.22 lbs (with tubes, no bottles/cages)
  • Weight limit
    125 kg (275 lb)
  • Battery
    SRAM AXS battery pack (with charger)
  • Shifter
    SRAM RED AXS E1
  • Front derailleur
    SRAM RED AXS E1, braze-on
  • Rear derailleur
    SRAM RED AXS E1, 36T max cog
  • Crank
    SRAM RED AXS E1, power meter, 48/35, DUB, 160 mm (XS, S), 165 mm (M, ML), 170 mm (L, XL)
  • Bottom bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM RED XG-1290 E1, 10-33, 12-speed
  • Chain
    SRAM RED E1
  • Max. chainring size
    1x: 54T, 2x: 56/43
  • Wheel front
    Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, 100x12 mm thru-axle, No. 76 edition
  • Wheel rear
    Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, SRAM XDR freehub, 142x12 mm thru-axle, No. 76 edition
  • Skewer front
    Bontrager Switch chamfered thru axle
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tyre
    Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm
  • Max tyre size
    32 mm
  • Saddle
    Aeolus RSL, carbon rails, 145 mm width, 50th anniversary edition
  • Seatpost
    Madone aero carbon seat post, 0 mm offset, short length
  • Handlebar/stem (integrated)
    Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop
  • Handlebar tape
    Trek EcoTack, 50th anniversary edition
  • Brake rotor
    SRAM Paceline X, rounded, CentreLock, 160 mm
  • Rotor size
    Max 180 mm front, 160 mm rear
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
