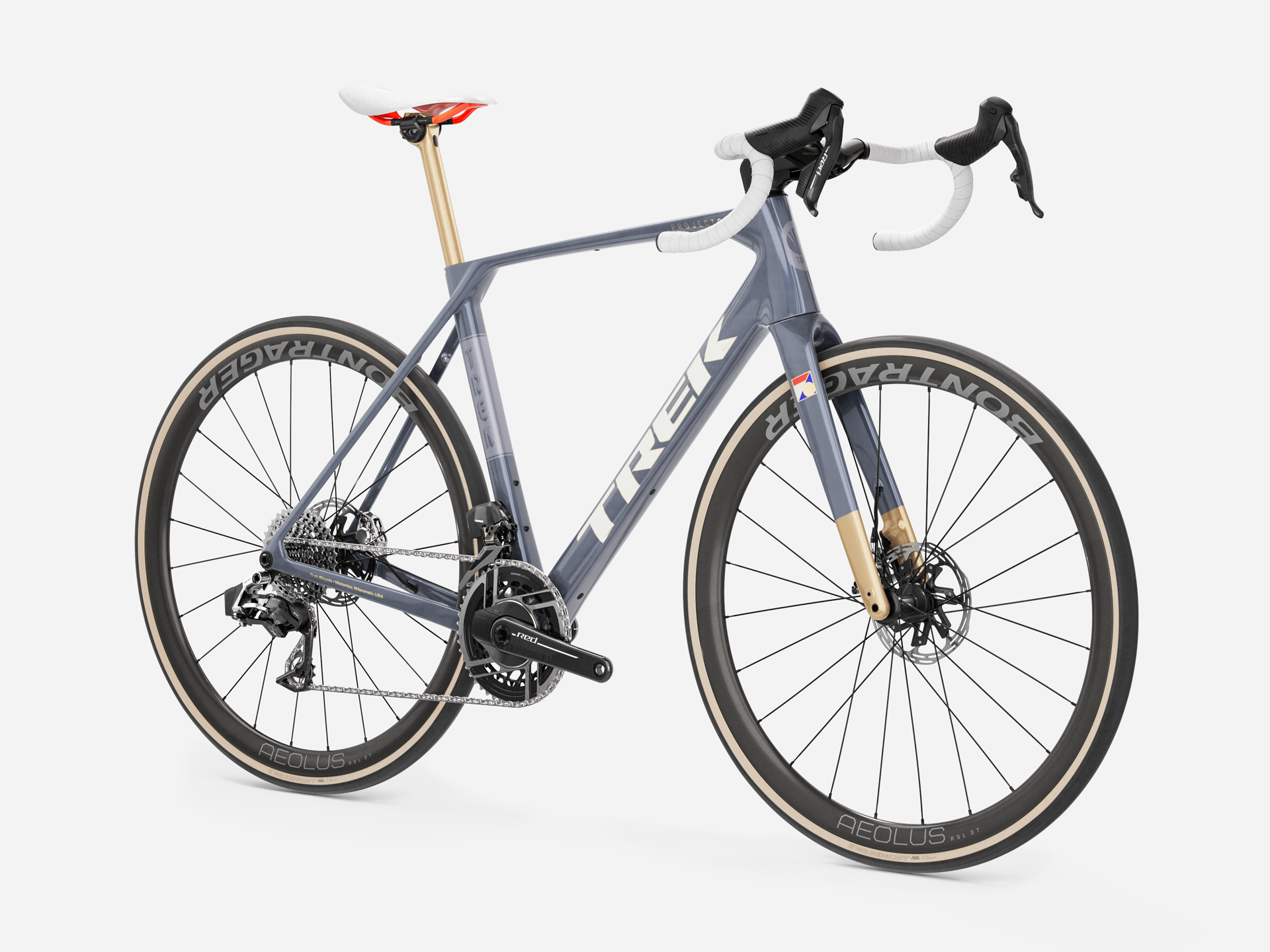

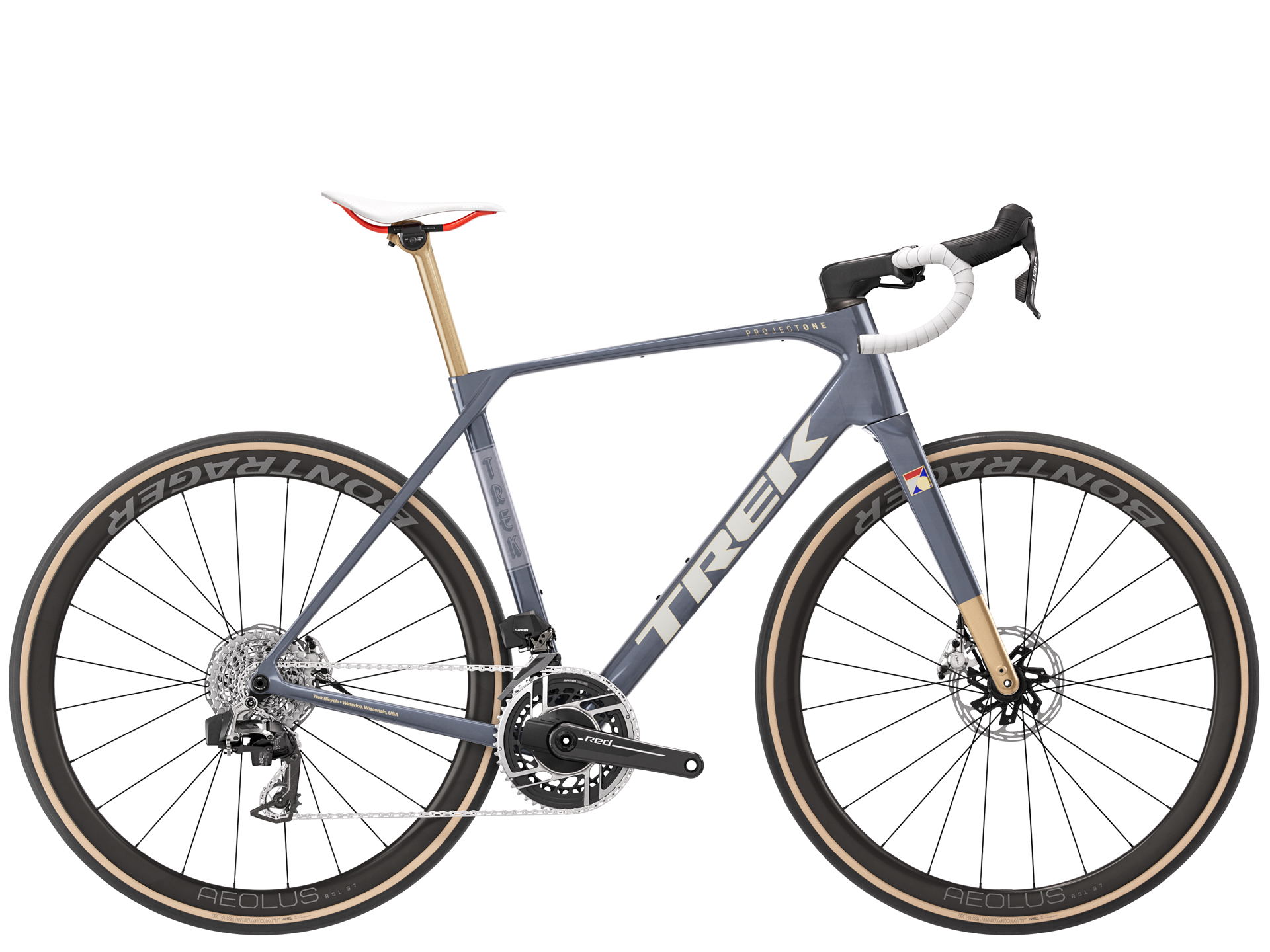

SLR9 AXS
Frame
900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Weight
Weight
ML - 7.19 kg / 15.86 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
Battery
SRAM AXS battery pack (with charger)

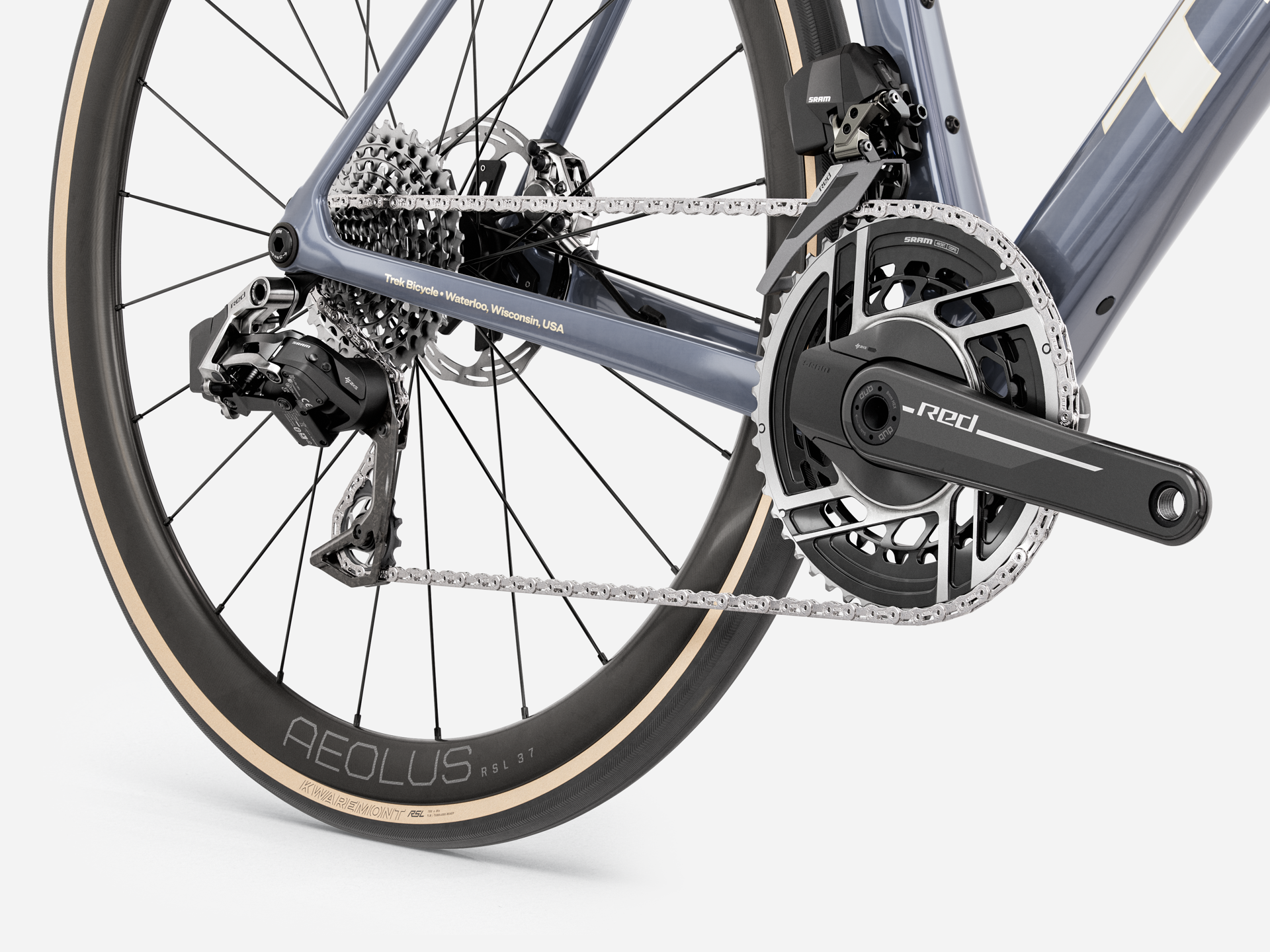

Drivetrain
Shifter
SRAM RED AXS E1
Front derailleur
SRAM RED AXS E1, braze-on
Rear derailleur
SRAM RED AXS E1, 36T max cog
*Crank
Size: XS, S
SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length
Size: M, ML
SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length
Size: L, XL
SRAM RED AXS E1, power meter, 48/35, DUB, 172.5 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM RED XG-1290 E1, 10-36, 12-speed
Chain
SRAM RED E1, 12/13-speed
Max. chainring size
See service manual
Wheels
Wheel front
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Wheel rear
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm
Tube
Pirelli P Zero SmarTube, TPU
Max tyre size
40 mm (as measured, see manual for details)

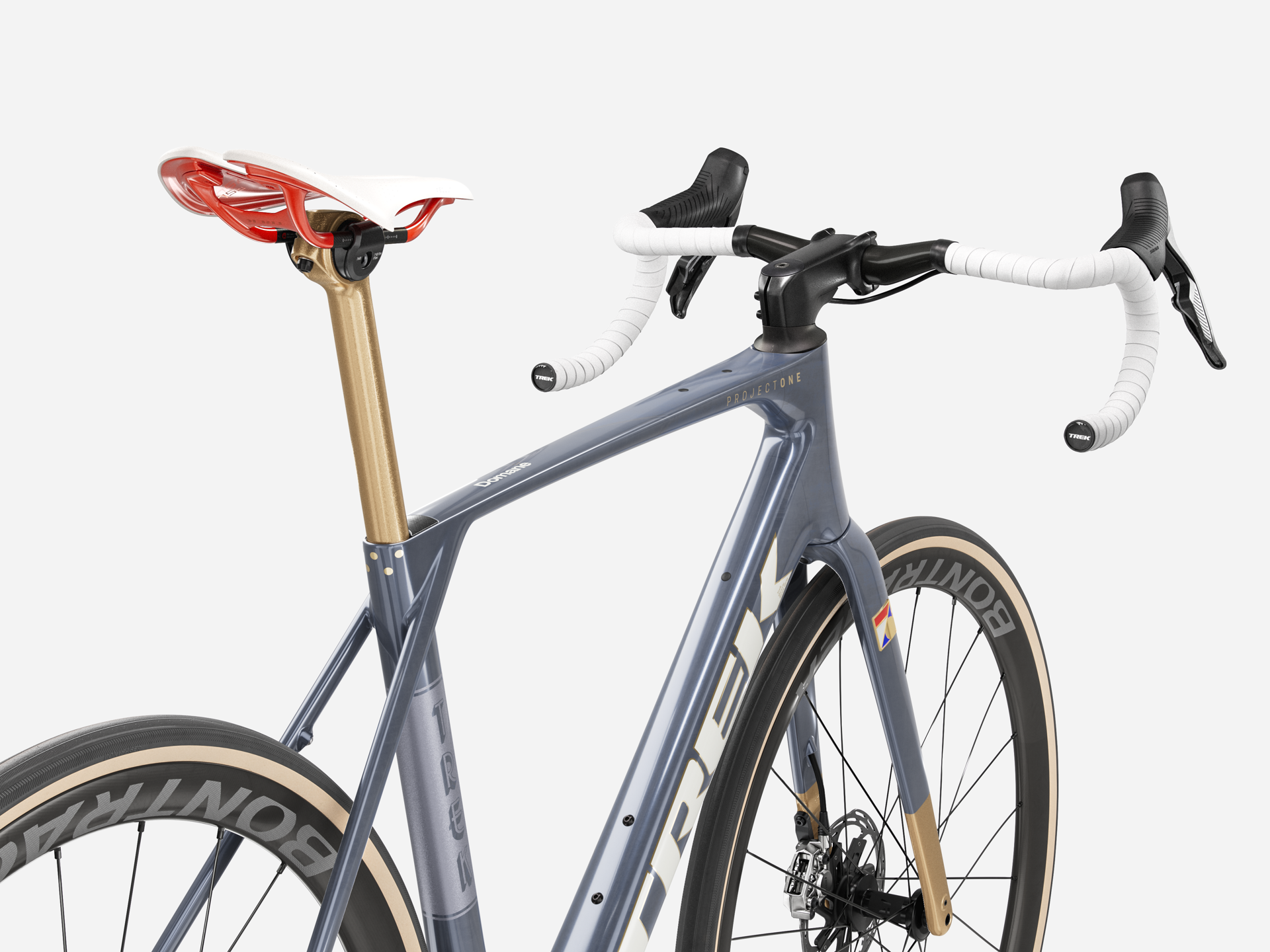

Components
Saddle
Aeolus RSL, carbon rails, 145 mm width, 50th anniversary edition
Seatpost
Bontrager RSL carbon, 27.2mm, 5mm offset

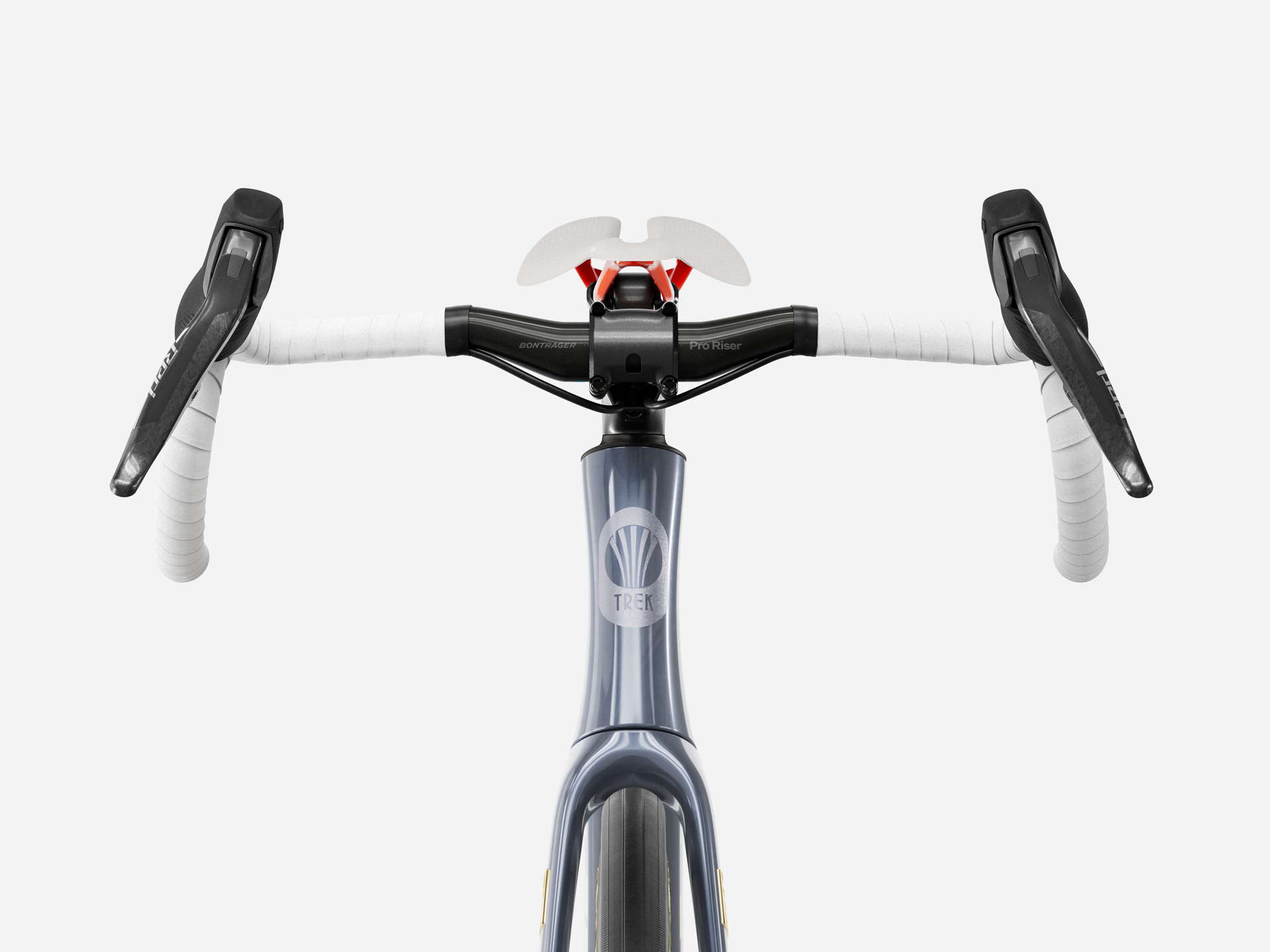

*Handlebar
Size: XS
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 36cm width
Size: S
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 38cm width
Size: M, ML
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 40cm width
Size: L, XL
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 42cm width
*Stem
Size: XS
Trek RCS Pro, -7-degree, 80 mm length
Size: S
Trek RCS Pro, -7-degree, 90 mm length
Size: M
Trek RCS Pro, -7-degree, 100 mm length
Size: ML, L
Trek RCS Pro, -7-degree, 110 mm length
Size: XL
Trek RCS, -7 degree, 120 mm length
Brake rotor
SRAM Paceline X, rounded, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear
