Frame Size
S, XL, XS, L, M, ML
-
Frame

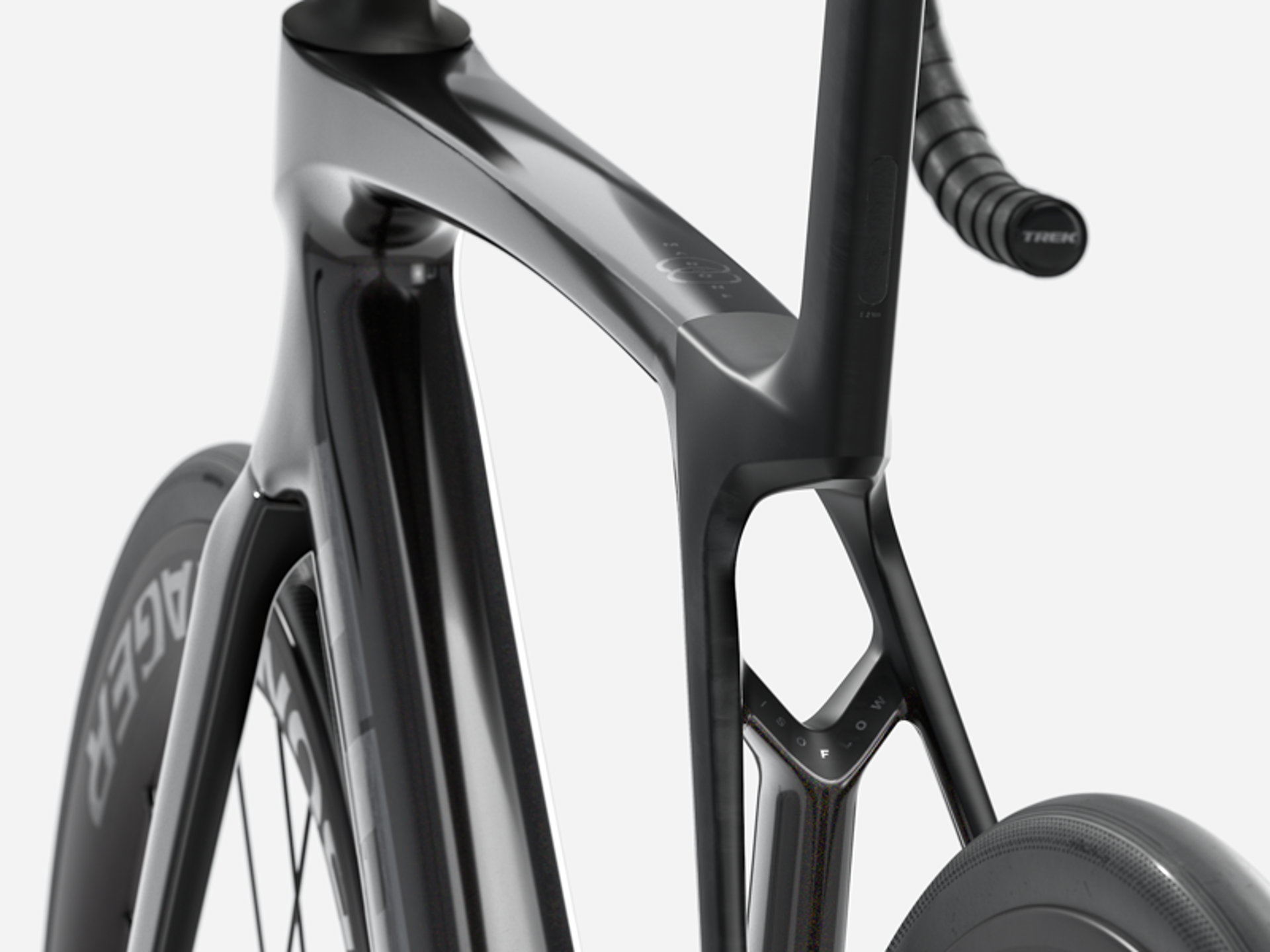

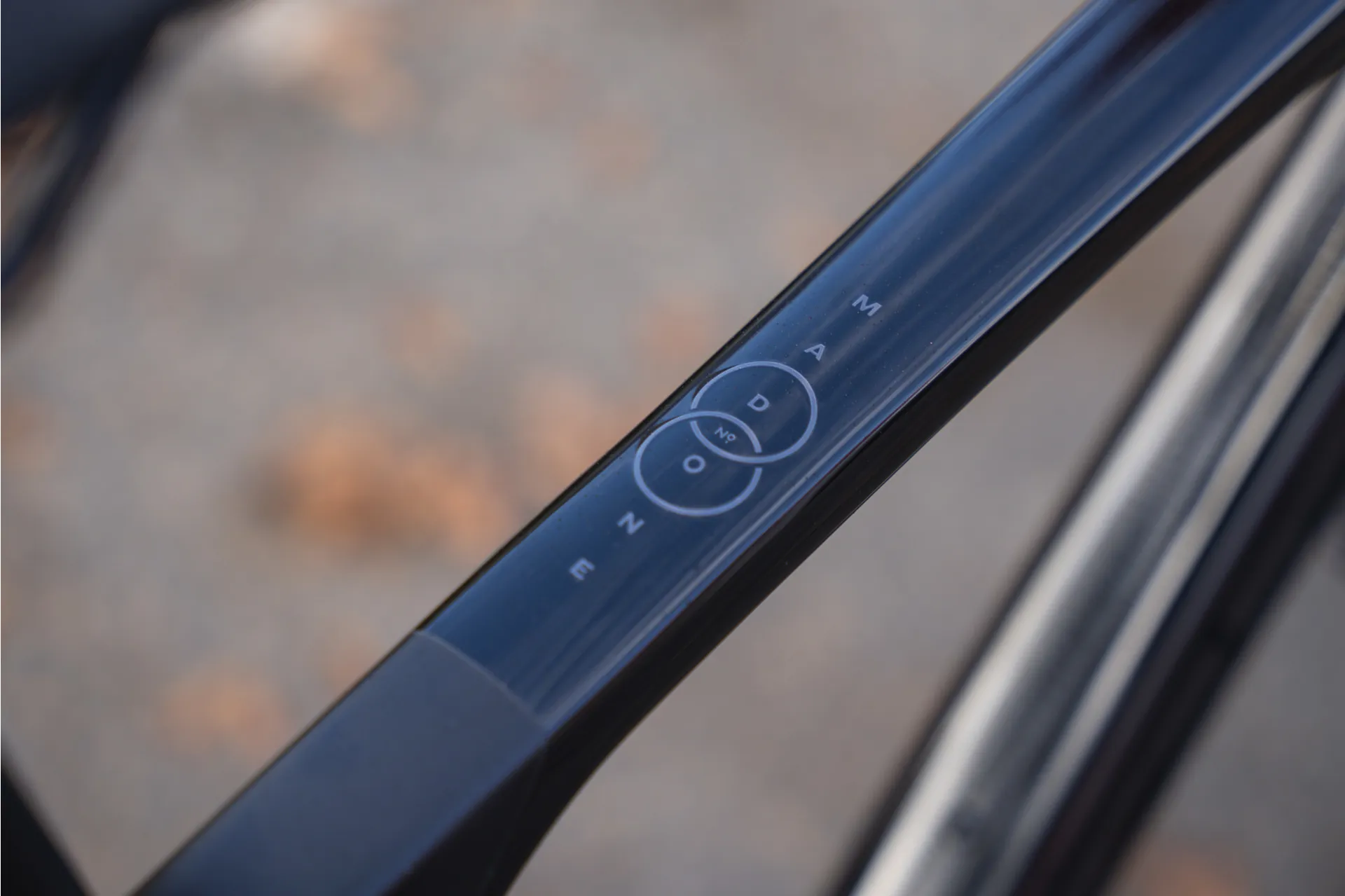

500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
-
Fork Size
S, XL, XS, L, M, ML
-
Fork
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
-
Front Derailleur Size
S, XL, XS, L, M, ML
-
Front Derailleur
Shimano 105 R7150 Di2, braze-on, down swing
-
Rear Derailleur Size
S, XL, XS, L, M, ML
-
Rear Derailleur
Shimano 105 R7150 Di2, 36T max cog
-

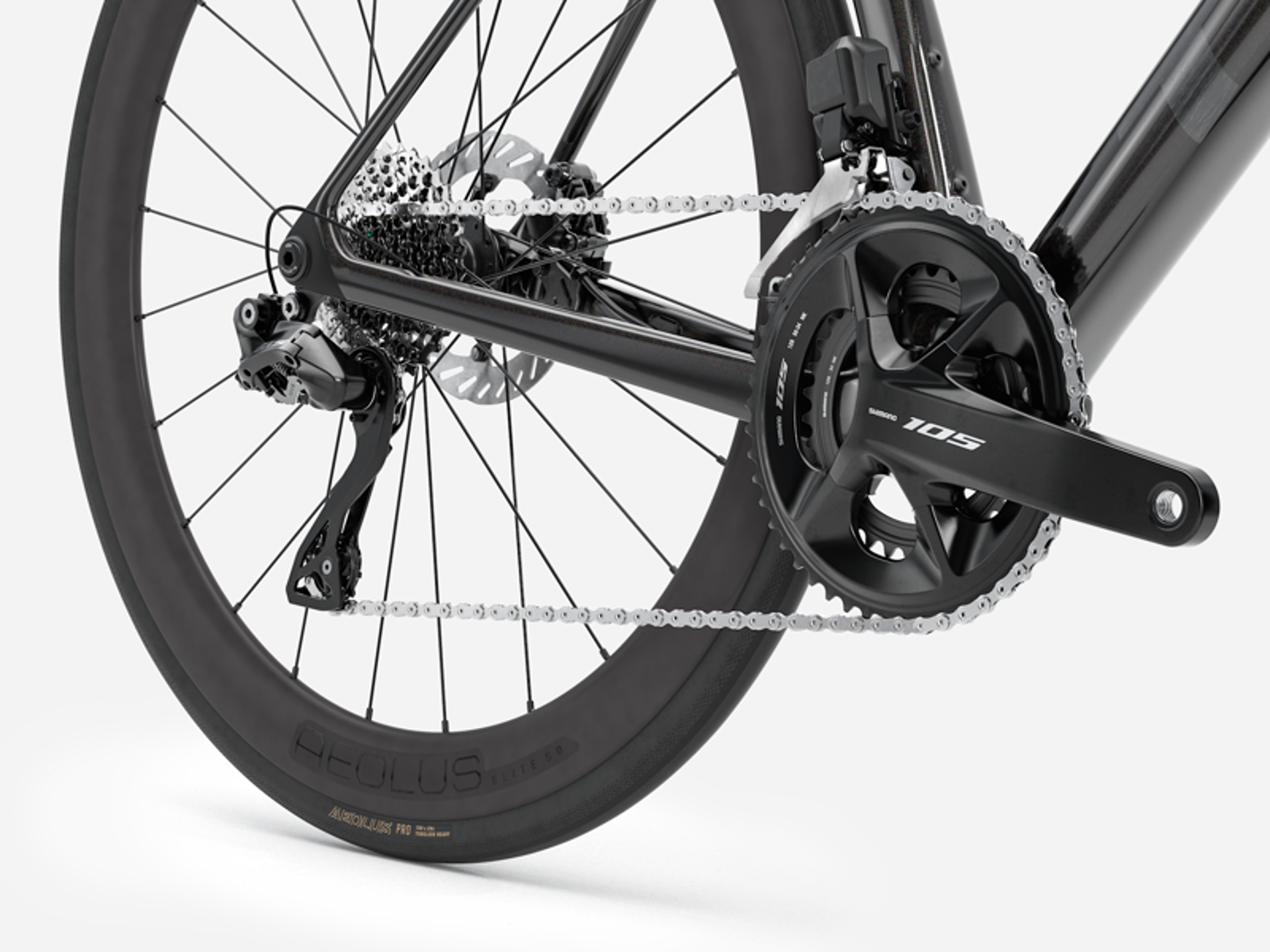

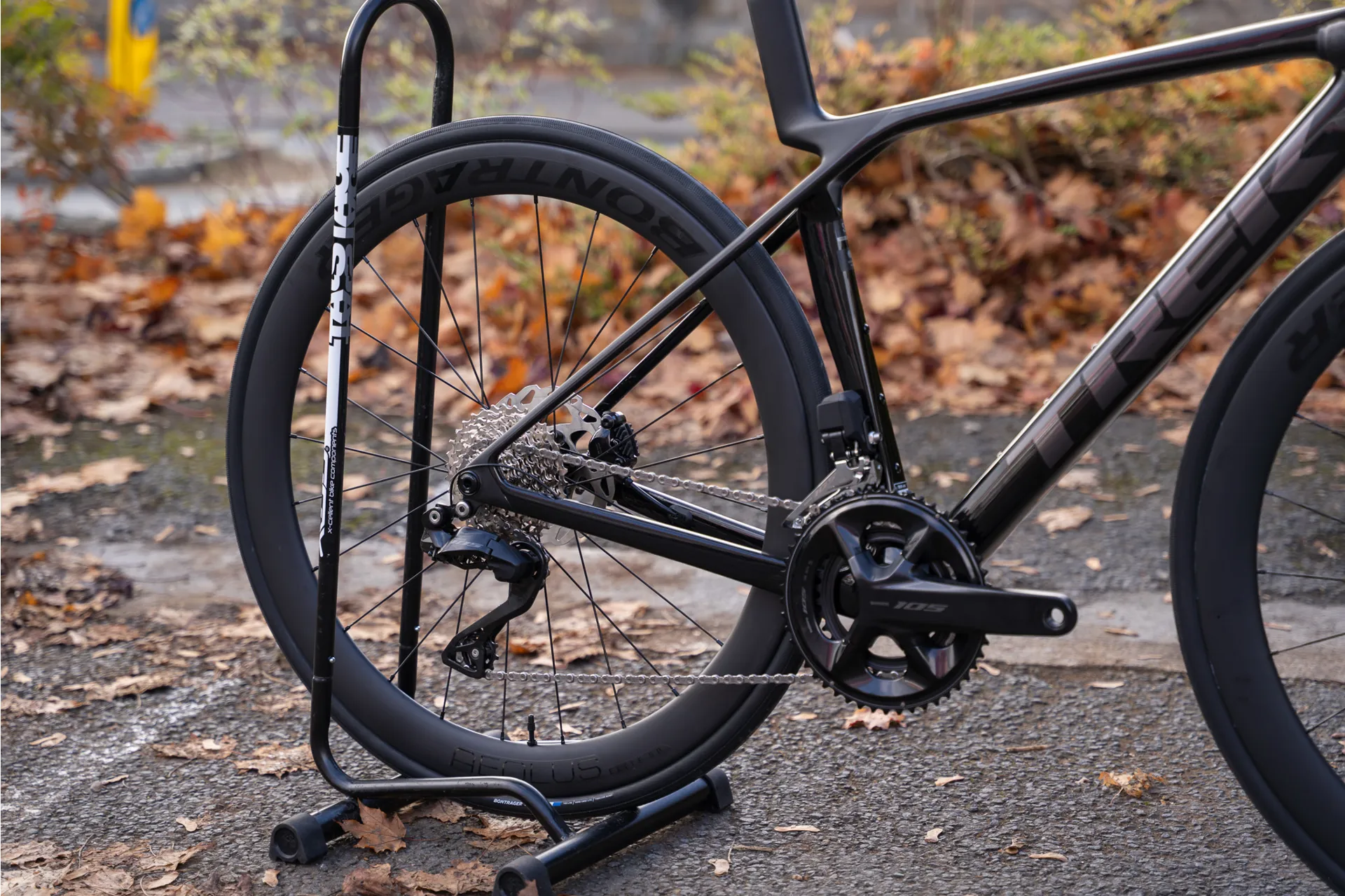

Crank
S, XS: Shimano 105 R7100, 50/34, 165 mm length; M, ML: Shimano 105 R7100, 50/34, 170 mm length; XL, L: Shimano 105 R7100, 50/34, 172.5 mm length
-
Bottom Bracket Size
S, XL, XS, L, M, ML
-
Bottom Bracket
Praxis, T47 threaded, internal bearing
-
Cassette Size
S, XL, XS, L, M, ML
-
Cassette
Shimano 105 7101, 11-34, 12-speed
-
Chain Size
S, XL, XS, L, M, ML
-
Chain
Shimano SLX M7100, 12-speed
-
Max. chainring size
1x: 54T, 2x: 56/43
-
Front Wheel Size
S, XL, XS, L, M, ML
-
Front Wheel
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
-
Rear Wheel Size
S, XL, XS, L, M, ML
-
Rear Wheel
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
-
Front Skewer Size
S, XL, XS, L, M, ML
-
Front Skewer
Bontrager Switch chamfered thru axle, removable lever
-
Rear Skewer Size
S, XL, XS, L, M, ML
-
Rear Skewer
Bontrager Switch chamfered thru axle, removable lever
-
Tire Size
S, XL, XS, L, M, ML
-

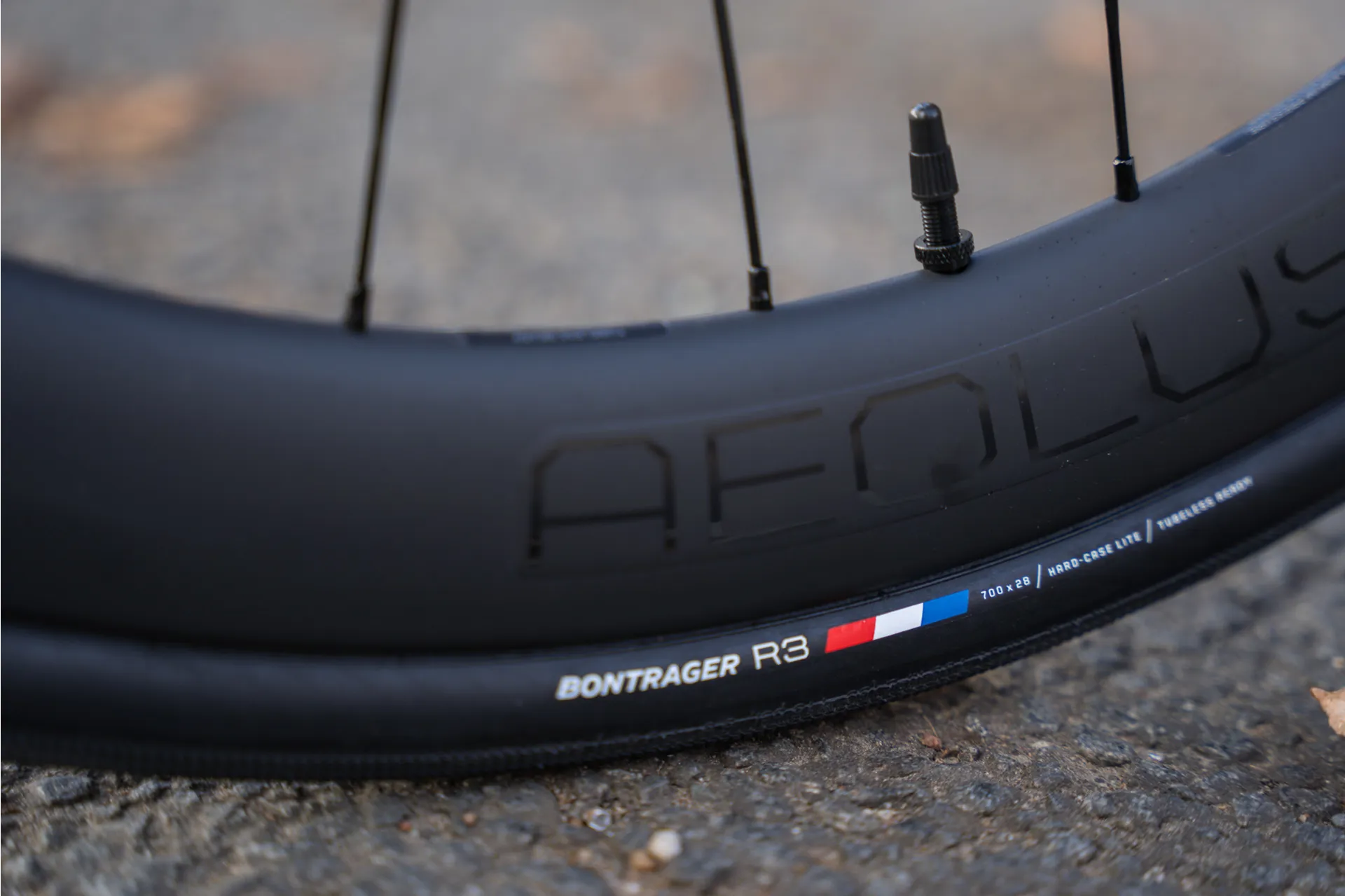

Tire
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
-
Rim Strip Size
S, XL, XS, L, M, ML
-
Rim Strip
Bontrager TLR
-
Max tyre size
32 mm (as measured, see manual for details)
-
Saddle Size
S, XL, XS, L, M, ML
-

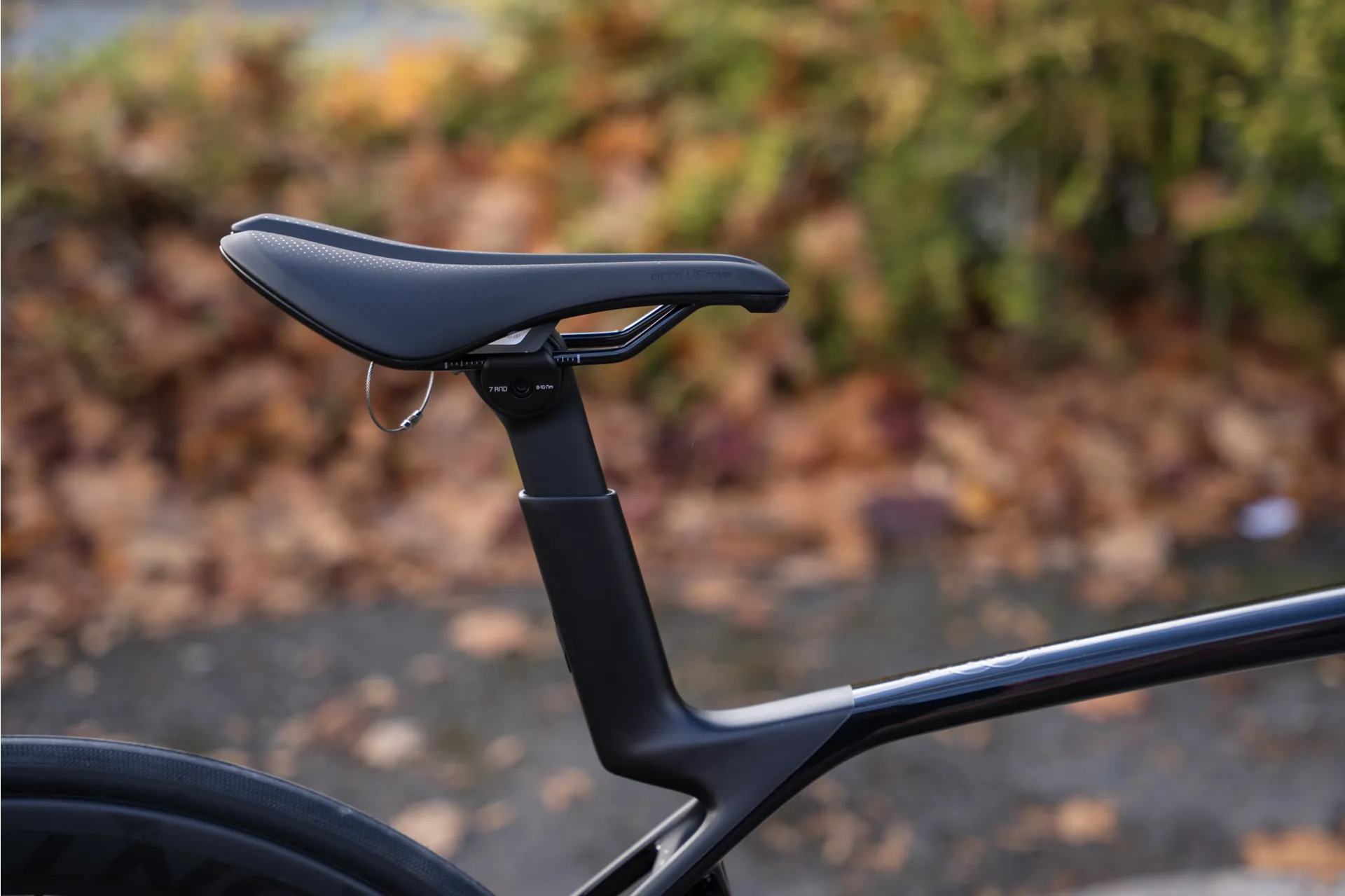

Saddle
Bontrager Aeolus Elite, austenite rails, 145 mm width
-
Seatpost Size
S, XL, XS, L, M, ML
-
Seatpost
Madone aero carbon seat post, 0 mm offset, short length
-

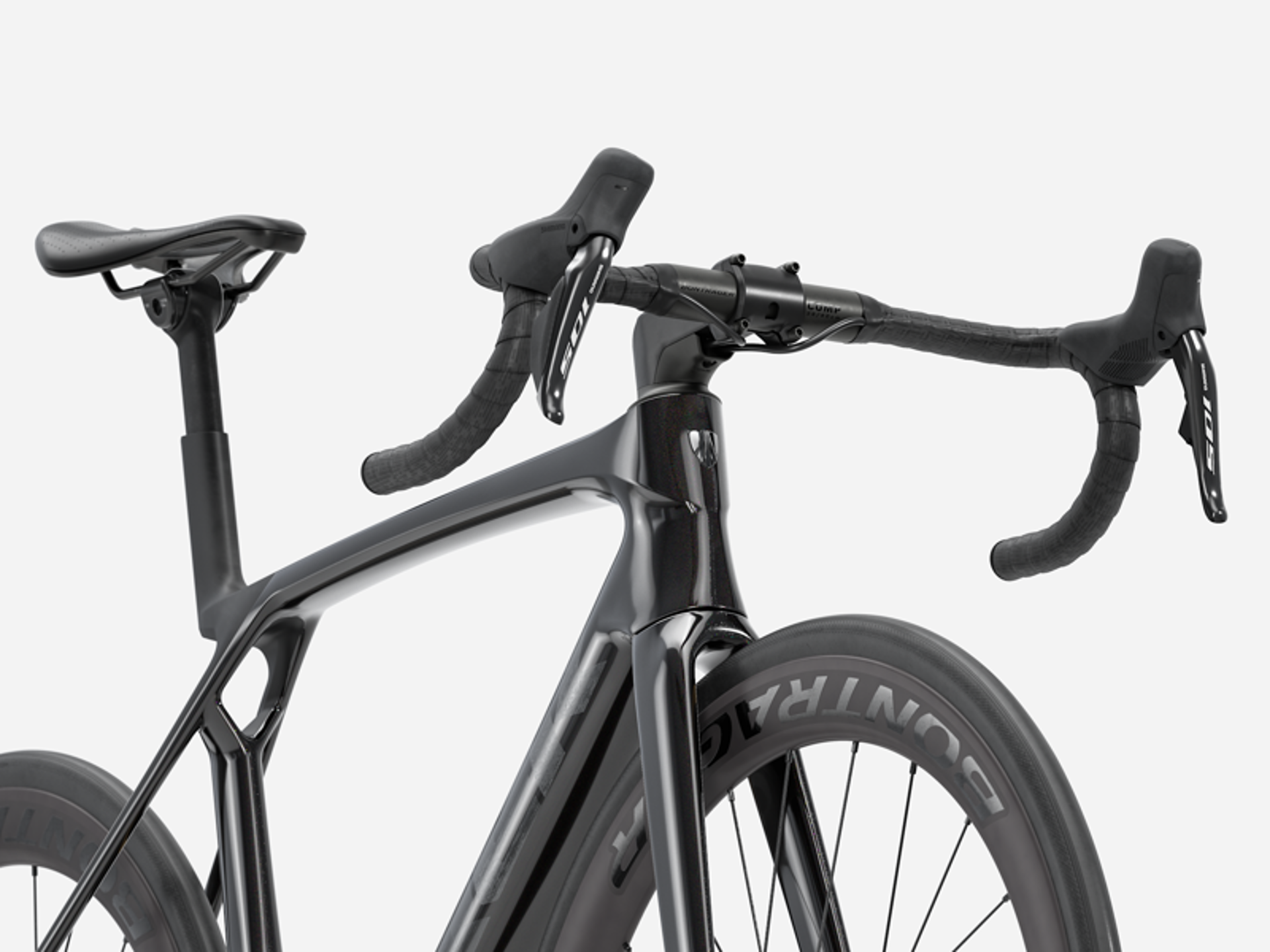

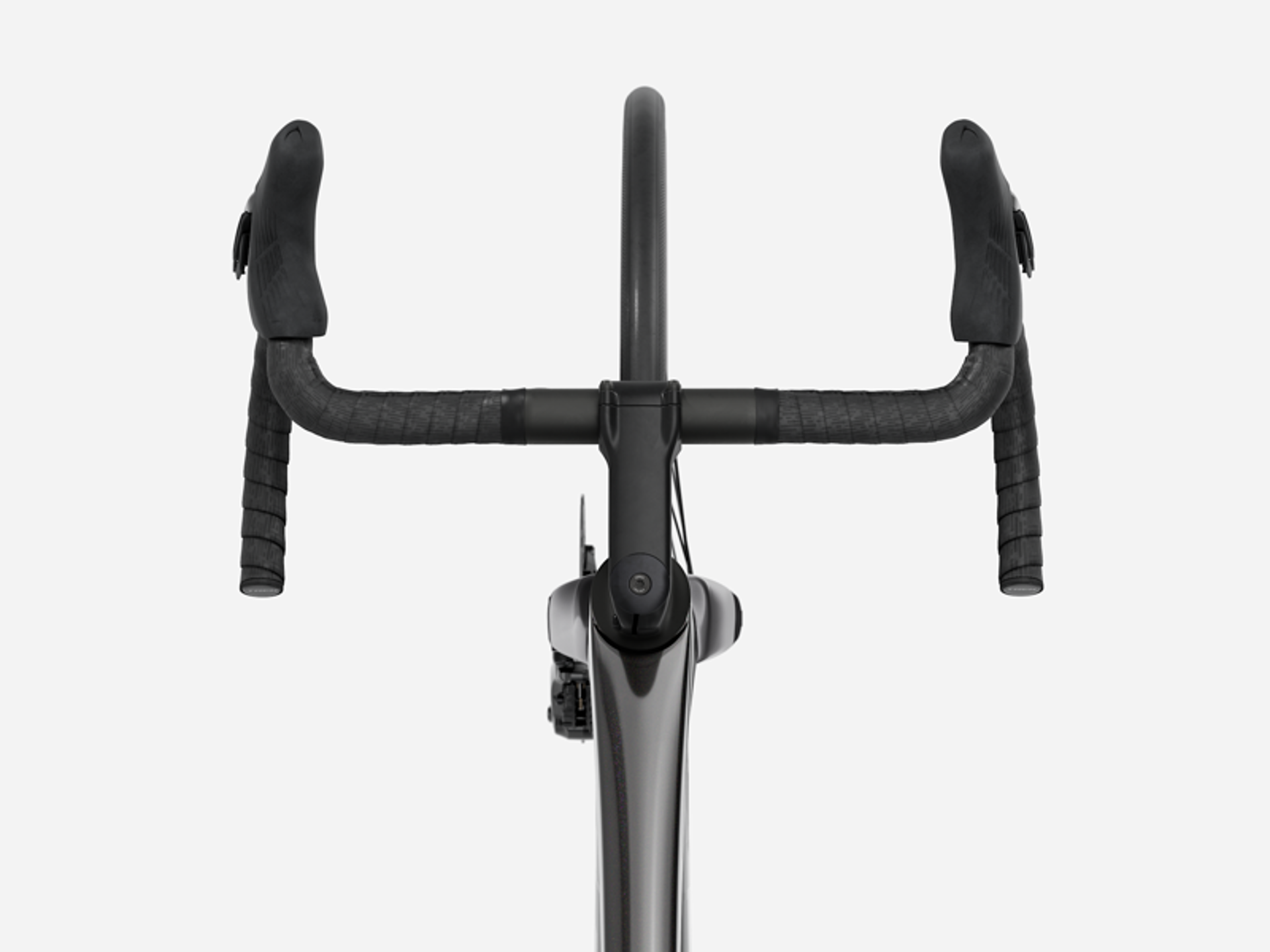

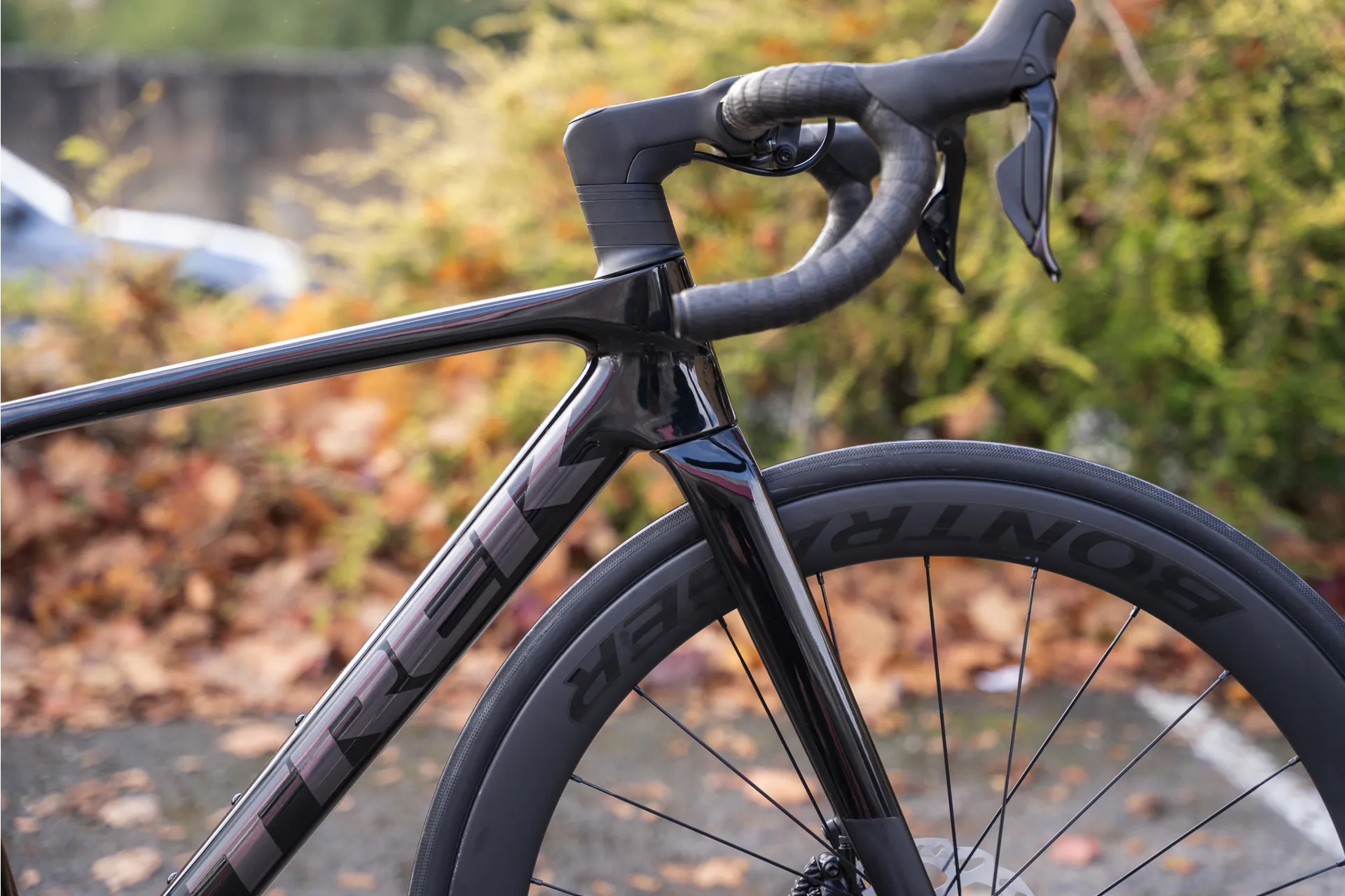

Handlebar
XS: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width; S, M: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width; L, ML: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width; XL: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
-
Handlebar Tape Size
S, XL, XS, L, M, ML
-
Handlebar Tape
Trek EcoTack
-

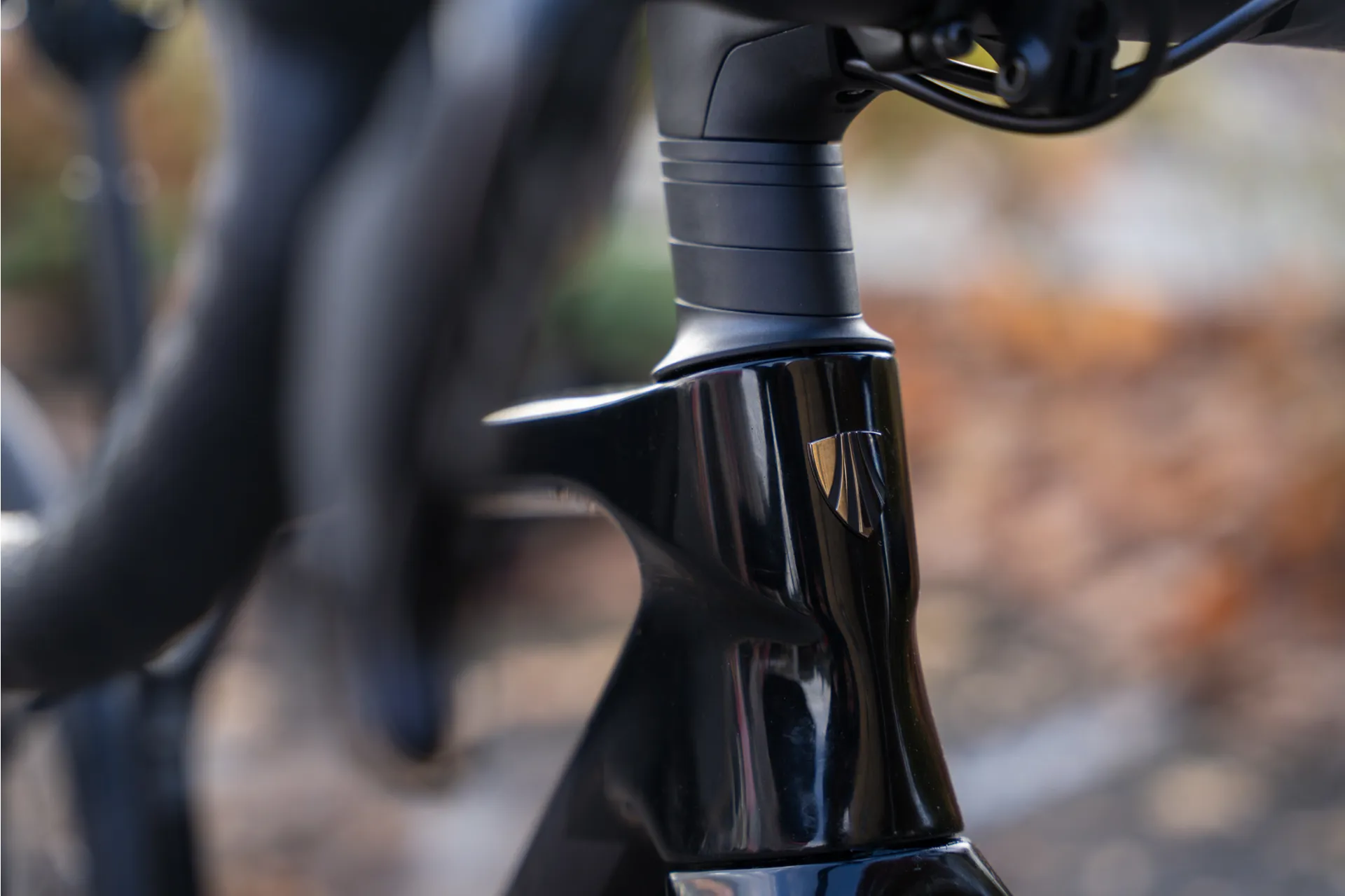

Stem
XS: Trek RCS Pro, -7-degree, 80 mm length; S, M: Trek RCS Pro, -7-degree, 90 mm length; L, ML: Trek RCS Pro, -7-degree, 100 mm length; XL: Trek RCS Pro, -7-degree, 110 mm length
-

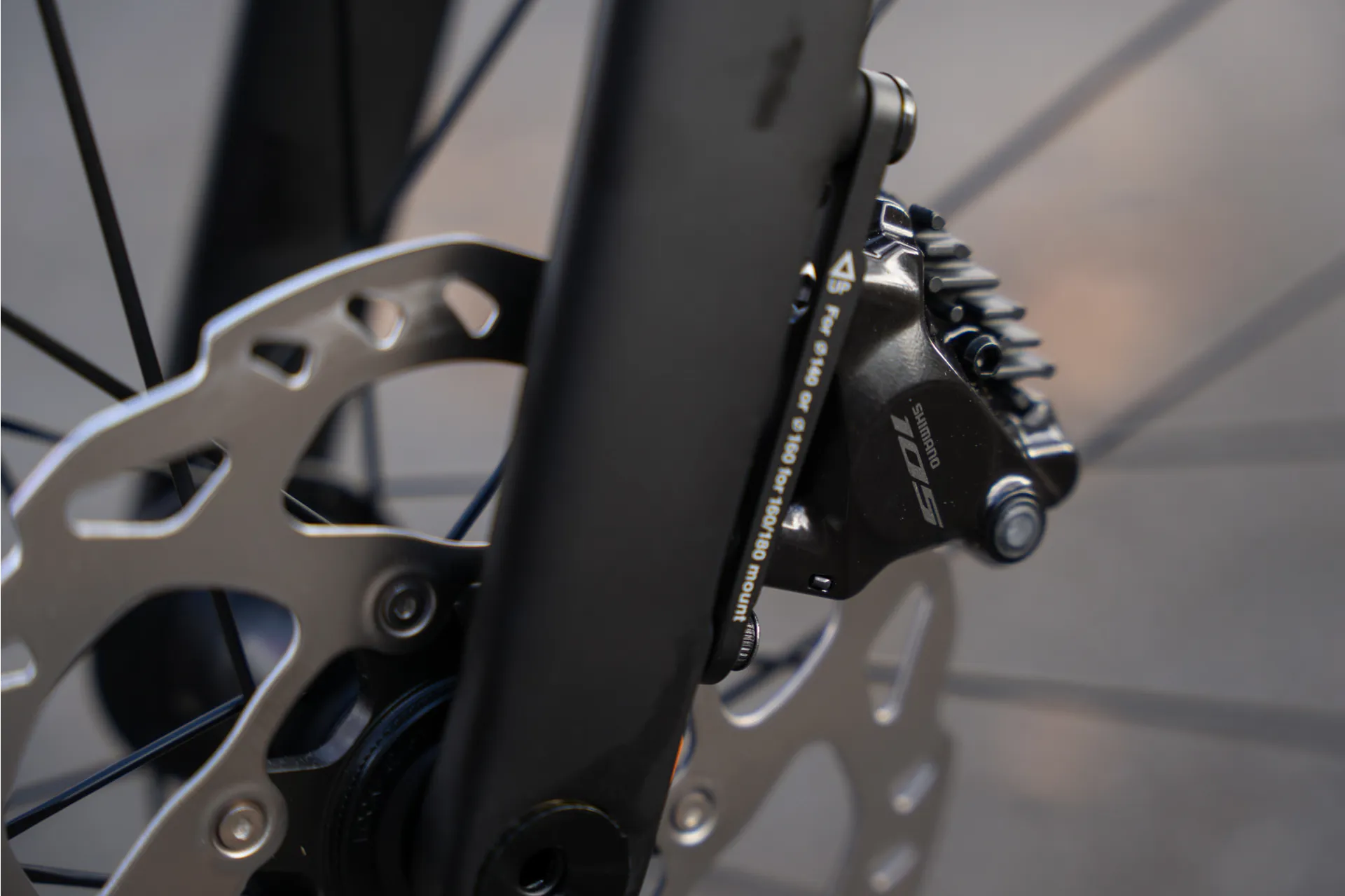

Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear
