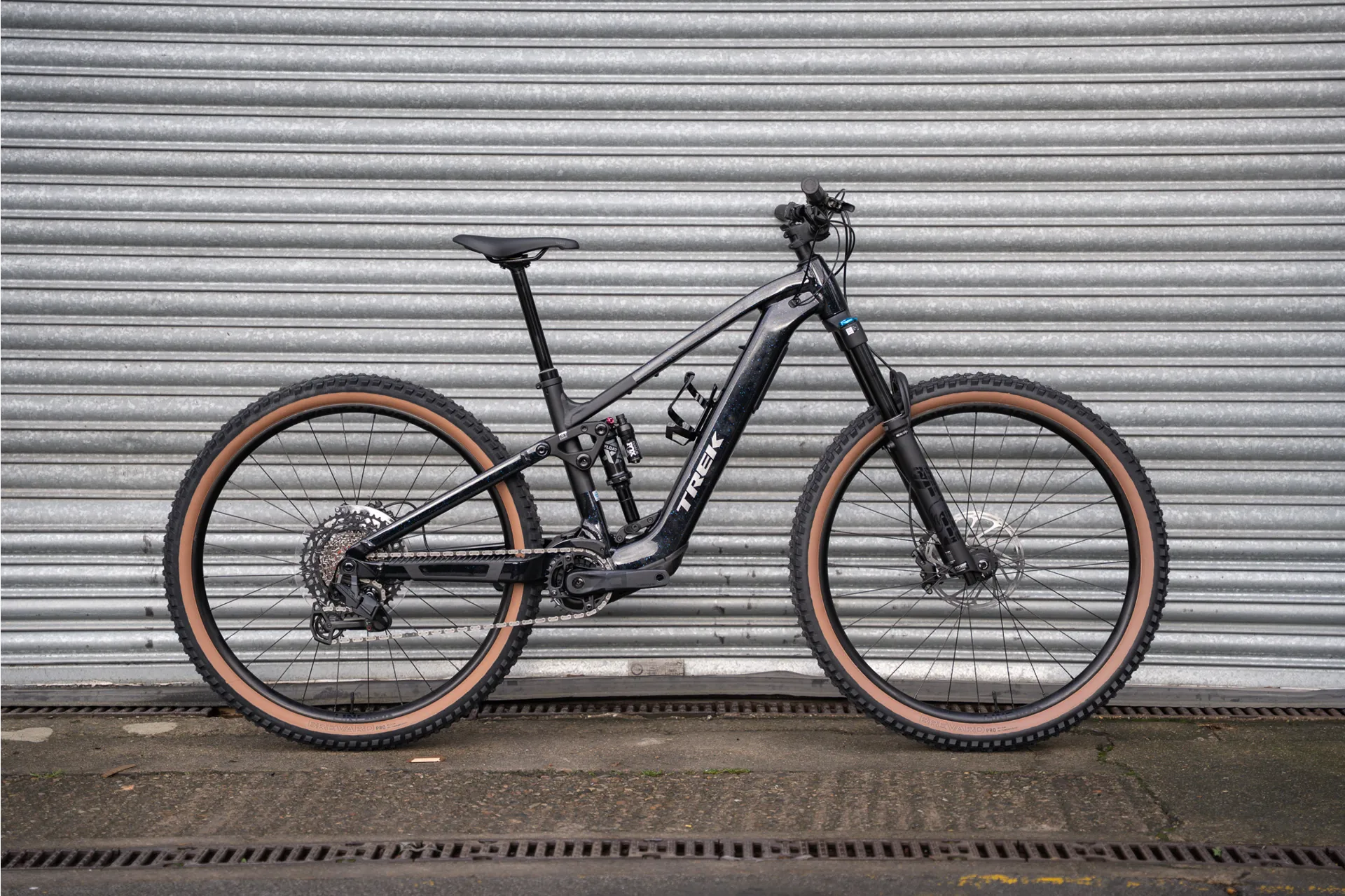

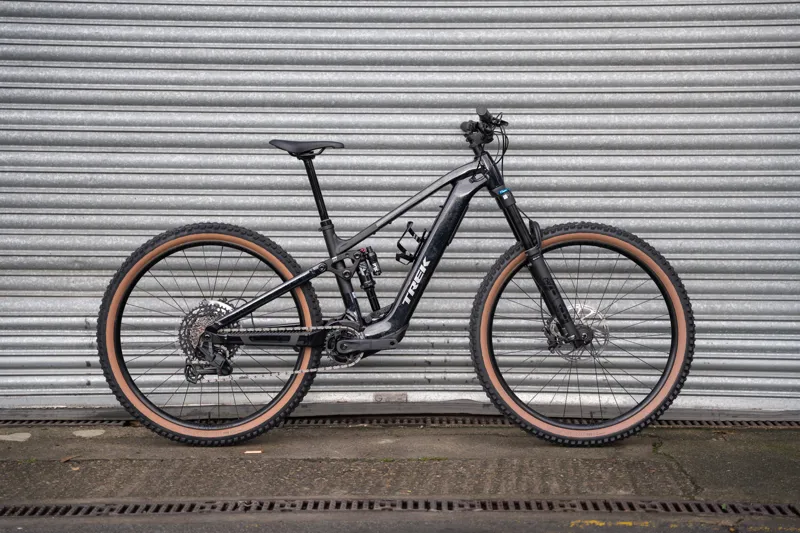

The Fuel+ EX 8 is a quiet and composed electric mountain bike built for tackling any trail, featuring an Alpha NEXT Platinum aluminium frame and TQ's HPR-60 motor.
The Fuel+ EX 8 is a quiet and composed electric mountain bike built for tackling any trail, featuring an Alpha NEXT Platinum aluminium frame and TQ's HPR-60 motor.
Trek

Trek Fuel+ EX 8 Gen 2 E-Mountain Bike in Trek Black/Purple Flip Splatter

£5,000.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Trek Fuel+ EX 8 Gen 2 E-Mountain Bike in Trek Black/Purple Flip Splatter

Season:2026

Brand:Trek

Code:56302BLK

The Fuel+ EX 8 is a quiet and composed electric mountain bike built for tackling any trail.

It all starts out with an Alpha NEXT Platinum aluminium frame that gives you a smooth boost thanks to TQ's HPR-60 motor. A Fox Performance suspension package (145 mm rear, 150 mm front) keeps handling confident in the rough, while SRAM's Eagle 70 transmission delivers the smooth-shifting advantage of T-Type at a pocket-friendly price. It is all wrapped up with 4-piston SRAM DB 8 hydraulic disc brakes for stopping power on the steeps.

The Fuel+ features a new frame design that gives you loads of room for range extenders, long dropper posts, bigger shocks, and frame bags. The TQ HPR60 motor delivers more power and torque than before, and kicks in at a lower cadence so you feel the boost earlier. Plus, a 580 Wh battery gives you more efficient power for your longest rides yet.

Only you can define your perfect trail bike, which is why Fuel is available in three adjustability-packed configurations: EX for do-it-all capability, MX for pop-happy riding, or LX for charging through it all.

Features:

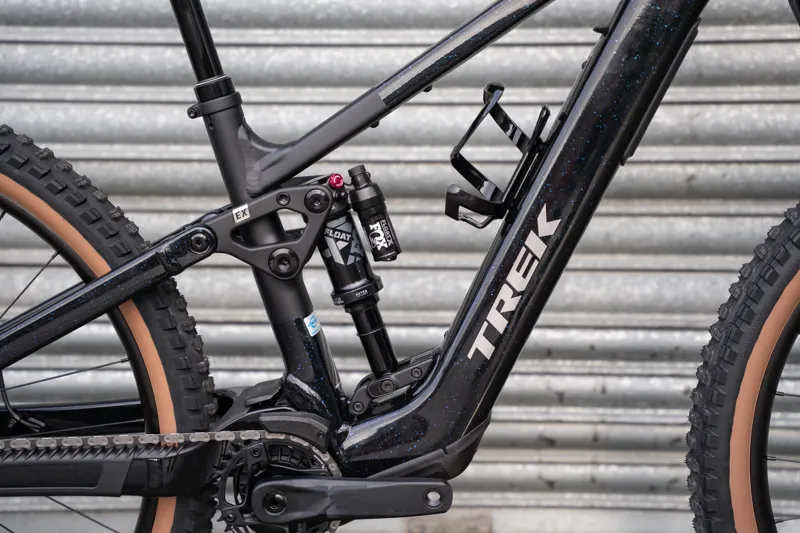

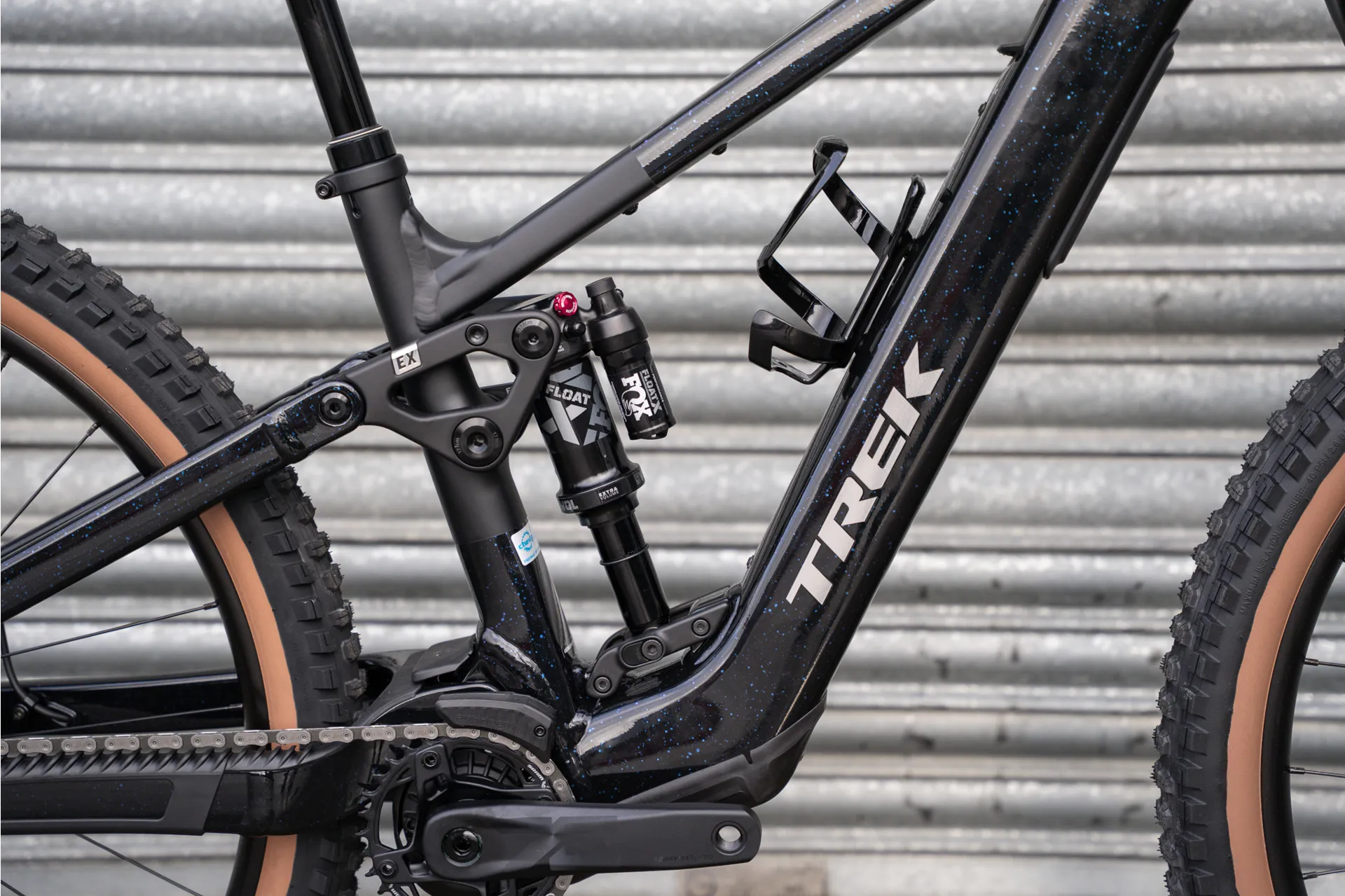

  • Adjustable leverage rate: Flip the chip in the lower shock mount for a more progressive leverage rate, offering more bottom-out resistance without giving up small-bump sensitivity.
  • Zero stack integrated headset: With a ZS standard headset, you have options for aftermarket upgrades, including angle adjust.
  • Active Braking Pivot: Allows engineers to tune how the suspension reacts to acceleration and braking forces independently, providing more confident control when you need it most.

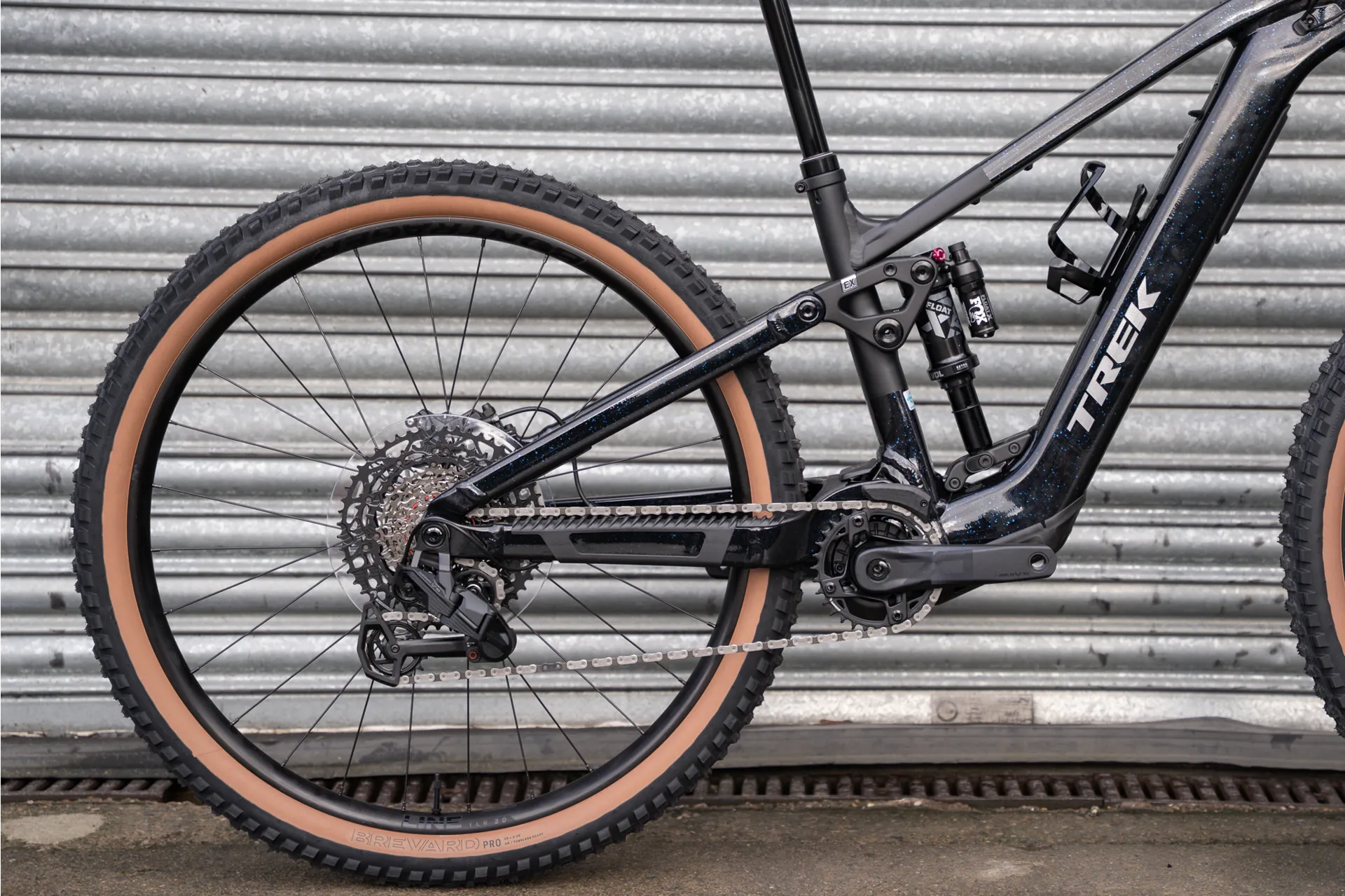

  • Transition to transmission: The SRAM Eagle T-Type transmission mounts directly to the frame, making for a more robust system that is more precise under load and easier to set up.
  • Low-emission aluminium: Starting in 2024, Trek began removing high-emission aluminium from manufacturing and replacing it with low-emission aluminium made with renewable energy.
Technical Information

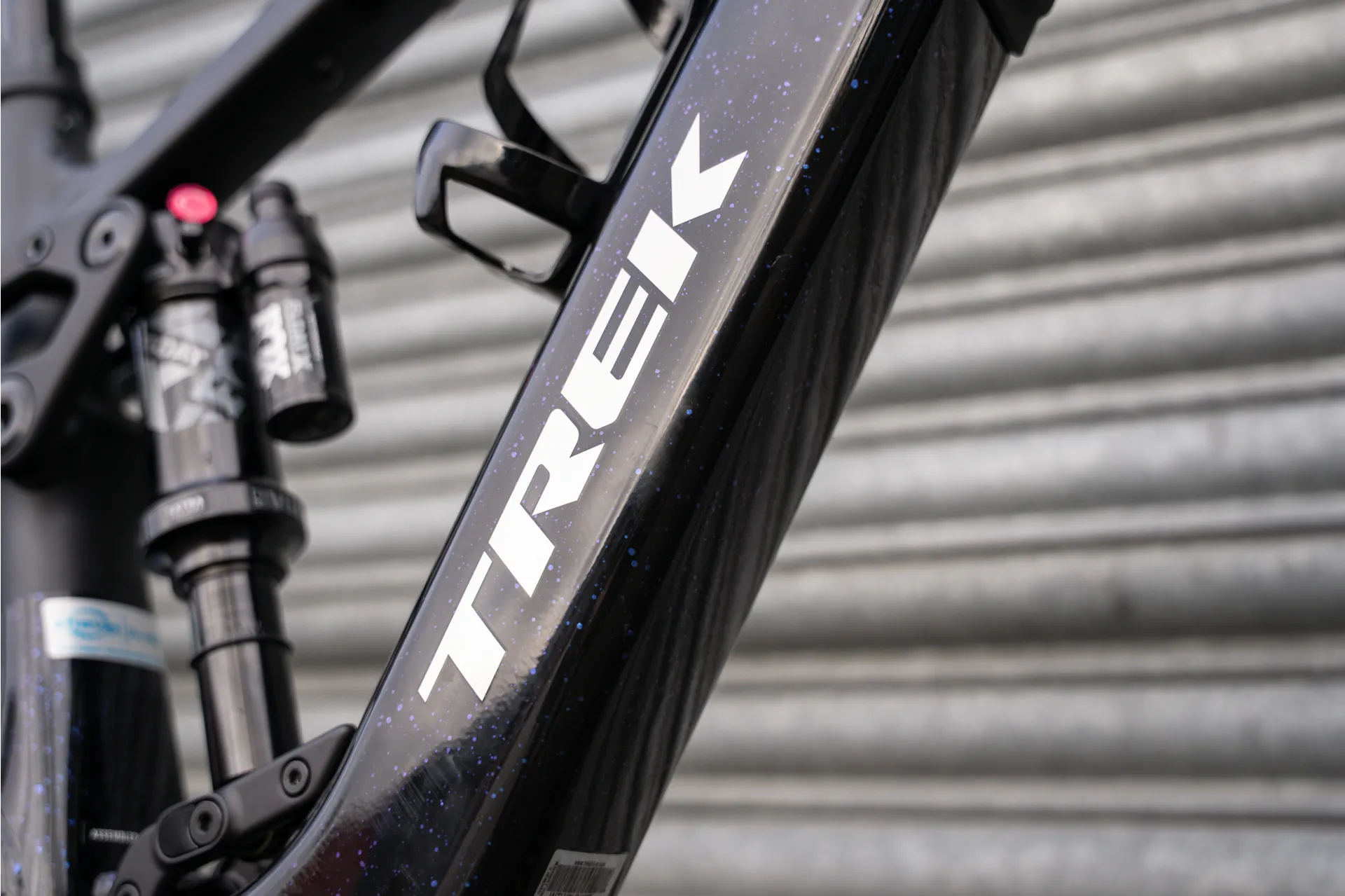

  • Frame
    Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
  • Fork
    Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel

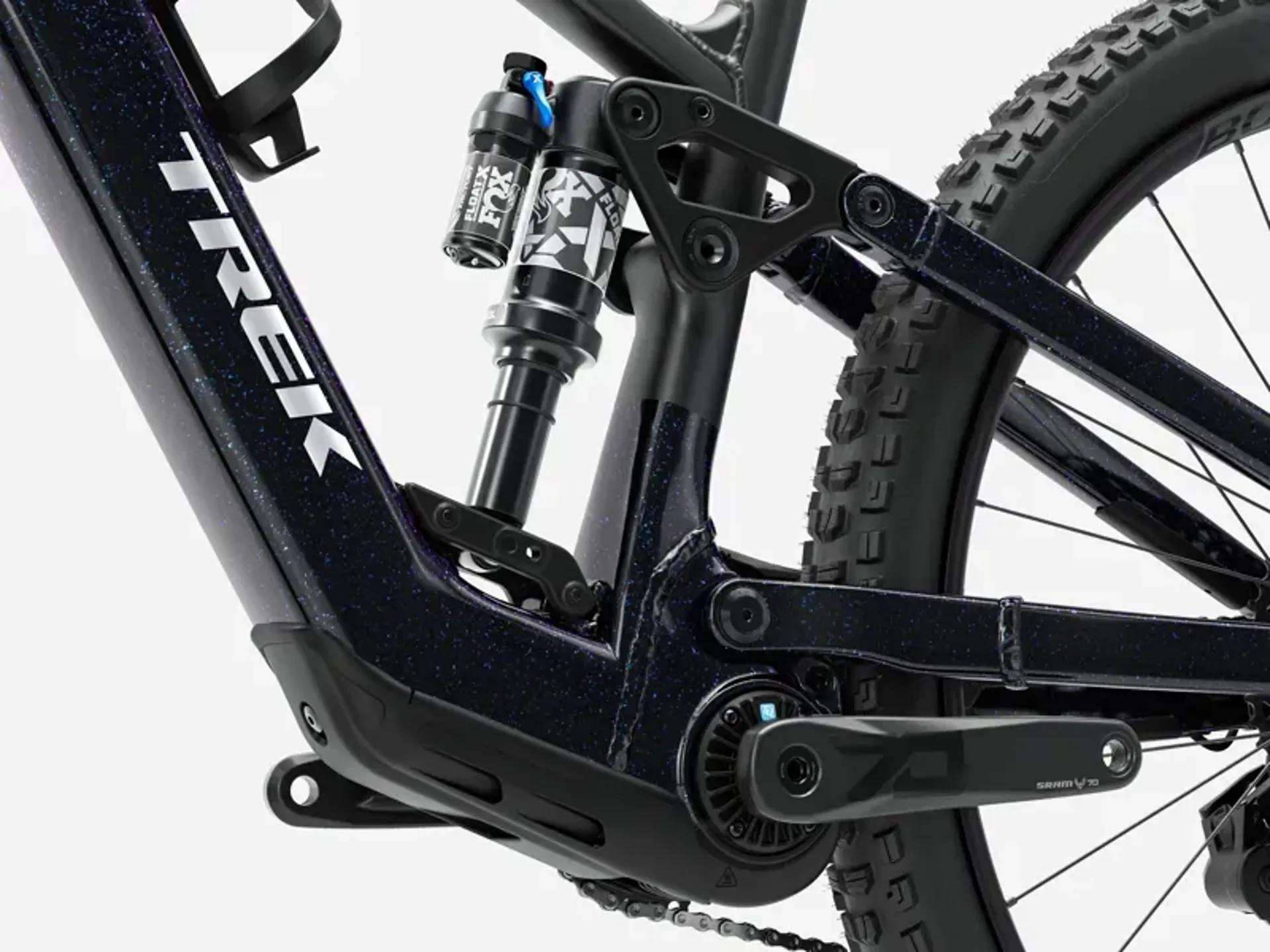

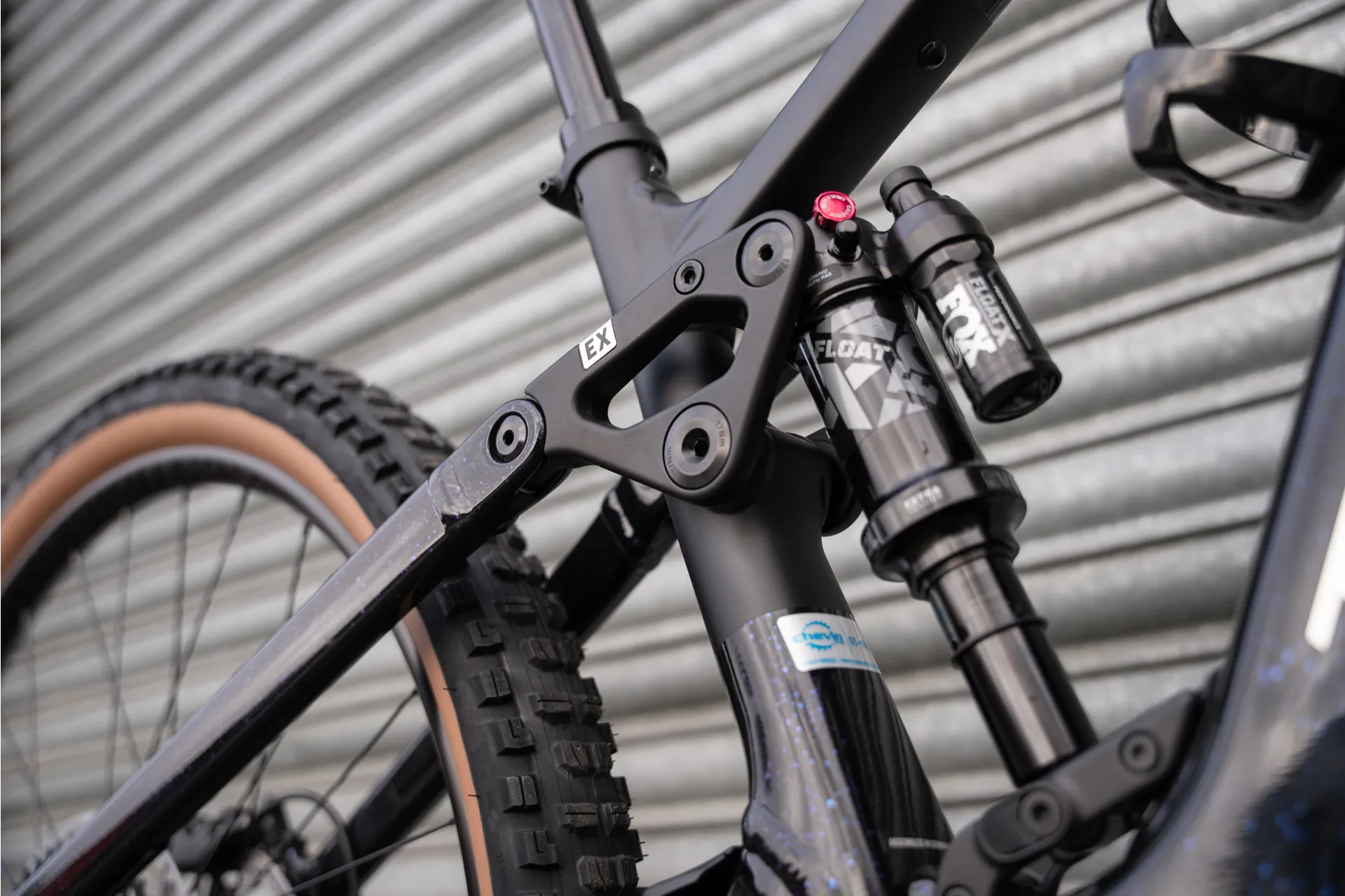

  • Shock
    Fox Performance Float X, 2-position damper, 205 mm x 60 mm
  • Hub front
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru axle, removable lever
  • Rim
    Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
  • Spokes
    14 g stainless steel, black
  • Tyre (Size S)
    Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
  • Tyre (Size S, M, L, XL)
    Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.50", Fork: See manufacturer
  • Battery
    TQ 580Wh
  • Charger
    TQ 4A charger

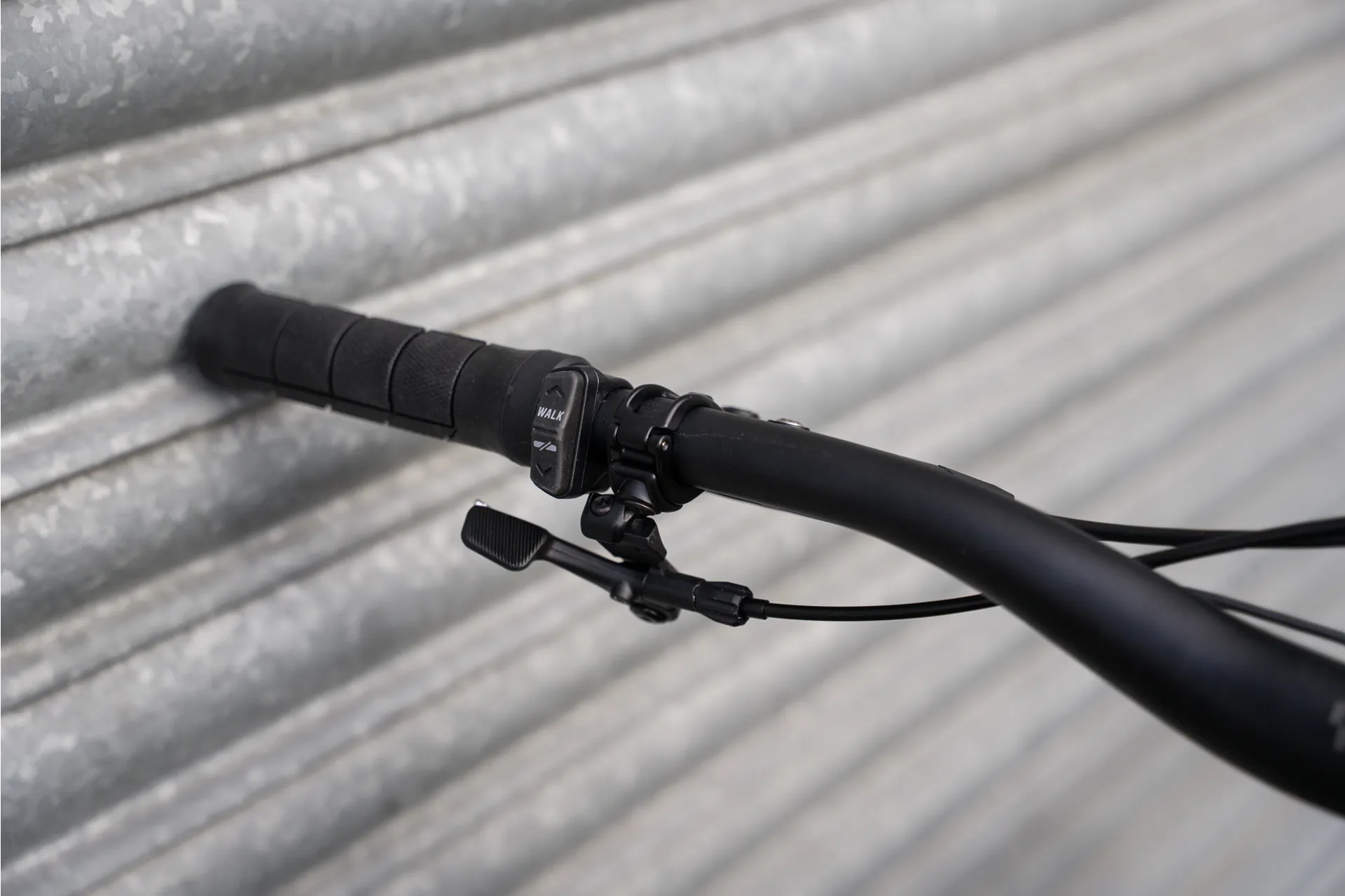

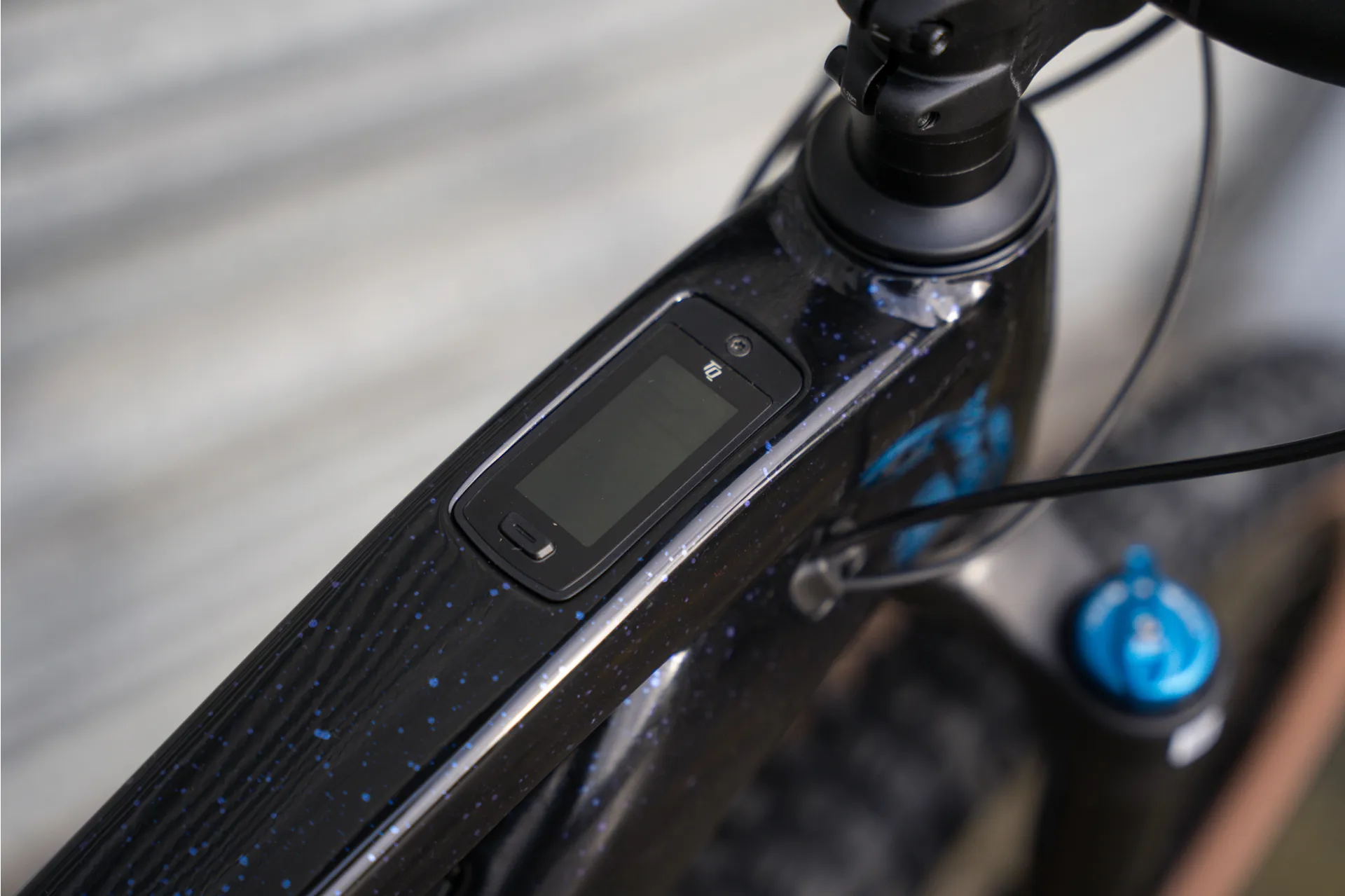

  • Computer
    TQ LED display with Bluetooth & ANT+ connectivity
  • Motor
    TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
  • Shifter
    SRAM Eagle 70, 12-speed

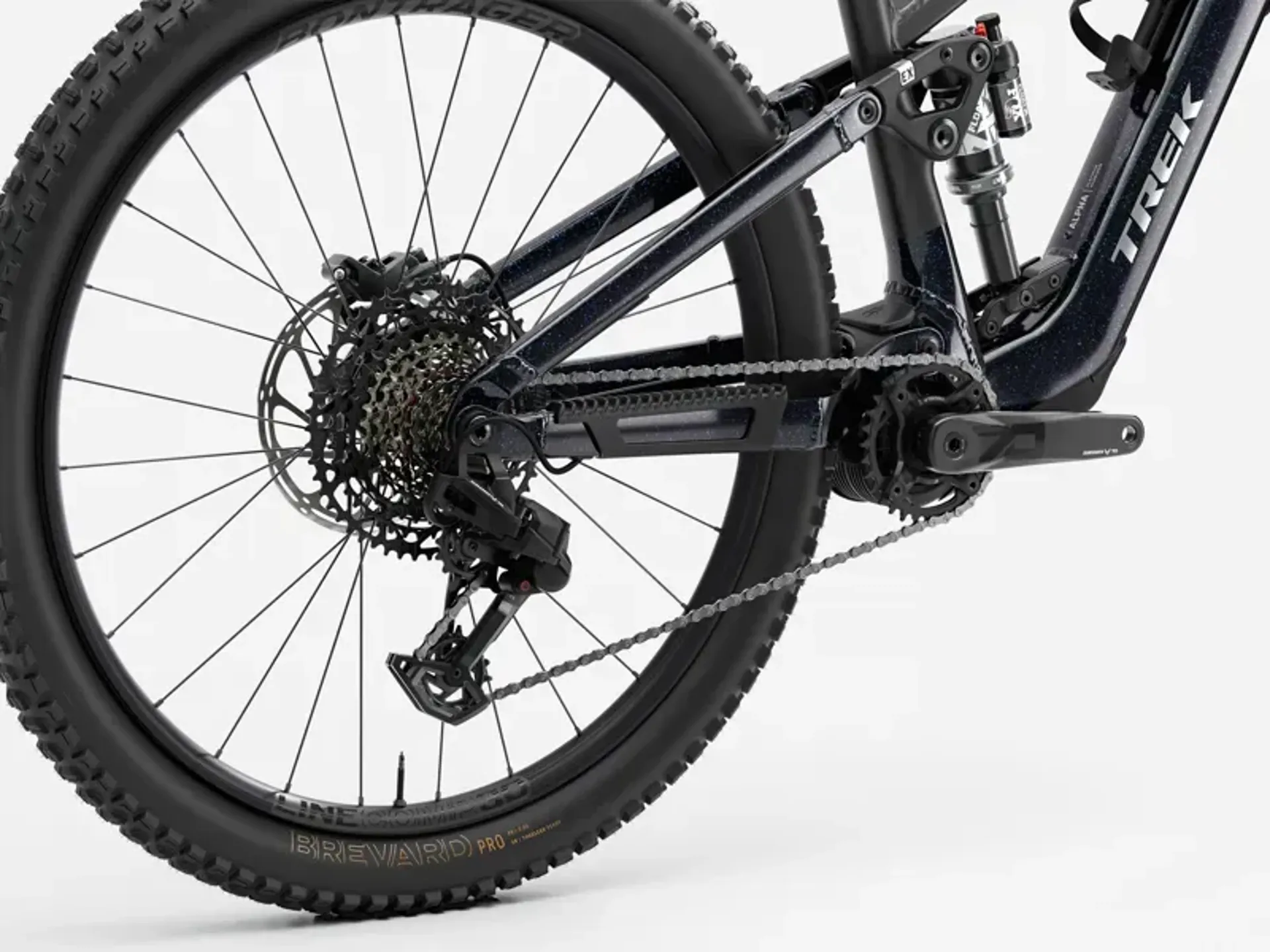

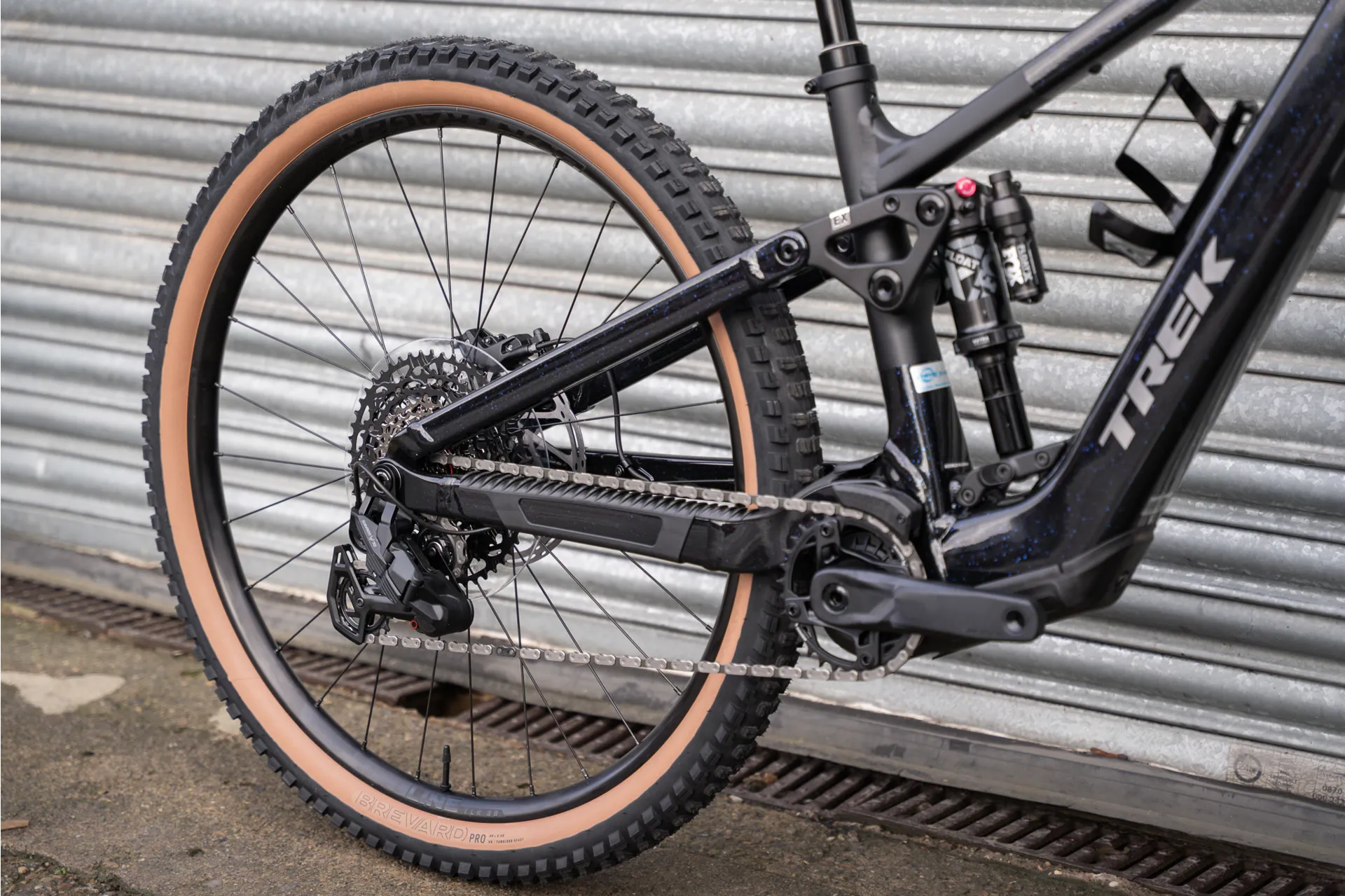

  • Rear derailleur
    SRAM Eagle 70, T-Type
  • Crank
    SRAM EAGLE 70, 160 mm length
  • Chainring
    SRAM T-Type, 32T, alloy
  • Cassette
    SRAM Eagle XS-1270, T-Type,10-52, 12-speed
  • Chain
    SRAM Eagle 70, T-Type, 12-speed
  • Max. chainring size
    1x: 34T, min 30T
  • Saddle
    Bontrager Verse Short, stainless steel rails
  • Seatpost (Size S)
    Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
  • Seatpost (Size M)
    Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
  • Seatpost (Size L, XL)
    Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length

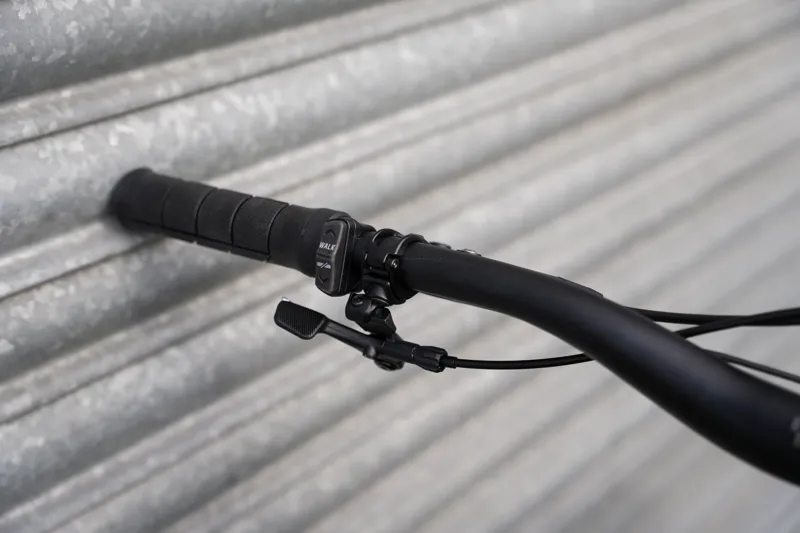

  • Handlebar
    Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
  • Grips
    Trek Line Comp, nylon lock-on
  • Stem
    Bontrager Elite, 35 mm, 0-degree, 45 mm length

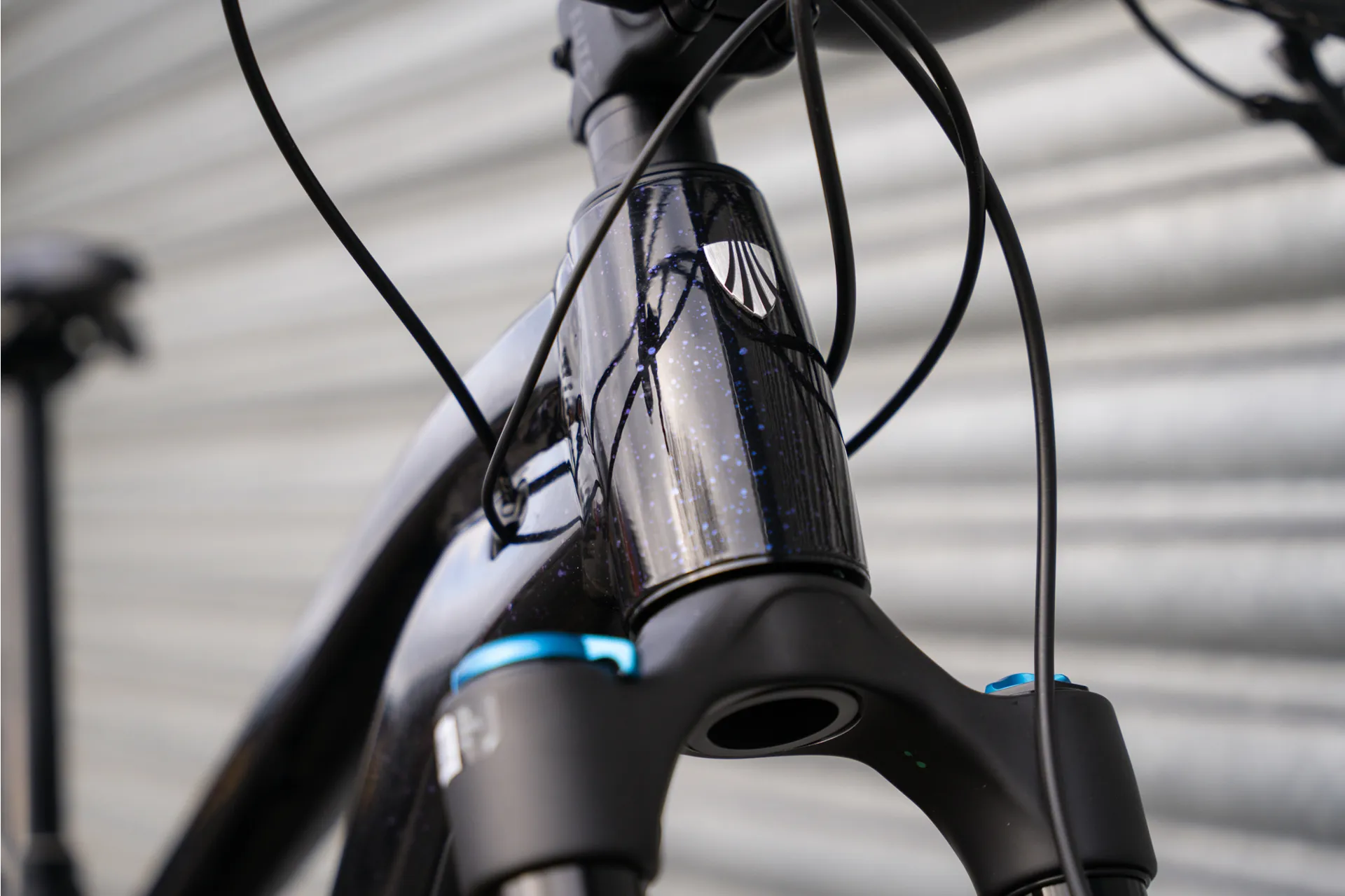

  • Head set
    FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown

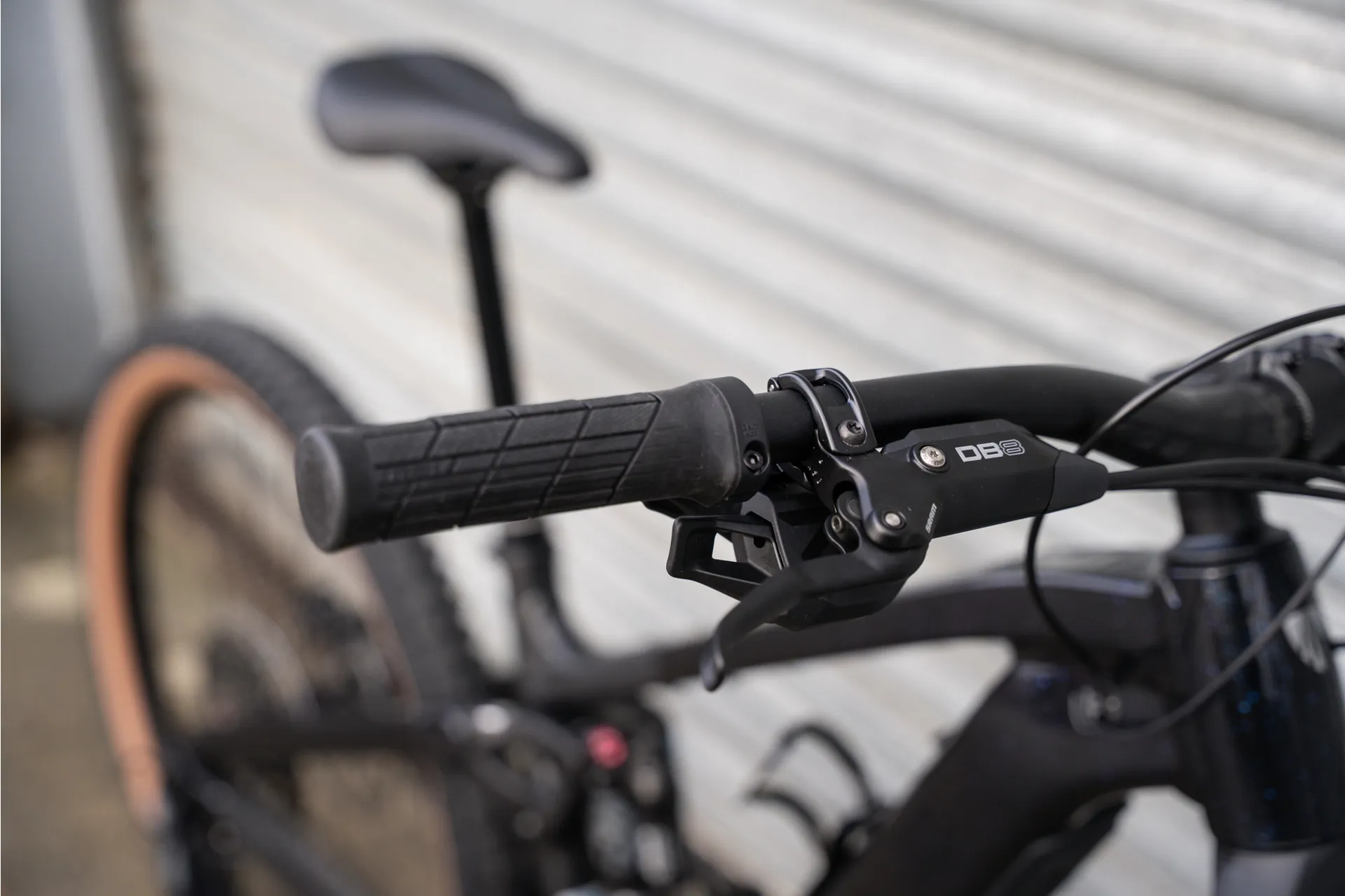

  • Brake
    SRAM DB 8 4-piston hydraulic disc
  • Brake rotor (Size S, M, L, XL) - Type 1
    SRAM CenterLine 2.0, 6-bolt, 200 mm
  • Brake rotor (Size S, M, L, XL) - Type 2
    SRAM CentreLine, 6-bolt, round-edge, 200 mm
  • Rotor size
    Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
  • Weight
    M - 21.08 kg / 46.48 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")
74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")
76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")
78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")
81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")
84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")
86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
