The Fuel EX 5 is an aluminium trail bike built for total versatility, featuring a RockShox Recon Silver fork and 12-speed Shimano Deore drivetrain.
The Fuel EX 5 is an aluminium trail bike built for total versatility, featuring a RockShox Recon Silver fork and 12-speed Shimano Deore drivetrain.
Trek

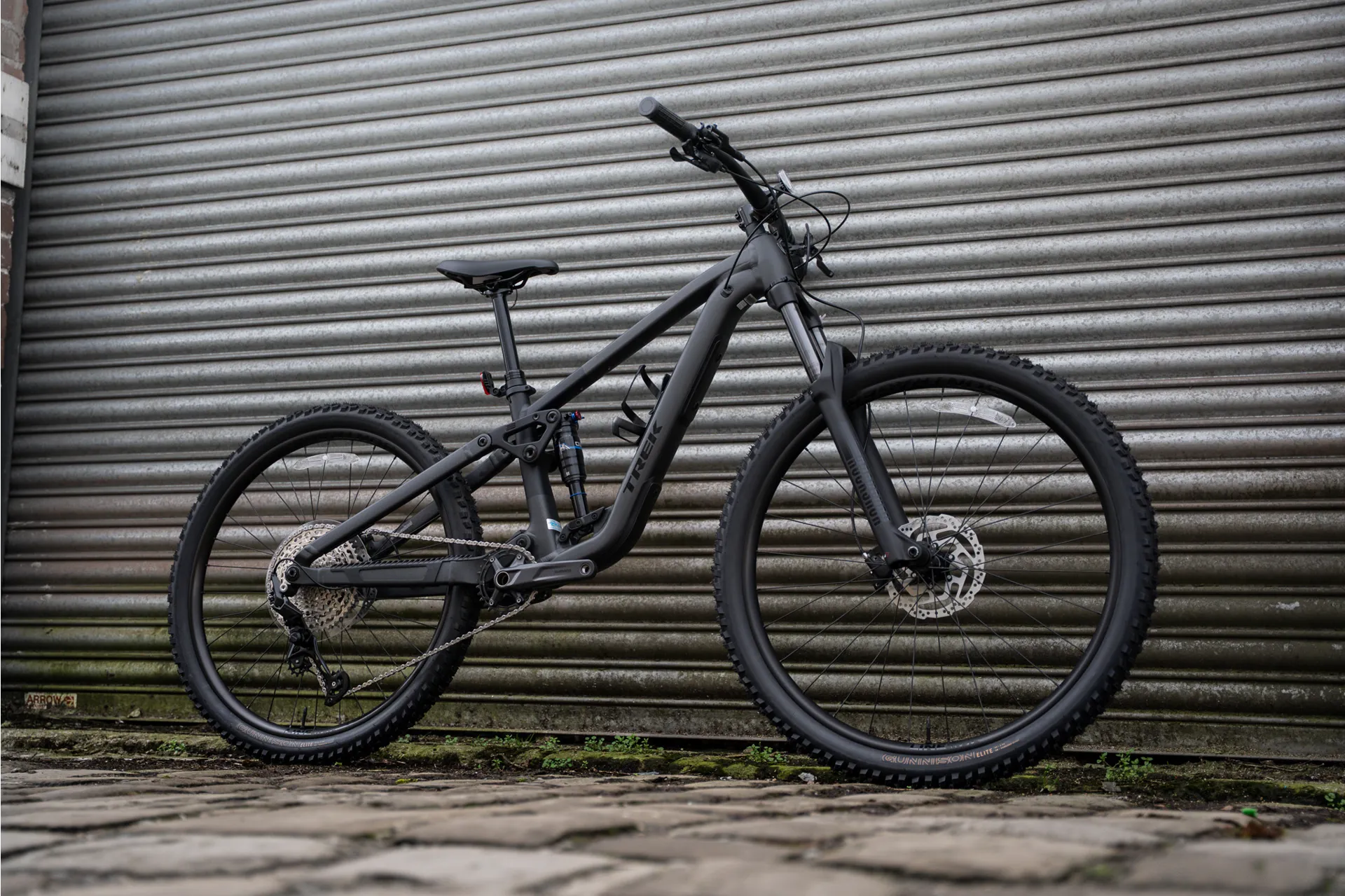

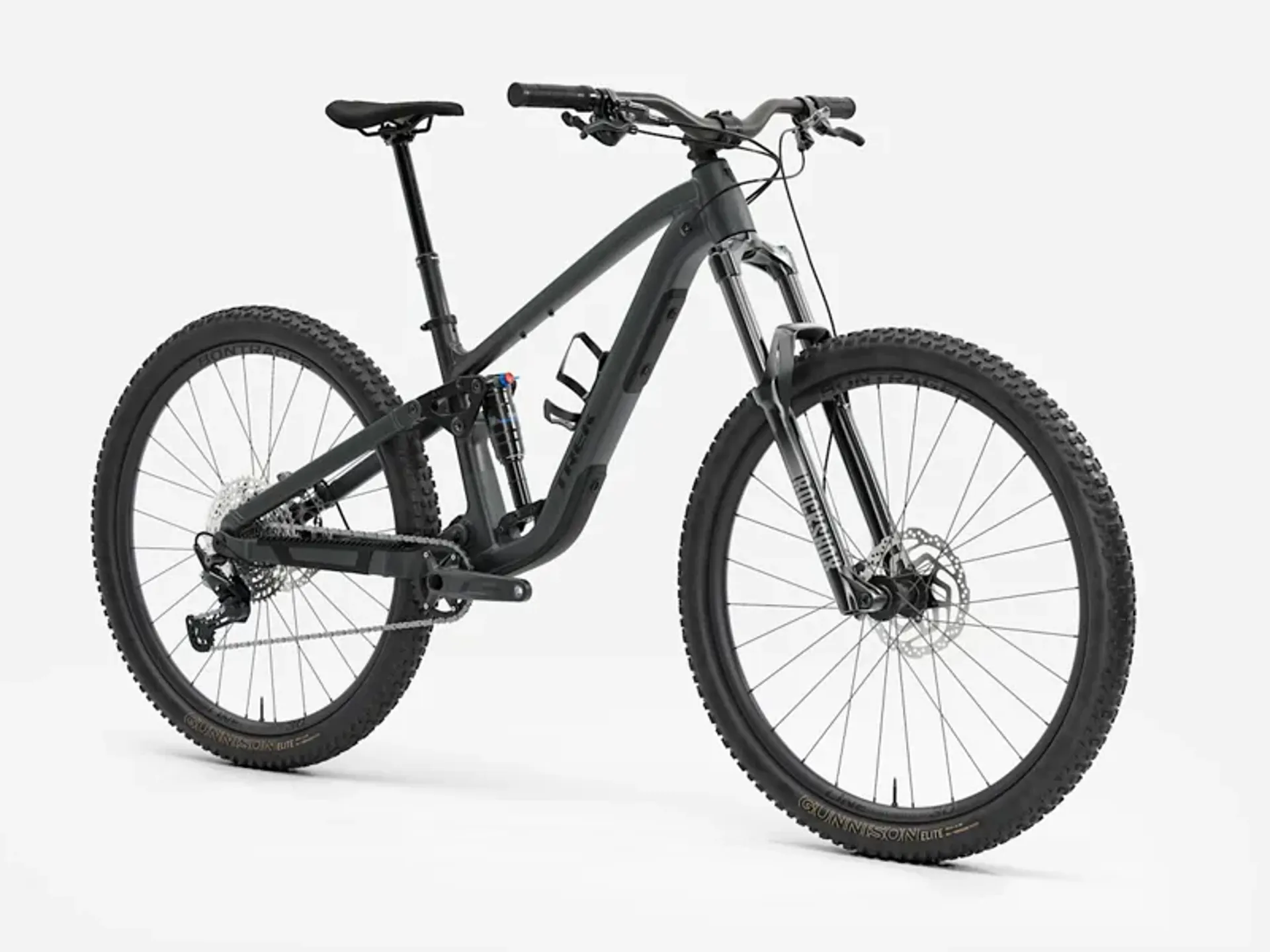

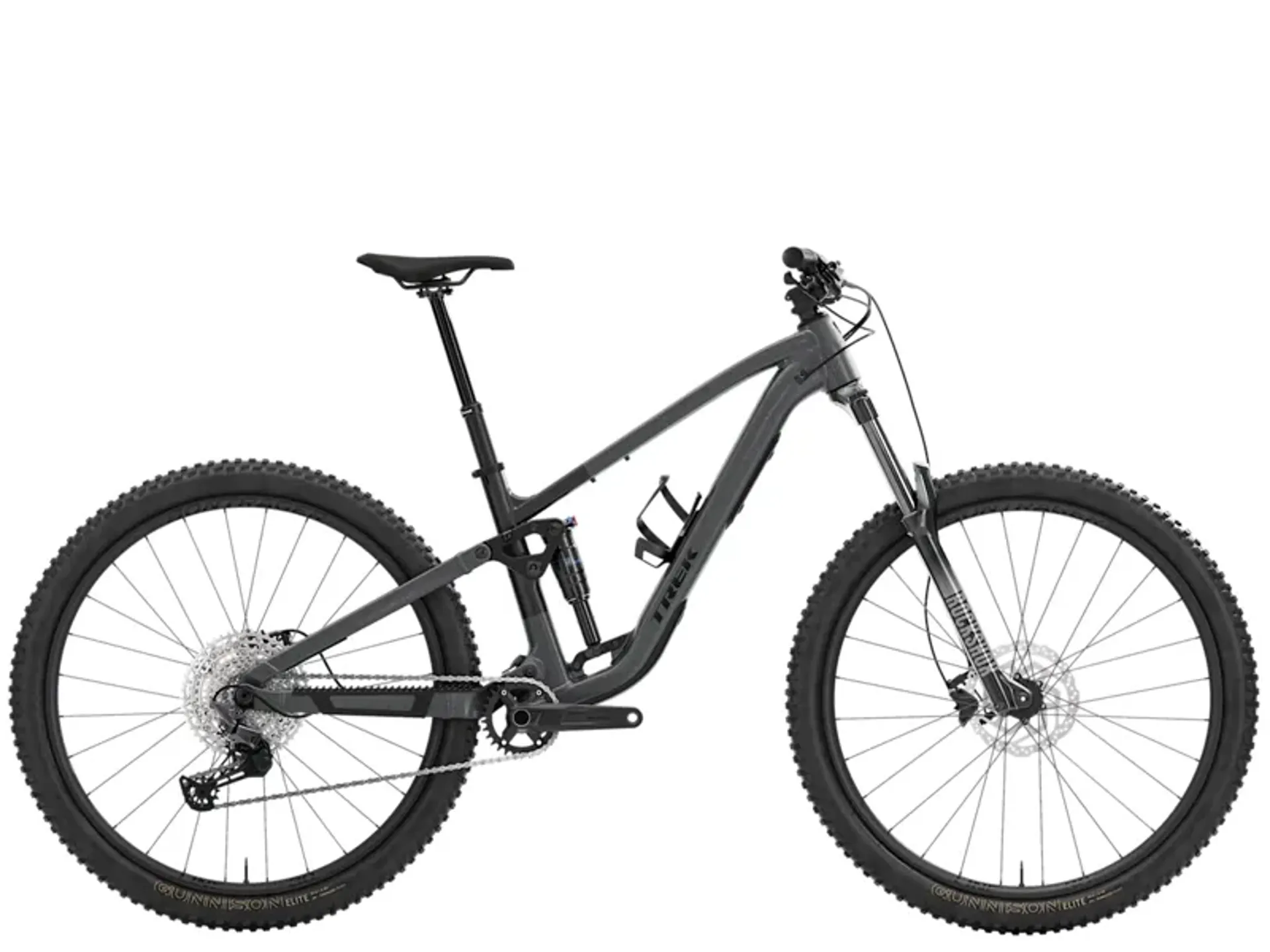

Trek Fuel EX 5 Gen 7 Mountain Bike in Lithium Grey/Trek Black Splatter

£2,200.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek Fuel EX 5 Gen 7 Mountain Bike in Lithium Grey/Trek Black Splatter

Season:2026

Brand:Trek

Code:56310GRY

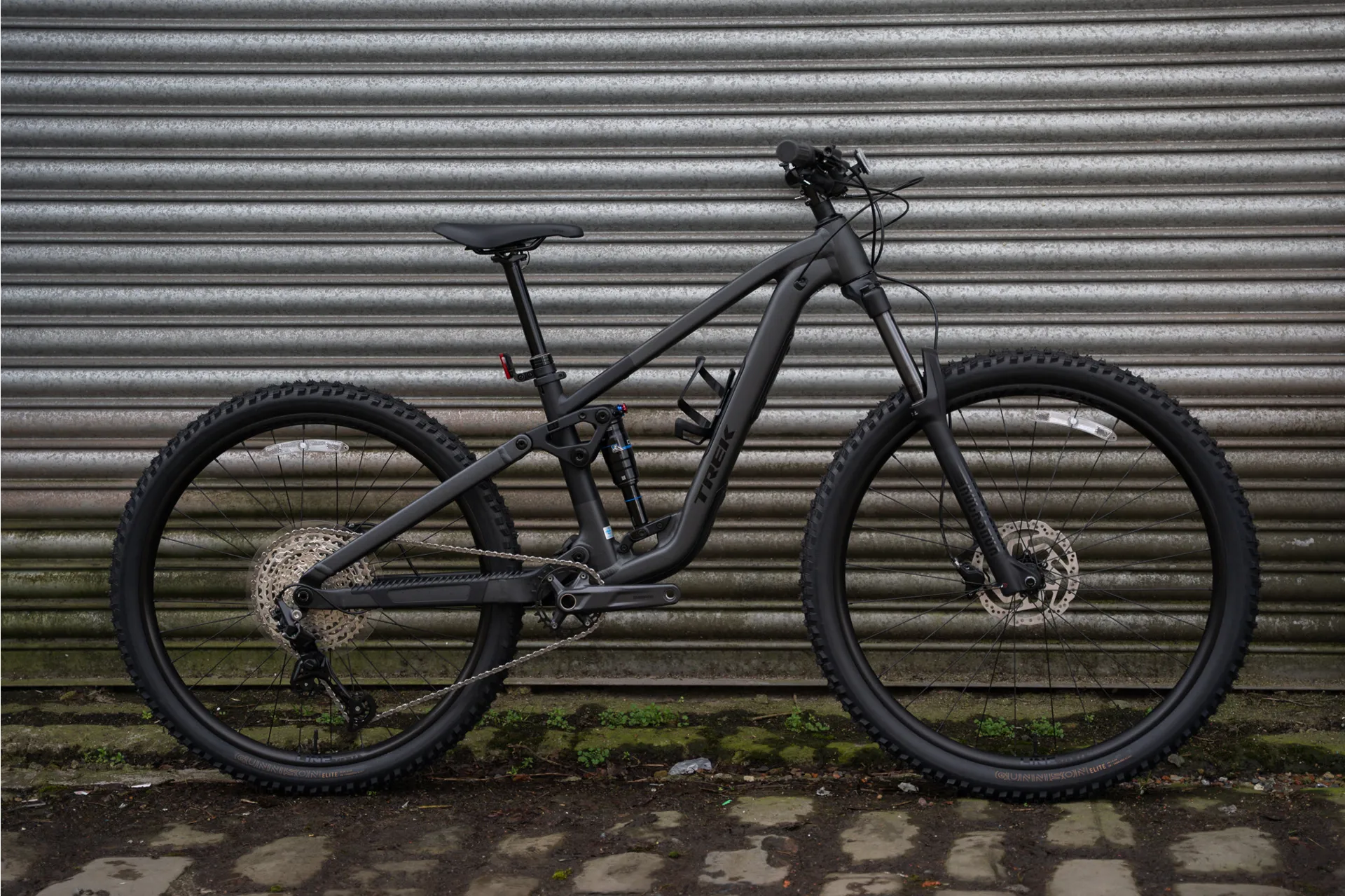

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride.

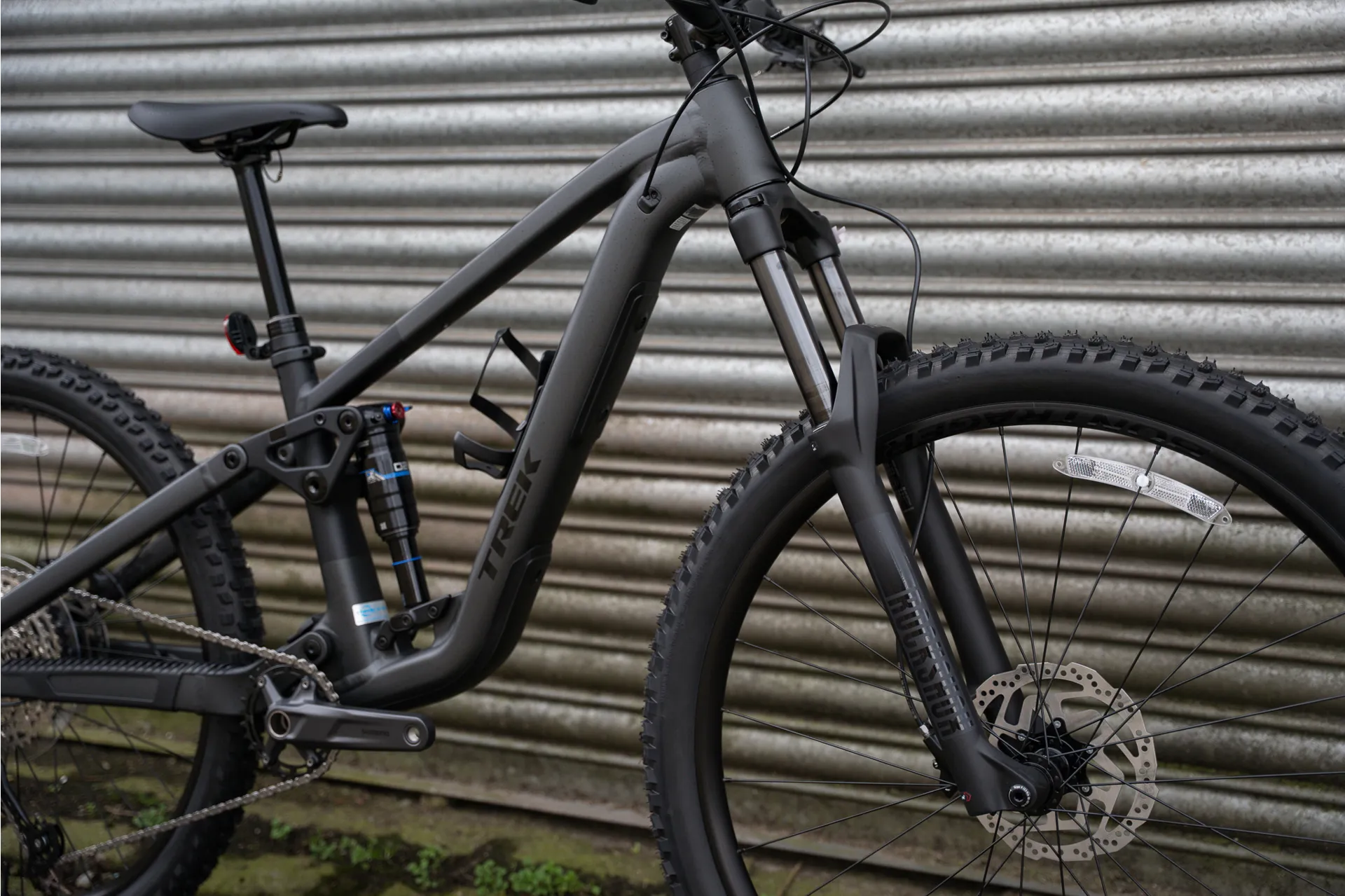

It comes equipped with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, ensuring you are ready for anything the trail throws at you. Only you can define your perfect trail bike; that is why Fuel is available in three adjustability-packed configurations: get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.

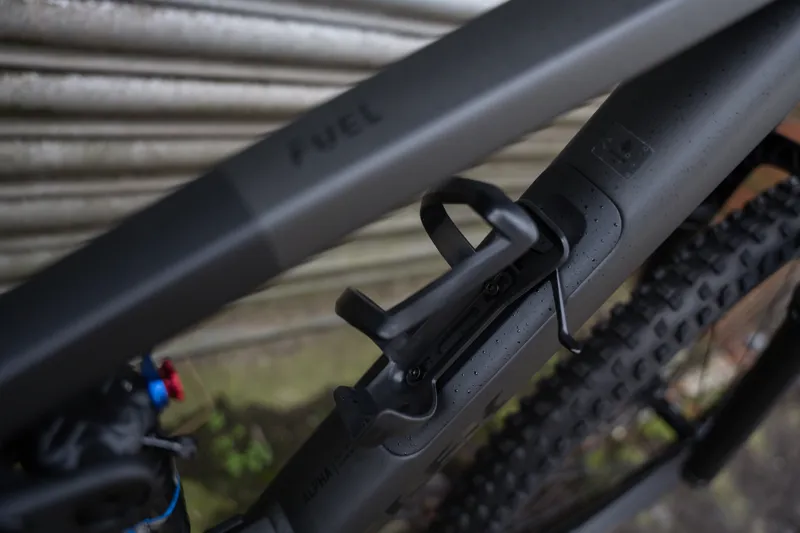

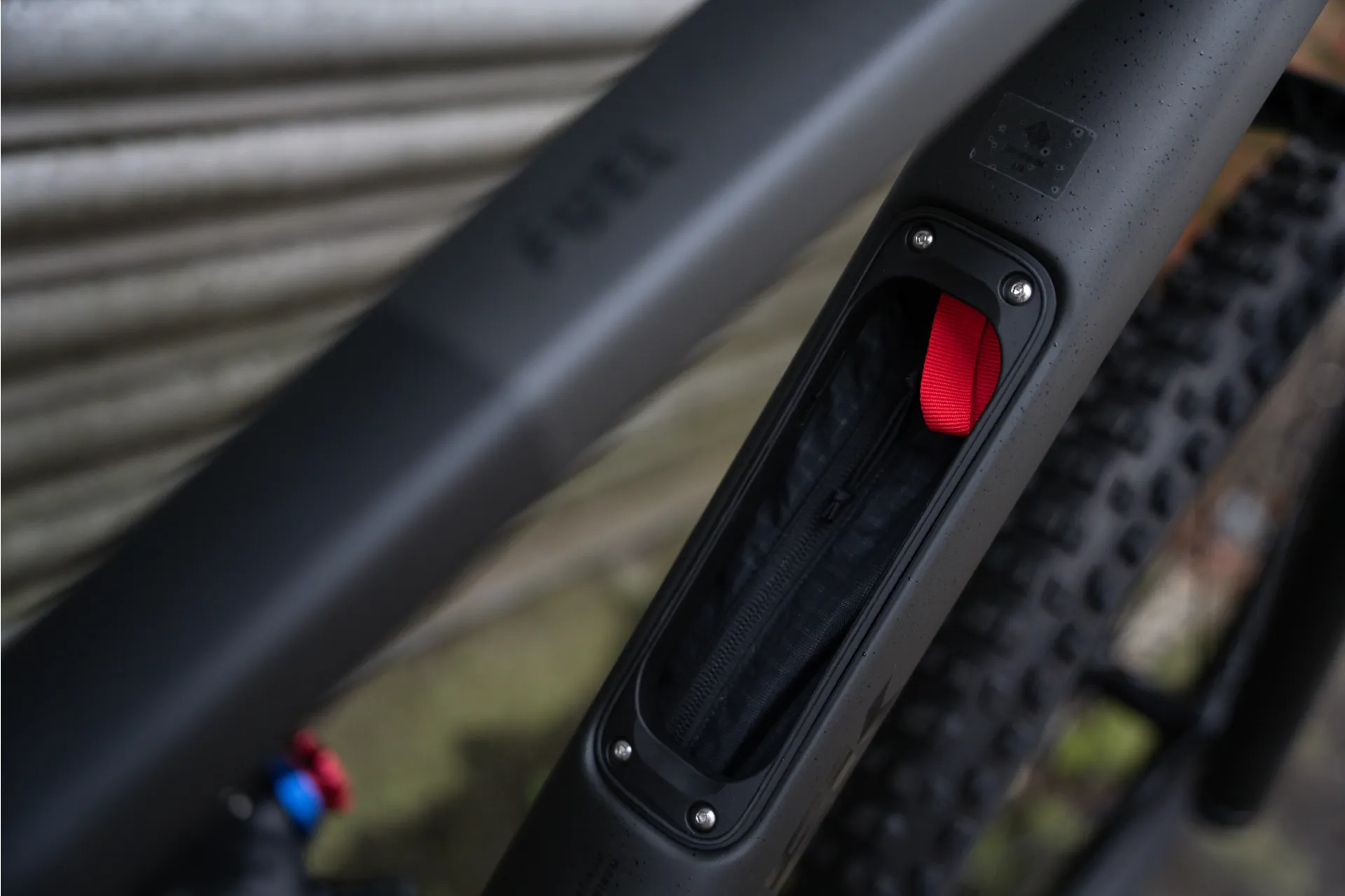

The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags, and more. Stash ride essentials with in-frame storage on all Fuel models, both carbon and alloy. Plus, top tube accessory mounts let you load up even more gear.

Features:

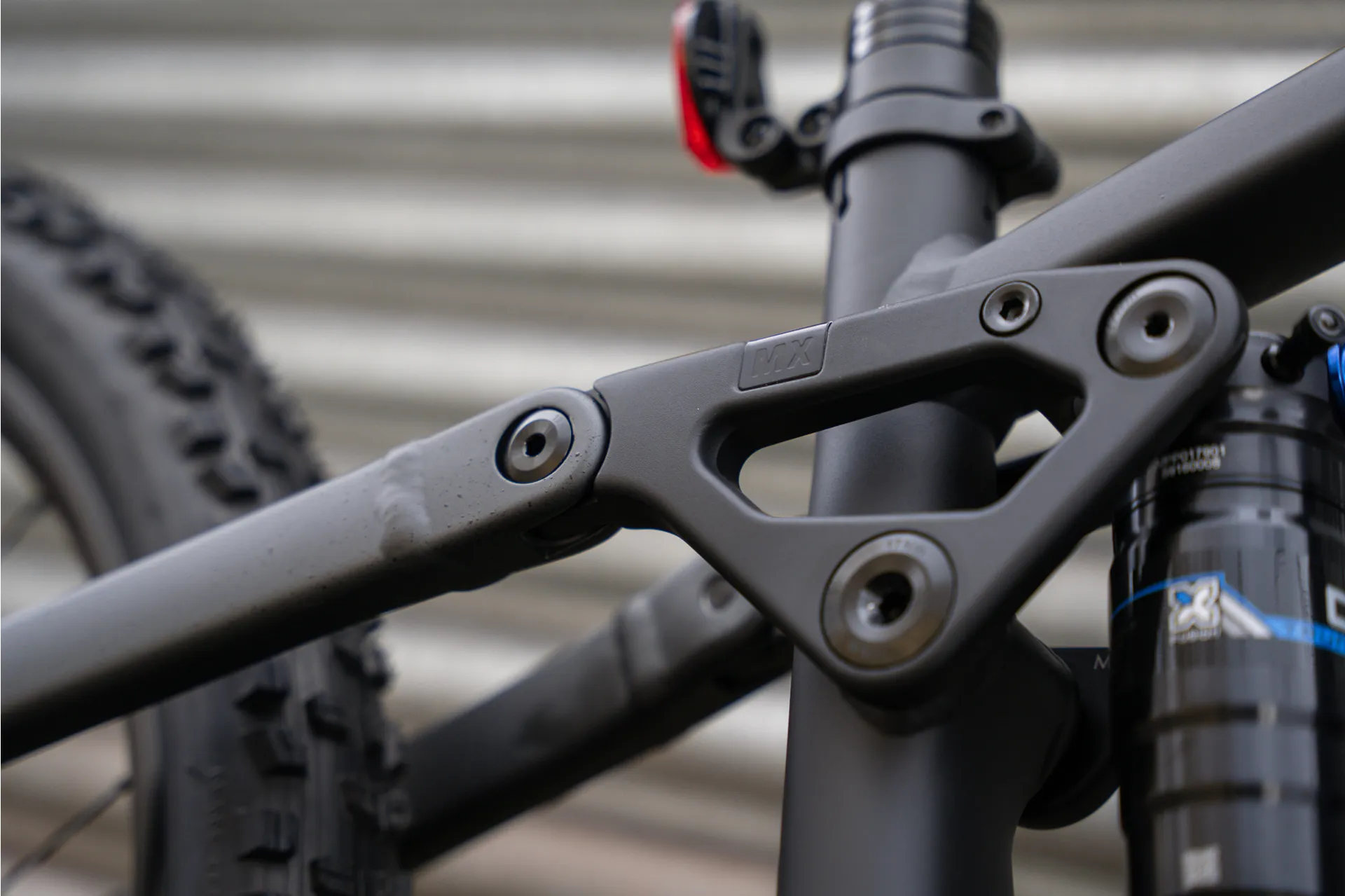

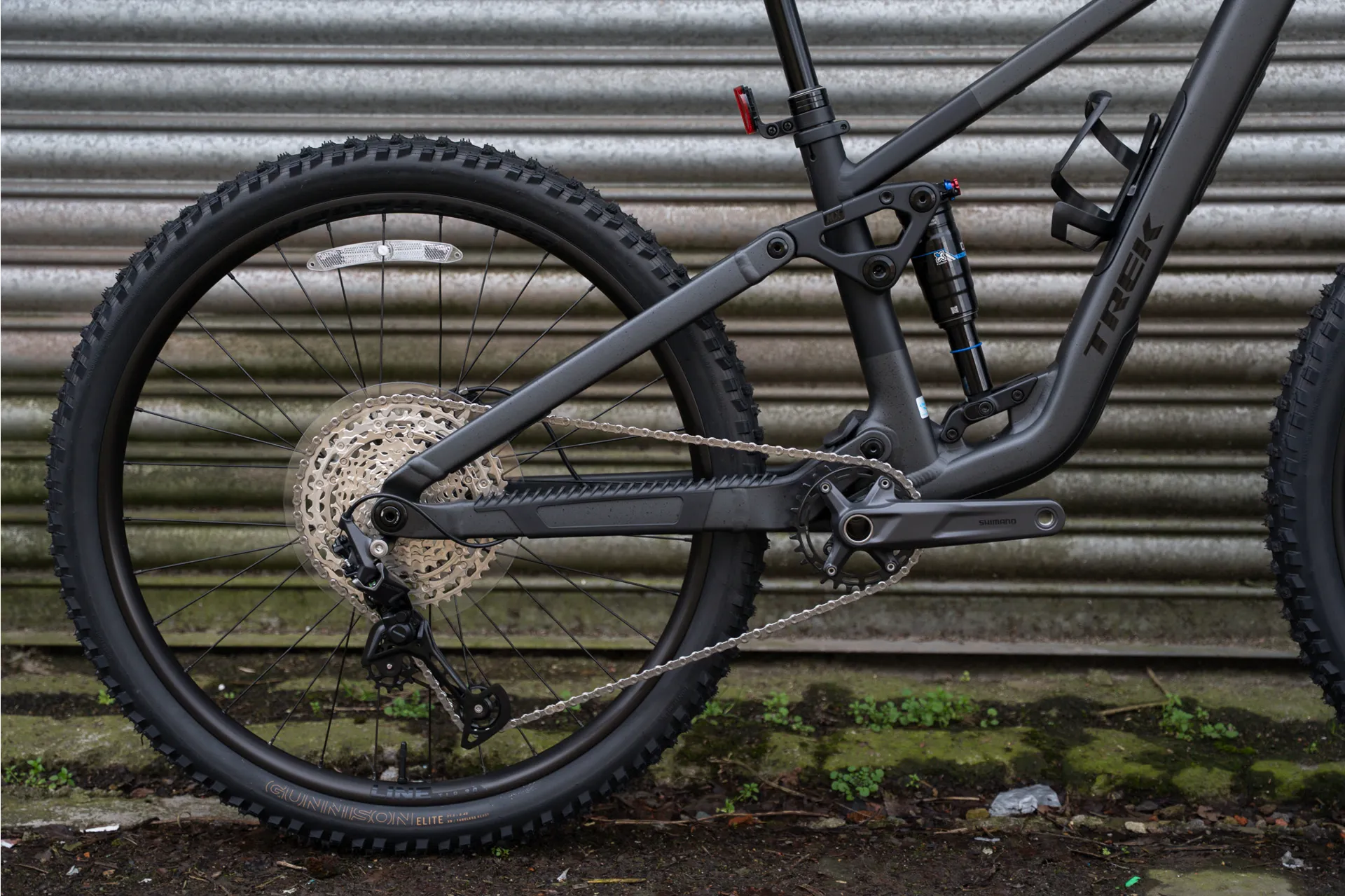

  • Adjustable leverage rate: Flip the chip in the lower shock mount for a more progressive leverage rate, allowing for more bottom-out resistance without giving up small-bump sensitivity.

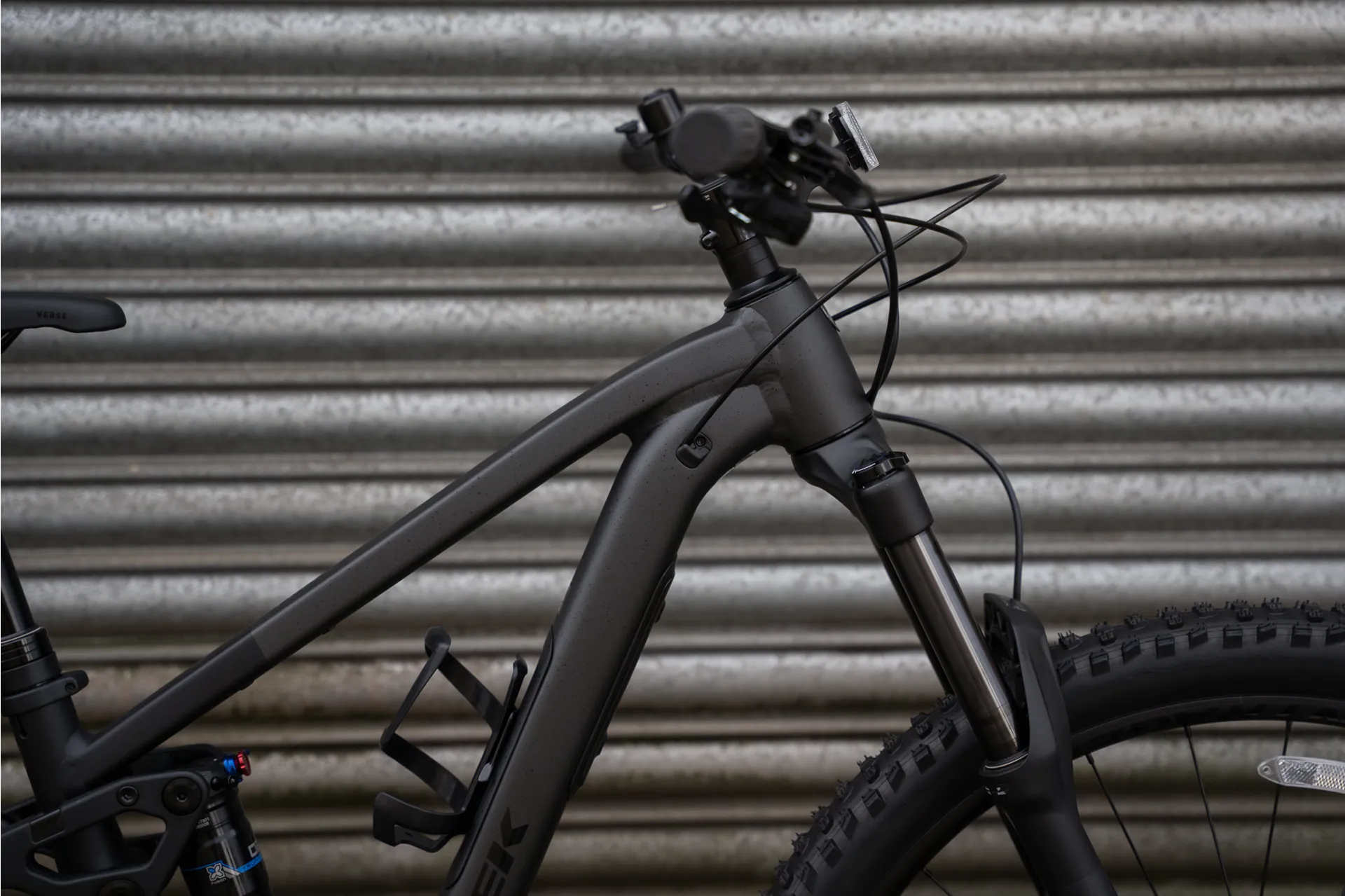

  • Zero Stack Integrated Headset: With a ZS standard headset, you have loads of options for aftermarket upgrades, including angle adjust.
  • Active Braking Pivot: Allows Trek's engineers to tune how the suspension reacts to acceleration and braking forces independently, providing more confident control when you need it most.
Technical Information
  • Frame
    Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
  • Fork
    Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

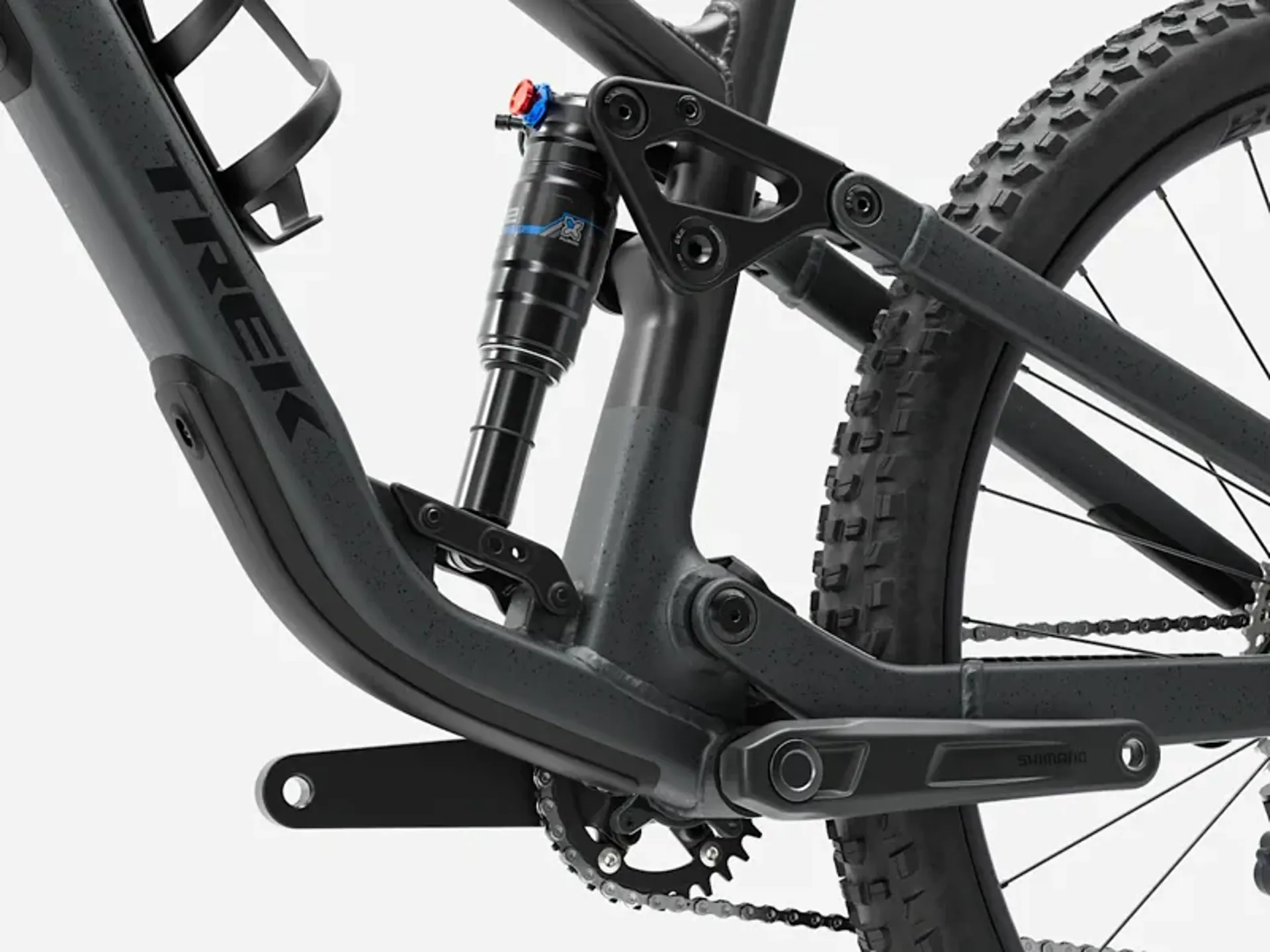

  • Shock
    X-Fusion Pro 2, 2-position damper, 205 mm x 60mm
  • Hub front
    Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
  • Hub rear
    Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
  • Skewer rear
    Bontrager Switch thru axle, removable lever
  • Rim
    Sizes: S, M, L, XL; Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve; Sizes: S, M, L, XL; Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
  • Tyre
    Size S: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"; Sizes: S, M, L, XL: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.50", Fork: See manufacturer

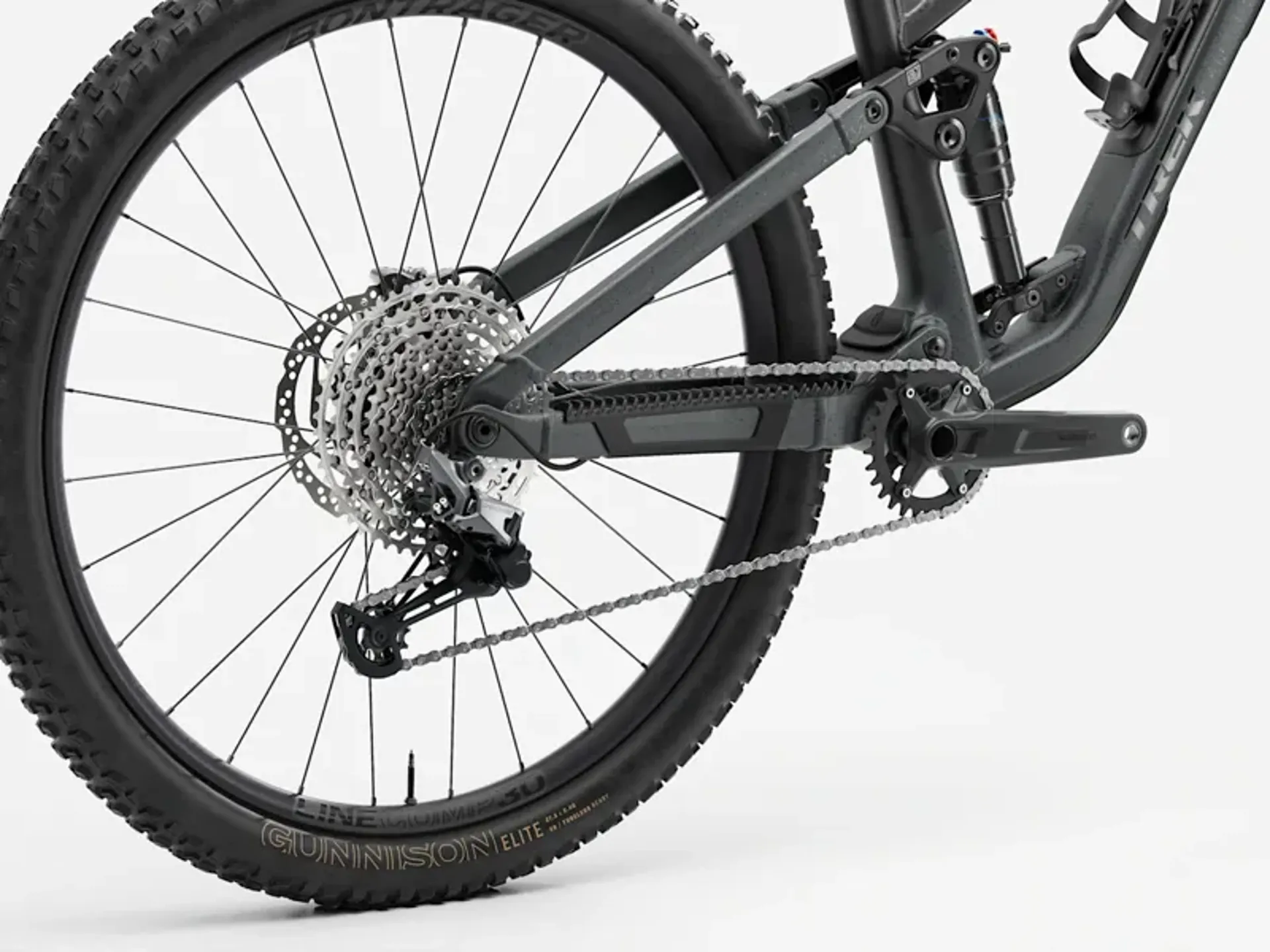

  • Shifter
    Shimano Deore M6100, 12-speed
  • Rear derailleur
    Shimano Deore M6100, long cage
  • Crank
    Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
  • Bottom bracket
    Shimano BB-MT501 BSA
  • Cassette
    Shimano Deore M6100, 10-51, 12-speed
  • Chain
    Shimano Deore M6100, 12-speed
  • Max. chainring size
    Max: 34T (oval – 32T) Min: 30T (oval – 32T)
  • Saddle
    Bontrager Verse Short, stainless steel rails
  • Seatpost
    Size S: TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm; Sizes: M, L, XL: TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
  • Handlebar
    Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
  • Grips
    Trek Line Comp, nylon lock-on
  • Stem
    Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
  • Head set
    FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
  • Brake
    Shimano hydraulic disc, MT201 lever, MT200 calliper
  • Brake rotor
    Shimano RT10, CenterLock, 180 mm
  • Rotor size
    Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
  • Weight
    M - 17.02 kg / 37.53 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
