Start small and ride big with the Kimu. Featuring an adjustable stem, air suspension, and a dropper post, it grows with the rider for long-term use.
Start small and ride big with the Kimu. Featuring an adjustable stem, air suspension, and a dropper post, it grows with the rider for long-term use.
Orbea

Orbea Kimu H10 TR 24 Kids Bike in Aloha Green

£999.00 £1,149.00 13% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

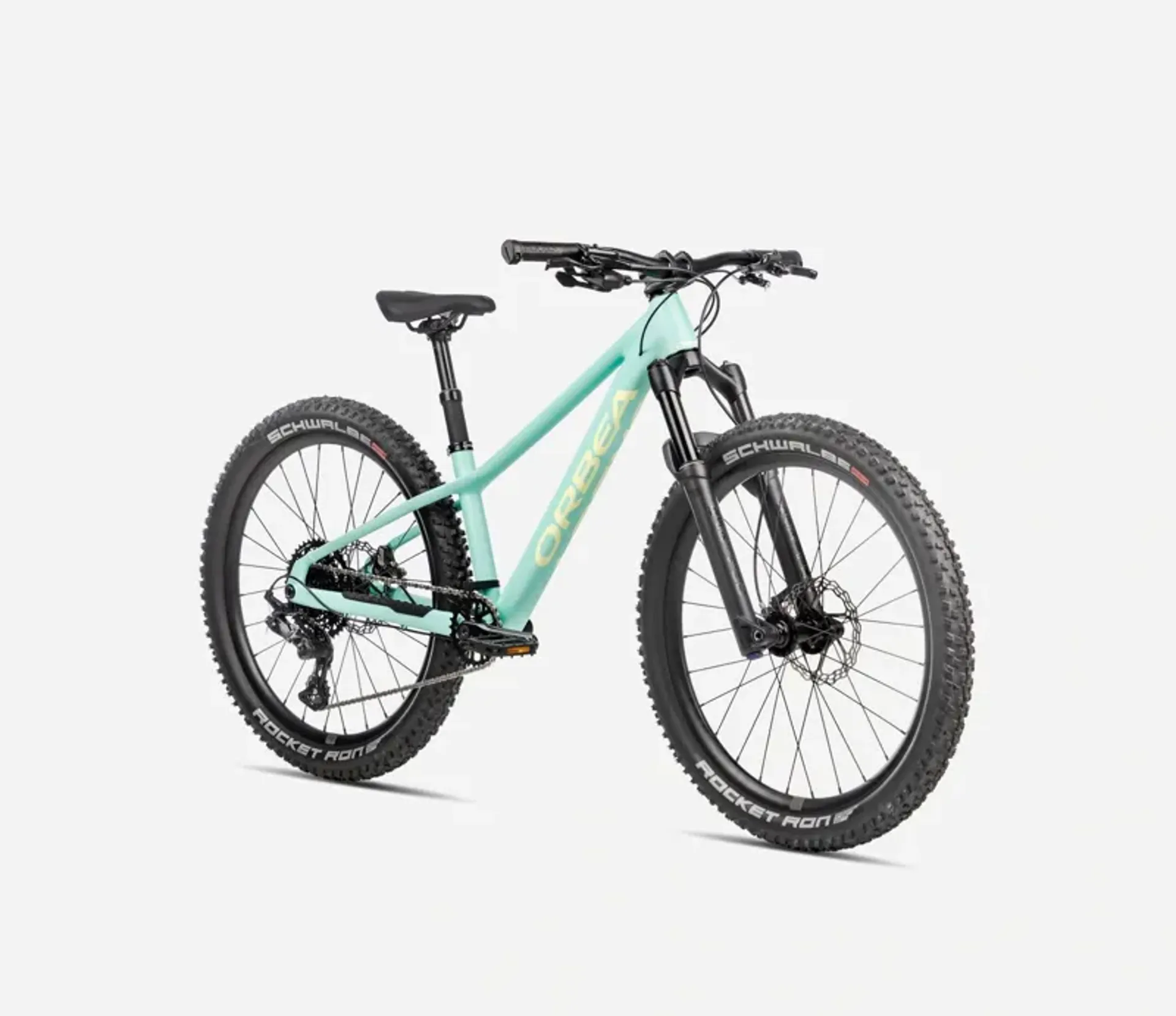

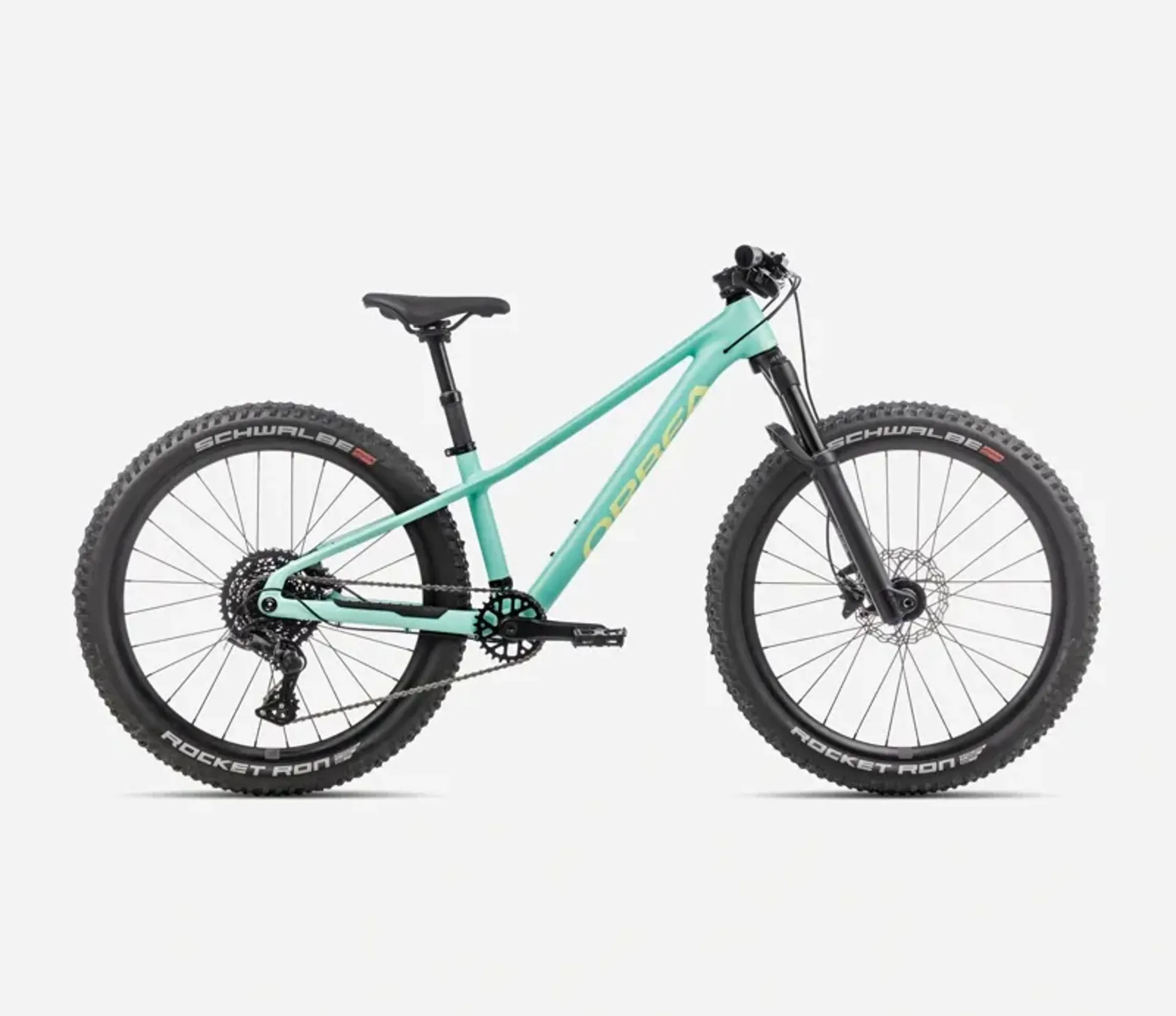

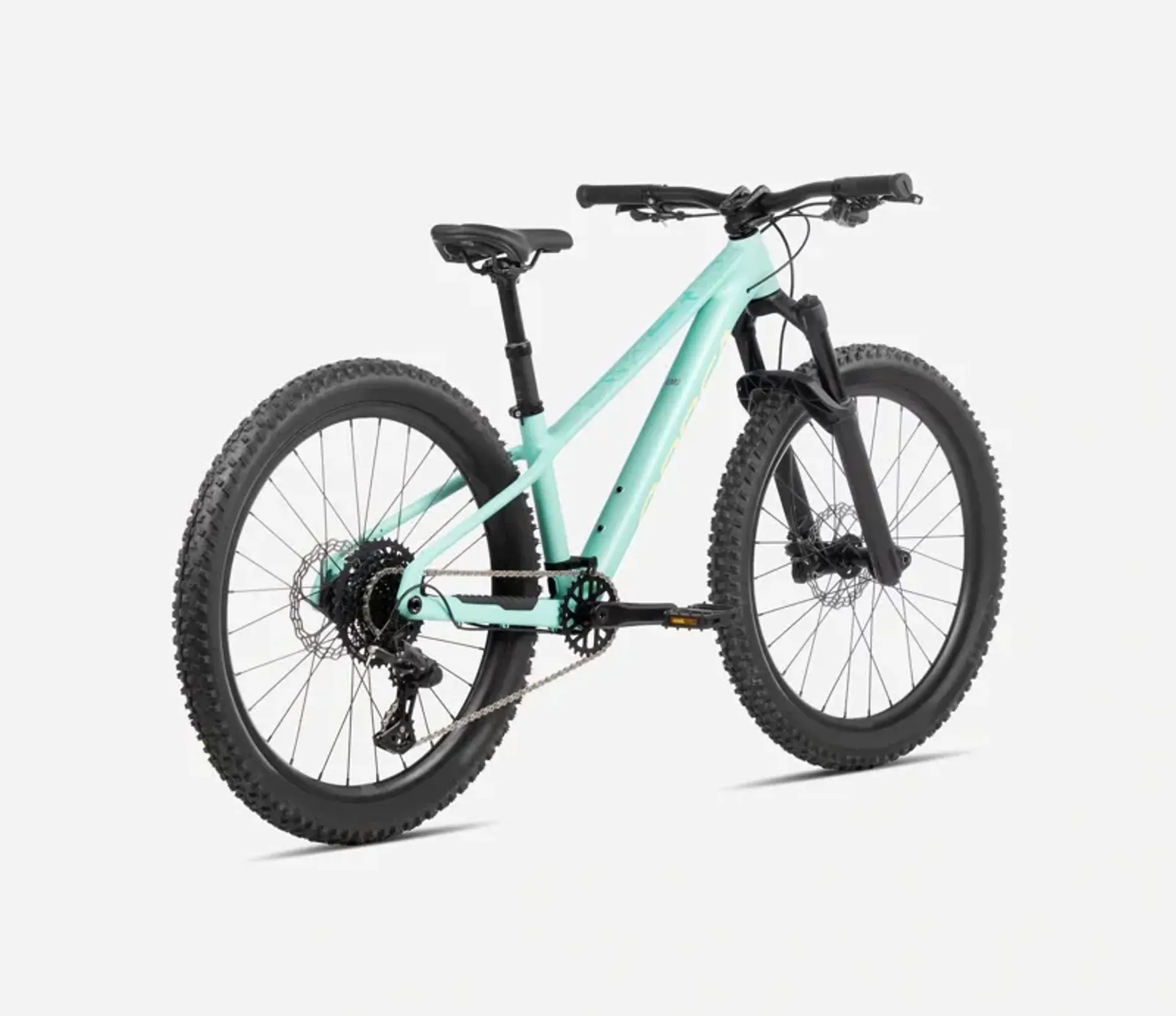

Orbea Kimu H10 TR 24 Kids Bike in Aloha Green

Season:2027

Brand:Orbea

Code:U00924J5

Start small. Ride big.

It starts small. A seed of passion in a world that still feels enormous. A wobble, a laugh, a scraped knee, and it begins to grow. You look back to make sure they are right behind you. Until one day you no longer need to. And you realise this was never just about the ride. It was about how challenge and curiosity slowly became character and confidence.

Features:

  • Growing stem: The stem can be lengthened from 40 to 55 mm using an easily installable spacer, extending the usable life of the bike and helping maintain a proper fit as riders grow.
  • Personalised protection: Thoughtful details like a signature nameplate and two sets of frame protectors let riders make the bike their own while keeping it protected.
  • Short-cage derailleurs: Short derailleur cages stay tucked in close to the bike, increasing ground clearance and reducing exposure to impacts even with smaller wheels.
  • Low pressure OC MC22 dropper: The MC22 uses lower internal pressure for easy activation and saddle height control. It lengthens as the rider grows, maintaining proper function and fit over time. Initially with 75 mm of travel installed, expandable to 100 mm.
  • High-performance air fork: Air suspension forks provide controlled, responsive support on rougher trails. Improved traction helps maintain composure as terrain becomes more technical.
Technical Information
  • Fork
    Manitou Machete Junit Sport 100mm QR15x110 Boost
  • Steerer tube
    FSA 1-1/8 - 1-1/2" Integrated
  • Crankset
    Alloy, 28t, 140mm
  • Shifters
    Microshift M6195 9S
  • Cassette
    Microshift 11-42t 9-Speed
  • Chain
    KMC eGlide
  • Handlebar
    Alloy, 31.6mm, 620mm width
  • Stem
    Alloy, 40-55mm adjustable, +15mm spacer
  • Brakes
    Shimano MT410 Hydraulic Disc
  • Wheels
    Alloy, 24c, 28H
  • Tyres
    Schwalbe Rocket Ron Evo, 24x2.35 Super Race TLE
  • Pedals
    VP-229 with reflectors
  • Seatpost
    OC Mountain Control MC22, 31.6mm, Dropper, 75-100mm travel
  • Seatpost lever
    Shimano SL-MT500
  • Saddle
    234x138mm
Sizing Information
Mountain/Leisure Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Mountain Bike Size
4'11" - 5'3"150 - 160 cmXS
5'3" - 5'6"160 - 168 cmS
5'6" - 5'9"168 - 175 cmM
5'9" - 6'0"175 - 183 cmL
6'0" - 6'3"183 - 191 cmXL
6'3" - 6'7"191 - 200 cmXXL

Road/Gravel Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Road Bike Size
4'10" - 5'1"147 - 155 cm47-49cm
5'1" - 5'4"155 - 163 cm49-51cm
5'4" - 5'7"163 - 170 cm51-53cm
5'7" - 5'9"170 - 175 cm53-55cm
5'9" - 6'0"175 - 183 cm55-57cm
6'0" - 6'2"183 - 188 cm57-59cm
6'2" - 6'5"188 - 196 cm59-61cm
6'5" - 6'8"196 - 203 cm61-63cm


Please note that this is a general guideline, and you should always refer to the specific bike's geometry chart to ensure a proper fit. Please visit Orbea for more information
