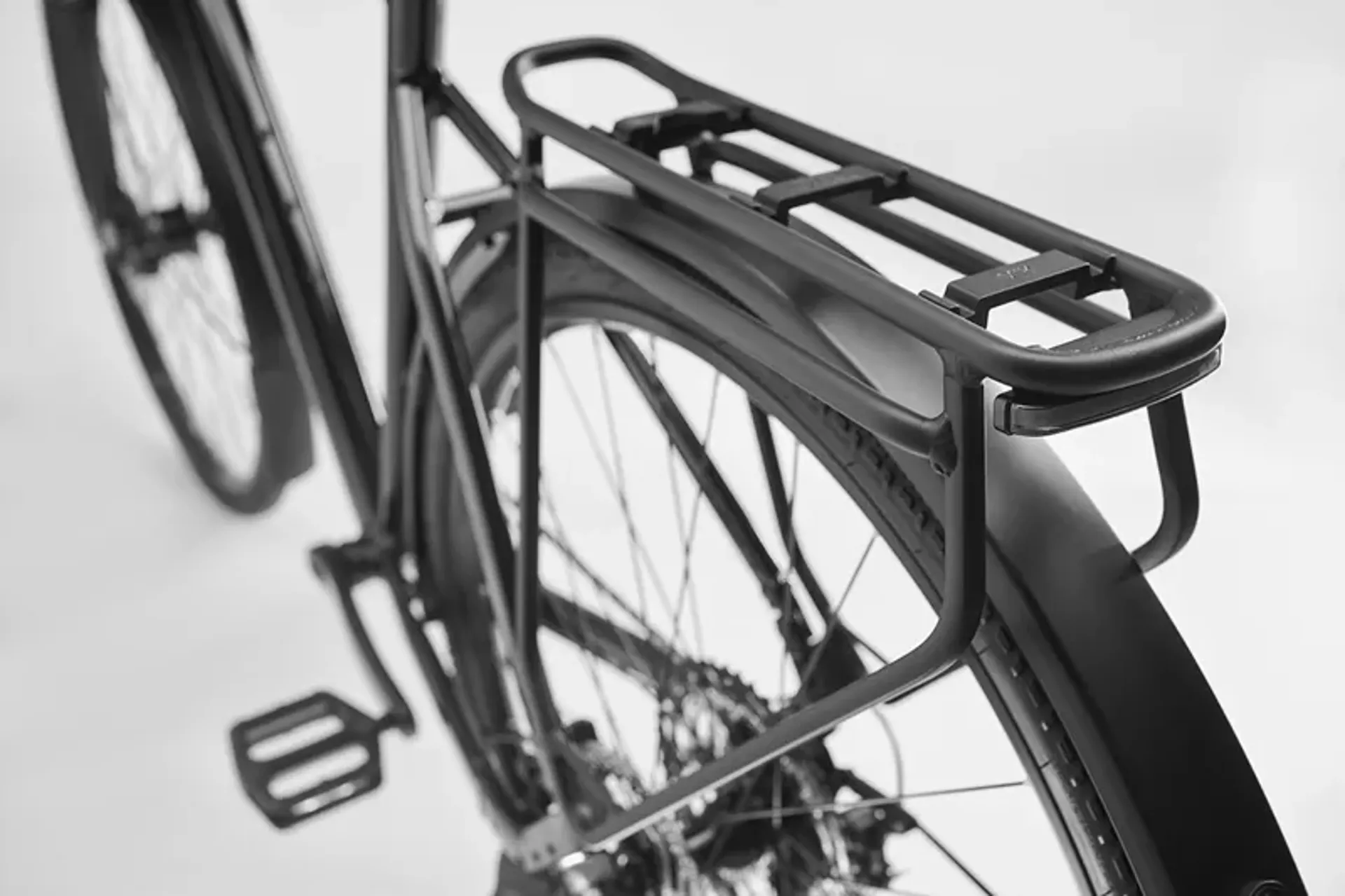

Clever-Frame technology is the universal foundation for every Mahon, the next generation can-do-anything bike. The Mahon Trip Core also benefits from this highly maintenance-friendly frame and the many possibilities to easily replace, upgrade, or add technical components. The complete Clever Rack is part of the standard equipment.
Clever-Frame technology is the universal foundation for every Mahon, the next generation can-do-anything bike. The Mahon Trip Core also benefits from this highly maintenance-friendly frame and the many possibilities to easily replace, upgrade, or add technical components. The complete Clever Rack is part of the standard equipment.
Diamant

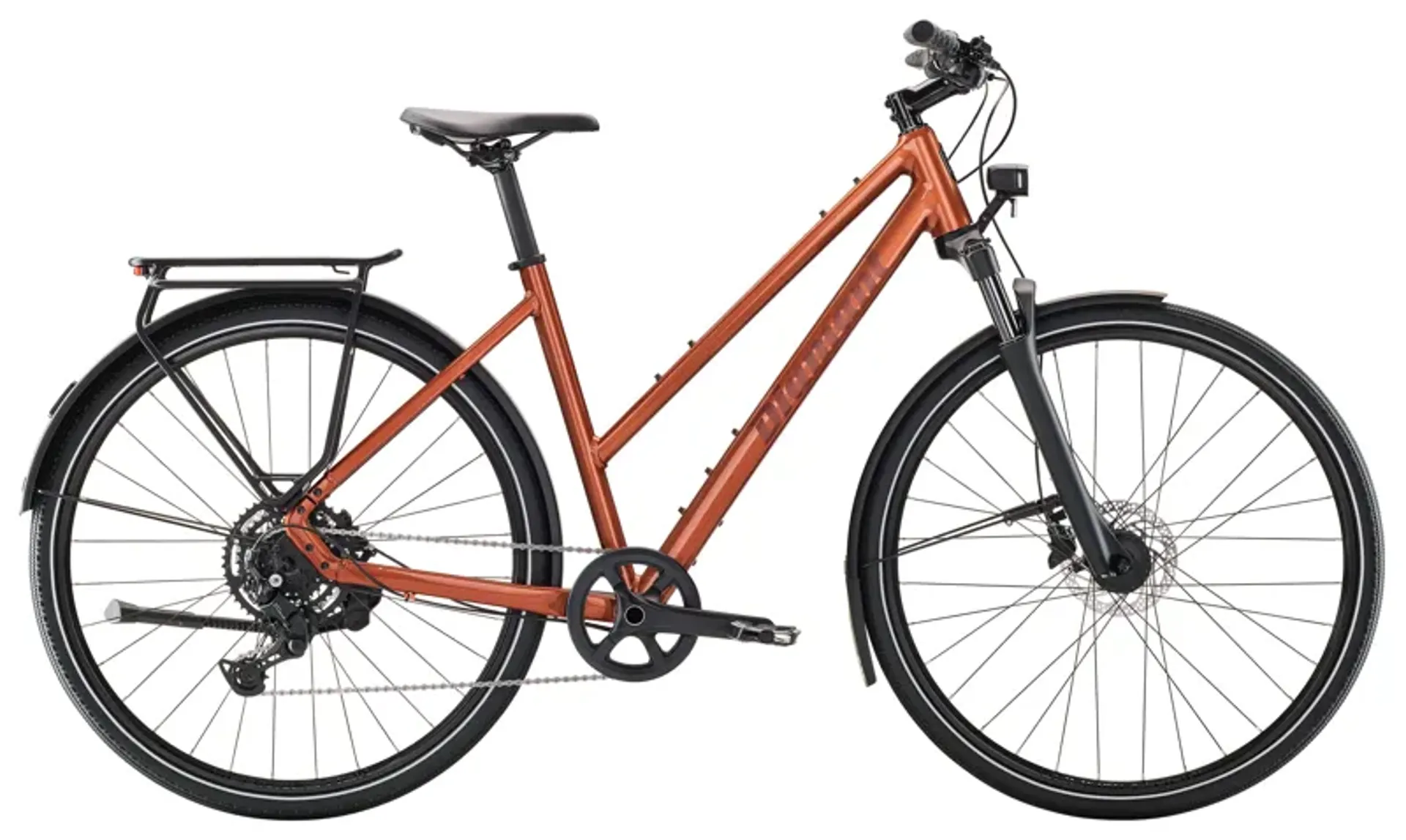

Diamant Mahon Trip Core MS Bronze

£1,100.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Diamant Mahon Trip Core MS Bronze

Season:2025

Brand:Diamant

Code:49641ORG

It's right for you if...

You have a limited budget, but you still want to invest in quality and a contemporary product. Your next bike should accompany you for many years. For this reason, you are also a fan of standardized solutions, for which spare parts are available in the long term. You often travel off the asphalt and appreciate a bit more comfort for rough paths.

The tech you get

The foundation for the Mahon Trip Core is a lightweight aluminum frame with a comfort-dynamic geometry and many mounting points for luggage and accessories on the frame and the newly developed Clever Rack with MIK compatibility. The drive uses the Shimano CUES U400 with 2x9 gears. The suspension fork has a generous 75mm of travel, while the new 42 mm wide tires also contribute to more traction and comfort.

The final word

The most durable part of a bike is the frame. You can later change and upgrade any component. If you want to start affordably, with the Mahon Trip Core, you get a versatile, multifunctional frame with a solid basic equipment.

Technical Information
FrameAlpha Smooth Aluminum, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount

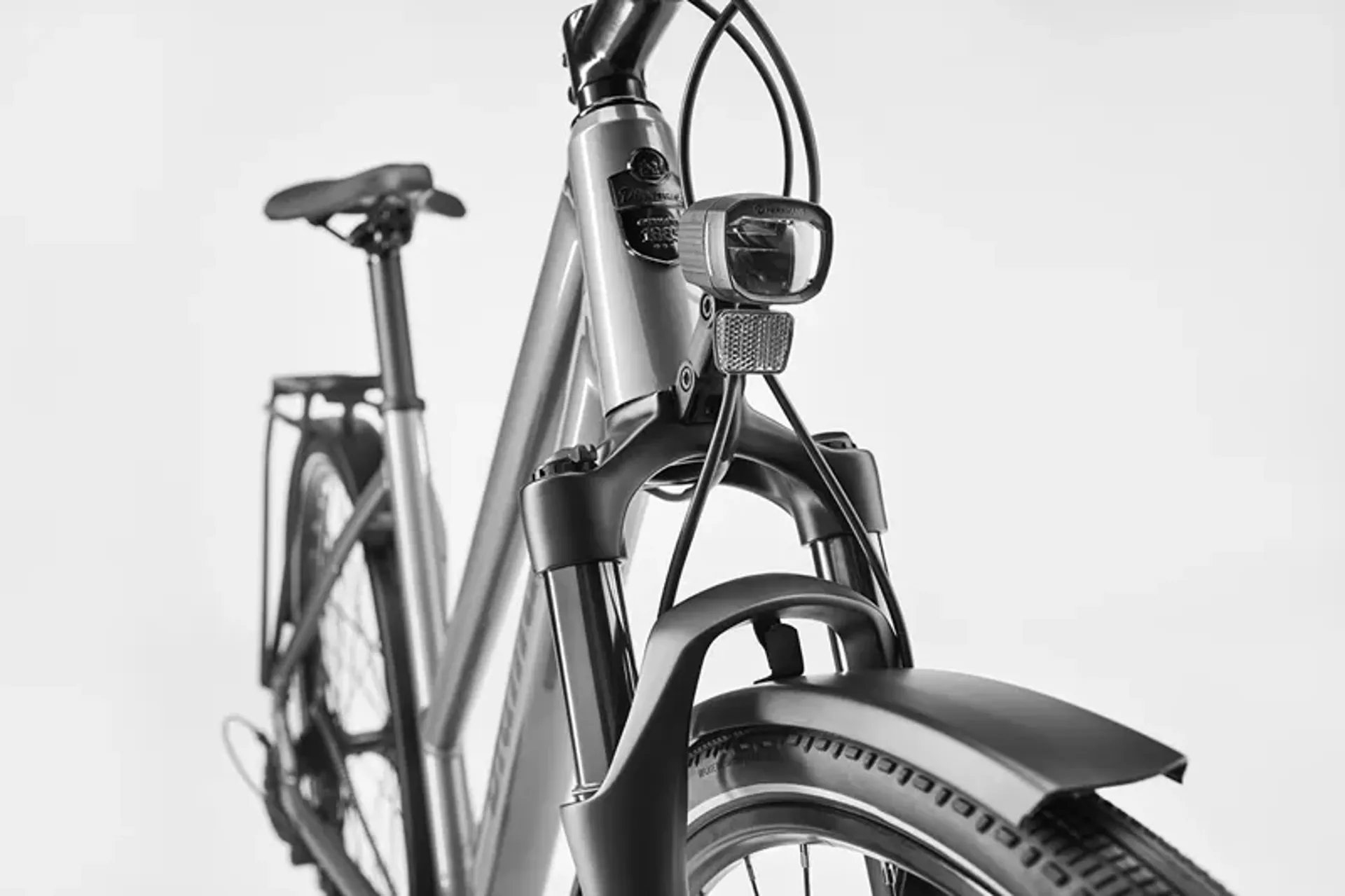

ForkSR Suntour NCX32, coil spring, 75 mm suspension
Wheels
Hub frontShimano 3.0 watt dynamo hub
Hub rearShimano QC400, 32-hole, centerlock, 135x5 mm QR
RimBontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Spokes14 g stainless steel, black
TyreBontrager Girona Comp, sub tread puncture protection, Black Sidewall, Reflective stripe, 700x42C, made with recycled content

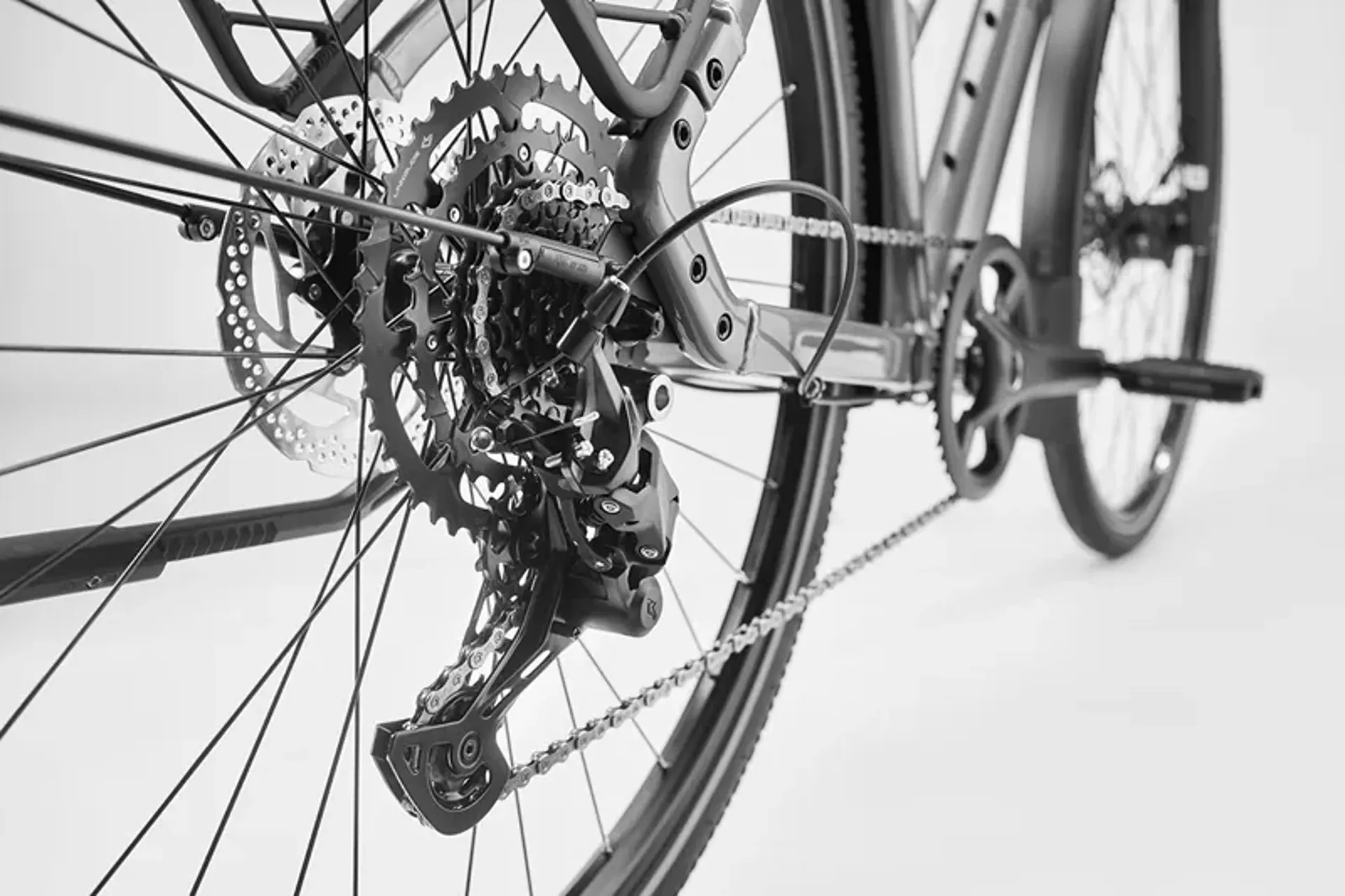

Drivetrain
ShifterShimano U4000, 9-speed
Rear derailleurShimano CUES U4000
*CrankSize:S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size:L
Prowheel alloy, 40T narrow-wide ring, 175 mm length
CassetteShimano LINKGLIDE LG300, 11-46, 9-speed
ChainShimano LG500, 9/10/11-speed
PedalVP-536 nylon platform
Components
SaddleBontrager Commuter Comp
SeatpostBontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
HandlebarAlloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 660 mm width
*GripsSize:S, M, L
Bontrager XR Endurance Comp, lock-on
Size:S, M, L
Trek Line Ergonomic Comp, lock-on
*StemSize:S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Size:M
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Size:L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Head setFSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
BrakeShimano MT200 hydraulic disc
Brake rotorShimano SM-RT30, CentreLock, 160 mm
Accessories
*LightSize:S, M, L
Spanninga Pimento Large, with stand light function
Size:S, M, L
Herrmans Nordic MR5, 100 lumen, LED, with stand light function
KickstandPletscher Comp Flex 40
Weight
WeightM - 15.90 kg / 35.06 lbs
