The ultimate thrill ride
For the toughest tracks. The supreme self-shuttle machine. With the power of Avinox inside. Karve EVO is the chaos-crushing, climb-shrinking electric mountain bike (eMTB) for self-shuttled riding and big mountain terrain. If having the best time dropping in on the biggest terrain is why you ride, Karve EVO RSX is ready.
The ultimate thrill ride
For the toughest tracks. The supreme self-shuttle machine. With the power of Avinox inside. Karve EVO is the chaos-crushing, climb-shrinking electric mountain bike (eMTB) for self-shuttled riding and big mountain terrain. If having the best time dropping in on the biggest terrain is why you ride, Karve EVO RSX is ready.
Whyte Bikes

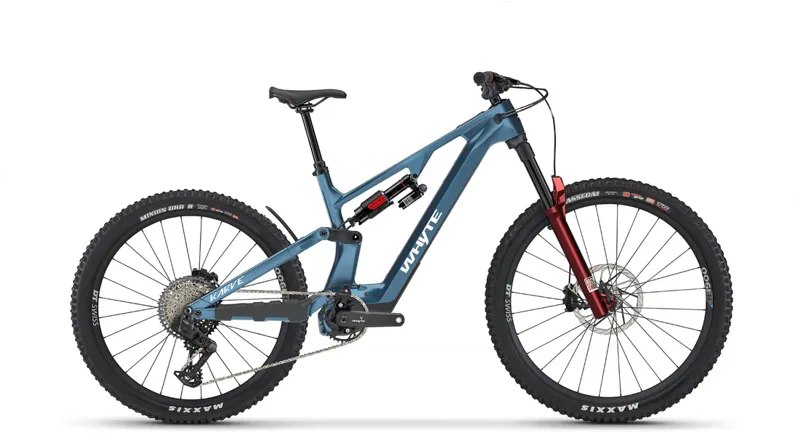

Whyte Karve Evo RSX V1- 1 Sapphire blue matt

£7,299.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Whyte Karve Evo RSX V1- 1 Sapphire blue matt

Brand:Whyte Bikes

Code:KarveEVORSXBLUBLUMAT

Highlights
– 180mm front and rear of Whyte custom-tuned suspension travel.
– Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong
–Avinox M2Sfull-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost) + 12A fast charger.
– SRAM AXS Eagle 1x12 transmission + SRAM Maven Silver four-piston hydraulic brakes.
– Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
– 800Wh internal battery so you can get more runs in.
– DT Swiss Hybrid MX wheels (29er front, 27.5in rear) for maximum confidence on even the steepest terrain + full 29er ready.
– Fitted with RideWrap frame protection kit from the factory (85% coverage).
Technical Information

Specifications

COLOURSapphire blue (matt)CASSETTESRAM XS 1275, T-Type, 10-52T, 12 speed
FRAMEUni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standardCHAINSRAM GX T-Type, 12 speed
FORKRockShox ZEB Ultimate, 180mm travel, 44mm offset, Linear XL, Charger 3.2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealthCRANKSETWhyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
REAR SHOCKRockShox Vivid Ultimate RC2T, 230 x 62.5mm, custom tuned for WhyteBOTTOM BRACKETN/A
HEADSETZS56 upper / lower headset cups for 1 1/8in upper and 1.5in lower with sealed bearingsSEATPOSTTranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
REAR HUBDT Swiss Hybrid HF1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six boltSEATWhyte Custom
FRONT HUBDT Swiss Hybrid HF1900, 110mm x 15mm Boost, six boltBARWhyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
SPOKESDT Swiss ElementalSTEMWhyte, 35mm extension, 35mm bar bore
RIMSDT Swiss Hybrid HF1900, 29in front, 27.5in rearGRIPSWhyte Enduro lock-on
TYRESMaxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)BRAKES FRONTSRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt HS2 rotors
SHIFT LEVERSSRAM AXS Pod, right, MMX, 12 speedBRAKES REARSRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt HS2 rotors
FRONT MECHN/ABRAKE LEVERSSRAM Maven Silver
REAR MECHSRAM S1000 AXS Eagle, 12 speedPEDALSFibre reinforced composite platform
WEIGHTTBC
