The Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal-assist and traditional bikes.
The Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal-assist and traditional bikes.
Trek

Trek Fuel Exe 9.5 Deore Electric Mountain Bike in Hex Blue

£3,099.00 £6,400.00 52% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Trek Fuel Exe 9.5 Deore Electric Mountain Bike in Black
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

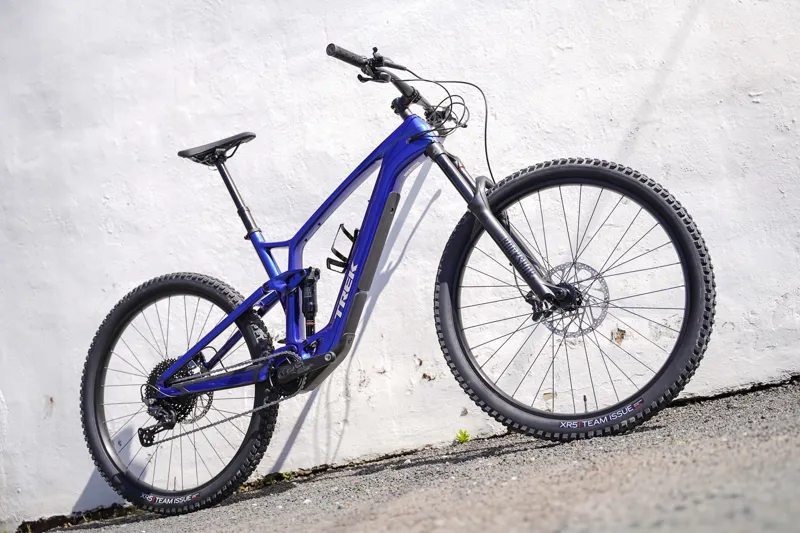

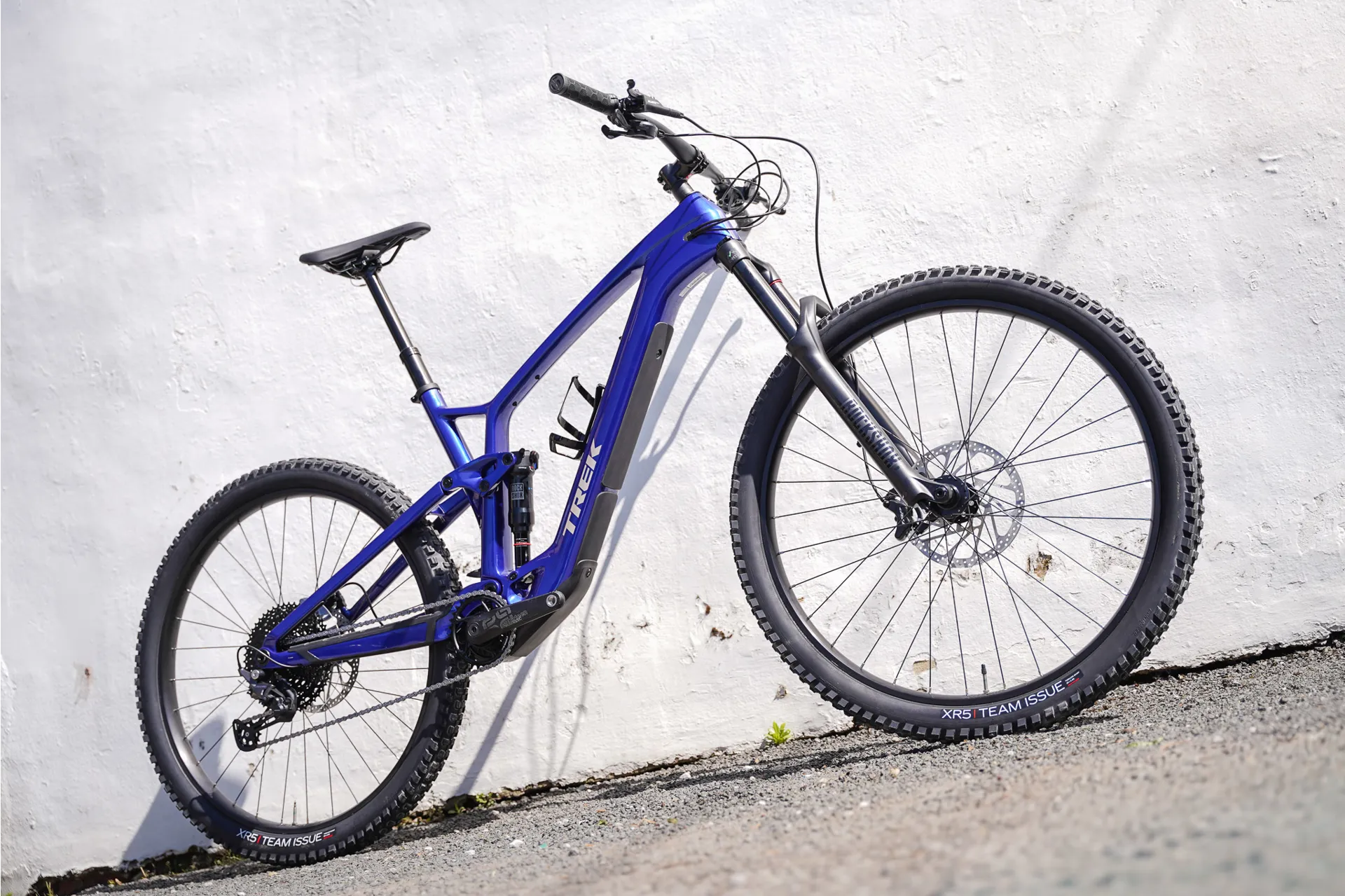

Trek Fuel Exe 9.5 Deore Electric Mountain Bike in Hex Blue

Season:2023

Brand:Trek

Code:36361HexBLU

The Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal-assist and traditional bikes.

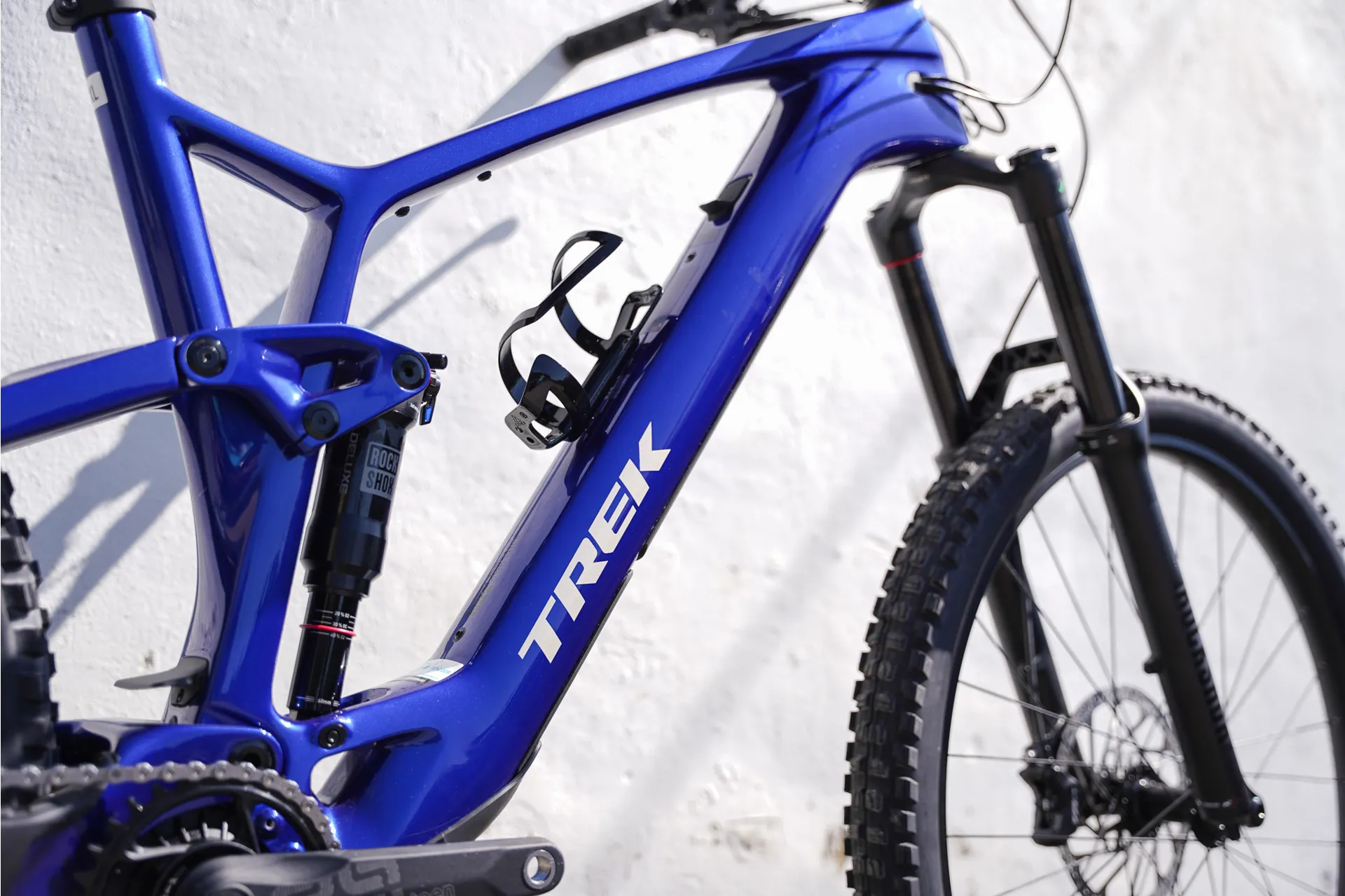

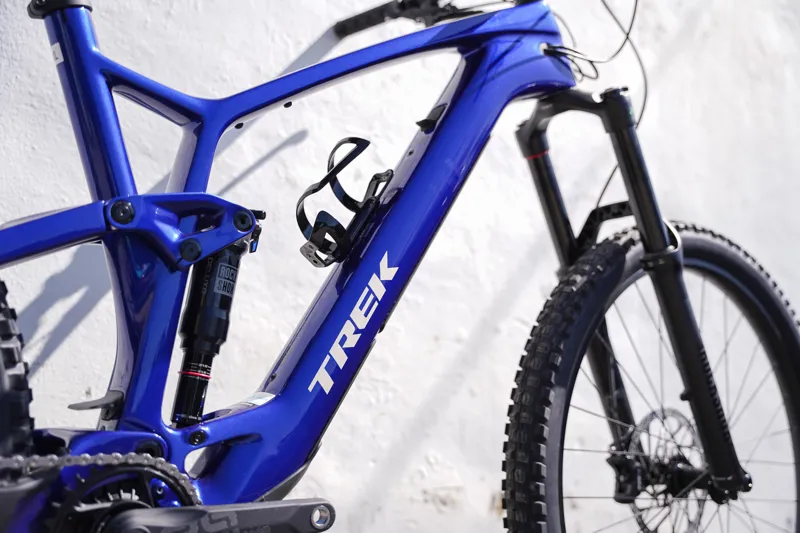

It features a carbon frame and a compact motor that keeps the ride light, lively and quiet. Get the benefit of pedal assist on long climbs, and the playful feel of a traditional mountain bike on descents. It's built up with a 150 mm RockShox Gold RL fork that makes quick work of rock gardens, and 140 mm of plush RockShox Deluxe Select+ rear suspension for a smooth ride and small bump compliance.
Technical Information
  • Frame
    OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel

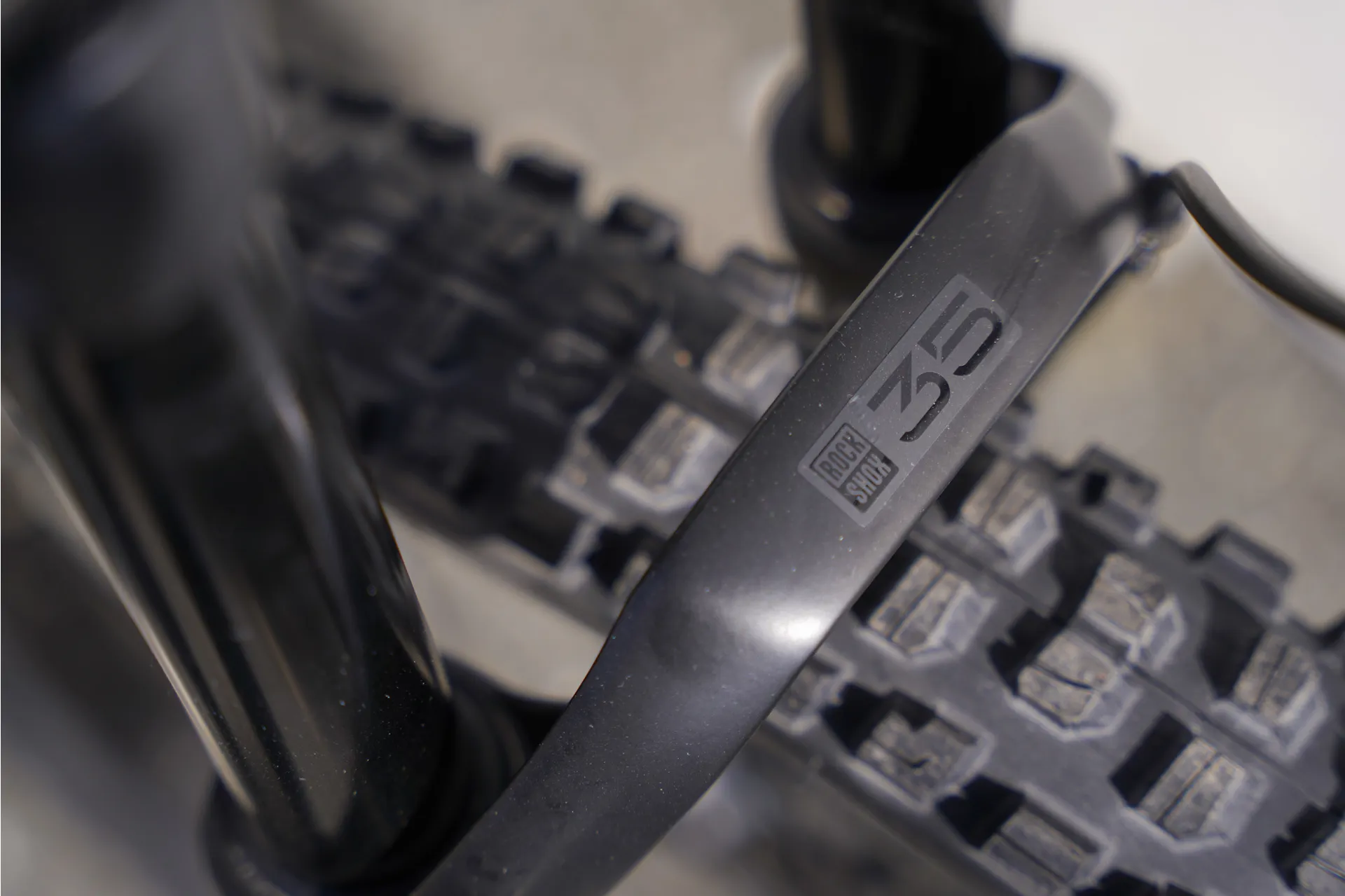

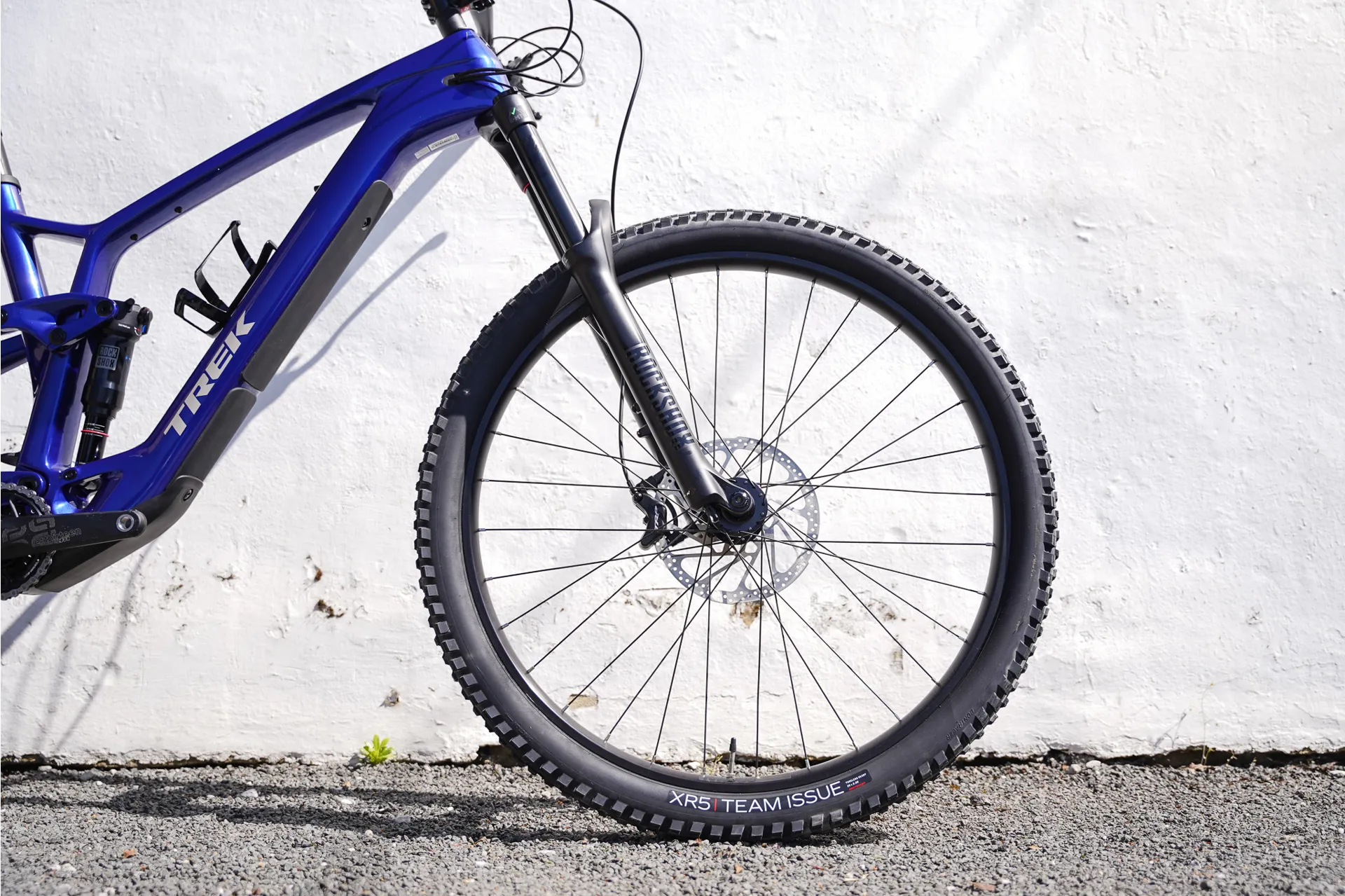

  • Fork

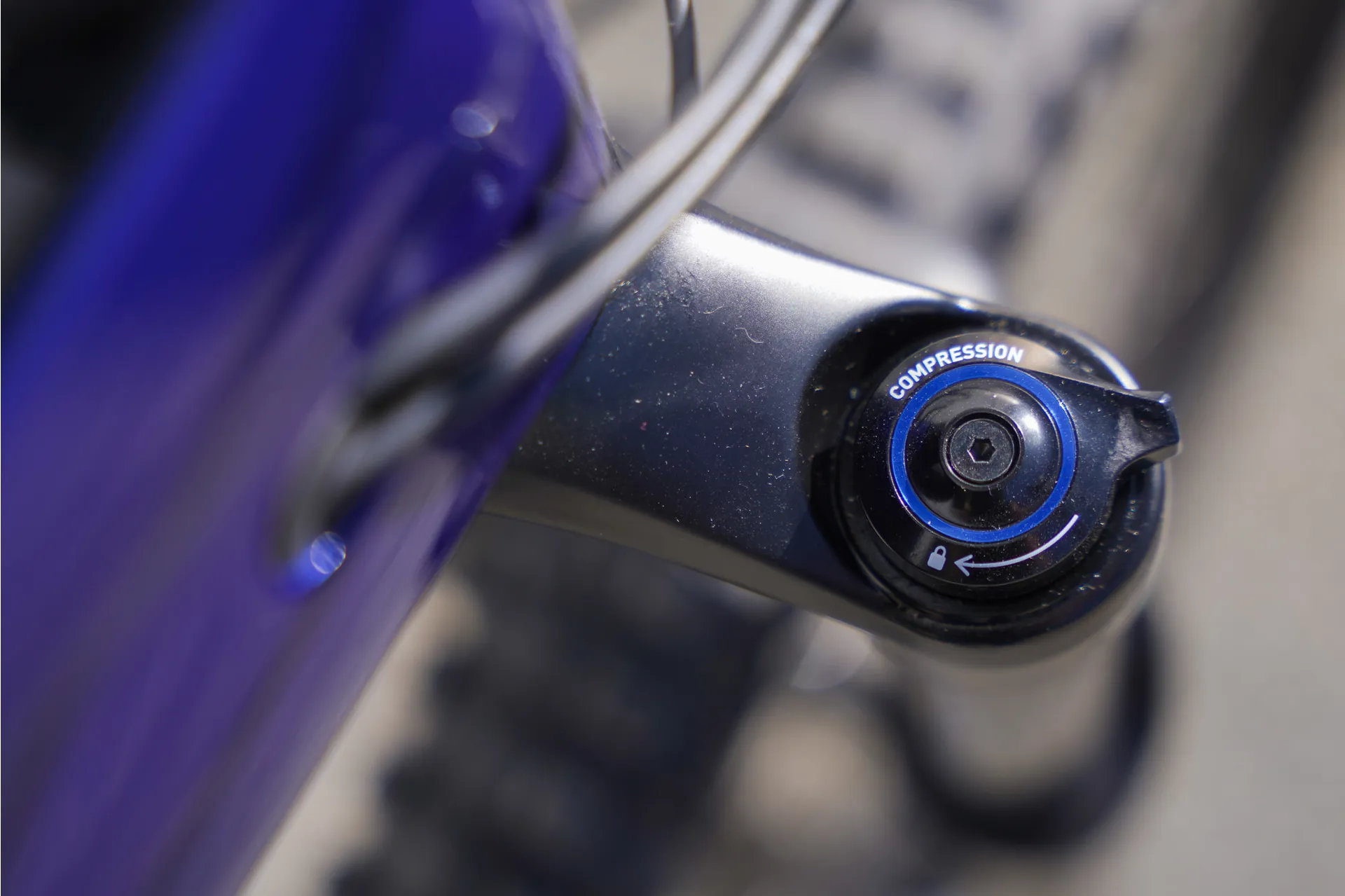

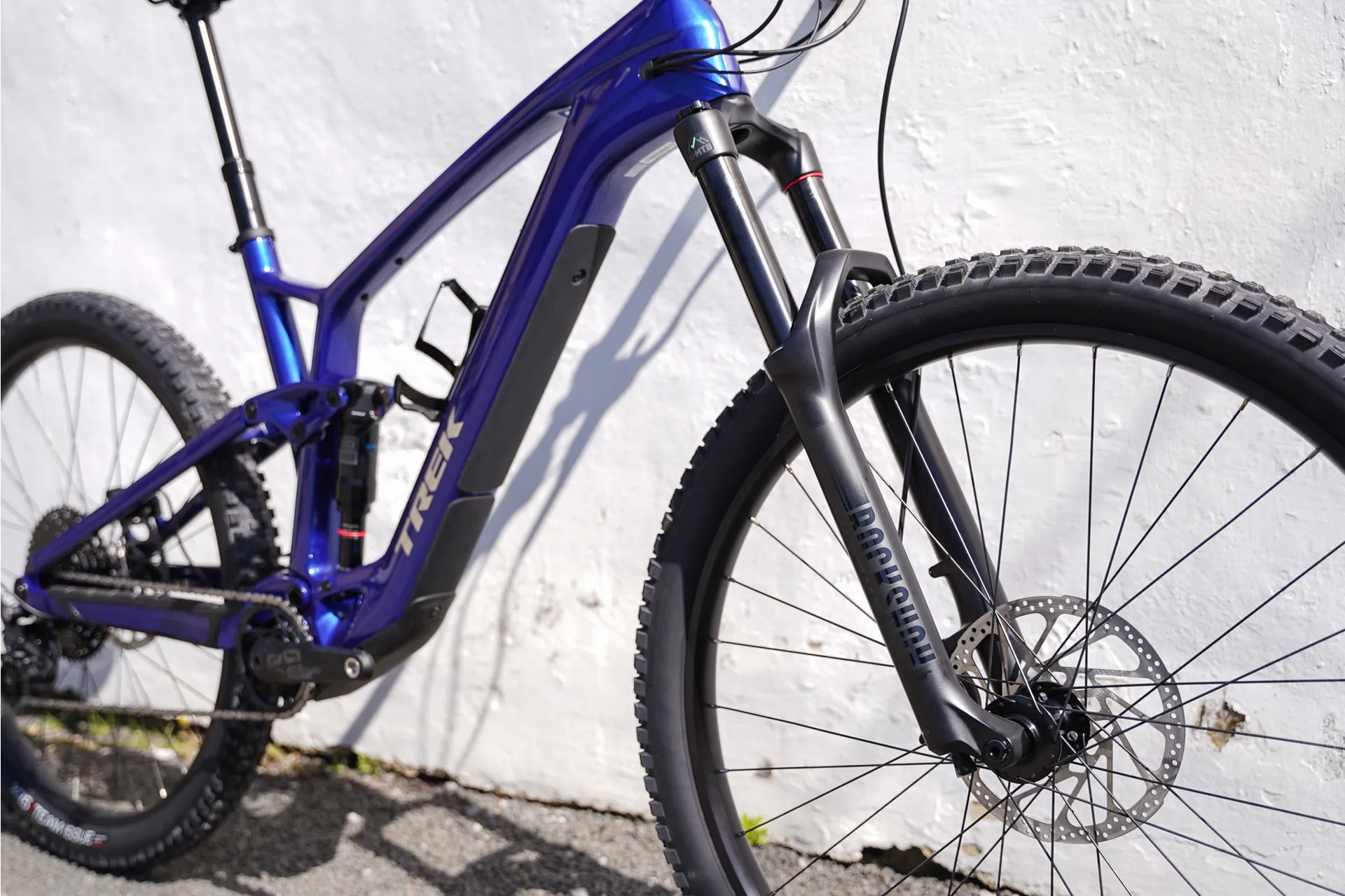

    RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

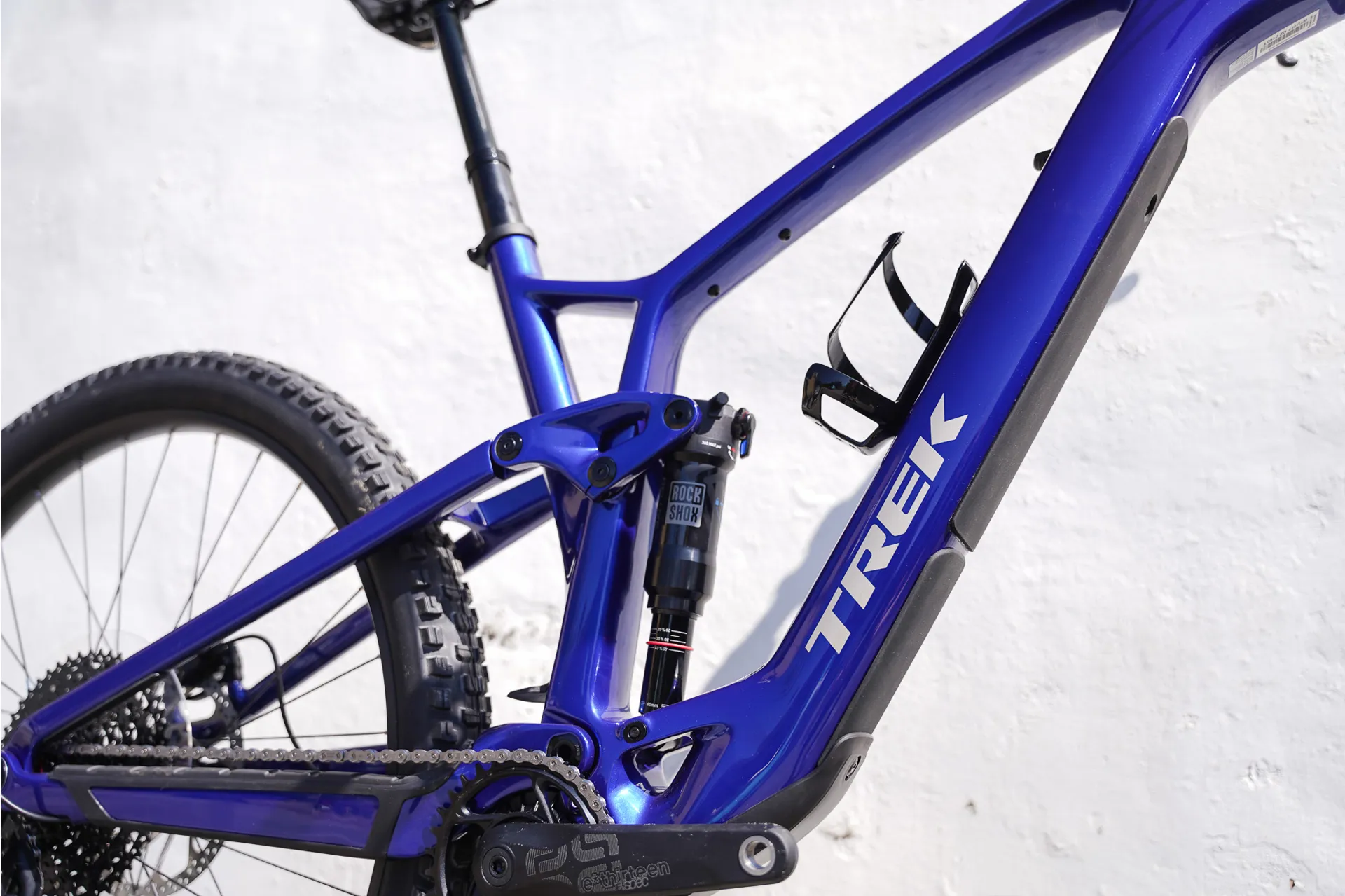

  • Shock
    RockShox Deluxe Select+ RT, 205 mm x 60 mm
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Tyre
    Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
  • Shifter
    Shimano Deore M6100, 12-speed

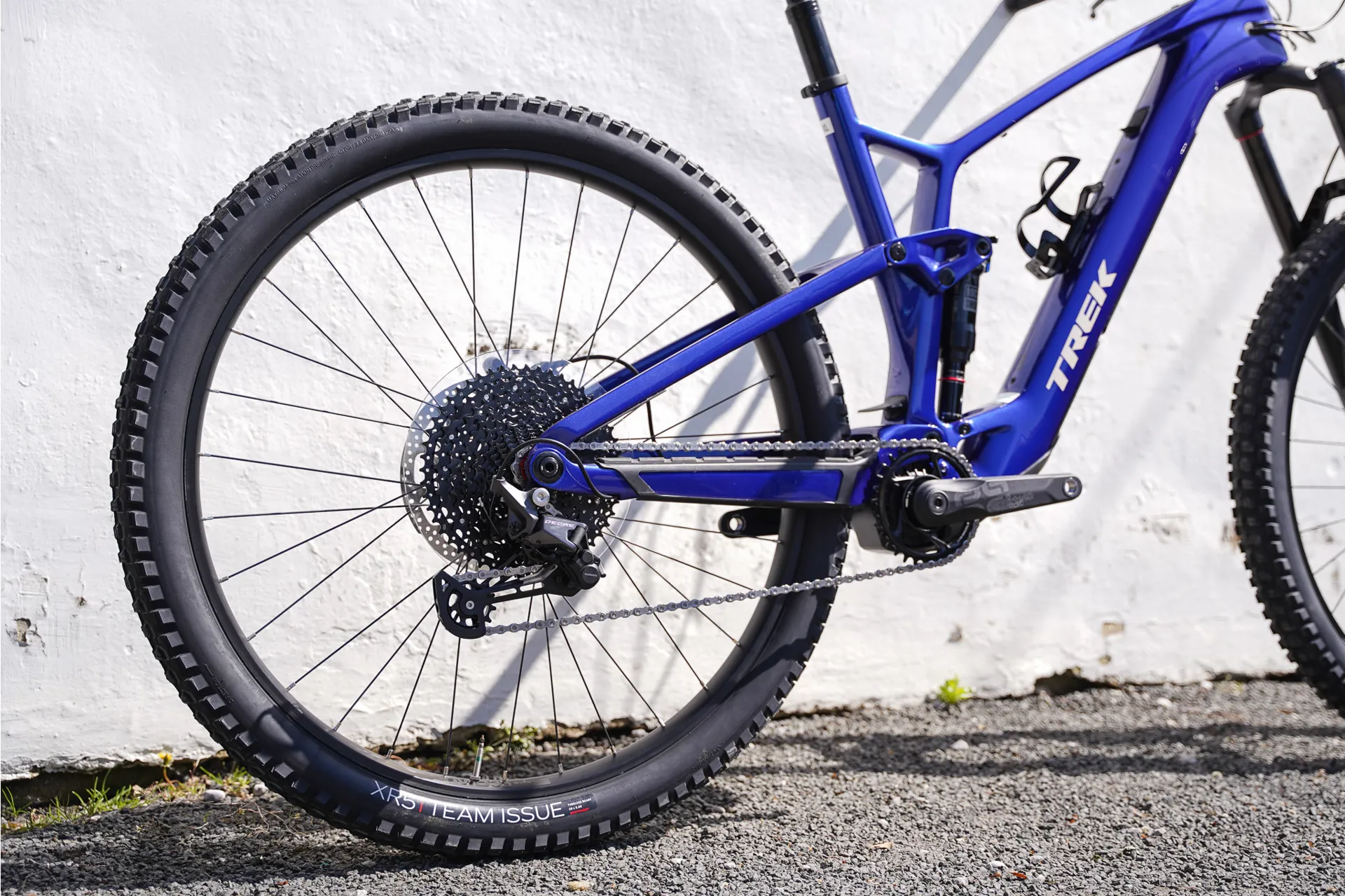

  • Rear derailleur
    Shimano Deore M6100, long cage
  • Crank
    E*thirteen E*spec Plus, 34T, 165 mm length
  • Chainring
    E*thirteen E*spec, 32T alloy ring, 55 mm chainline
  • Cassette
    SunRace CSMZ800 11-51, 12 speed
  • Chain
    Shimano Deore M6100
  • Saddle
    Bontrager Arvada, steel rails, 138 mm width
  • Seatpost
  • Size: S
    TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
  • Size: M
    TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
  • Size: L, XL
    TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
  • Handlebar
    Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
  • Grips
    Bontrager XR Trail Comp, nylon lock-on
  • Stem
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

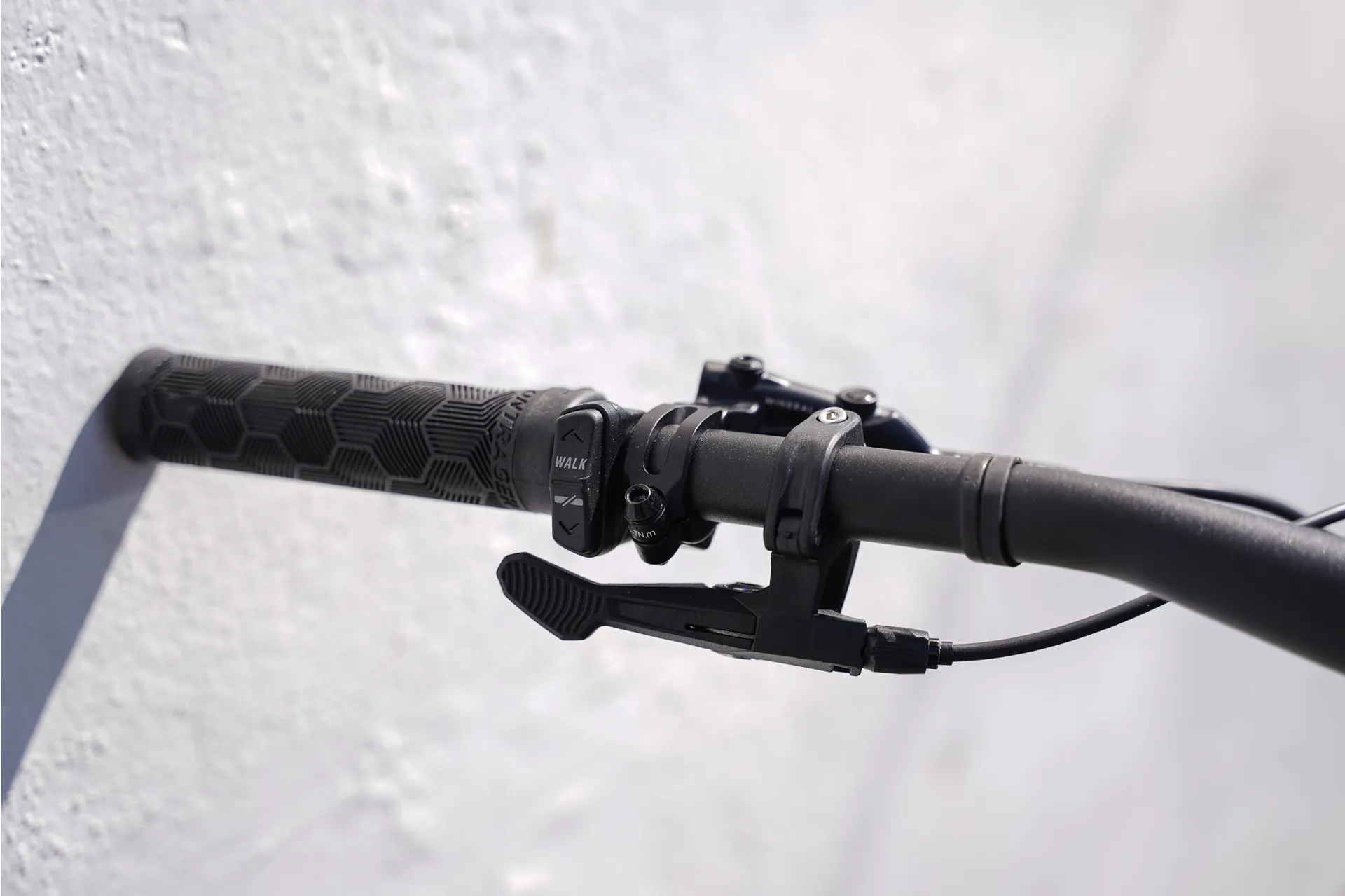

  • Controller
  • Size: S, M, L, XL

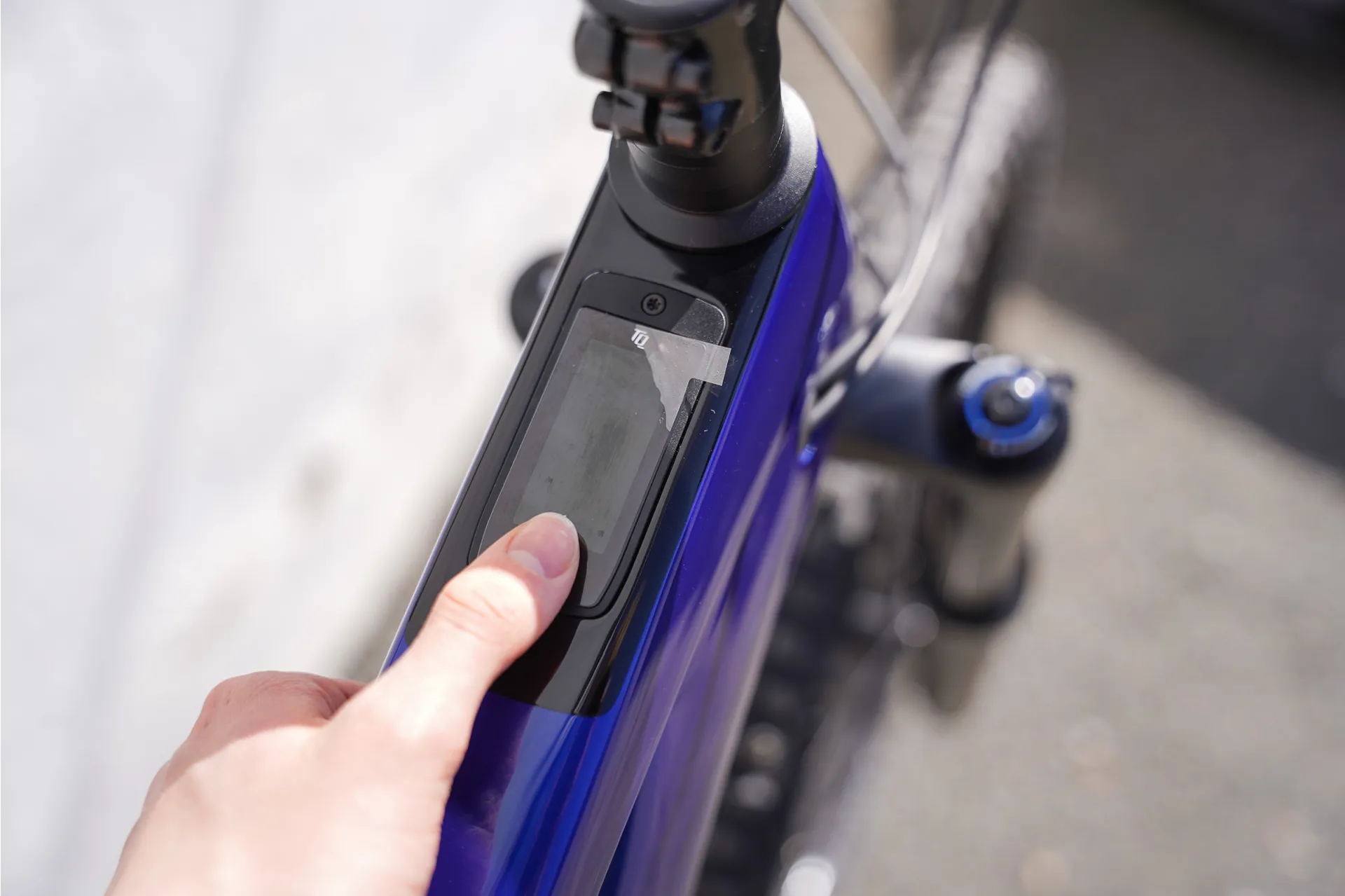

    TQ LED display with Bluetooth & ANT+ connectivity
  • Size: S, M, L, XL

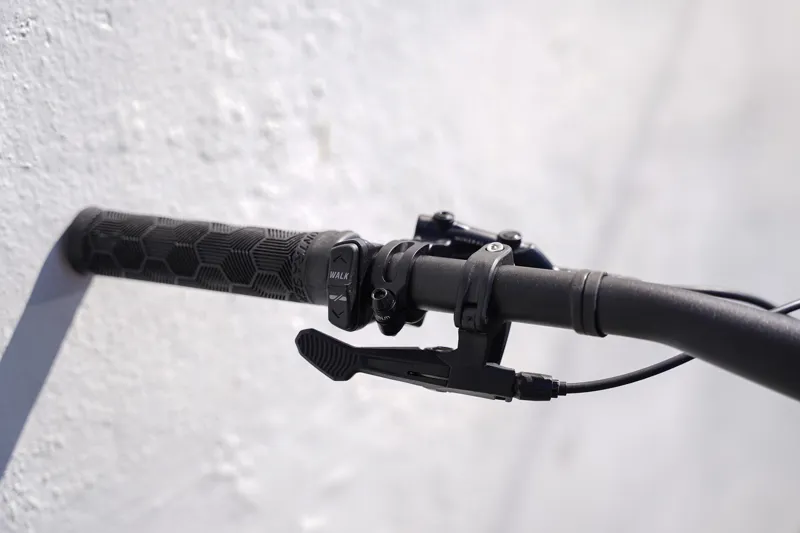

    TQ handlebar-mounted
  • Motor
    TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
