| Brands | Tern |
|---|
| Colour | Schoolbus Yellow |
|---|
| Size | 20" |
|---|
| Series | GSD |
|---|
| Colour | Yellow |
|---|
| Wheel Size | 20" |
|---|
| Speed | Single Speed |
|---|
| Frame Size | One Size |
|---|
| Max Weight | 200 kg (440 lb) |
|---|
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |
|---|

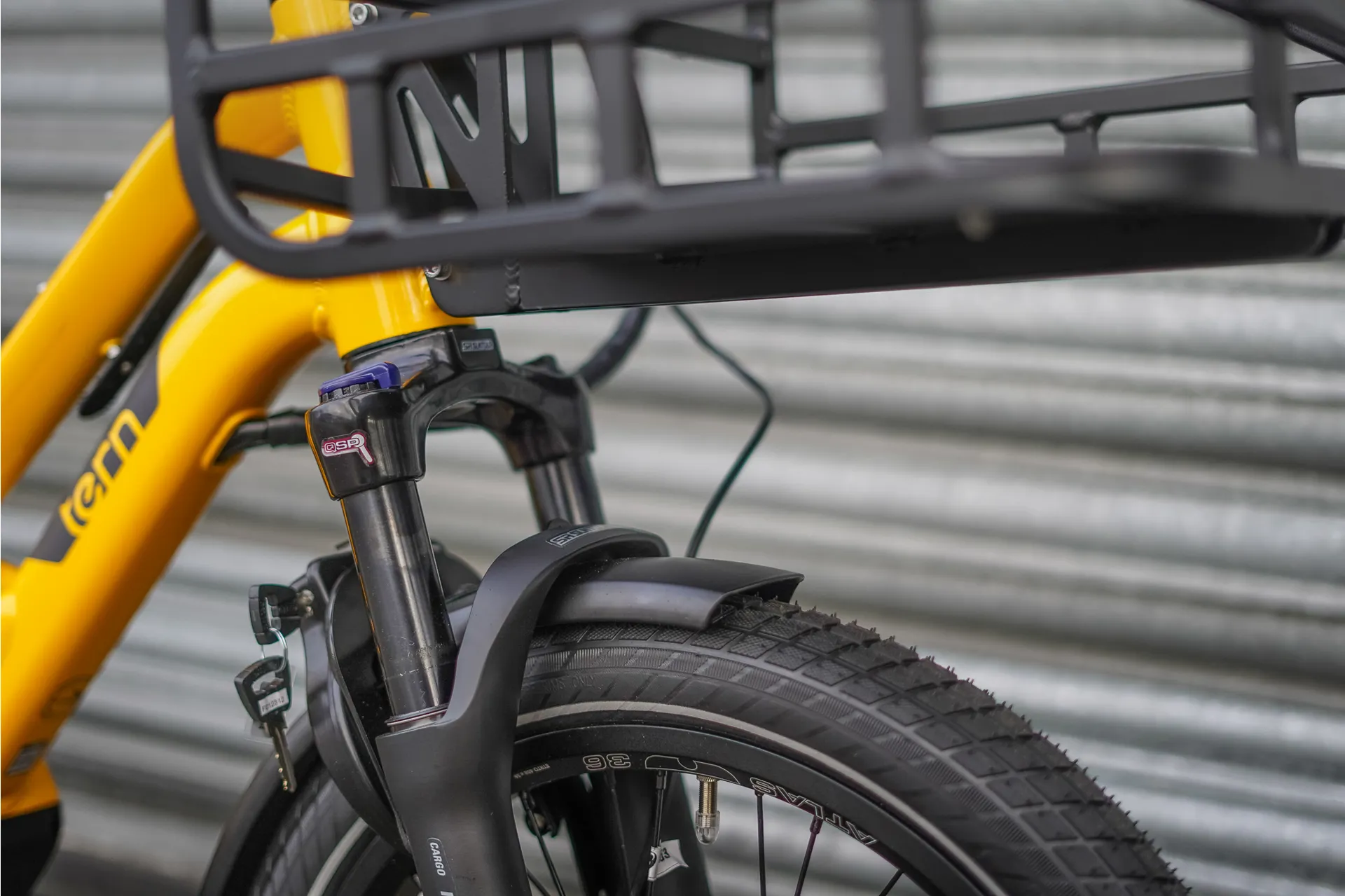

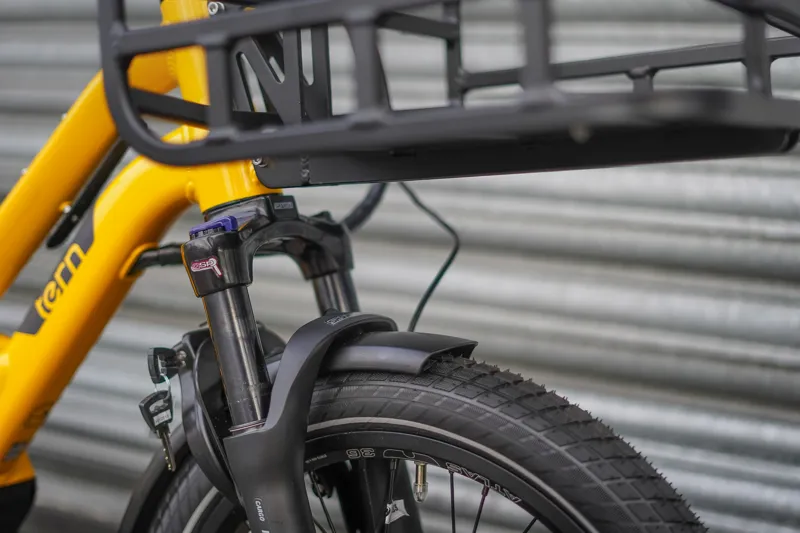

| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg |
|---|
| Stem | Tern Andros, adjustable, forged construction, patented technology |
|---|
| Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
|---|

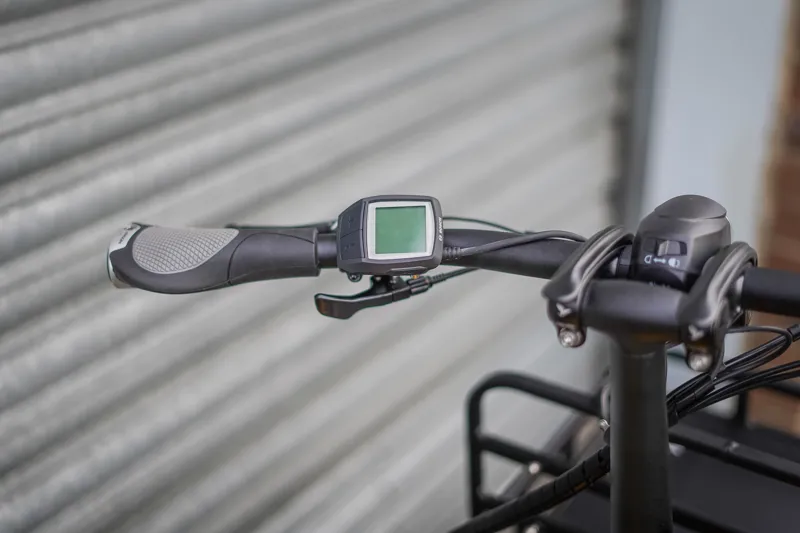

| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted |
|---|
| Bar Tape/Grips | Ergon |
|---|
| Saddle | Tern GSD by Velo, with rear handle |
|---|
| Seat Post | Tern Telescope, 34.9/30.9 mm, 2014-AL |
|---|
| Seat Clamp | Tern Collar, 6061-AL, 2pc |
|---|
| Spokes | Stainless steel, 13G |
|---|
| Rims | Tern Atlas, ultra wide 36 mm, dual reinforced joint |
|---|
| Tyres | Front: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex Rear: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
|---|
| Shifters | Enviolo, Twist |
|---|

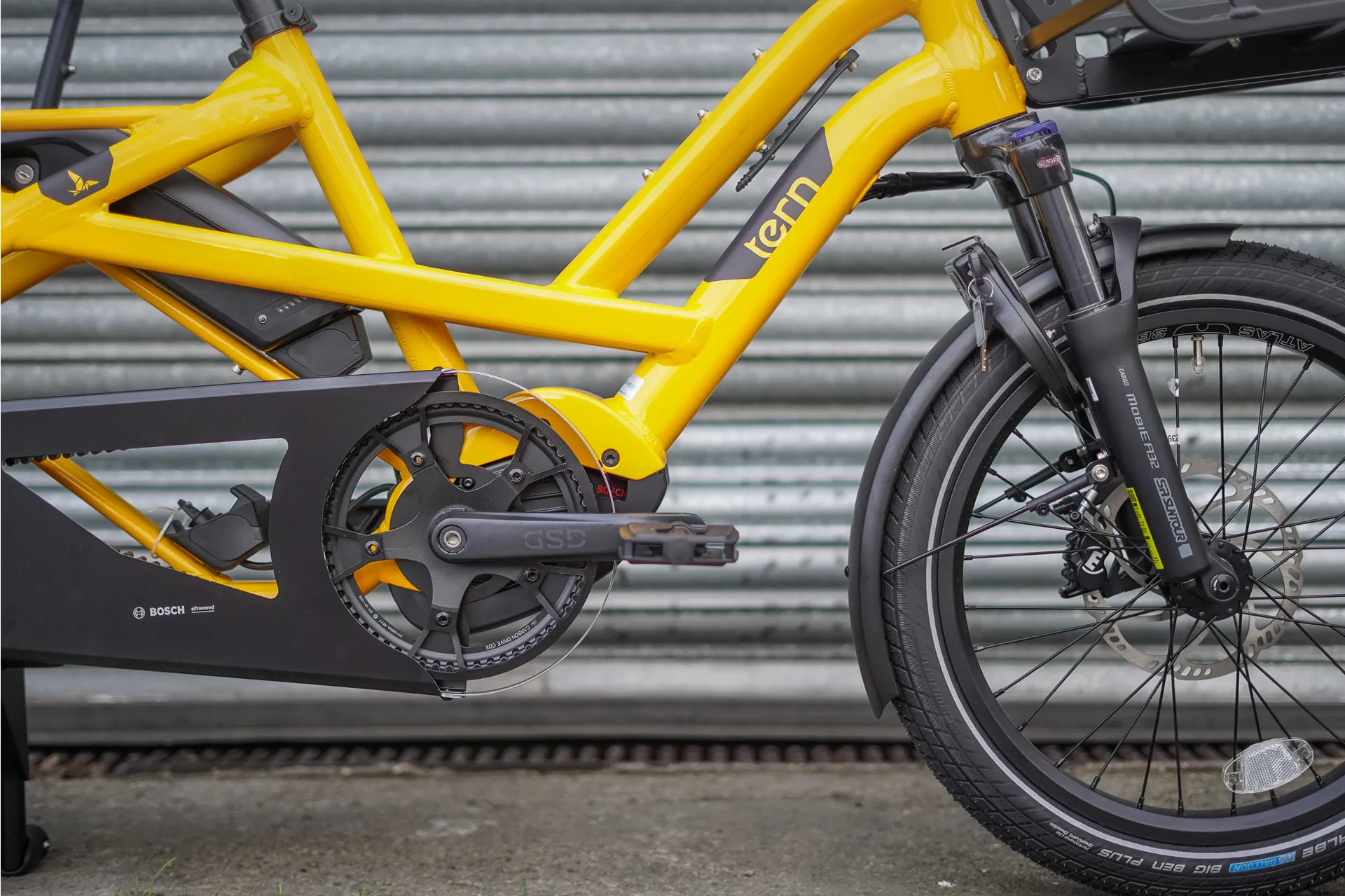

| Crankset | Tern GSD custom, Gates CDX CNC machined beltring |
|---|
| Cassette/Freewheel | Gates CDX, precision CNC machined cog |
|---|
| Bottom Bracket | Motor integrated |
|---|
| Chain | Gates Carbon Drive CDX belt |
|---|
| Pedals | Urban with non-slip surface, sealed bearings |
|---|
| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph |
|---|

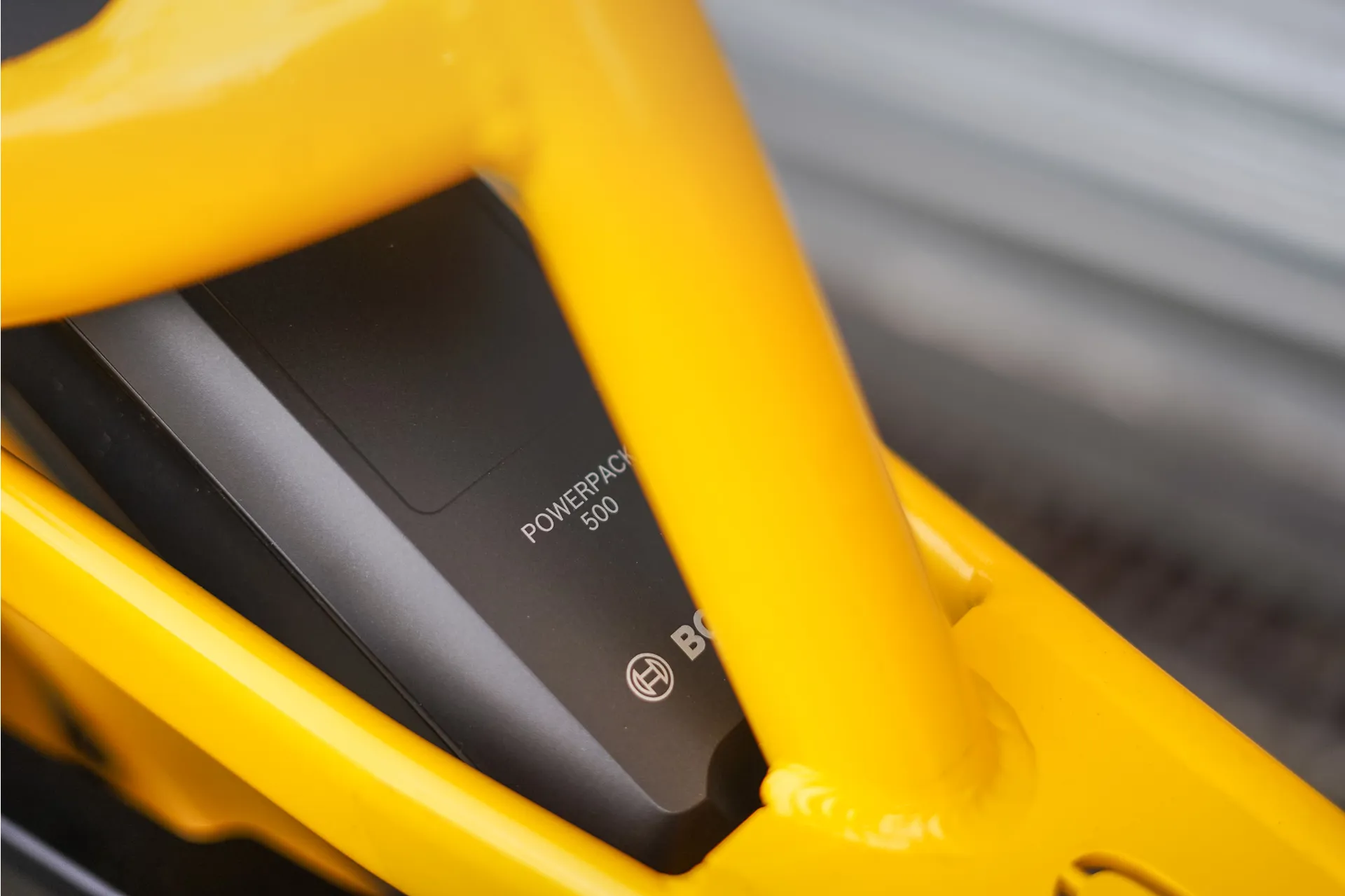

| Battery | Bosch Dual Battery system, 500 Wh |
|---|

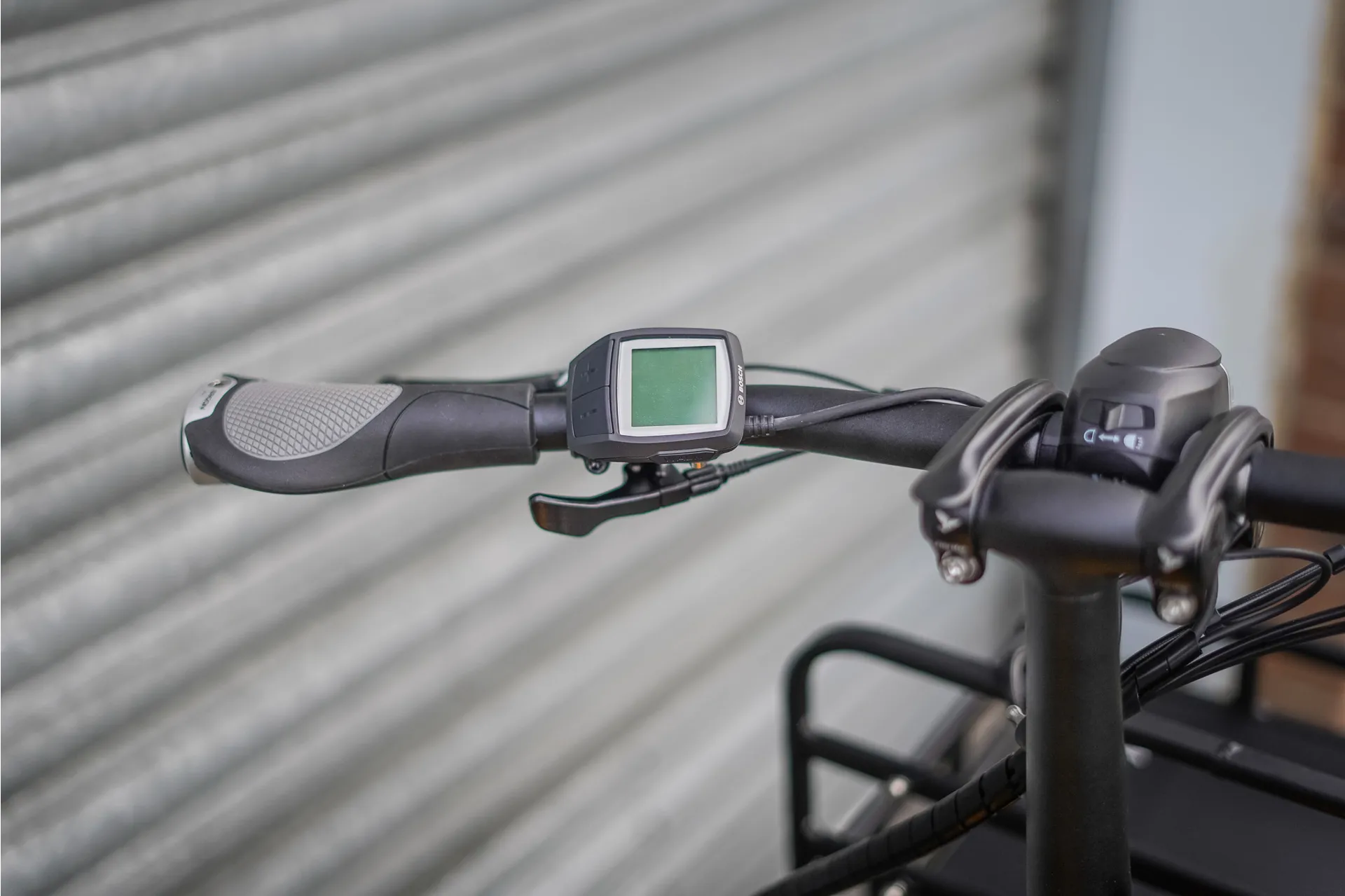

| Display | Bosch Purion |
|---|
| Range | 500 Wh: 31-63 mile (50 -101km) |
|---|
| Kickstand | Atlas Lockstand, w/ remote unlock, patented technology |
|---|
| Front Light | Tern Valo Direct, 190 lumens |
|---|
| Rear Light | RearStop Brake Light, Always on brake light |
|---|
