Wild offers the ultimate in eBike performance, developed in the toughest races. It is lightweight, fully optimised, and ready for action.
Wild offers the ultimate in eBike performance, developed in the toughest races. It is lightweight, fully optimised, and ready for action.
Orbea

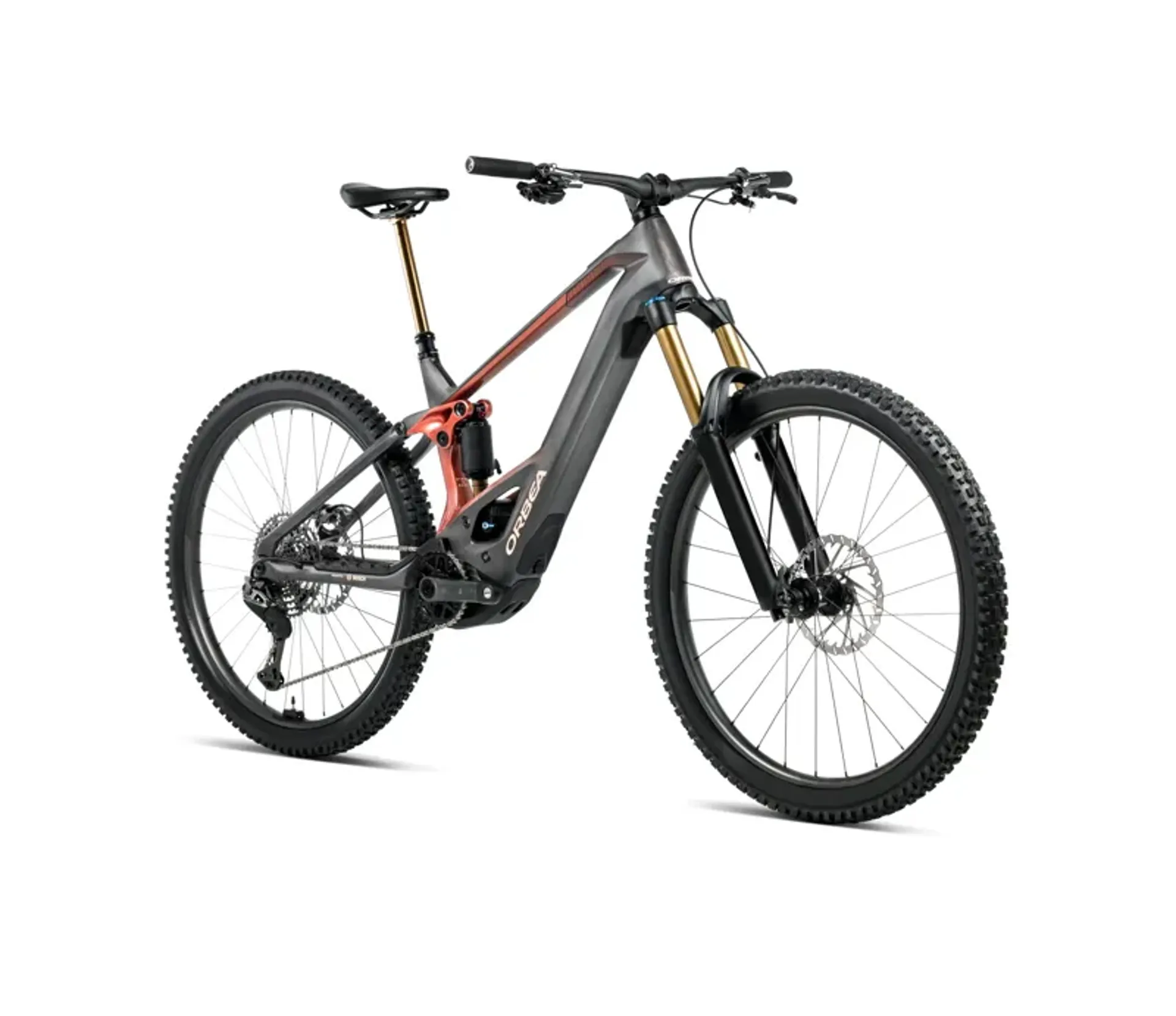

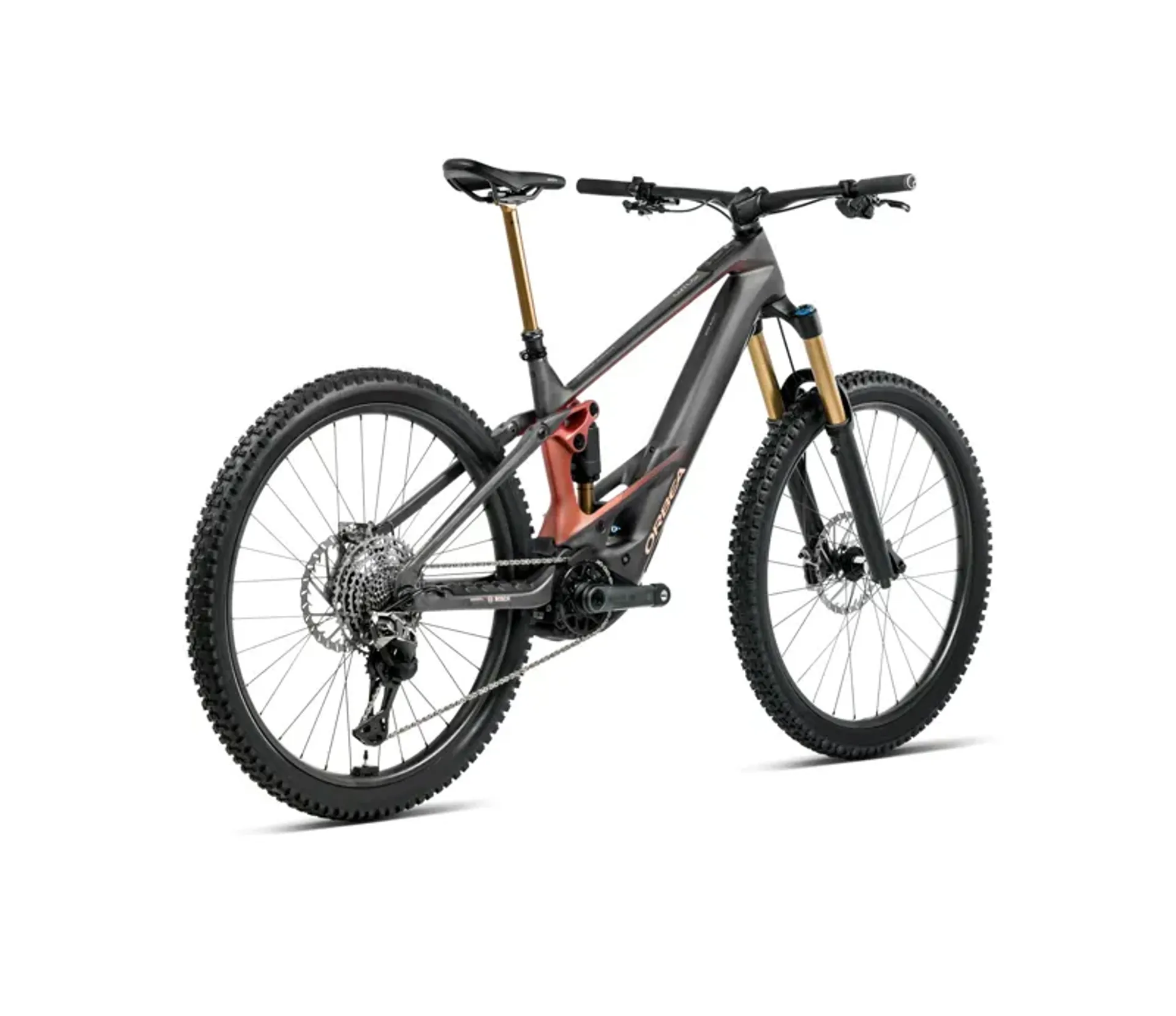

Orbea Wild M10 E-MTB In Diamond Carbon View Matt/Mars Red Gloss

£7,399.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Orbea Wild M10 E-MTB In Diamond Carbon View Matt/Mars Red Gloss

Season:2026

Brand:Orbea

Code:T346TTCCX1

Wild is a bike built without compromises, ready to perform in any challenge.

Wild is a bike built without compromises. Lightweight and fully optimised, it leaves the Orbea factory ready for action with the latest Bosch motor and race-ready build kits. With 170mm of travel front and rear, and angles designed to go fast, you know that no matter what the challenge, Wild is prepared to perform.

Features:

  • The new Kiox 400C display is seamlessly integrated into the frame, protected from bumps and impacts. It features a USB-C charging port, customizable display layouts, and built-in navigation capabilities.
  • Wild offers 170mm of travel front and back, with custom-tuned Fox Float X or Float X2 shocks and the 38 fork.
  • Wild comes with the 600Wh battery as standard. This lighter battery offers the ultimate in handling. For those looking for longer rides, the 750Wh battery and the 250Wh range extender are options via MyO.
  • Bosch's 100 Nm motor needs no introduction, with endless power and controlled responses. The updated motor gives more precise control, is quieter and lighter, and offers less pedal resistance.
  • High modulus, high-strength fibres, and advanced carbon manufacturing techniques let Orbea use less carbon while maintaining strength and rigidity (OMR Carbon).
  • Full power eBikes need stiffer, more burly forks. Wild counts on the benchmark Fox 38.
Technical Information
  • Frame
    Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148
  • Shock
    Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
  • Fork
    Fox 38 Float Performance 170 Grip 3-Pos QR15x110
  • Steerer tube
    Alloy 1-1/2", Black Oxidated Bearing
  • Battery
    Bosch Powertube 750Wh Horizontal BBP3770
  • Motor
    Bosch Performance Line CX BDU3843
  • Display
    Bosch System Module Kiox 400C
  • Charger
    Bosch Charger 4A (230V) BPC3400
  • Remote
    Bosch Mini Remote BRC3300
  • Chainring
    e*thirteen e*spec Direct Mount 34T Boost
  • Crank
    e*thirteen Helix Core
  • Shifters
    Shimano SLX M7100 I-Spec EV
  • Cassette
    Shimano CS-M7100 10-51t 12-Speed
  • Rear derailleur
    Shimano XT M8100 SGS Shadow Plus
  • Chain
    Shimano M6100
  • Chainguide
    e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
  • Handlebar
    OC Mountain Control MC20 Alu SL, Rise20, Width 800
  • Stem
    OC Mountain Control MC20, 0º
  • Computer mount
    OC Computer Mount CM-05, Garmin/Sigma
  • Brakes
    Shimano XT Hydraulic Disc
  • Rotors
    Galfer Wave Rotors 203mm front / 203mm rear
  • Wheels
    DT Swiss H-1900 Spline 30c TLR 15/110mm 6-Bolt
  • Tyres
    Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip, Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
  • Seatpost
    OC Mountain Control MC22, 31.6mm, Dropper
  • Seatpost lever
    Shimano SL-MT500 I-Spec EV
  • Saddle
    Fizik Aidon 208x145mm manganese rail
Sizing Information
Mountain/Leisure Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Mountain Bike Size
4'11" - 5'3"150 - 160 cmXS
5'3" - 5'6"160 - 168 cmS
5'6" - 5'9"168 - 175 cmM
5'9" - 6'0"175 - 183 cmL
6'0" - 6'3"183 - 191 cmXL
6'3" - 6'7"191 - 200 cmXXL

Road/Gravel Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Road Bike Size
4'10" - 5'1"147 - 155 cm47-49cm
5'1" - 5'4"155 - 163 cm49-51cm
5'4" - 5'7"163 - 170 cm51-53cm
5'7" - 5'9"170 - 175 cm53-55cm
5'9" - 6'0"175 - 183 cm55-57cm
6'0" - 6'2"183 - 188 cm57-59cm
6'2" - 6'5"188 - 196 cm59-61cm
6'5" - 6'8"196 - 203 cm61-63cm


Please note that this is a general guideline, and you should always refer to the specific bike's geometry chart to ensure a proper fit. Please visit Orbea for more information
