  Frame with Fork Size S, XL, XS, L, M, ML
-

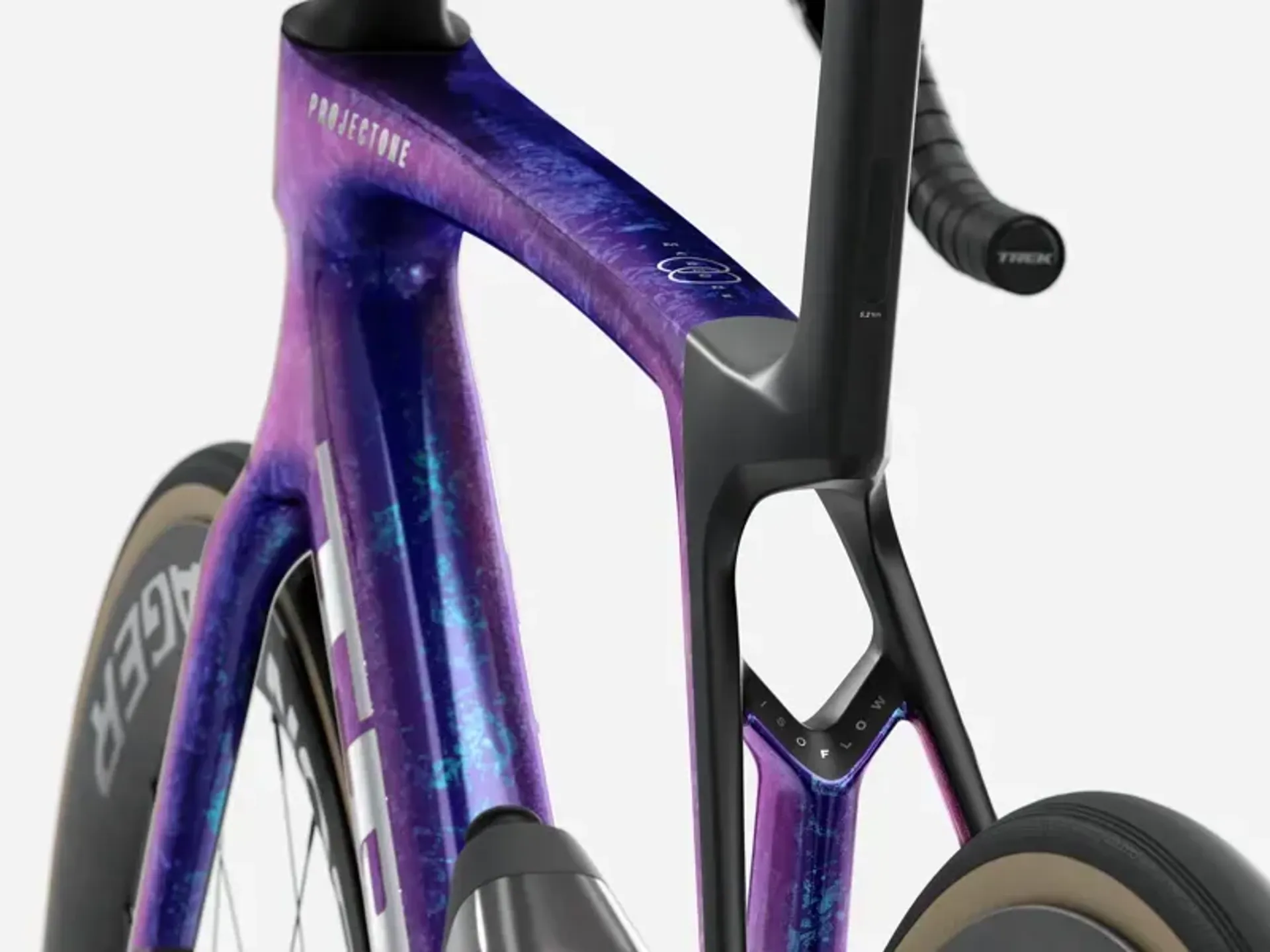

  Frame with Fork 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
-
  Fork Size S, XL, XS, L, M, ML
-
  Fork Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
-
  Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
-
  Battery SRAM AXS battery pack (with charger)
-

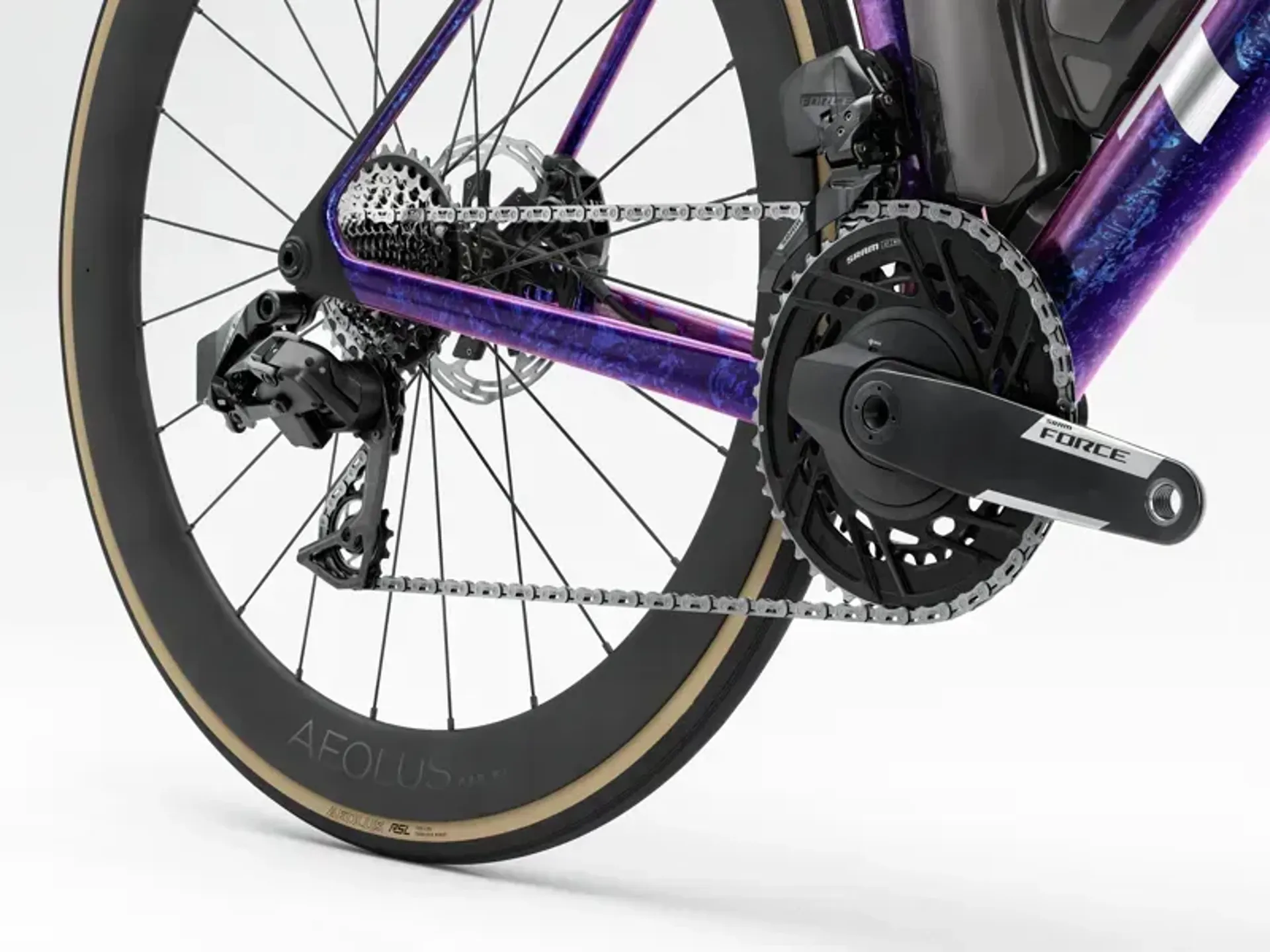

  Shifter SRAM Force AXS E1
-
  Front Derailleur SRAM Force AXS, braze-on
-
  Rear Derailleur SRAM Force AXS, 36T max cog
-
  Crank Size XS SRAM Force AXS with power meter, 48/35, DUB, 165mm length
-
  Crank Size M SRAM Force AXS with power meter, 48/35, DUB, 170mm length
-
  Crank Size XL SRAM Force AXS with power meter, 48/35, DUB, 172.5mm length
-
  Bottom Bracket SRAM DUB, T47 threaded, internal bearing
-
  Cassette SRAM Force XG-1270, 10-33, 12 speed
-
  Chain SRAM Force E1, 12/13 speed
-
  Max chainring size 1x: 54T, 2x: 56/43
-
  Front Wheel Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
-
  Rear Wheel Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle
-
  Front Skewer Bontrager Switch chamfered thru axle, removable lever
-
  Rear Skewer Bontrager Switch chamfered thru axle, removable lever
-
  Tire Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm
-
  Tire Pirelli P Zero Race TLR RS, 120 tpi, tubeless compatible, 700x28mm
-
  Tube Pirelli P Zero SmarTube, TPU
-
  Max tire size 32mm (as measured, see manual for details)
-
  Saddle Bontrager Aeolus Pro, carbon rails, 145mm width
-
  Seatpost Madone aero carbon seatpost, 0mm offset, short length
-

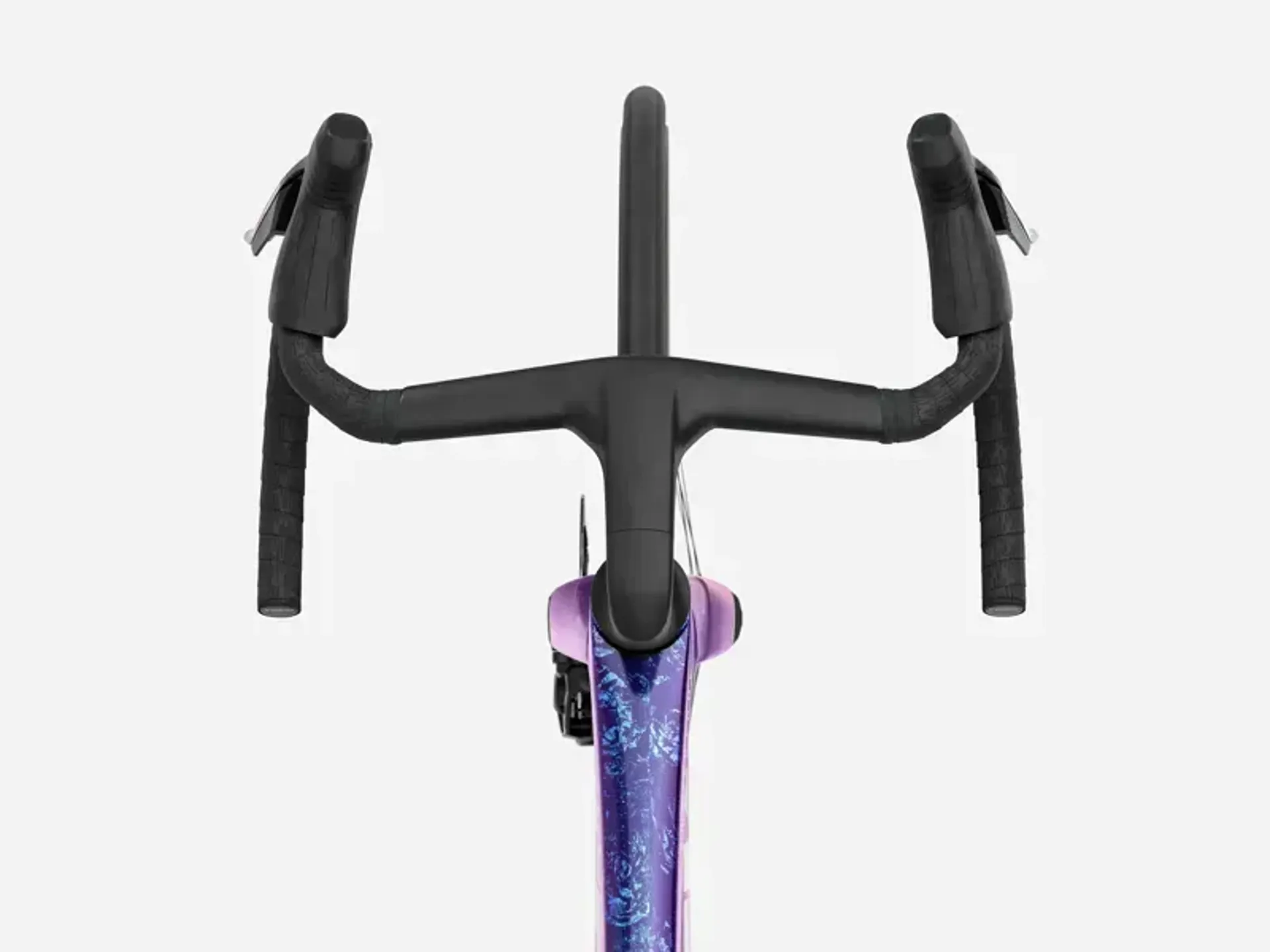

  Integrated Bar Stem Size XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
-
  Integrated Bar Stem Size S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length
-
  Integrated Bar Stem Size M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
-
  Integrated Bar Stem Size L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
-
  Integrated Bar Stem Size XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
-
  Handlebar Tape Trek EcoTack
-
  Brake SRAM Force AXS hydraulic disc, flat mount
-
  Brake Rotor SRAM CenterLine X, centerlock, round edge, 160mm
-
  Rotor size Max brake rotor sizes: 180mm front, 160mm rear
