SL5
Spec
Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Weight
ML - 8.84 kg / 19.49 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

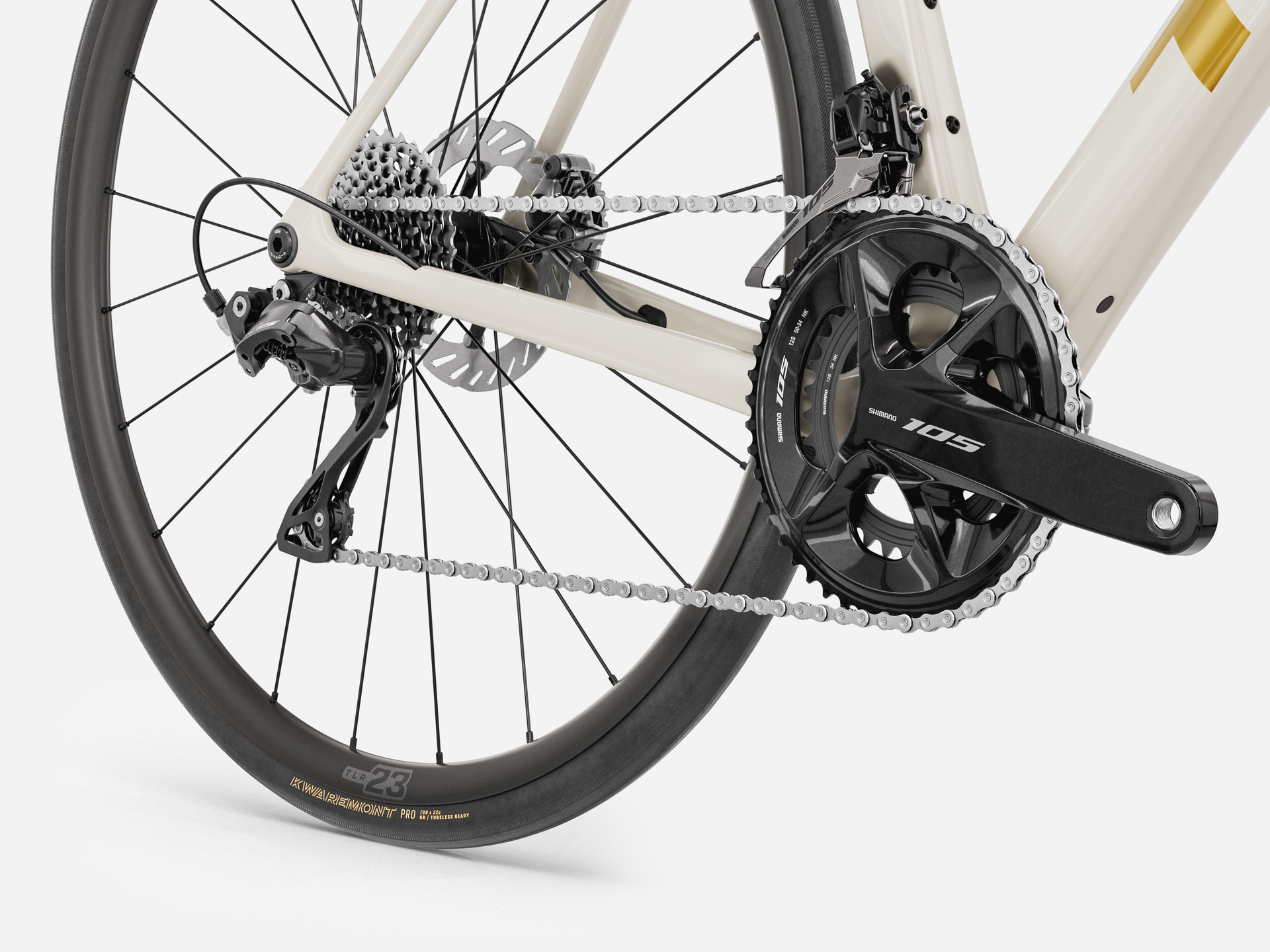

Drivetrain
Shifter
Shimano 105 R7120, 12-speed
*Crank
Size: M, ML
Shimano 105 R7100, 50/34, 165 mm length
Size: L, XL
Shimano 105 R7100, 50/34, 170 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 7101, 11-34, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 48T, 2x: 52T
Wheel
Hub front
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes
14 g stainless steel, black
Tyre
Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
40 mm (as measured, see manual for details)
Components
Saddle
Verse Short Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

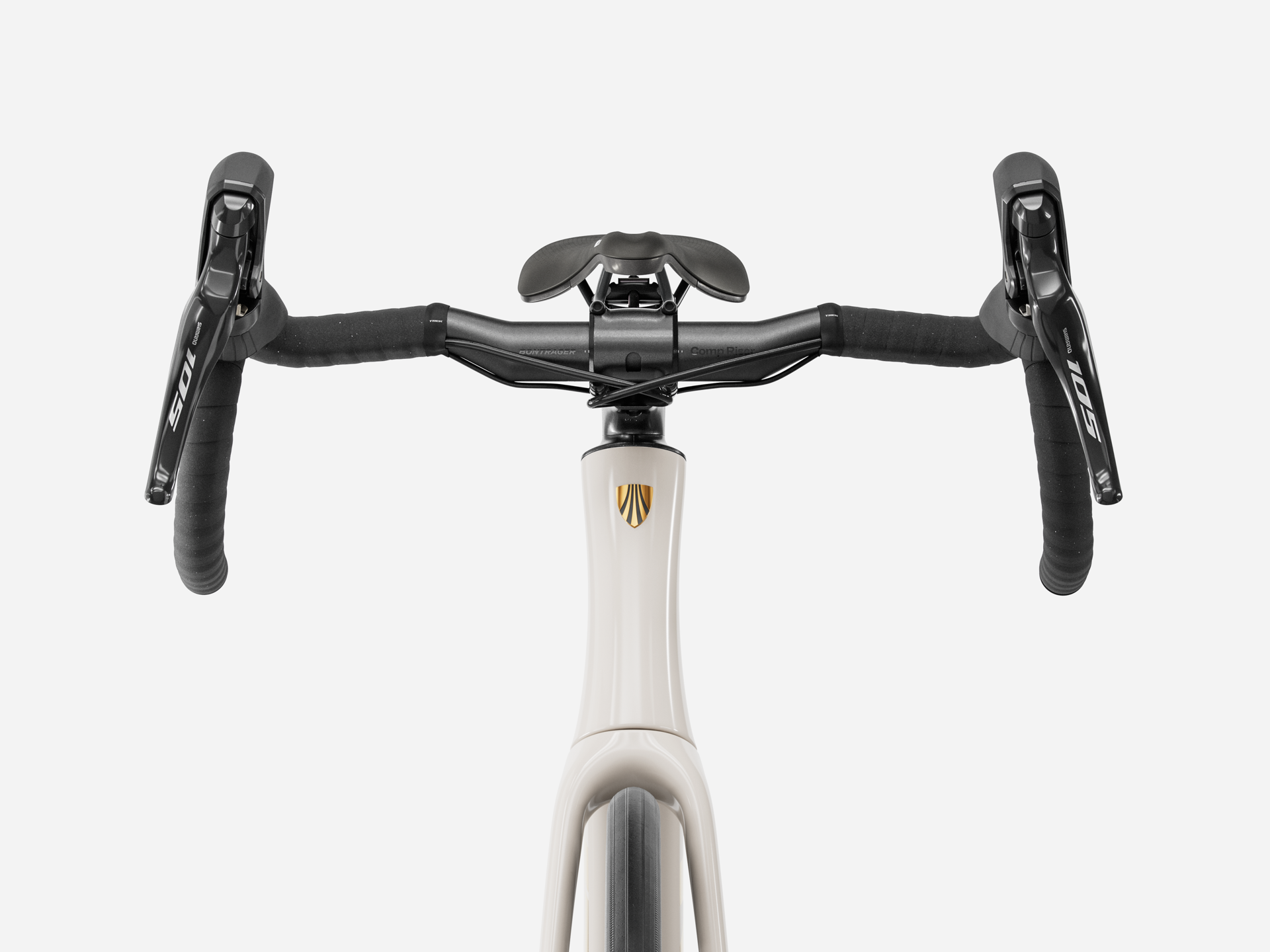

*Handlebar
Size: XS
Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 36 cm width
Size: S
Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 38 cm width
Size: M, ML
Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 40 cm width
Size: L, XL
Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 42 cm width
*Stem
Size: XS
Trek RCS Pro, -7-degree, 80 mm length
Size: S
Trek RCS Pro, -7-degree, 90 mm length
Size: M
Trek RCS Pro, -7-degree, 100 mm length
Size: ML, L
Trek RCS Pro, -7-degree, 110 mm length
Size: XL
Trek RCS, -7 degree, 120 mm length
Brake rotor
Shimano CL700, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear
