Fuel EX5 Gen 7
Fuel EX5 Gen 7
Trek

Trek 2027 Fuel EX 5 WILD MUSHROOM/BLACK Gen 7

£2,000.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek 2027 Fuel EX 5 WILD MUSHROOM/BLACK Gen 7

Season:2027

Brand:Trek

Code:79586BRN

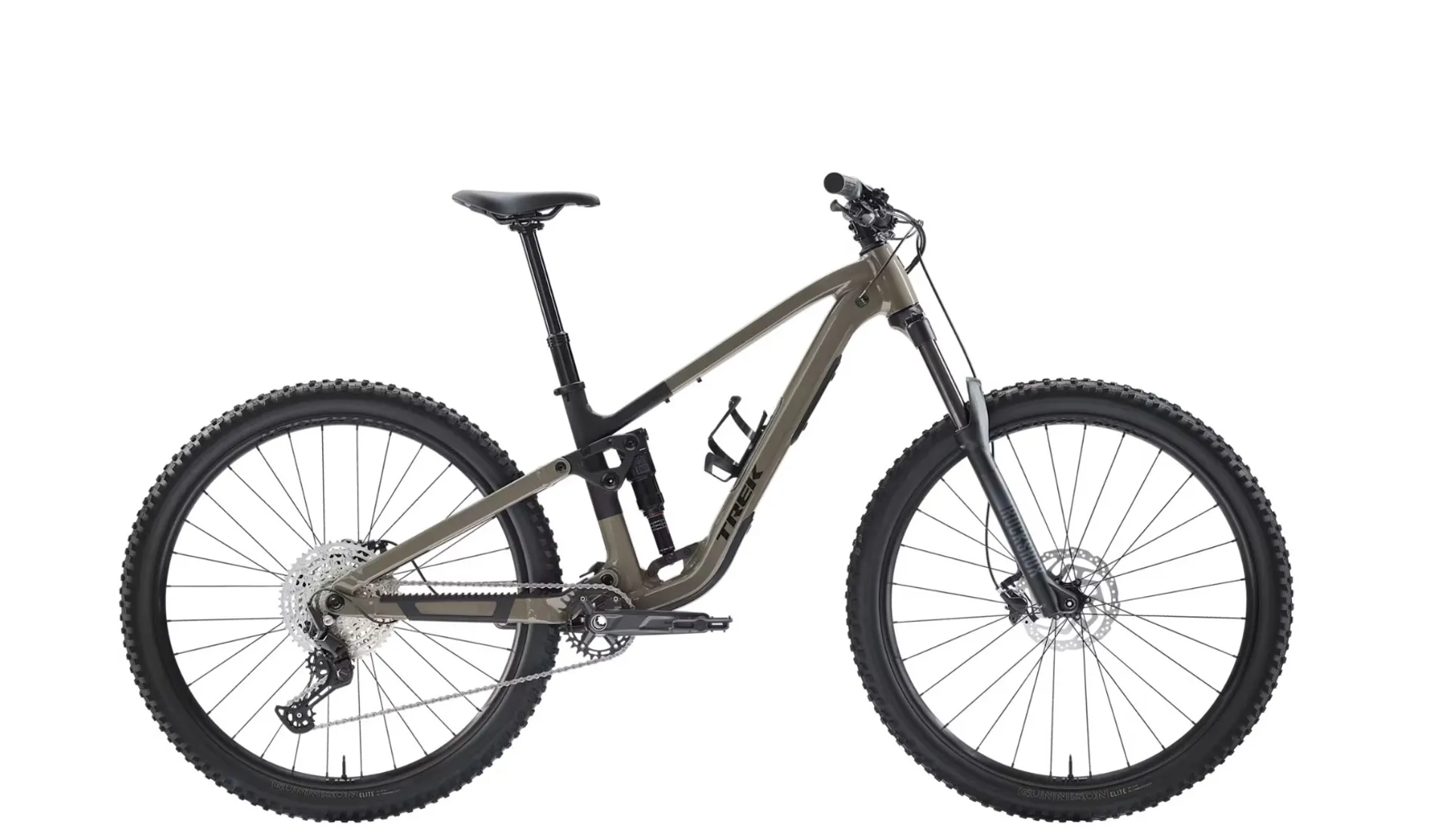

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and RockShox Deluxe Select suspension, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.
Technical Information
Frame
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
Fork
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150mm travel
Shock
RockShox Deluxe Select, 205mm x 60mm

Hub front
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
*Rim
Size:S, M, L, XL
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Size:S, M, L, XL
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Spokes
14 g stainless steel, black
*Tyre
Size:S, M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
Size:S
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.50", Fork: See manufacturer

Shifter
Shimano Deore M6200
Rear derailleur
Shimano Deore M6200, long cage
*Crank
Size:S, M, L, XL
Shimano XT M8120, 30T, 55mm chain line, 170mm length
Size:S, M, L, XL
Shimano MT520 Deore, 30T ring, 55mm chainline, 165mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano M6200, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Max. chainring size
Max: 34T (oval – 32T) Min: 30T (oval – 32T)

Saddle
Bontrager Verse Short, stainless steel rails
*Seatpost
Size:S
TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm
Size:M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
Handlebar
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Grips
Trek Line Comp, nylon lock-on
Stem
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Head set
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Brake
Shimano hydraulic disc, MT201 lever, MT200 calliper
Brake rotor
Shimano RT10, CenterLock, 180 mm
Rotor size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Weight
M - 16.88 kg / 37.22 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136kg (300lbs).
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
