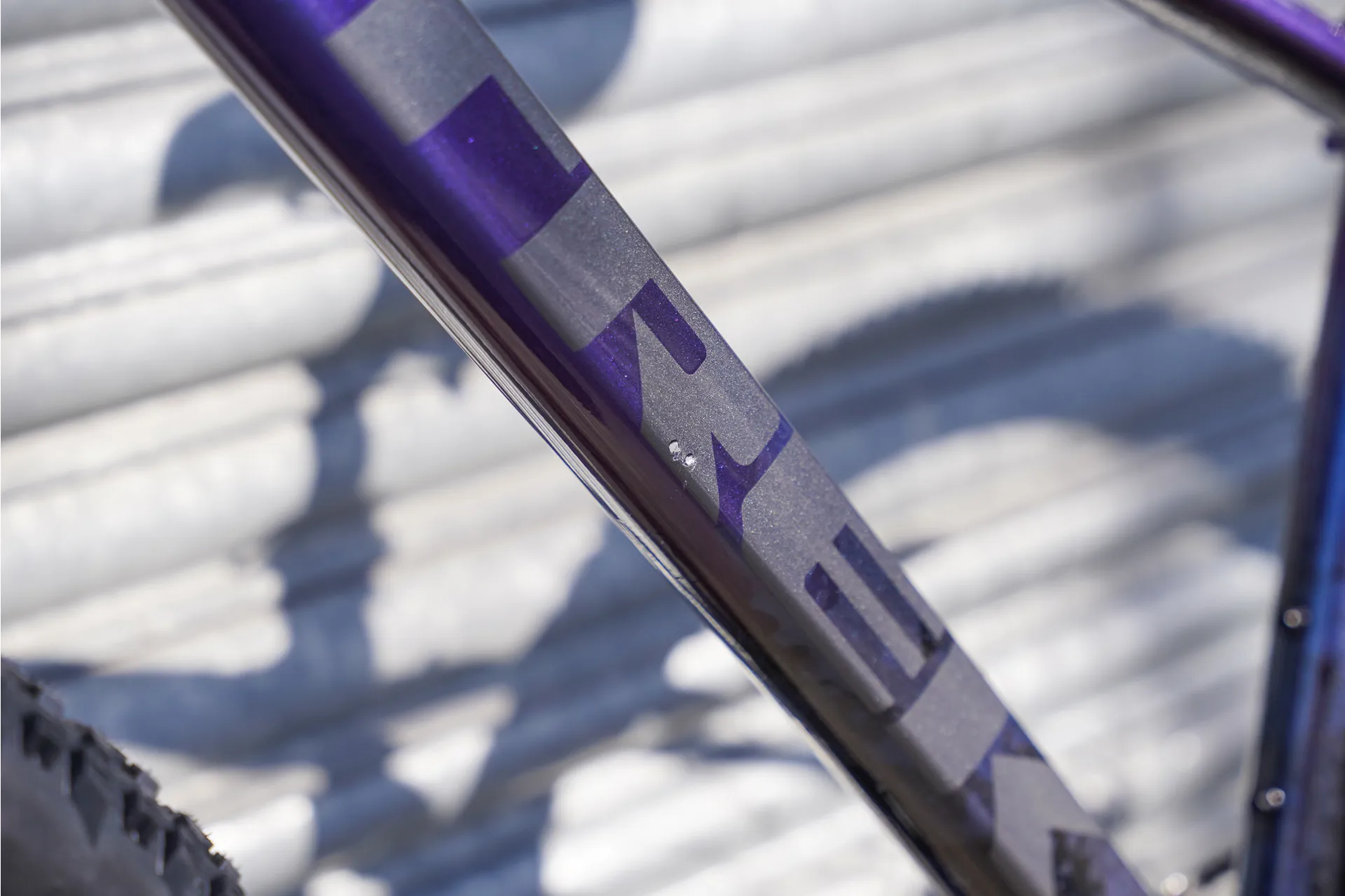

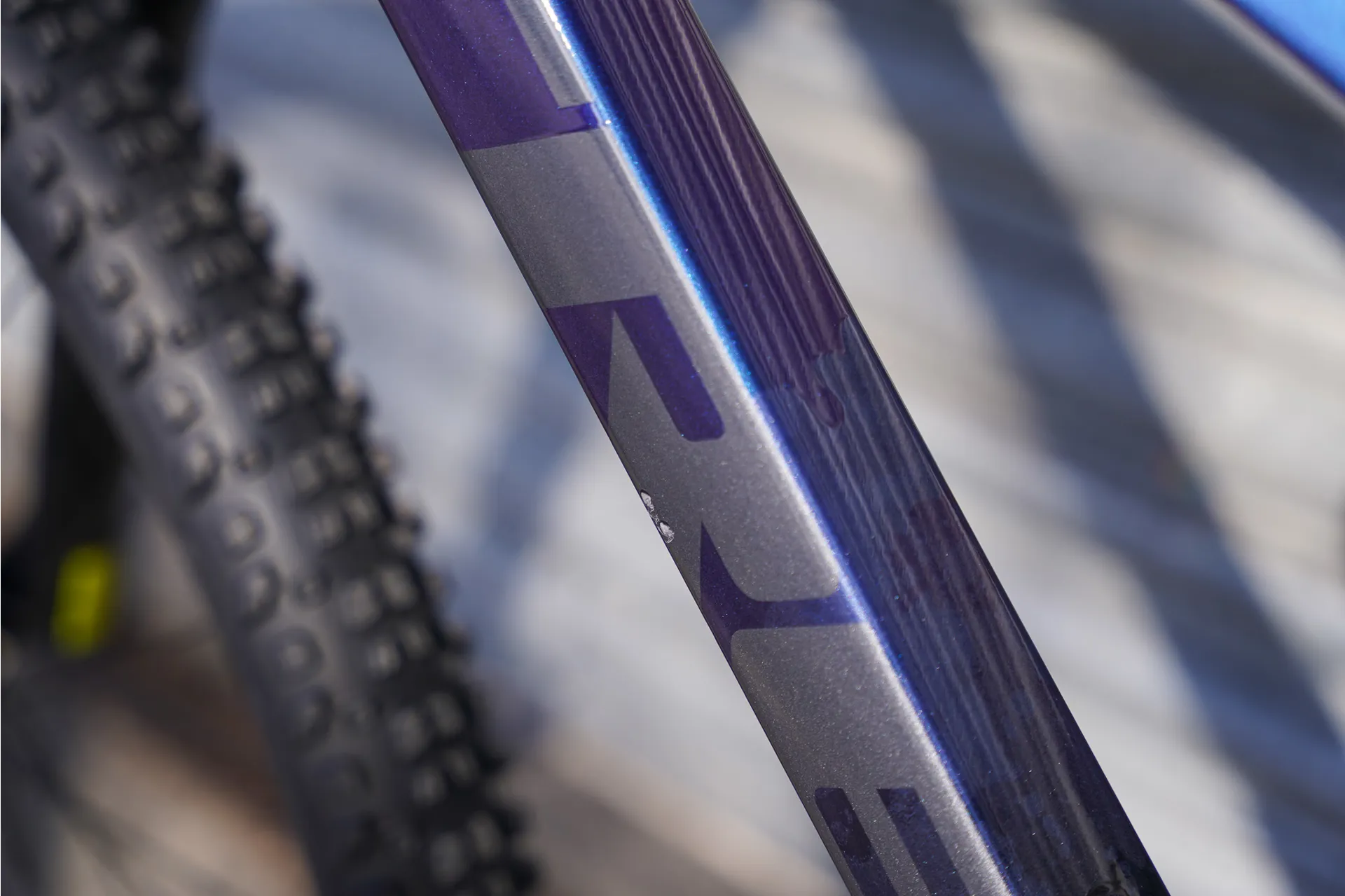

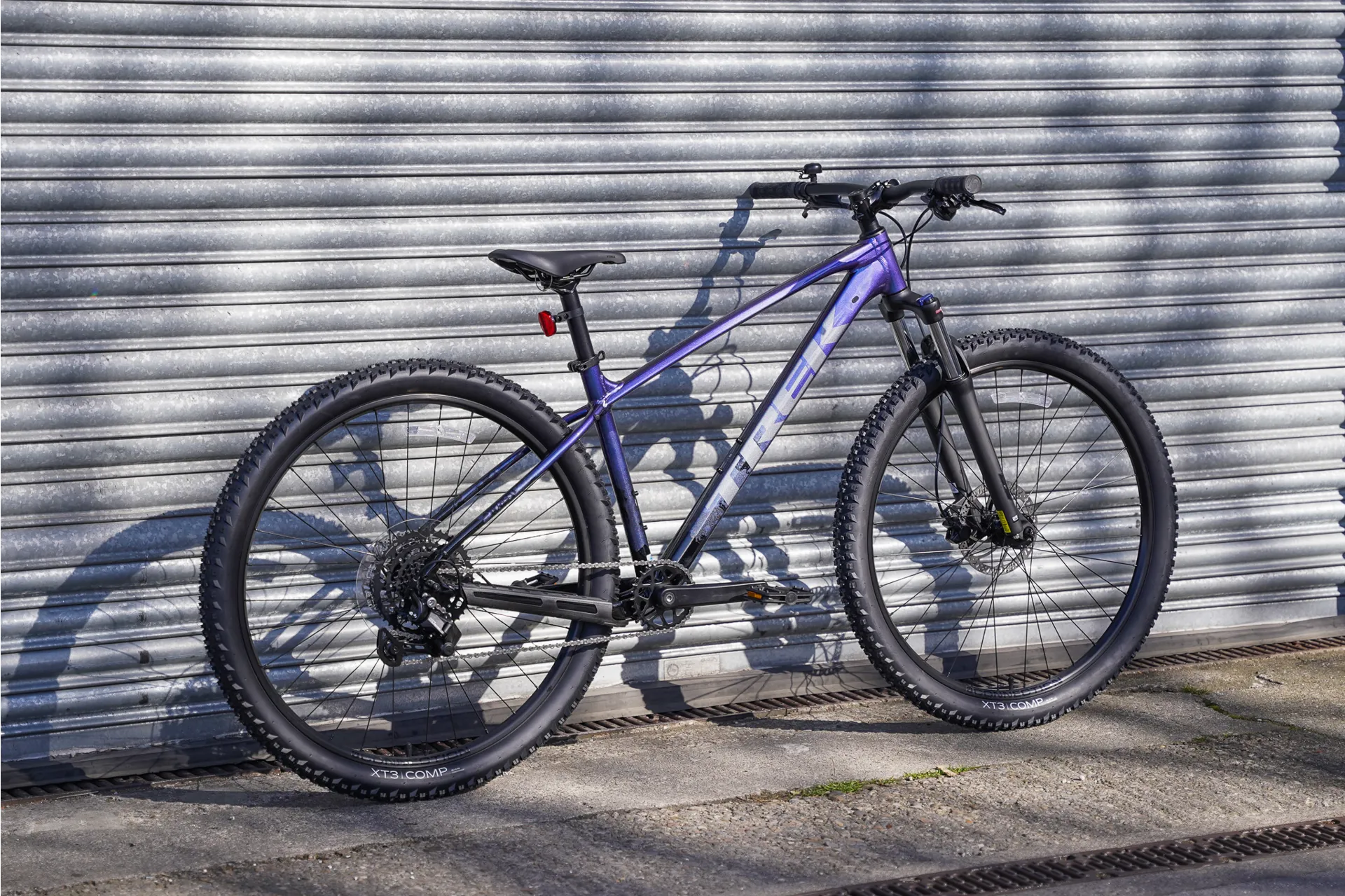

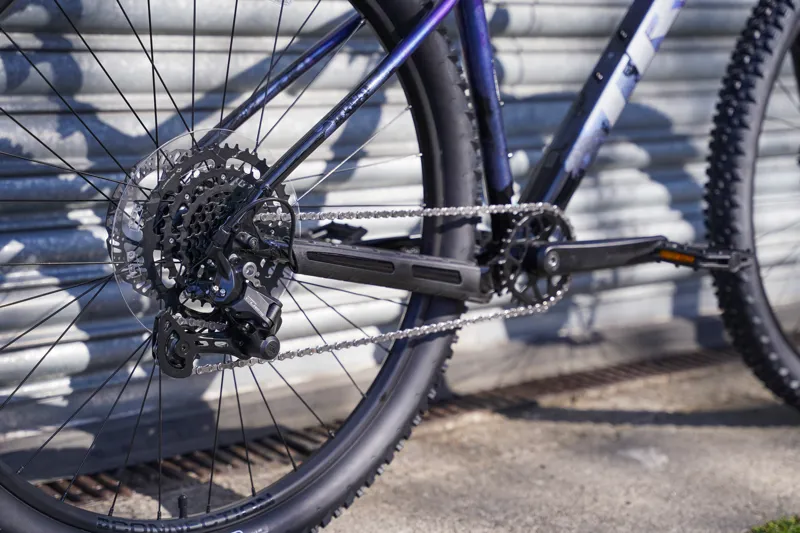

**This bike bike is ex-display and has a couple of chips in the paint in the downtube on the drive side - please see pictures.**
**This bike bike is ex-display and has a couple of chips in the paint in the downtube on the drive side - please see pictures.**
Trek

SAD Trek Marlin 5 29 Purple Size ML - Cosmetic Damage

£520.00 £600.00 13% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

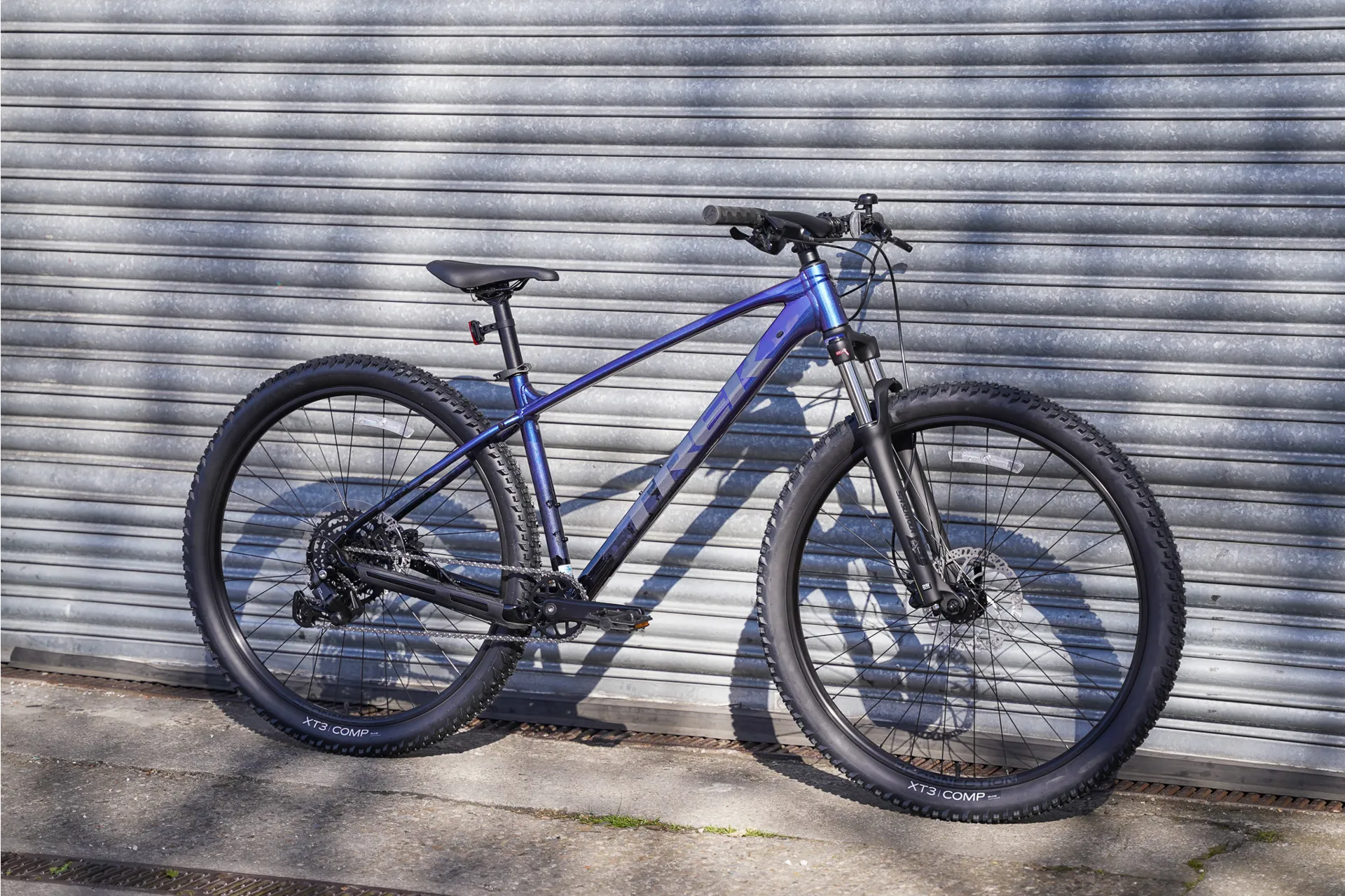

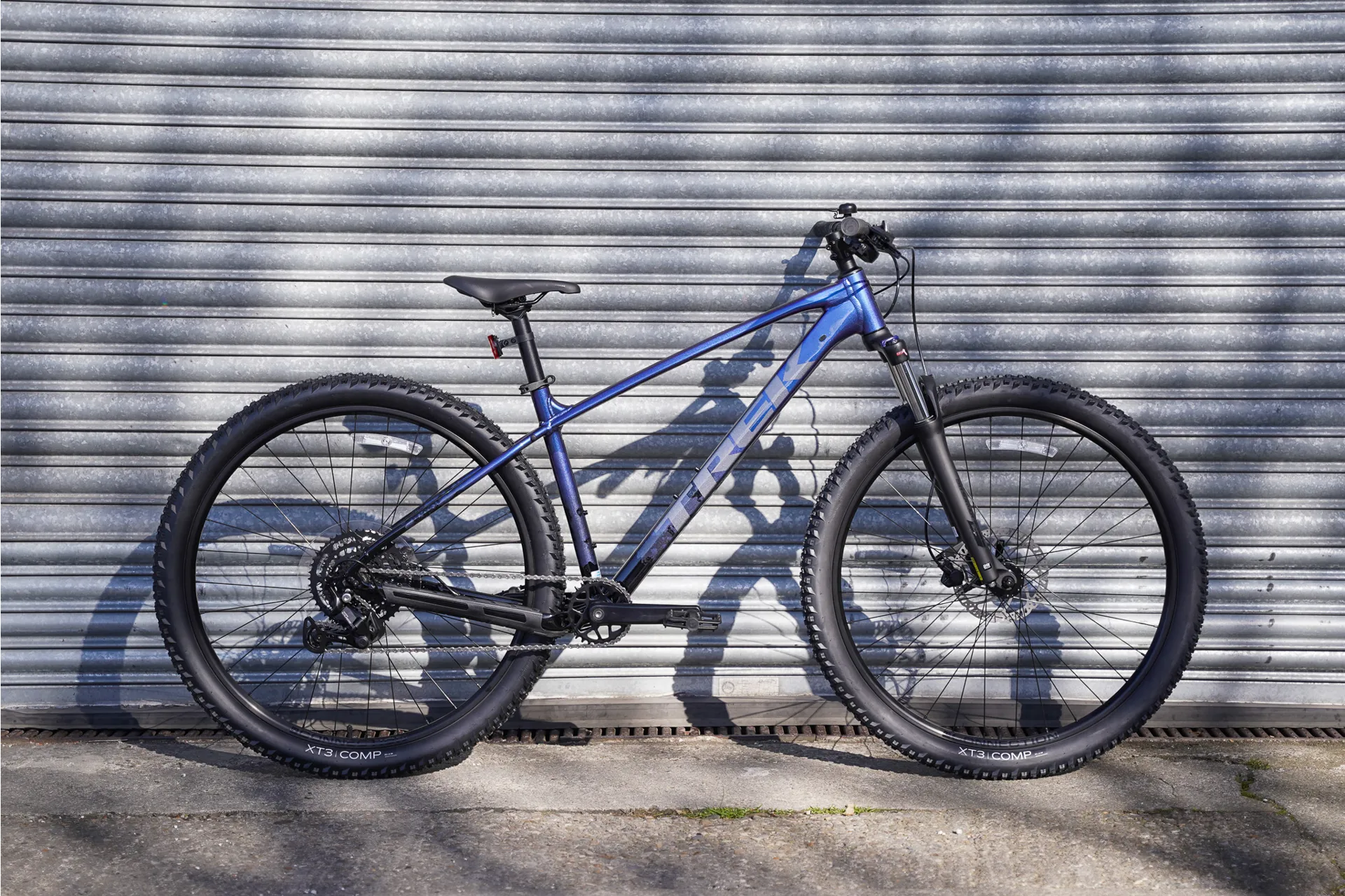

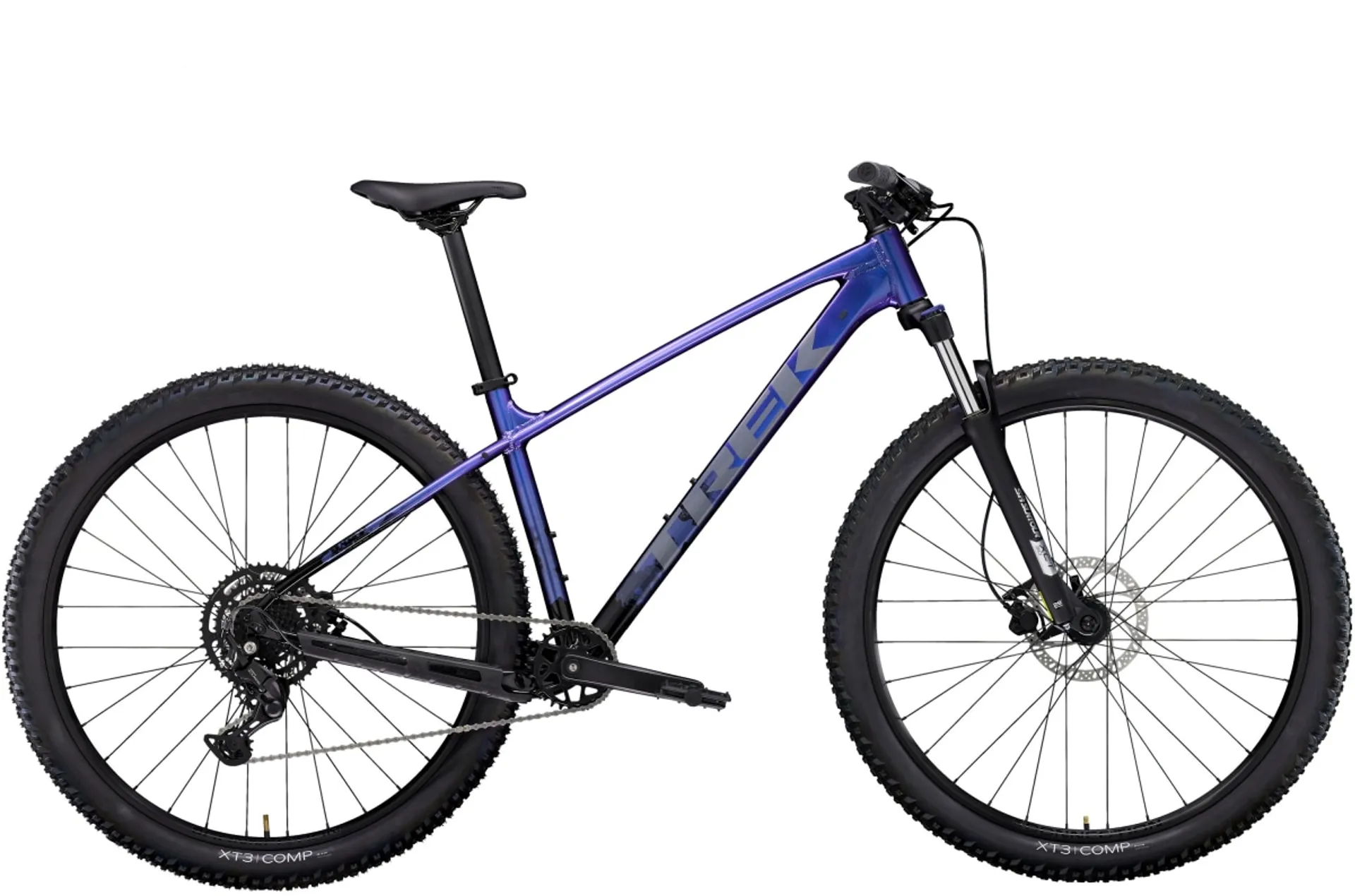

SAD Trek Marlin 5 29 Purple Size ML - Cosmetic Damage

Season:2024

Brand:Trek

Code:5292533A

**This bike bike is ex-display and has a couple of chips in the paint in the downtube on the drive side - please see pictures.**



Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail.

It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Features:

  • The Marlin Gen 3 gives you serious trail capability, with big tyre clearance and slack, confidence-boosting geometry that keeps you stable from singletrack to city
  • Rack and mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
  • Its ThruSkew system is safer, simpler and stronger, plus it makes removing the rear wheel easy for flat fixes in a hurry
  • Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
  • Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount
Technical Information

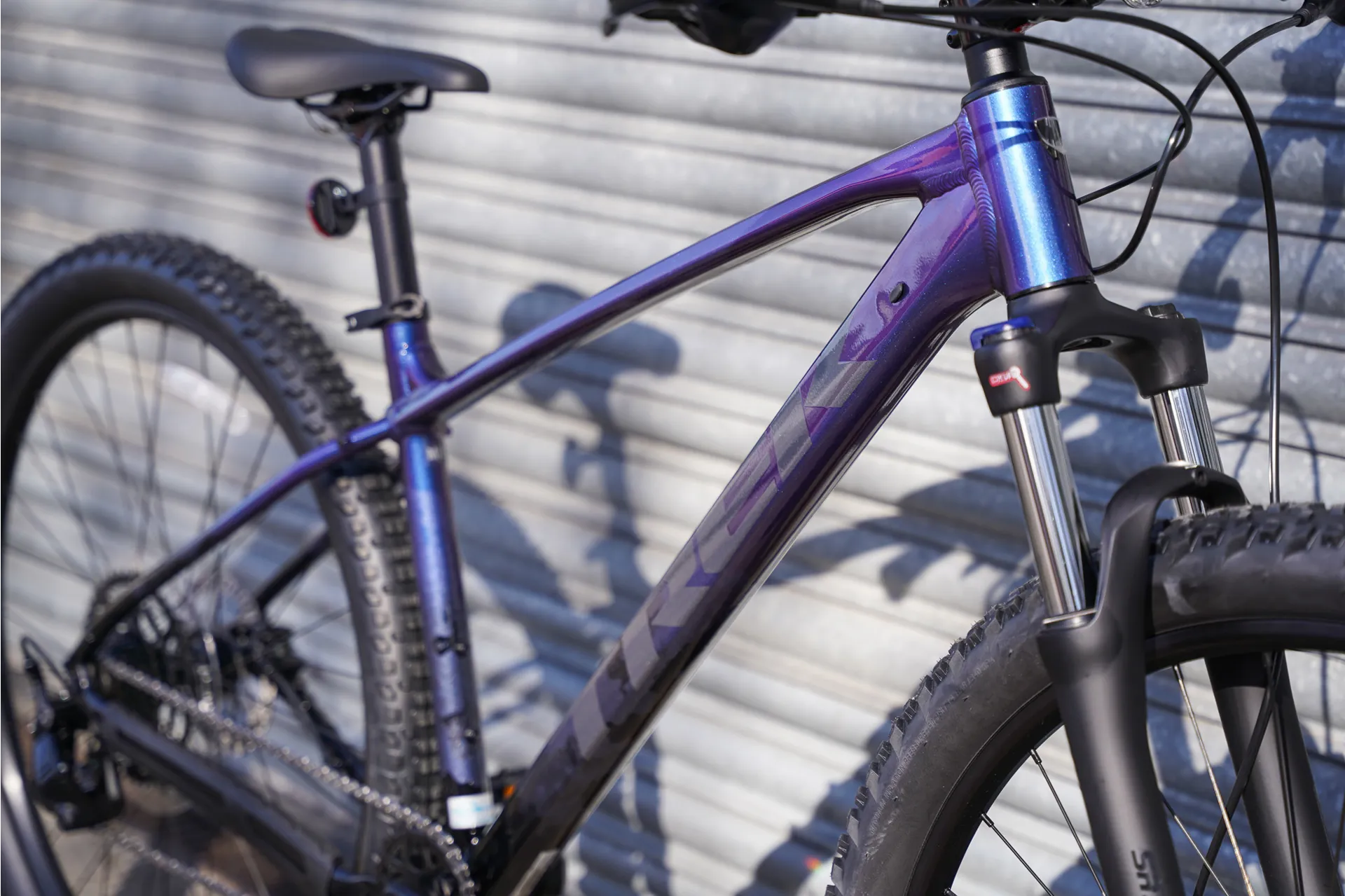

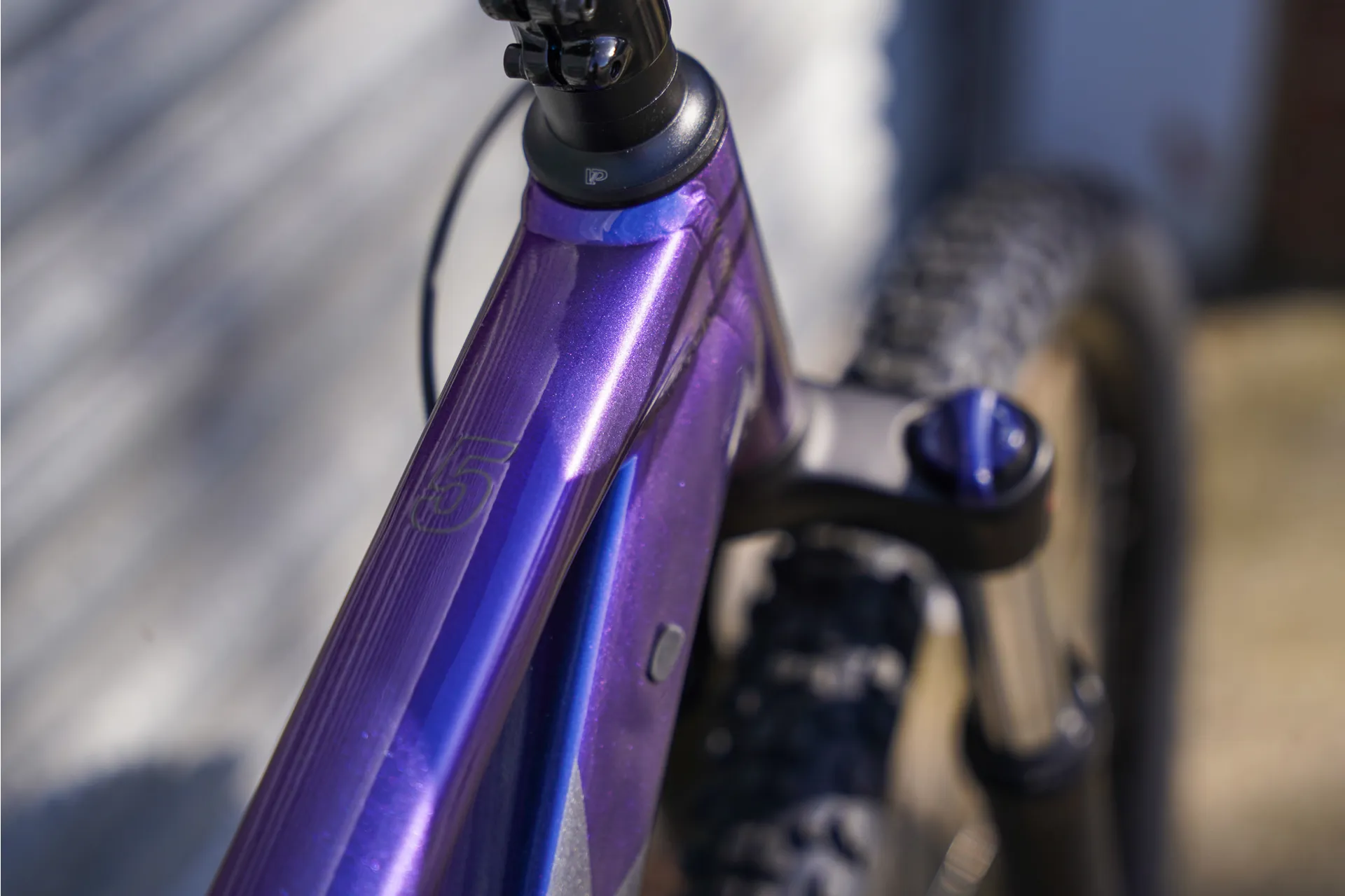

  • Frame
    Size: XXS , XS
    Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
    Size: S , M , ML , L , XL , XXL
    Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
  • Fork
    Size: XXS
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 26" wheel, 100 mm QR, 100 mm travel
    Size: XXS
    SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel
    Size: XS
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
    Size: S
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
    Size: M , ML , L , XL , XXL
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
  • Max compatible fork travel
    120mm, XXS: 80mm
  • Hub front
    Formula DC-20, alloy, 6-bolt, 5x100 mm QR
  • Hub rear
    Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
  • Rim
    Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
  • Tyre
    Size: XXS
    Bontrager XT3 Comp, wire bead, 30 tpi, 26x2.35"
    Size: XS , S
    Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"
    Size: M , ML , L , XL , XXL
    Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"
  • Max tyre size
    Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

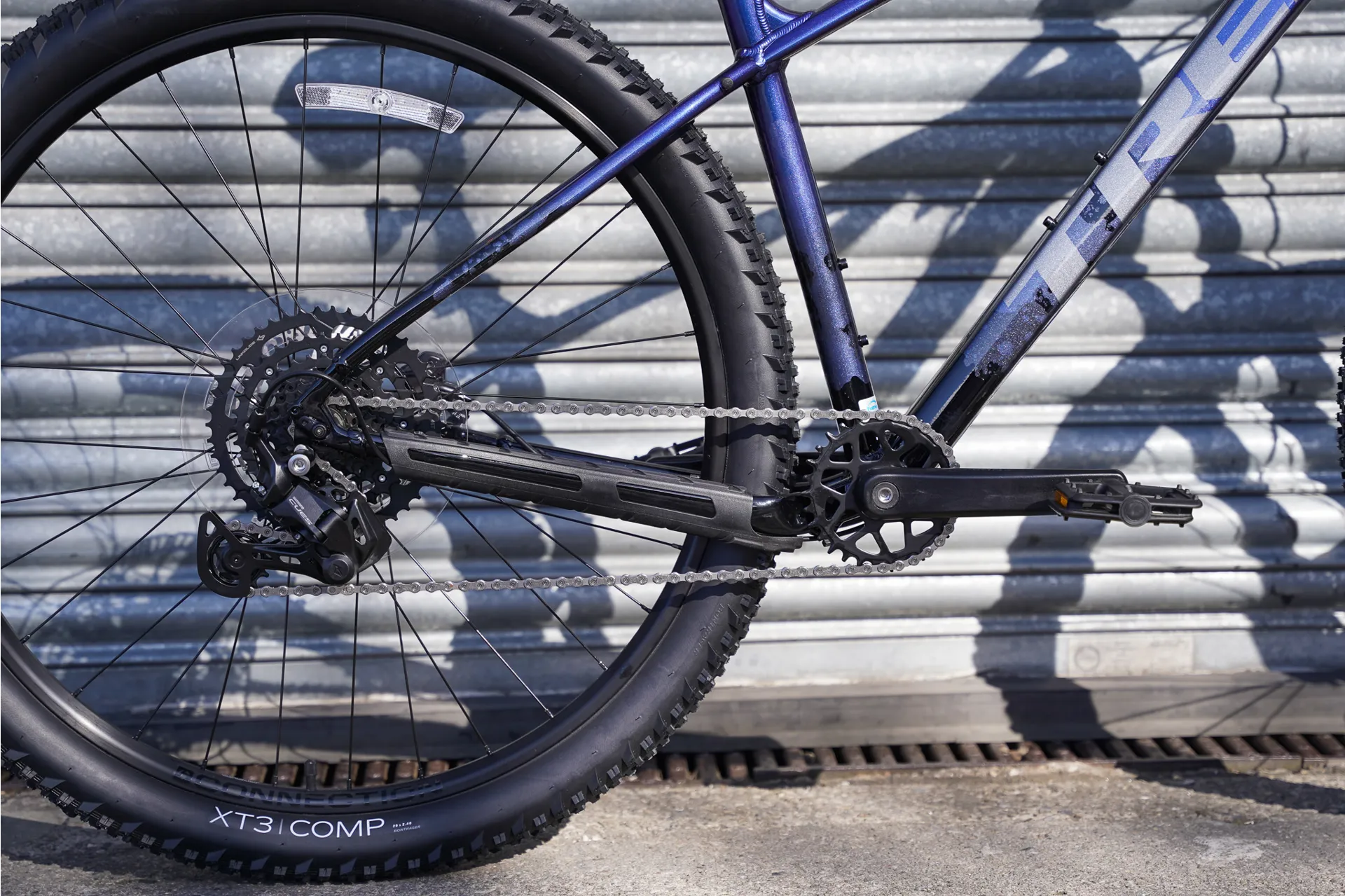

  • Shifter
    Shimano U4000, 9-speed
  • Rear derailleur
    Shimano CUES U4000
  • Crank
    Size: XXS , XS
    Prowheel C10Y-NW, 30T steel narrow-wide ring, 160 mm length
    Size: S , M , ML , L , XL , XXL
    Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
  • Cassette
    Shimano LINKGLIDE LG300, 11-46, 9-speed
  • Chain
    Shimano LG500
  • Pedal
    VP-536 nylon platform
  • Max. chainring size
    1x: 34T, 2x: 36/22
  • Seatpost
    Size: XXS
    Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
    Size: XS , S , M
    Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
    Size: ML , L , XL , XXL
    Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
  • Handlebar
    Size: XXS , XS
    Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
    Size: S
    Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
    Size: M , ML , L , XL , XXL
    Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
  • Grips
    Bontrager XR Trail Comp, nylon lock-on
  • Stem
    Size: XXS , XS , S
    Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
    Size: M , ML , L
    Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
    Size: XL
    Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
    Size: XXL
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
  • Head set
    Semi-integrated, 1-1/8"
  • Brake rotor
    Tektro, 6-bolt, 160mm
  • Brake Set
    Size: XXS , XS , S
    Tektro HD-M276 hydraulic disc, short reach
    Size: M , ML , L , XL , XXL
    Tektro HD-M275 hydraulic disc
  • Rotor size
    Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
  • Weight
    M - 15.10 kg / 33.29 lbs (with tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
