Light e-bikes have weak motors, strong e-bikes are too heavy? Not at all! The completely newly developed Zing Trip Plus combines low weight and high performance - and not only saves on equipment but also comes standard for everyday use and vacation. This is made possible by the external battery, which can be easily removed for charging, storage, transport, and overnight stays. The additional equipment caters to more demanding individuals with an interest in extended and dynamic bike tours.
Light e-bikes have weak motors, strong e-bikes are too heavy? Not at all! The completely newly developed Zing Trip Plus combines low weight and high performance - and not only saves on equipment but also comes standard for everyday use and vacation. This is made possible by the external battery, which can be easily removed for charging, storage, transport, and overnight stays. The additional equipment caters to more demanding individuals with an interest in extended and dynamic bike tours.
Diamant

Diamant Zing Trip Plus LS

£3,175.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Diamant Zing Trip Plus LS

Season:2025

Brand:Diamant

Code:48278BLU

It's right for you if...

You prefer to pay for performance instead of cosmetics. Or you find large integrated batteries bulky and prefer the slimmer frame design. You like to ride with fewer pedal rotations. You want a lightweight bike that is already suitable for everyday use without additional purchases. You rely on a wide service network and know that your Bosch motor can be repaired anywhere. Anyway, you prefer a simple, intuitive e-bike system.

The tech you get

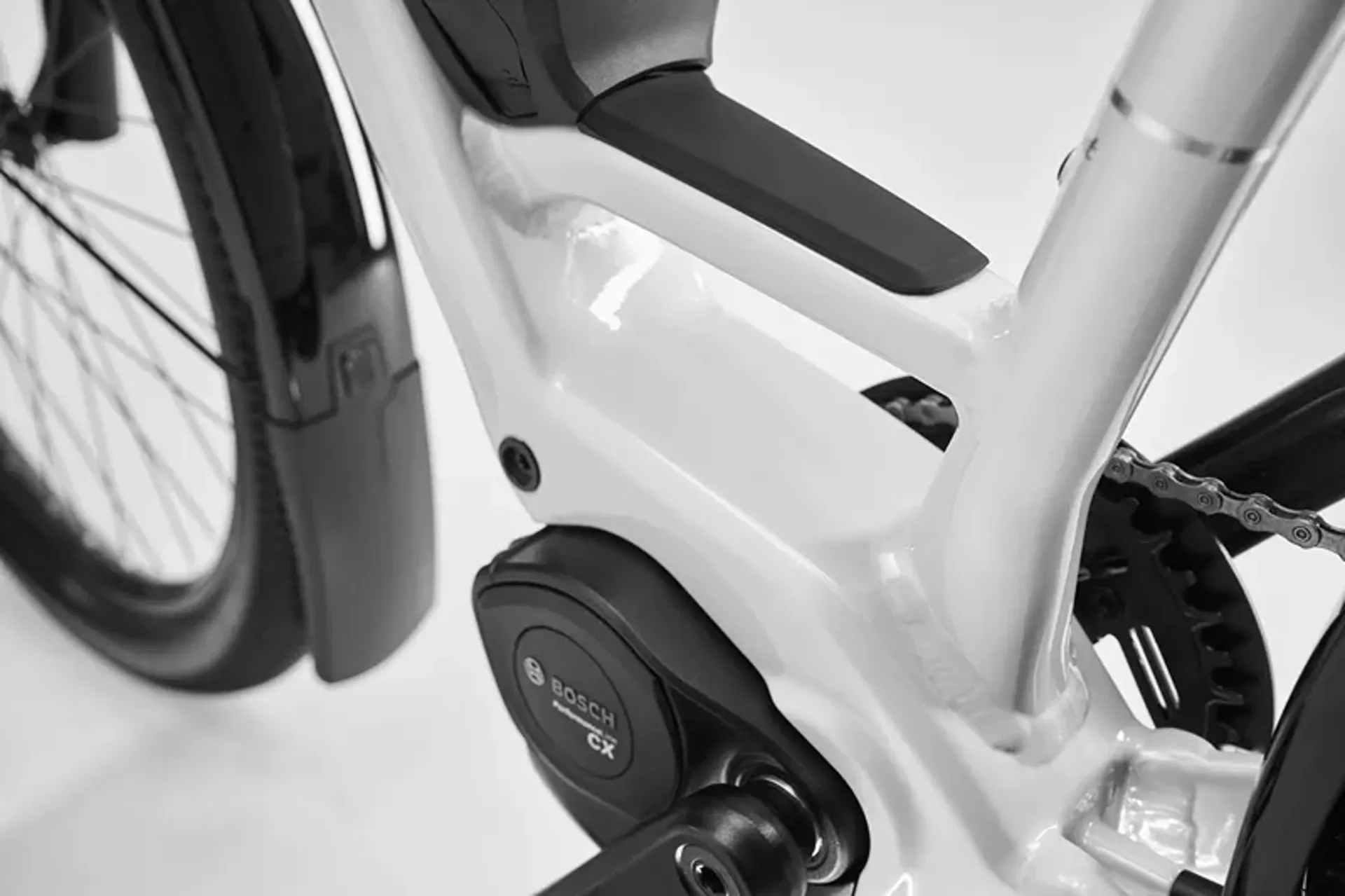

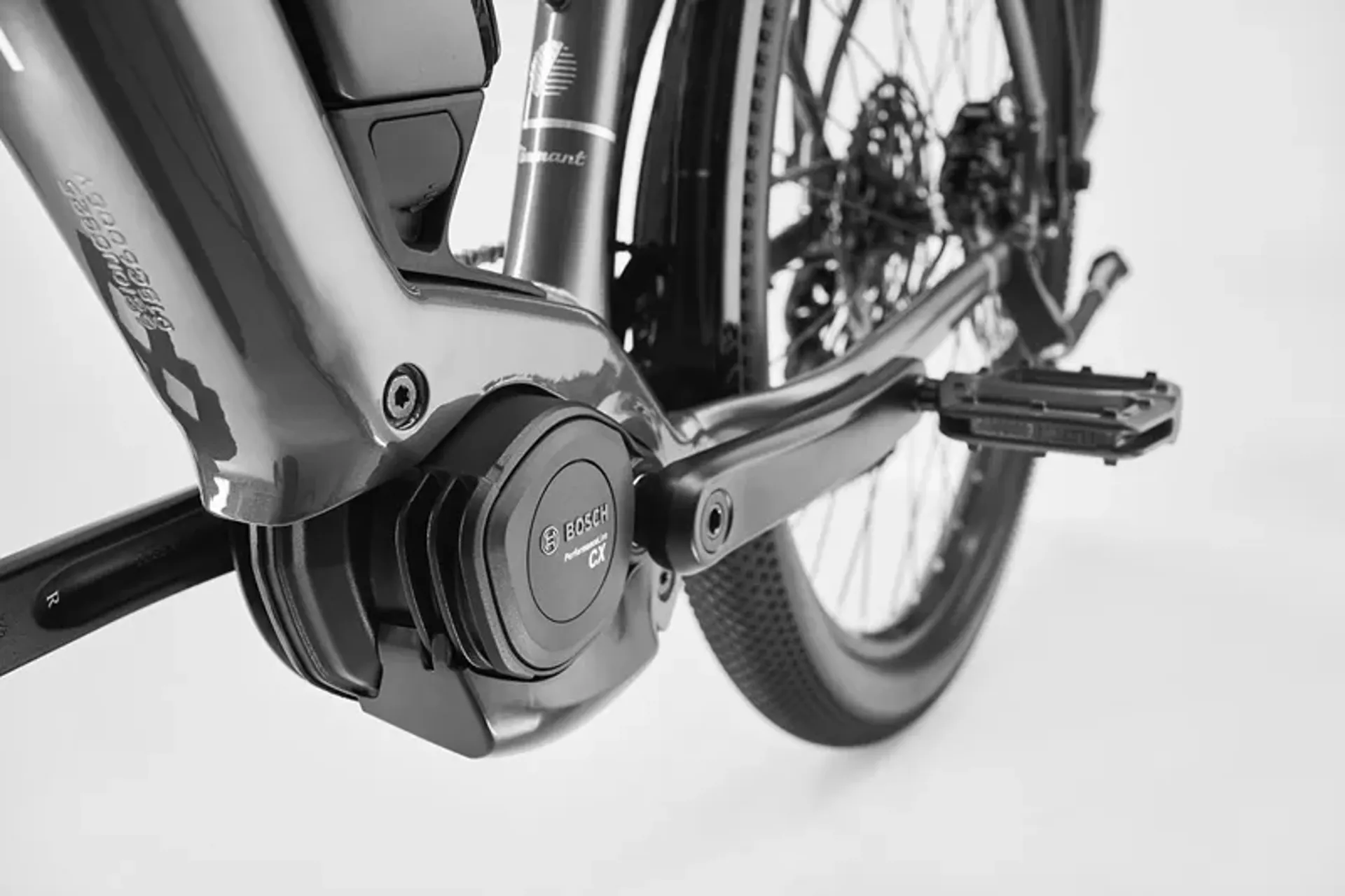

Here it's all about power and quality for as little weight and price as possible. The 85 Nm Bosch Performance CX supports comfortably, even at low cadences. Bosch's best battery cells store a unique 205 Wh per kg - enough for up to 150 km. The extra-light frame is cleverly designed for maximum utility: quick battery mounting, easy car transport, a carry handle for stairs, and an MIK-compatible luggage rack for baskets and bags. 4-piston brakes from Magura, wider tires, new grips, and new lights give the Zing more safety and comfort than ever.

The final word

Even in the third generation, the Zing is maximally honest. Zing means: the best price-performance-weight ratio. And because we have specifically designed the Zing Trip Plus for the use of standard components, it is also as simple as it is cost-effective to obtain spare parts in the long term.

Technical Information
FrameHigh-performance hydroformed alloy, internal cable routing, external battery mount
ForkSR Suntour Mobie 34, air spring, external rebound and compression adjustment, 60 mm travel,
Wheels
Hub frontShimano TC500, centerlock, 110x15 mm thru axle
Hub rearShimano QC400, 32-hole, centerlock, 135x5 mm QR
RimBontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Spokes14 g stainless steel, black
TyreSchwalbe G-One Allround, reflective strip, wire bead, puncture protection, 65-584
E-system
ChargerBosch standard 4A, 230V, smart system
ControllerBosch Kiox 500, smart system
ComputerBosch LED remote, smart system
MotorBosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Drivetrain
ShifterShimano CUES U6000 w/optical gear display, 10-speed
Rear derailleurShimano CUES U6000 GS
*CrankSize:S, M
ProWheel alloy, 165mm length
Size:L
ProWheel alloy, 170 mm length
ChainringAlloy, with 40T narrow-wide steel ring, alloy guard
CassetteShimano CUES LG400, LINKGLIDE, 11-48, 10-speed
ChainShimano LG500, 9/10/11-speed
PedalVP-536 nylon platform
Components
SaddleSelle Royal Vivo Moderate Ergo
SeatpostBontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
HandlebarErgotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
GripsErgotec EG Active Flex, lock on, flex adjustment
*StemSize:S, M
Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length
Size:L
Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Head setFSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
BrakeMagura MT Thirty, 4-piston hydraulic disc
*Brake rotorSize:S, M, L
Magura MDR-C, 180 mm
Size:S, M, L
Magura MDR-C, 203 mm
Accessories
*LightSize:S, M, L
Herrmans H-Black MR9-E, 60lux, LED, headlight
Size:S, M, L
Spanninga Pimento Large, with brake light
Cargo rackMIK-compatible alloy rear rack, maximum load 25 kg
MudguardSKS plastic, rear
Weight
WeightM - 22.10 kg (400 Wh) / 22.90 kg (545 Wh) / 23.80 kg (800 Wh)
