The Party On Rallon Linkage is fits any 150mm R5 and offers a bump in rear travel to 160mm, a kinematic adjustment to improve sensitivity and a more progressive leverage curve. All without changing the Rallon geometry.
The Party On Rallon Linkage is fits any 150mm R5 and offers a bump in rear travel to 160mm, a kinematic adjustment to improve sensitivity and a more progressive leverage curve. All without changing the Rallon geometry.
Orbea

Orbea Rallon Link

£219.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Orbea Rallon Link

Brand:Orbea

Code:609241

The Party On Rallon Linkage is fits any 150mm R5 and offers a bump in rear travel to 160mm, a kinematic adjustment to improve sensitivity and a more progressive leverage curve. All without changing the Rallon geometry.

We took rider feedback and collaborated with our EWS team to deliver a subtle but profound evolution to the Rallon R5. The Party On Rallon linkage delivers a bump in rear travel to 160mm, a kinematic adjustment to improve sensitivity and a more progressive leverage curve, all aimed at more aggressive riding. The linkage doesn't change the frame's geometry or shock length, so is completely backwards-compatible with any 150mm R5.

Features:

  • More Travel - The Rally On Linkage increases travel from 150 to 160mm without changing geometry.
  • Increased Sensitivity - Smaller bumps and chatter from rocks and roots are smoothed out, giving the Rallon a more composed feel.
  • Progressive Stroke - The new linkage is 20% progressive compared to 8% for the 150mm version. This gives more support in the mid-stroke and improves bottom-out resistance and control when the trail gets rowdy.
  • Shock Settings - The higher overall leverage ratio means that riders will need a stiffer spring. For instance, 175 PSI on the old linkage equates approximately to 190-195 PSI with the new. Coil shock spring weight would go from 450 to 475, for example. Compression and Rebound settings will need to be adjusted for the higher spring rate.
  • No Geometry Change - R5 frame geometry is unchanged and the linkage is 100% compatible with your existing R5 rear shock.

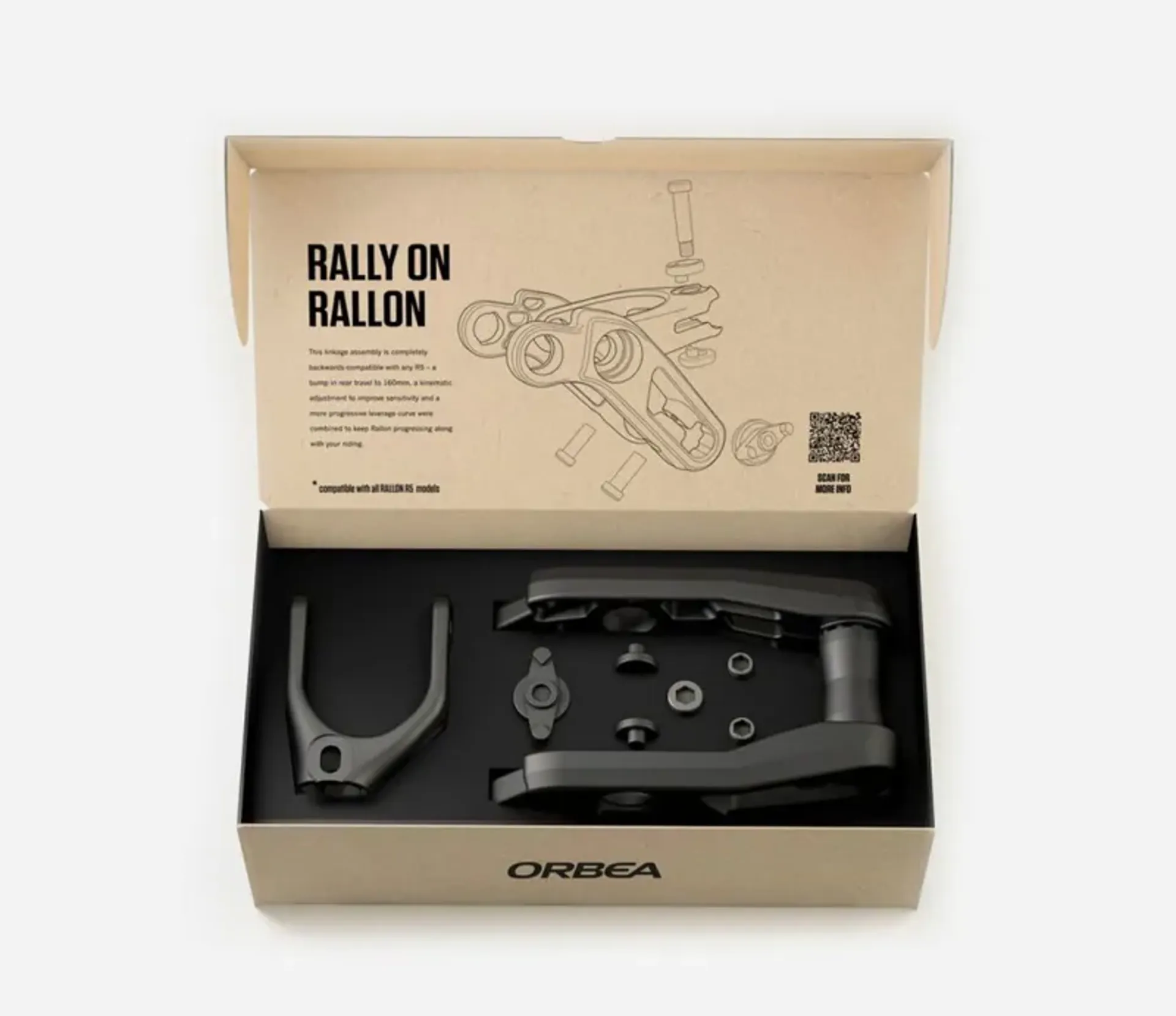

BOX CONTENTS

  • PARTY ON LINKAGE
  • FULL MOUNTAIN KIT
  • ALL BEARINGS
  • PRELOAD ADJUSTER
Sizing Information
Mountain/Leisure Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Mountain Bike Size
4'11" - 5'3"150 - 160 cmXS
5'3" - 5'6"160 - 168 cmS
5'6" - 5'9"168 - 175 cmM
5'9" - 6'0"175 - 183 cmL
6'0" - 6'3"183 - 191 cmXL
6'3" - 6'7"191 - 200 cmXXL

Road/Gravel Bikes

Rider Height (ft/in)Rider Height (cm)Orbea Road Bike Size
4'10" - 5'1"147 - 155 cm47-49cm
5'1" - 5'4"155 - 163 cm49-51cm
5'4" - 5'7"163 - 170 cm51-53cm
5'7" - 5'9"170 - 175 cm53-55cm
5'9" - 6'0"175 - 183 cm55-57cm
6'0" - 6'2"183 - 188 cm57-59cm
6'2" - 6'5"188 - 196 cm59-61cm
6'5" - 6'8"196 - 203 cm61-63cm


Please note that this is a general guideline, and you should always refer to the specific bike's geometry chart to ensure a proper fit. Please visit Orbea for more information
