eBike motor
Bosch Performance Line SX drive unit, 55Nm maximum torque,
600W peak power. Features four power settings including Tour+,
that allows riders to focus on riding whilst being economic on
power usage, and e-MTB mode which automatically adjusts
eBike display
Bosch System controller mounted in the top tube, paired with
bar-mounted Mini Remote
eBike battery
Bosch Compact PowerTube 400Wh, integrated within the
downtube as the lowest point for stability and control
eBike battery charger
Charger 4A (230V)
Range extender
Compatible with PowerMore 250Wh (purchased seperately)
Weight
18.9kg
Colour
Gloss silver with matt uni-directional (UD) carbon
Frame
Uni-directional carbon mainframe and seatstays, tapered head tube,
ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x
148mm Boost dropouts
Fork
RockShox Lyrik Select+ 29in, 150mm travel, 44mm offset, DebonAir+,
Charger 3 RC2 damper, Fast Black coating, tapered steerer, 110mm x
15mm Boost
Rear shock
RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable
rebound and two position compression
Headset
FSA No.69/SRS 1-1/8in/1.5in ACB - with 15mm top cover - side entry
internal routing
Rear hub
Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm
x 148mm Boost thru-axle, 32 hole
Front hub
Alloy, double sealed cartridge bearings, 15mm x 110mm Boost thru-axle,
28 hole
Spokes
DT Swiss New Champion 2.0mm, black stainless, brass nipples
Rims
Whyte TeXtreme Innegra infused, carbon Trail rims, 28H front, 32H rear
Tyres
Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis
Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear

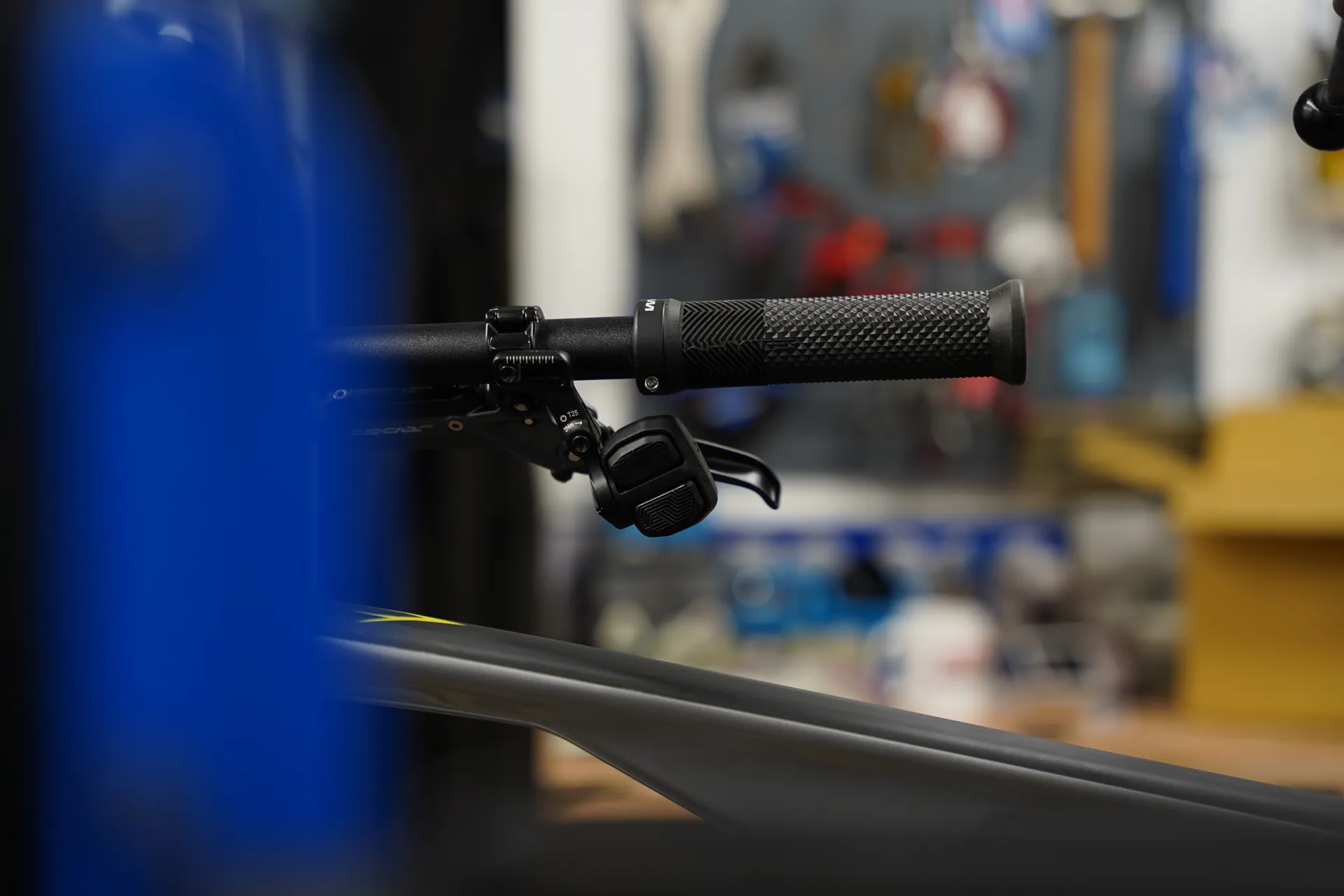

Shift levers
SRAM AXS Pod, right, MMX
Front derailleur
N/A

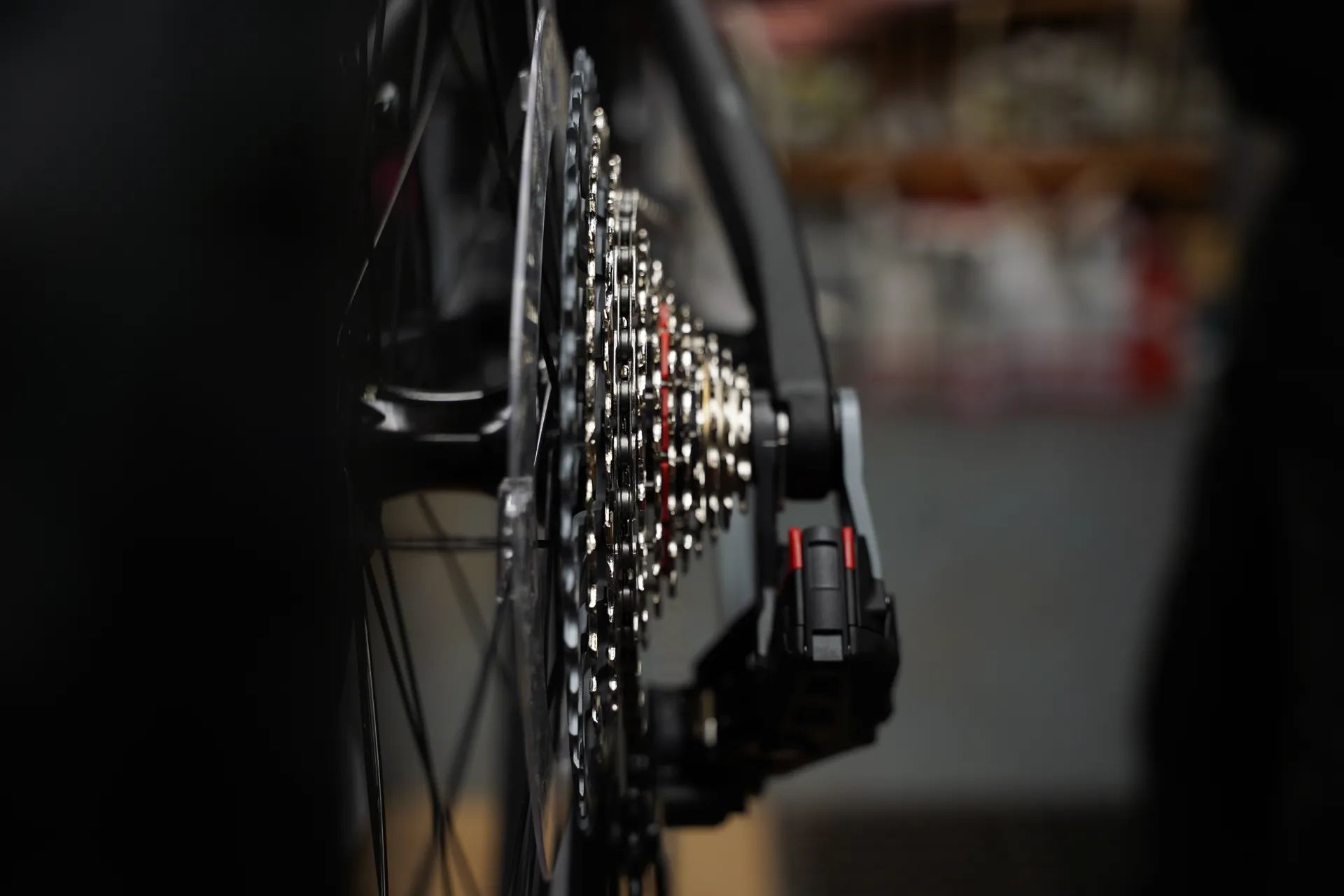

Rear derailleur
SRAM GX T-Type AXS

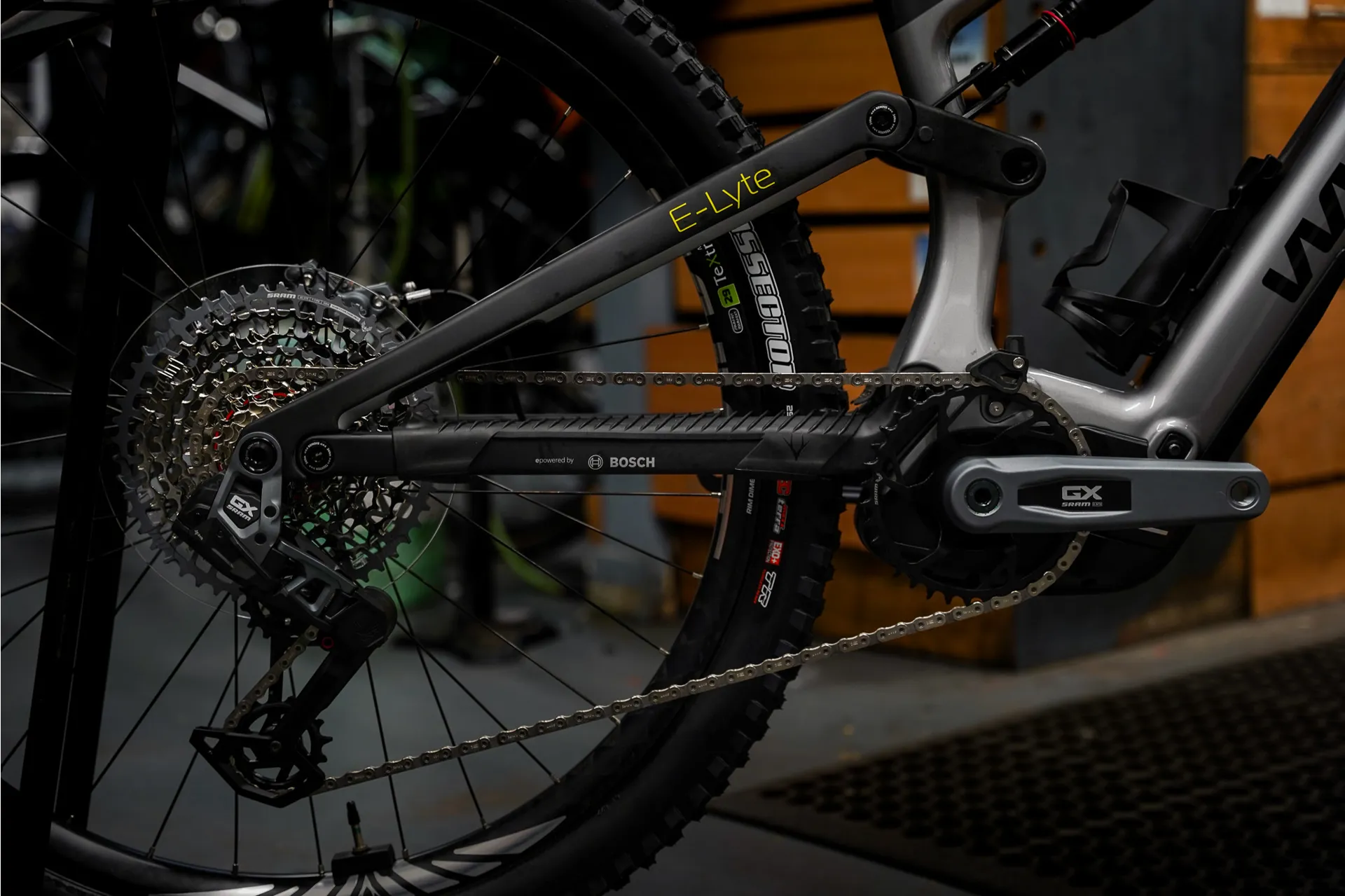

Cassette
SRAM XS 1275, T-Type, 10-52T
Chain
SRAM GX T-Type, 12 speed
Crankset
Whyte 155mm ISIS arms, GX Gen4 direct mount 36T, T-Type
Bottom bracket
N/A
Seatpost
Whyte drop.it II Adjust, 30.9mm (M/L 140-170mm travel; XL 170-200mm
travel), MMX Paddle remote lever
Seat
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail

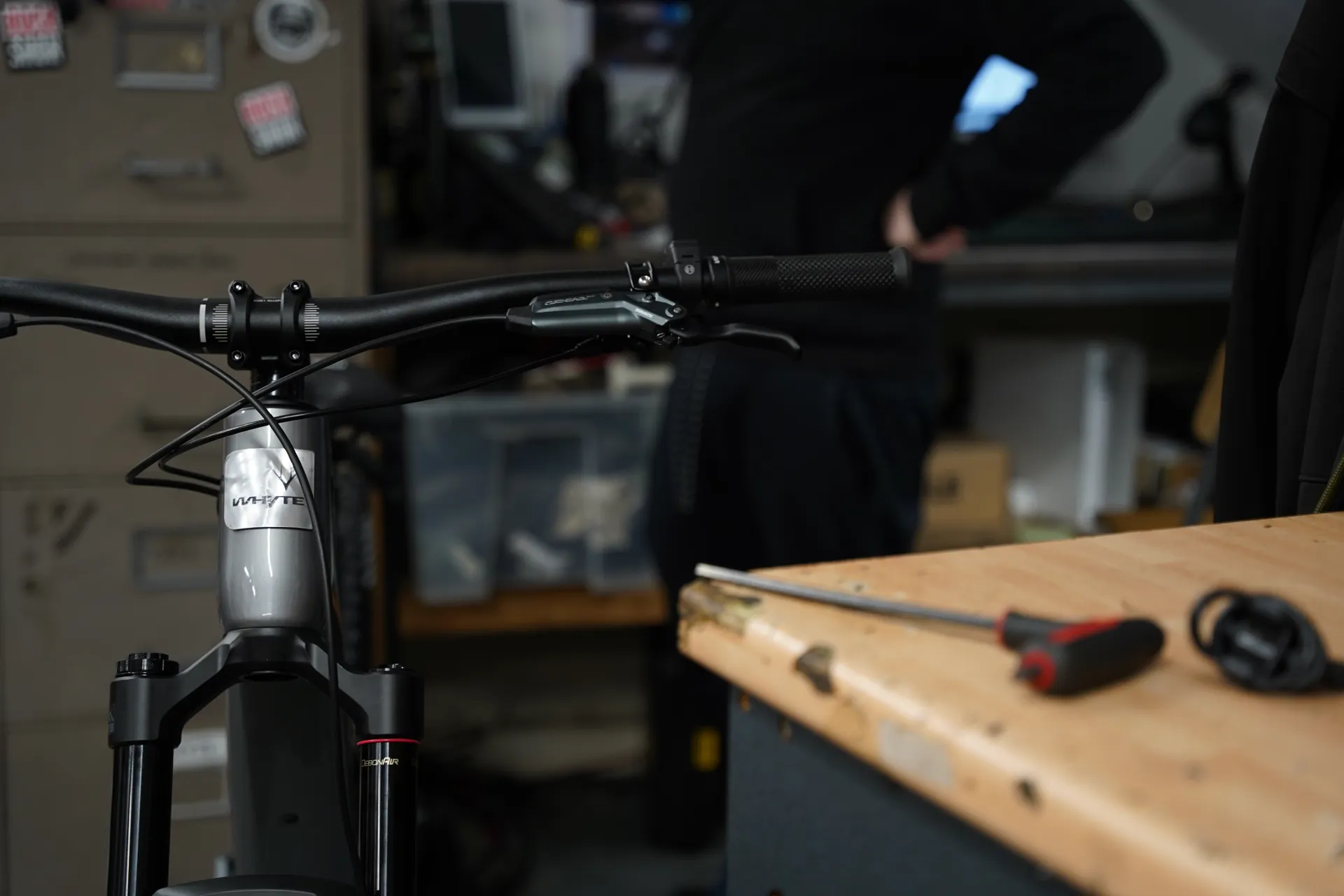

Bar
Whyte Custom 6061 alloy, 20mm rise, 35mm bar bore, 800mm wide
Stem
Whyte Trail full CNC, 32mm extension, 35 bar bore
Grips
Whyte Lock-on Enduro
Front brakes
SRAM Code Bronze Stealth, four piston, 200mm disc
Rear brakes
SRAM Code Bronze Stealth, four Piston, 200mm disc
Brake levers
SRAM Code Bronze Stealth
Pedals
Fibre reinforced composite platform
