The Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack.
The Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack.
Trek

Trek Marlin 4 Gen 2 Mountain Bike In Red

£500.00
Size Guide
Trek Marlin 4 Gen 2 Mountain Bike In Blue
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

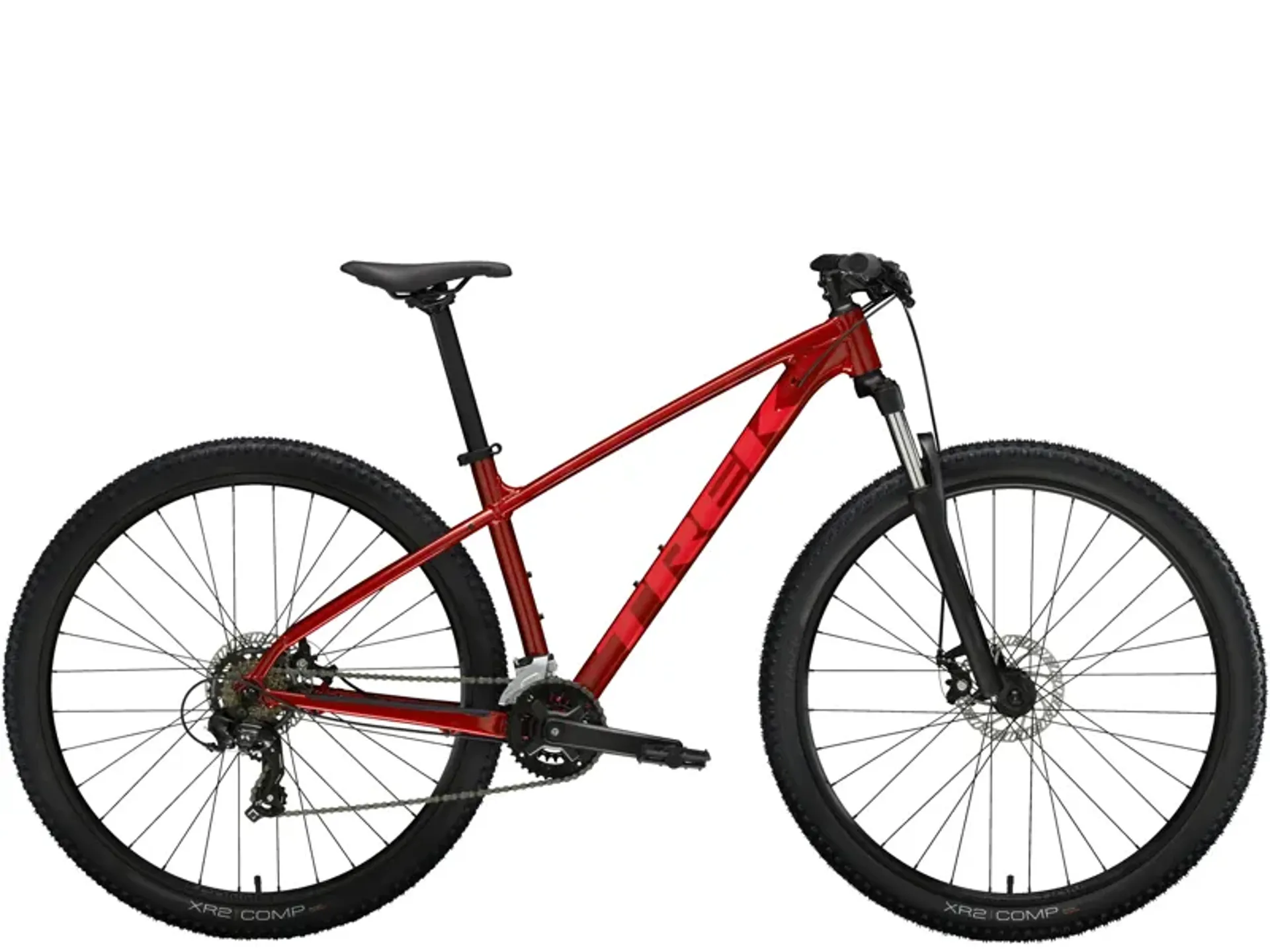

Trek Marlin 4 Gen 2 Mountain Bike In Red

Season:2024

Brand:Trek

Code:41613RED

The Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack.

It's ideal for riders who want a mountain bike with knobby tyres that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting and mounts for a rack and mudguards make this a great bike for trail riders and campus commuters alike.

You want an introductory mountain bike at an incredible price, but also want a commuter that's rugged enough to hop kerbs on the way to class.

A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, trustworthy 14-speed Shimano shifting with a wide range of gearing so you always have the right gear for your terrain, powerful mechanical disc brakes and a suspension fork that takes the edge off bumps and rough terrain.

The Marlin is made for any adventure. The rack and mudguard mounts make it a great choice for commuters who want to get a little rad on the way to class or the shops.

Features:
  • The Marlin Gen 2 gives you all-around versatility with fast-rolling tyres and balanced, neutral geometry that keeps you comfortable and in control off-road. No wonder it’s our best-selling mountain bike ever.
  • Rack and mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
  • Smaller frame sizes (XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
  • Marlin models in XS and S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
  • Like every Trek, it's backed by a lifetime warranty
Technical Information
  • Frameset
  • *Frame
  • Size: XS , S
    Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR
  • Size: M , ML , L , XL , XXL
    Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
  • *Fork
  • Size: XS
    SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
  • Size: S
    SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
  • Size: M , ML , L , XL , XXL
    SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
  • Max compatible fork travel
    100mm (XS and S: 490mm axle-to-crown, M and up: 509mm axle-to-crown)
  • Wheels
  • Skewer rear
    152x5 mm QR
  • Max tyre size
    Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer
  • Drivetrain
  • *Shifter
  • Size: XS , S , M , ML , L , XL , XXL
    Shimano EF500, 2-speed
  • Size: XS , S , M , ML , L , XL , XXL
    Shimano Altus EF500, 7-speed
  • Front derailleur
    Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
  • Rear derailleur
    Shimano Tourney TY300
  • *Crank
  • Size: XS , S , M
    ProWheel TM-CY10, 36/22, 170 mm length
  • Size: ML , L , XL , XXL
    ProWheel TM-CY10, 36/22, 175 mm length
  • Bottom bracket
    VP BC73, 73 mm, threaded cartridge
  • Cassette
    Shimano TZ500, 14-34, 7-speed
  • Chain
    KMC Z7, 7-speed
  • Pedal
    VP-536 nylon platform
  • Max. chainring size
    1x/2x: 34T, 3x: 42T
  • Components
  • Saddle
    Bontrager Verse Short, stainless steel rails
  • *Seatpost
  • Size: XS , S
    Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
  • Size: M
    Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
  • Size: ML , L , XL , XXL
    Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
  • *Handlebar
  • Size: XS , S
    Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
  • Size: M , ML , L , XL , XXL
    Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
  • Grips
    Bontrager XR Endurance Comp, lock-on
  • *Stem
  • Size: XS , S
    Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
  • Size: M
    Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
  • Size: ML , L
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
  • Size: XL , XXL
    Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
  • Head set
    Semi-integrated, 1-1/8"
  • *Brake
  • Size: XS , S , M , ML , L , XL , XXL
    Tektro MD-M280 mechanical disc
  • Size: XS , S , M , ML , L , XL , XXL
    Tektro MD-M281 mechanical disc
  • Brake rotor
    Tektro, 6-bolt, 160mm
  • Weight
  • Weight
    M - 14.60 kg / 32.19 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
