On and off-road versatility.
On and off-road versatility.
Whyte Bikes

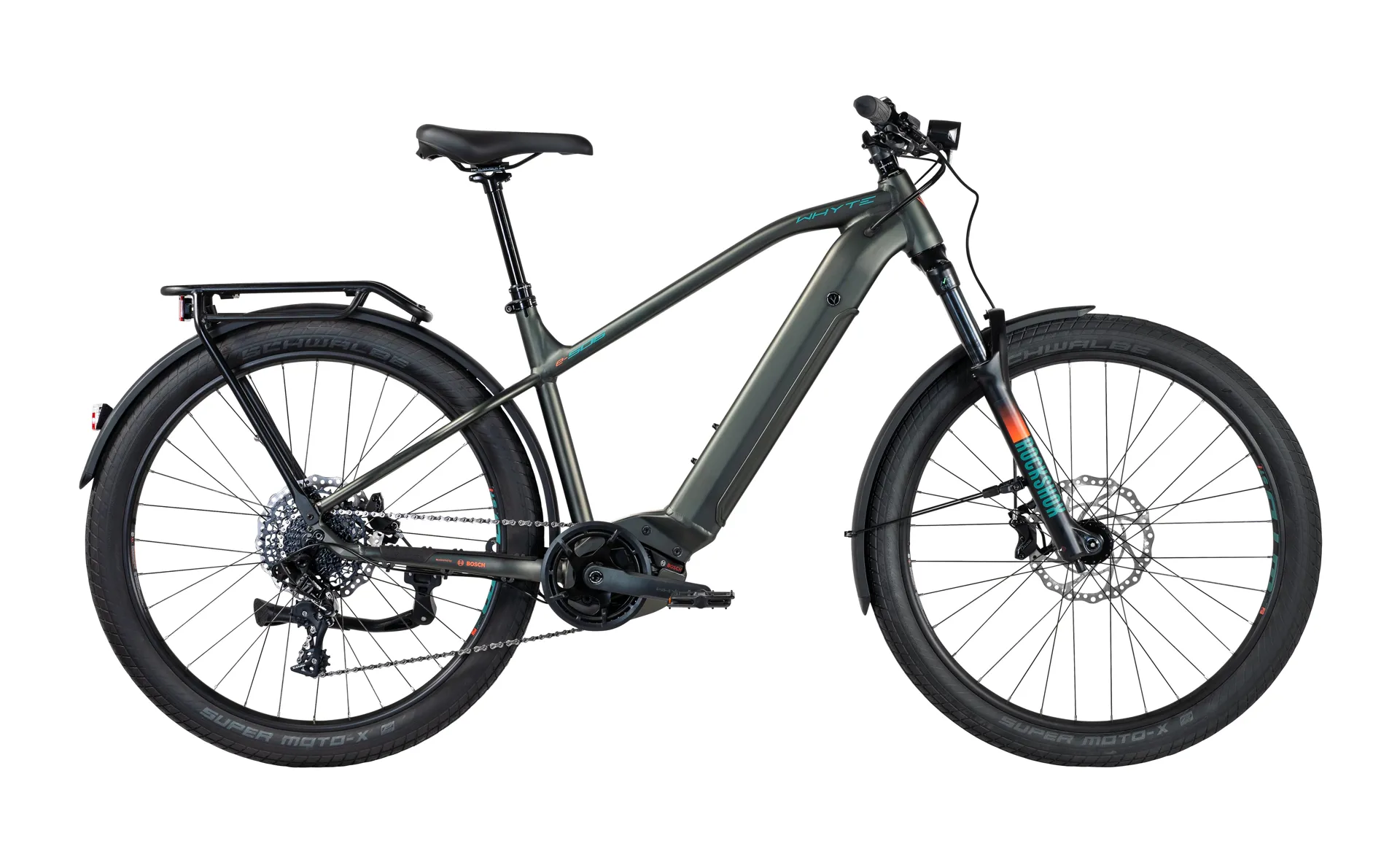

Whyte 2023 E-506 v2-1 Medium

£3,599.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Whyte 2023 E-506 v2-1 Medium

Season:2023 Bikes

Brand:Whyte Bikes

Code:WE5062MV2-1

On and off-road versatility.

All the awesome attitude of our award-winning e-hardtail mtbs but optimised for tearing up the town and country. Total geometry handling and Rockshox suspension will own the short cut through the park or carve through traffic on the fat slick tyres.

The full power bosch motor will shrink hills and holeshot every traffic light start, and a dropper post means feet on the floor safety at every stop. Tough alloy rack, kickstand, full mudguards and built-in lights let you mix business and pleasure 24/7 and thereäôs enough battery for big days out on the weekend too.
Technical Information
  • frame
    6061 alloy, hydro formed t6 aluminium, multi butted, custom drawn, tapered headtube, internal cable routing for dropper post and 12mm x 148mm boost dropouts
  • fork
    rockshox 35 silver r 27.5", 120mm travel, 37mm offset, coil, fast black coating, adjustable rebound, tapered steerer, 110mm x 15mm boost, maxle lite
  • rear shock
    n/a
  • headset
    fsa no. 57b orbit zs, 1 1/2" lower and 1 1/8" upper caged bearings
  • rear hub
    alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm boost thru axle, 32 hole
  • front hub
    alloy, double sealed cartridge bearings, 15mm x 110mm boost thru axle, 31mm torque caps, 32 hole
  • spokes
    dt swiss champion 2.0mm, black stainless, brass nipples
  • rims
    wtb st i30 tcs 2.0 system, pinned joint, tubeless ready, 32 hole
  • tyre
    schwalbe, super moto-x, 27.5" x 2.4, greenguard puncture protection
  • shift levers
    sram gx, 11 speed
  • front mech
    n/a
  • rear mech
    sram gx, 11 speed
  • cassette
    sram pg-1130, 11-42, 11 speed
  • chain
    kmc npbk sport, 11 speed
  • crankset
    whyte, steel narrow/wide, 165mm, direct mount 36t for bosch performance line cx, black
  • bottom bracket
    n/a
  • seatpost
    whyte drop.It, 30.9, s 125mm, m/l/xl 150mm travel, paddle remote lever
  • saddle
    whyte custom, suv comfort sport, single panel, with moulded rear handle
  • handlebar
    whyte 6061 alloy, 25mm rise, 31.8mm, 720mm wide
  • stem
    whyte alloy 6061, 35mm extension
  • grips
    whyte custom dual density lock-on
  • brakes front
    tektro orion, 4-piston with sintered metal pads, 200mm disc, post mount
  • brakes rear
    tektro orion, 4-piston with sintered metal pads, 200mm disc, post mount, internal routing
  • brake levers
    tektro orion
  • pedals
    none
  • drive unit
    performance cx 85nm
  • battery
    500wh
  • battery charger
    2 amp
  • display
    purion
Sizing Information
