Rail 7 is a long-travel electric mountain bike built for ripping the big stuff.
Rail 7 is a long-travel electric mountain bike built for ripping the big stuff.
Trek

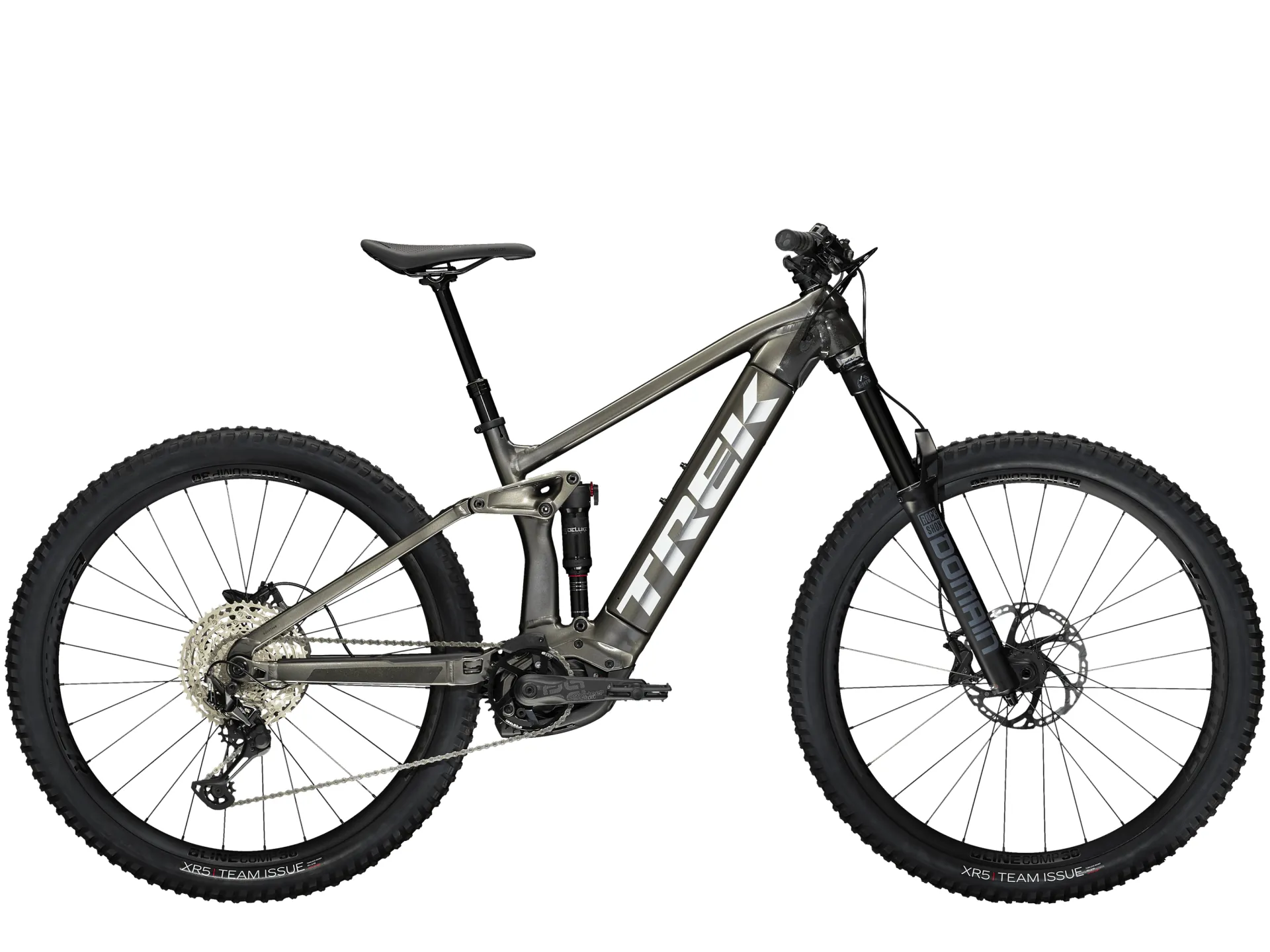

Trek Rail 7 Deore/Xt Electric Mountain Bike in Mercury/Black

£4,350.00
Size Guide
Trek Rail 7 Deore/Xt Electric Mountain Bike in Dark Prismatic
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Trek Rail 7 Deore/Xt Electric Mountain Bike in Mercury/Black

Season:2022

Brand:Trek

Code:35035MercuryBLK

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff.

It features the same high-end trail tech as our analogue trail bikes, an upgraded fork, drivetrain, battery and more, plus a powerful Bosch drive system that's basically like having your own shuttle.
Technical Information
  • Frame
  • Size:S
    Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Size:M, L, XL
    Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Fork
    RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
  • Shock
    RockShox Deluxe Select+ RT, 230mm x 57.5mm
  • Max compatible fork travel
    170mm (580mm axle-to-crown)
  • Hub rear
    Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve
  • Tyre
    Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29 x 2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.60", Fork: See manufacturer
  • Shifter
    Shimano SLX M7100, 12-speed
  • Rear derailleur
    Shimano XT M8100, long cage
  • Crank
    E*thirteen E*spec Plus, 165 mm length
  • Chainring
    E*thirteen E*spec, 34T alloy, 55 mm chainline
  • Cassette
    Shimano Deore M6100, 10-51, 12-speed
  • Chain
    Shimano Deore M6100
  • Pedal
    VP-536 nylon platform
  • Max. chainring size
    1x: 34T
  • Saddle
    Bontrager Arvada, steel rails, 138 mm width
  • Seatpost
  • Size:S
    TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
  • Size:M, L, XL
    TranzX JD-YSP18, 150mm travel, internal routing, 31.6 mm, 470mm length
  • Handlebar
    Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
  • Grips
    Bontrager XR Trail Comp, nylon lock-on
  • Stem
    Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
  • Brake
    SRAM Code R 4-piston hydraulic disc
  • Brake rotor
    SRAM CentreLine, 6-bolt, round edge, 200 mm
  • Brake Set
    SRAM Code R 4-piston hydraulic disc
  • Rotor size
    Max brake rotor sizes: Front see fork manufacturer, rear 200mm
  • Battery
    Bosch PowerTube 625Wh, smart system
  • Charger
    Bosch standard 4A, 230V, smart system
  • Motor
    Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Computer
    Bosch LED remote, smart system
  • Computer
    Fazua Evation touch remote
Sizing Information

Road & Gravel

SizeRider HeightInseam
49156 - 163 cm
(5'1" - 5'4")		74 - 77 cm
(29" - 30")
52163 - 168 cm
(5'4" - 5'6")		76 - 79 cm
(30" - 31")
54168 - 174 cm
(5'6" - 5'9")		78 - 82 cm
(31" - 32")
56174 - 180 cm
(5'9" - 5'11")		81 - 85 cm
(32" - 33")
58180 - 185 cm
(5'11" - 6'1")		84 - 87 cm
(33" - 34")
61185 - 191 cm
(6'1" - 6'3")		86 - 90 cm
(34" - 35")


Mountain & City

SizeRider HeightInseam
XS145 - 155 cm69 - 73 cm
S155 - 165 cm74 - 78 cm
M165 - 176 cm79 - 83 cm
M/L173 - 180 cm81 - 86 cm
L177 - 188 cm84 - 89 cm
XL188 - 195 cm89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
