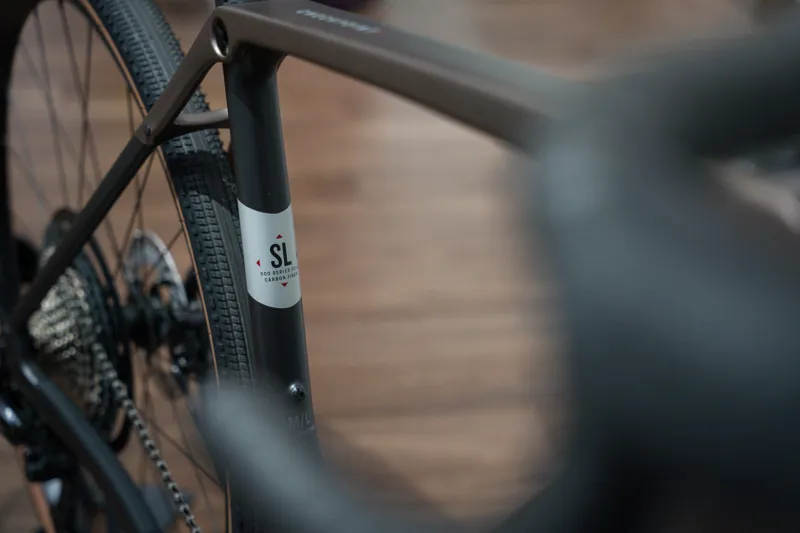

Trek Checkpoint+ SL 5 BRONZE AGE/DARK WEB-11

Checkpoint+ SL 5 EU XL Matte Bronze Age/Dark Web

Trek

Trek Checkpoint+ SL 5 BRONZE AGE/DARK WEB

£4,500.00

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

30 Day Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 30 days of receiving your order for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

Please Note:It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges (excluding faulty items).

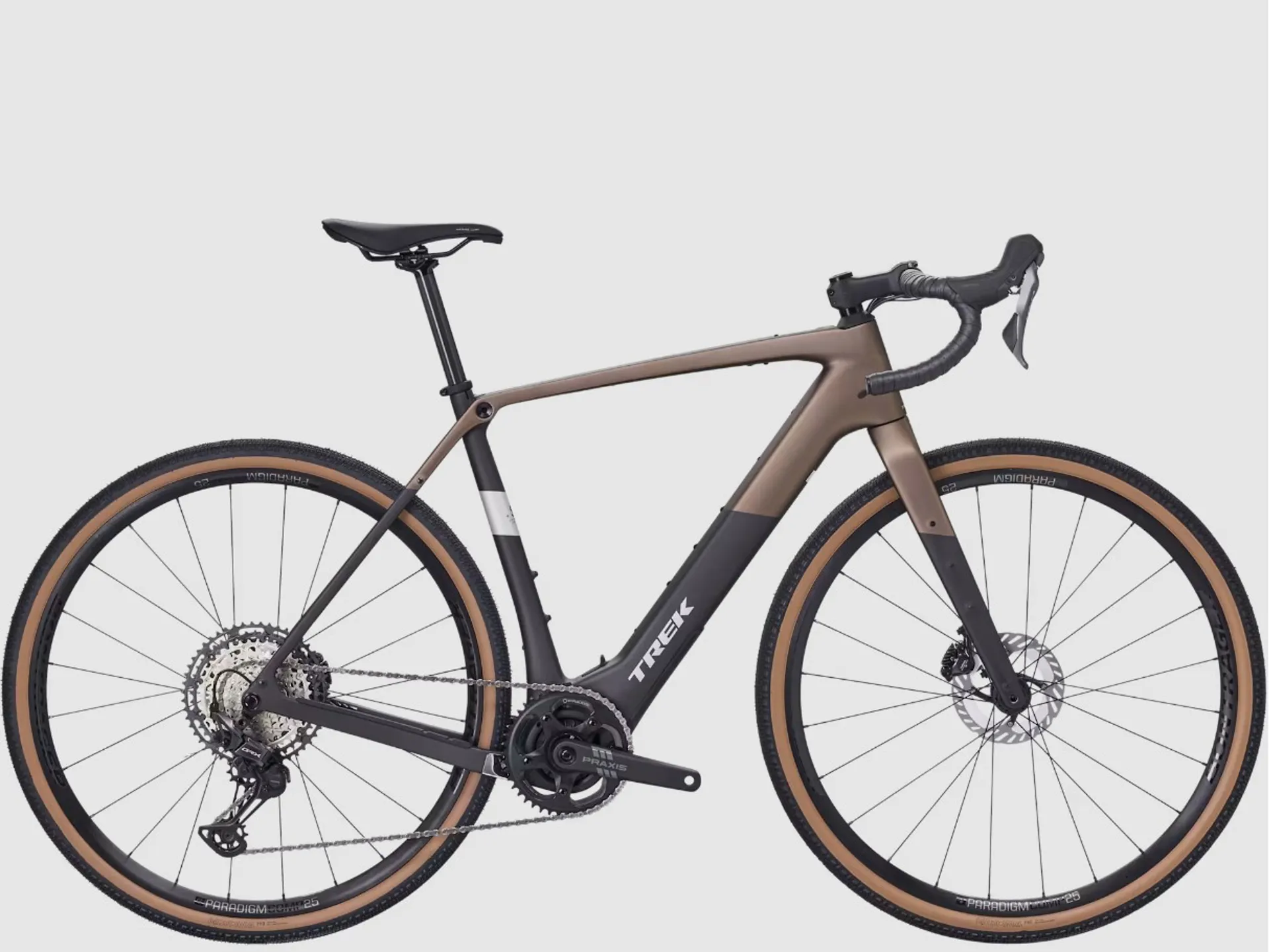

Trek Checkpoint+ SL 5 BRONZE AGE/DARK WEB

Season:2026

Brand:Trek

Code:57446MATBNZAGEWEB

The checkpoint+ sl 5 is an electric gravel bike built to take you the distance. You get the smooth and natural-feeling boost of tq's hpr60 motor to get you through tough climbs and a 360 wh battery that keeps going on your biggest rides. It comes ready to roll with an oclv carbon frame, 12-speed Shimano grx 1x shifting and endurance geometry to keep you comfortable for the long haul

Technical Information

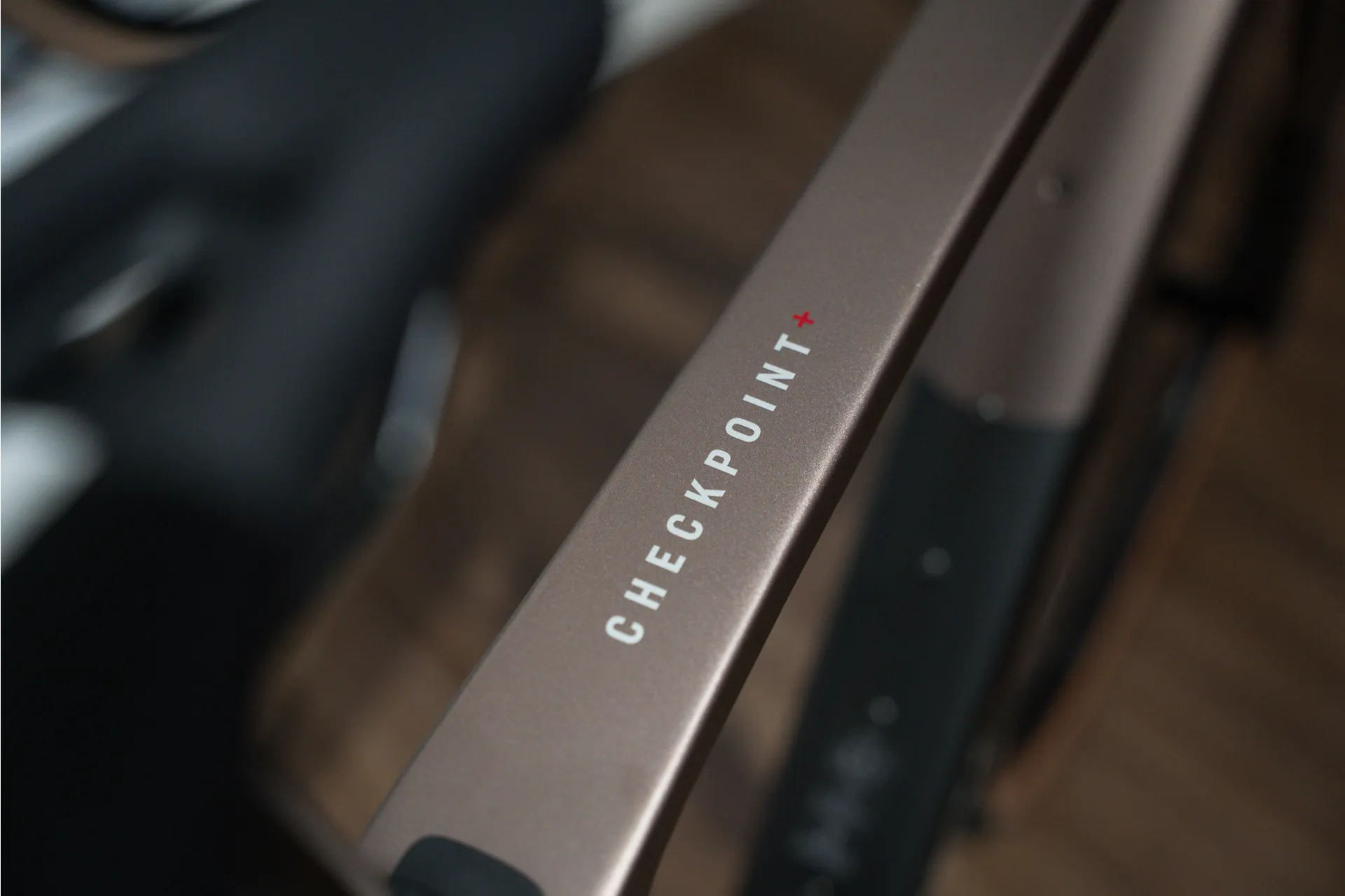

Frame: 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle
*Fork: Size:XS, S, M, ML, L, XL
Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Size:XS, S, M, ML, L, XL
Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle

Weight: ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery: TQ 360Wh
Charger: TQ 4A charger

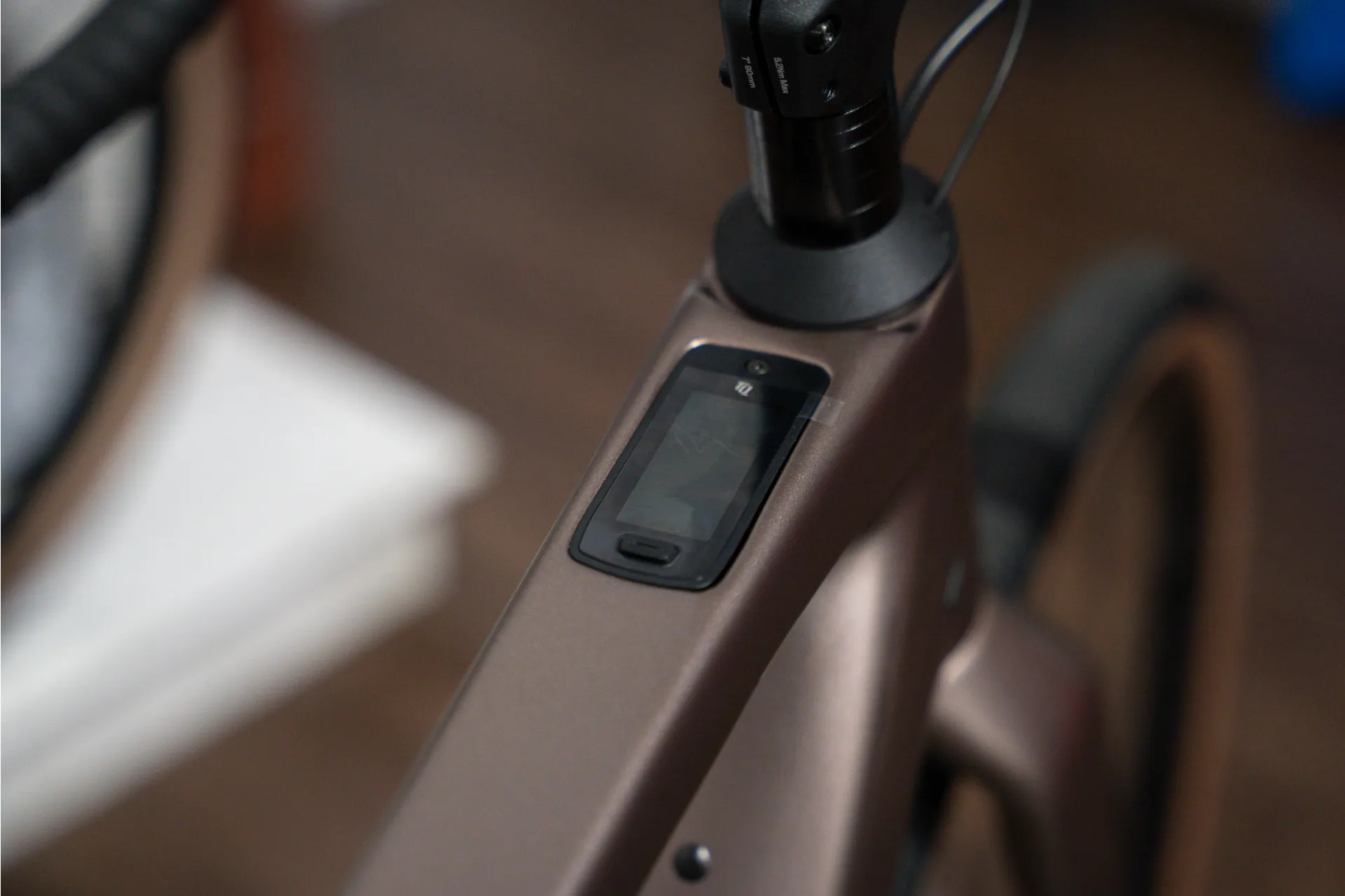

Computer: TQ LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Shifter: Shimano GRX RX820, 12-speed
Rear derailleur: Shimano GRX RX822, 51T max cog
*Crank: Size:XS, S

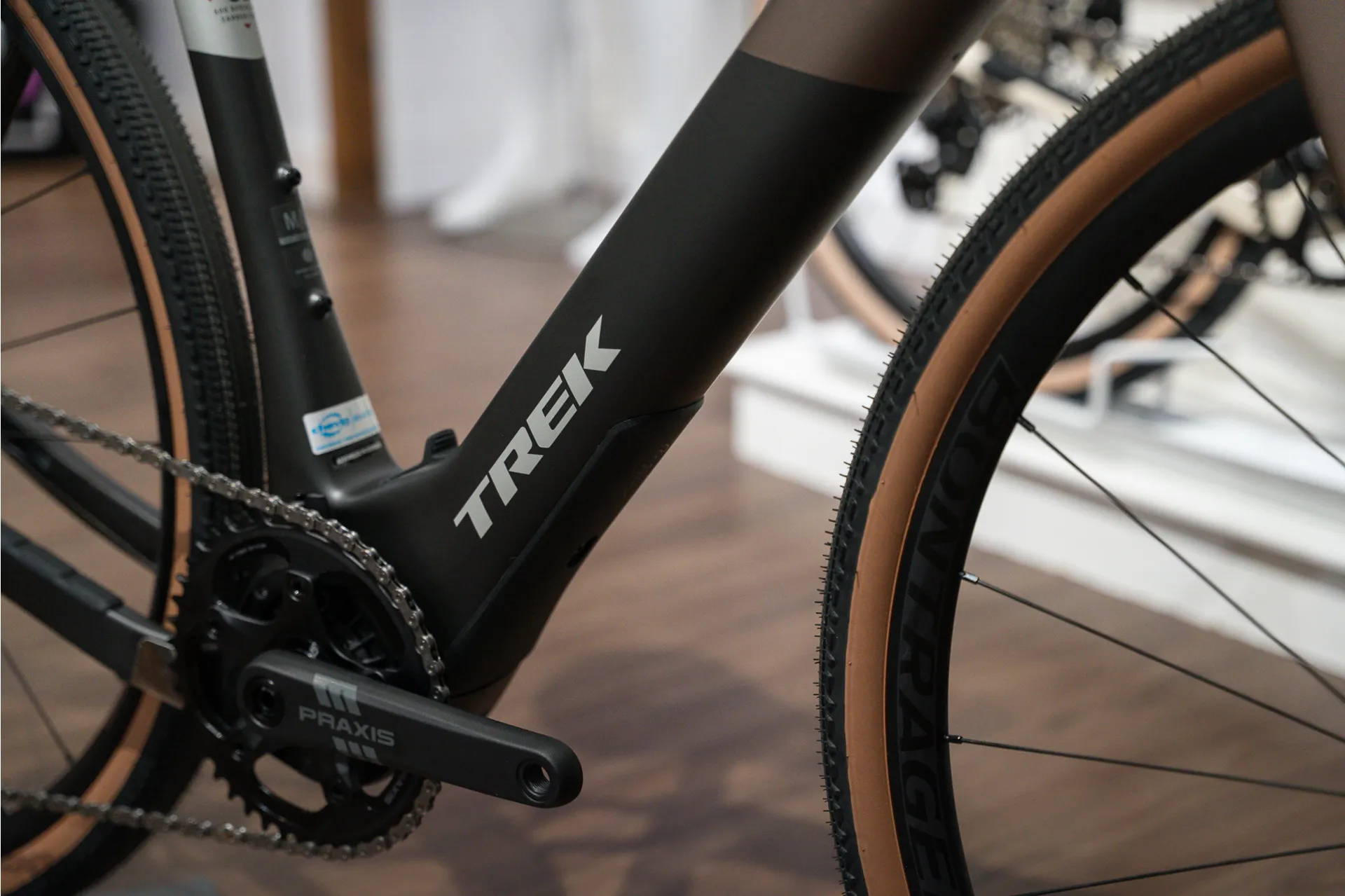

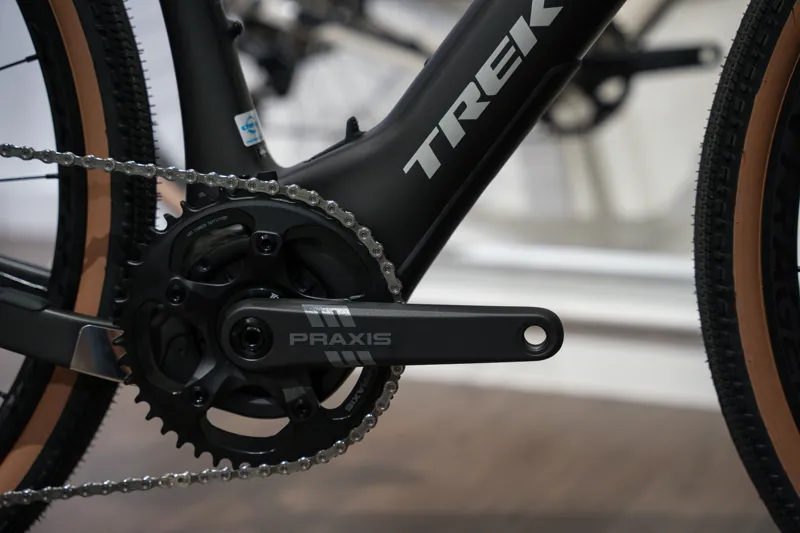

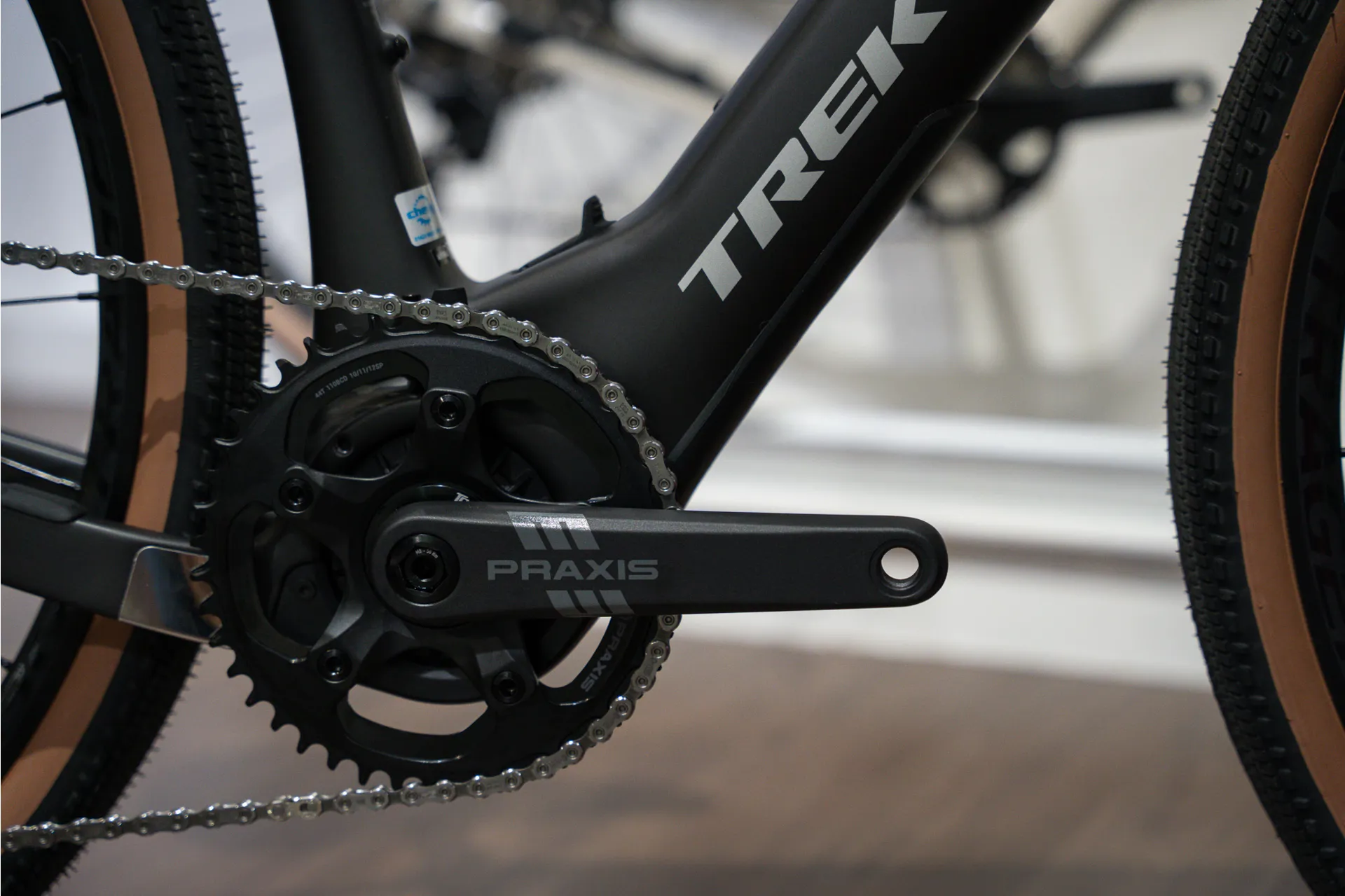

Praxis Alloy, 165 mm length
Size:M, ML
Praxis Alloy, 170 mm length
Size:L, XL
Praxis Alloy, 172.5 mm length
Cassette: Shimano XT M8200, 10-51, 12-speed
Chain: Shimano XT M8100, 12-speed
Max. chainring size: 1x: 44T

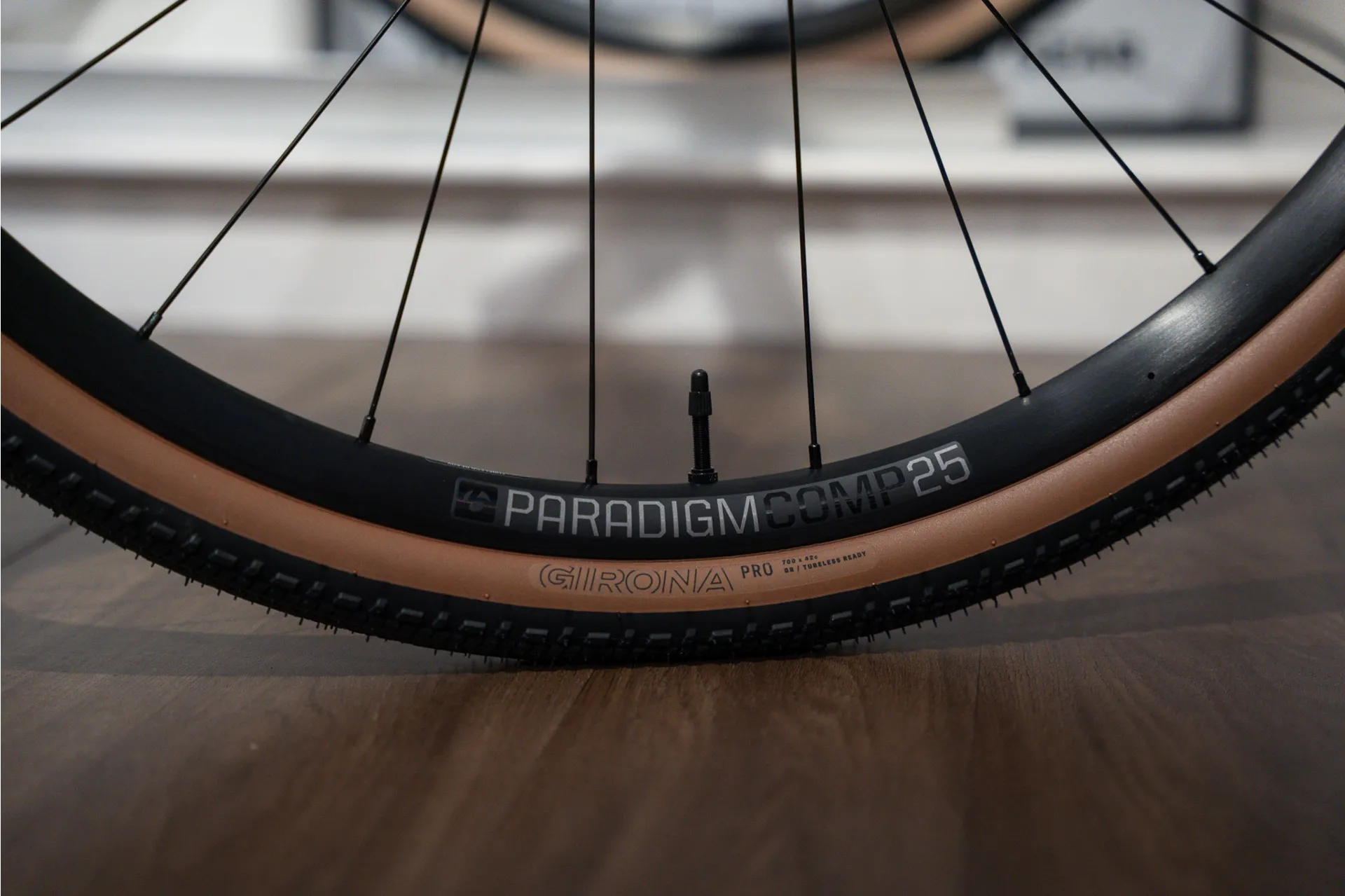

Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tyre: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size: 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)

Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar: Size:XS, S
Bontrager Elite Gravel, alloy, 40 cm width
Size:M, ML
Bontrager Elite Gravel, alloy, 42 cm width
Size:L
Bontrager Elite Gravel, alloy, 44 cm width
Size:XL
Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tape: Bontrager Supertack Perf tape
*Stem: Size:XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:S, M
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:ML, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
Size:XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Brake rotor: Shimano CL800, CentreLock, 160 mm

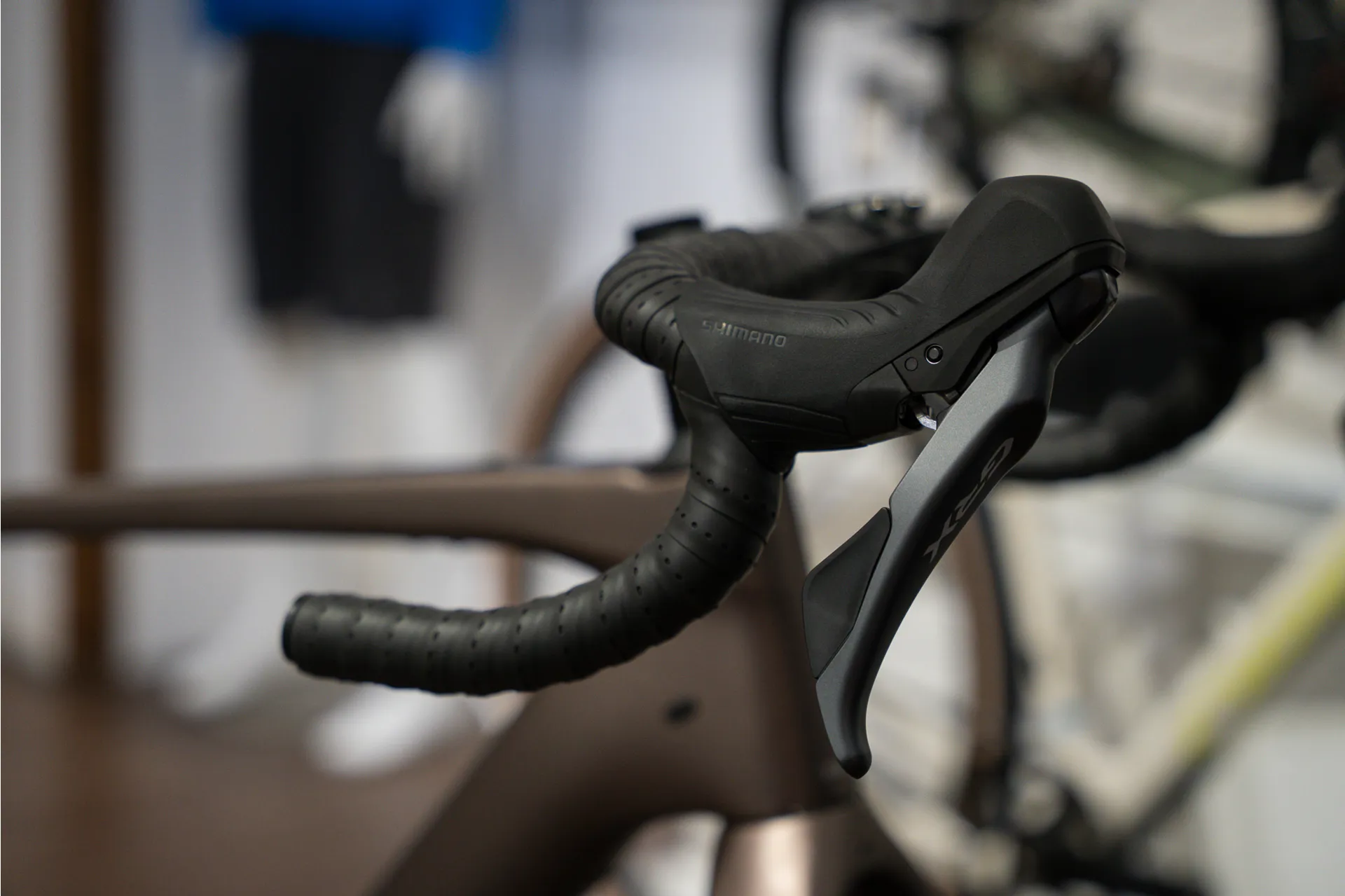

Brake lever: Shimano GRX RX820, 12-speed
Rotor size: Max brake rotor sizes: 180 mm front and rear

Sizing Information

Road & Gravel

Size	Rider Height	Inseam
49	156 - 163 cm (5'1" - 5'4")	74 - 77 cm (29" - 30")
52	163 - 168 cm (5'4" - 5'6")	76 - 79 cm (30" - 31")
54	168 - 174 cm (5'6" - 5'9")	78 - 82 cm (31" - 32")
56	174 - 180 cm (5'9" - 5'11")	81 - 85 cm (32" - 33")
58	180 - 185 cm (5'11" - 6'1")	84 - 87 cm (33" - 34")
61	185 - 191 cm (6'1" - 6'3")	86 - 90 cm (34" - 35")

Mountain & City

Size	Rider Height	Inseam
XS	145 - 155 cm	69 - 73 cm
S	155 - 165 cm	74 - 78 cm
M	165 - 176 cm	79 - 83 cm
M/L	173 - 180 cm	81 - 86 cm
L	177 - 188 cm	84 - 89 cm
XL	188 - 195 cm	89 - 91 cm

Please note that this is a general guide, and the best way to determine the correct size for a specific model is to consult Trek's website for that particular model. Additionally, factors such as inseam length, riding style, and personal preference may also affect the ideal size for a given rider.
