The OC (Orbea Components) ANT+ LEV display is designed to be used with Orbea ebikes equipped with the MAHLE Ebikemotion® X35 system.
The head unit pairs to the system via ANT+ LEV and allows for the visualization of the system´s information, while also enabling the rider to change between assist levels from the unit itself. The system´s most relevant information can thus be accessed without using the MAHLE Ebikemotion® mobile app.
The use of the MAHLE Ebikemotion® mobile app to record an activity, navigation and other functions is still possible while the system is connected via ANT+ to the OC display. Both connections may be used at the same time, allowing the rider to enjoy all the functionalities and data visualization without having to mount the smartphone on the handlebar during the activity.

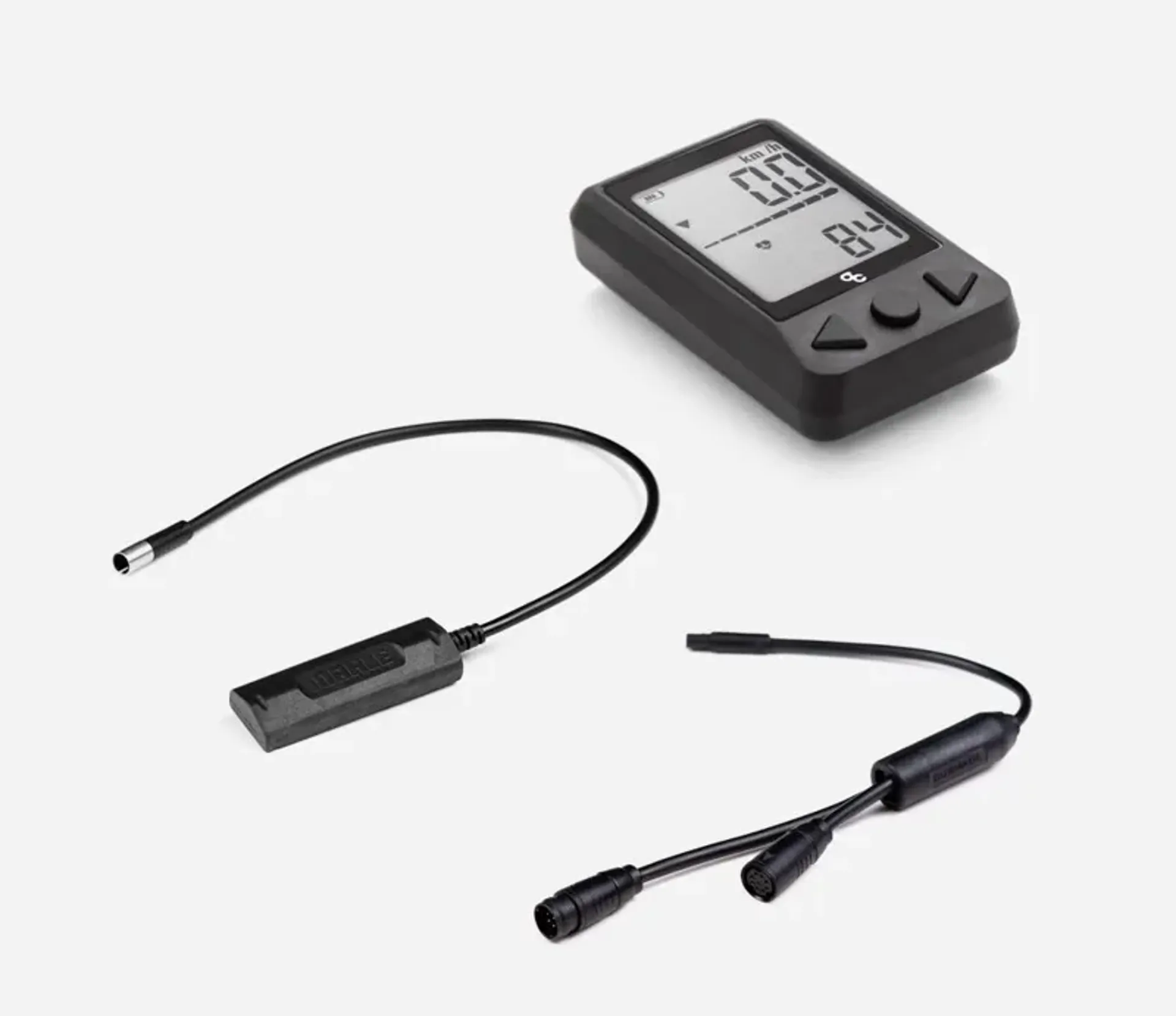

The MAHLE Ebikemotion® ANT+ LEV dongle allows your Orba ebike equipped with the X35 system to gain ANT+ LEV connectivity for the display of the system data on compatible head units.
Paired with the OC ANT+ LEV display, you will be able to visualize the following system data:
-Current speed.
-Internal X35 battery charge level.
-Total system odometry.
-Current assist level.
-System errors.
Consult the OC ANT+ LEV display user manual from our website.
Download the ANT+ LEV dongle and Iwoc Trio+ remote user manual from the Support section of our website.
X35 SYSTEM COMPATIBLE VERSIONS WITH THE ANT+ LEV DONGLE AND IWOC TRIO+
From Model Year 2020, all Orbea ebikes equipped with a MAHLE Ebikemotion® X35 system do have ANT+ connectivity from the factory, which allows for the visualization of the X35 system data on compatible head units, such as the OC ANT+ LEV display, amongst other units in the market.
Contact Orbea or your distributor to learn what range your Orbea ebike belongs to.
Not all versions of the MAHLE Ebikemotion® X35 system can be updated to gain ANT+ LEV connectivity by the use of the ANT+ LEV dongle or the Iwoc Trio+ remote.
Only versions of the system that use Cusmade C1206 round connectors can be updated by the use of these components. Versions of the X35 system which use Hirose DF63 square connectors are not compatible with the ANT+ LEV dongle or the Iwoc Trio+ remote.
To find out what type of connectors the X35 system on your Orbea ebike uses, remove the plastic cover on the underside of the bottom bracket area and locate the cable that connects the internal battery to the charging point. If the connector between these two cables is a round Cusmade C1206, the system is compatible with the installation of the ANT+ LEV dongle or the Iwoc Trio+ remote. If the connector is a square Hirose DF63, the system cannot be updated to gain ANT+ LEV connectivity without replacing the complete electric system (internal battery, PASS sensor, charging point and remotes).
If in doubt about what version of the X35 system is installed on your bicycle, contact Orbea or your distributor
WHAT DEVICE DOES MY BICYCLE NEED?
Once determined that the X35 system on your bicycle is compatible with the installation of the ANT+ LEV dongle or the Iwoc Trio+ remote, your Orbea bicycle model and therefore its specific system configuration will determine what device must be used to give the system ANT+ LEV connectivity:
-ANT+ LEV dongle: For Orbea ebikes that do not use the Iwoc Trio handlebar remote.
Compatible models: Orbea Gain M and Gain D with road drop handlebars with versions of the X35 system compatible with the installation of the ANT+ LEV dongle.
-Iwoc Trio+ remote: For Orbea ebikes that use the Iwoc Trio handlebar remote.
Compatible models: Orbea Gain F (Urban), Optima E and EMX24 with versions of the X35 system compatible with the installation of the Iwoc Trio+ remote..
Download the ANT+ LEV dongle and Iwoc Trio+ remote user manual from the Support section of our website.
